Case, Motherboard & PSU

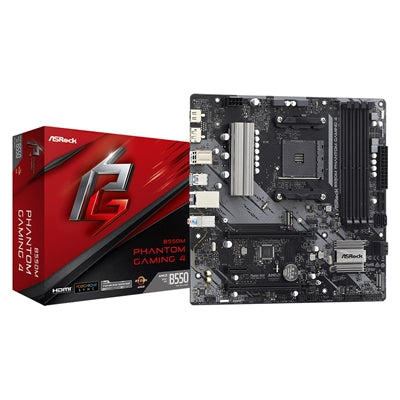

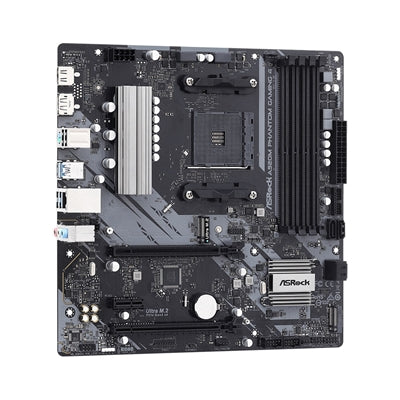

MOTHERBOARD

• Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors)
• 8 Power Phase design
• Supports DDR4 4733+ (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
• Supports AMD CrossFireX™
• Graphics Output Options: HDMI, DisplayPort
• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• 4 x SATA3, 1 x Hyper M.2(PCIe Gen4 x4), 1 x M.2(PCIe Gen3 x2 & SATA3)
• 8 x USB 3.2 Gen1 (4 Front, 4 Rear)
• 6 x USB 2.0 (4 Front, 2 Rear)
• Realtek Gigabit LAN

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD B550
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support

  *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
• Maximum Memory: 128GB
• Graphics: Integrated Graphics Processor*

  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: Supports AMD Quad CrossFireX
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 x16
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2280) - PCIe
  1 x M.2 (2280) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: -
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• USB Ports Supported: "8 x USB 3.2 Gen1 (4 at back, 4 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"

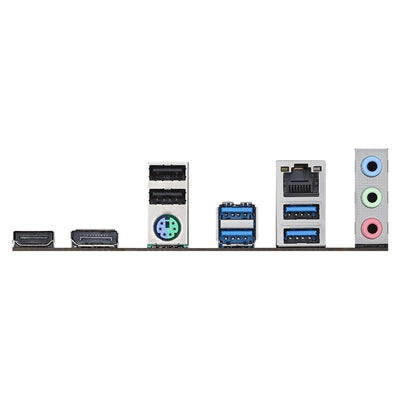

• Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
  1 x HDMI
  1 x DisplayPort 1.4
  4 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Power LED and Speaker
  2 x RGB LED
  2 x Addressable LED
  1 x CPU Fan
  3 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Audio
  2 x USB 2.0
  2 x USB 3.2 Gen1
• Accessories: Quick Installation Guide
  Support CD
  I/O Shield
  2 x SATA Data Cables
  2 x Screws for M.2 Sockets

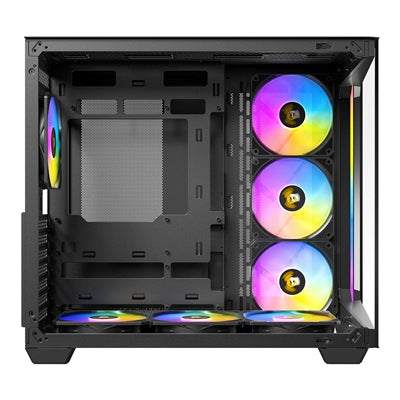

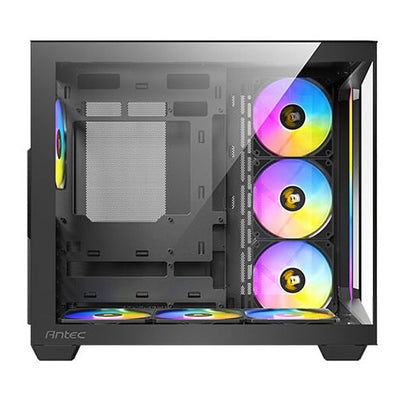

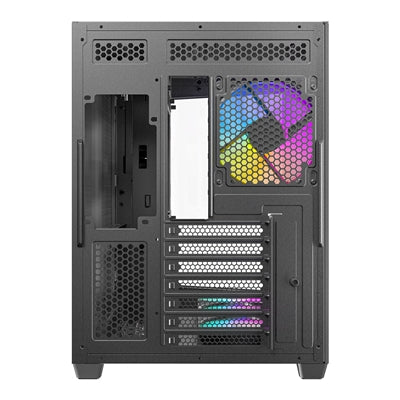

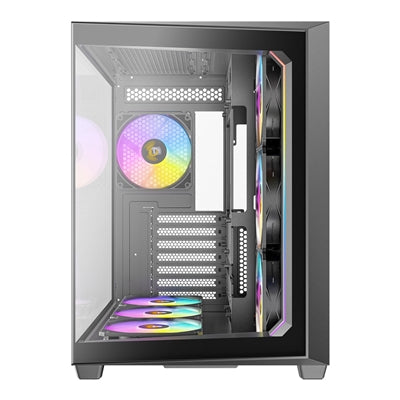

CASE

Dimensions
469 x 285 x 400mm (DWH)

Form Factor
Mid Tower

Materials
Steel + Plastic + Glass

Mainboard Support
ATX, Micro-ATX, ITX

Front Access & Controls
Power, LED Control Button, USB 3.0 x 2, Type-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1

Side Panel
4mm Tempered Glass

Drive Bays

Expansion Slots
7

3.5"
1

2.5"
2

Fan Support

Top
3 x 120 / 2 x 140mm

Side
3 x 120 / 2 x 140mm

Bottom
3 x 120mm

Rear
120mm

Included Fan(s)
3 x 120mm PWM ARGB reverse fans at bottom + 3 x 120mm PWM ARGB reverse fans on right side + 1 x 120mm PWM ARGB fan in rear

Radiator Support

Top
120 / 140 / 240 / 280 / 360mm

Side
120 / 140 / 240 / 280mm

Bottom
120 / 240 / 360mm

Rear
120mm

Clearance

Max GPU Length
= 410mm

Max CPU Cooler Height
= 160mm

Max PSU Length
(Include cable)= 240mm

Miscellaneous

Dust Filter
Top / Bottom

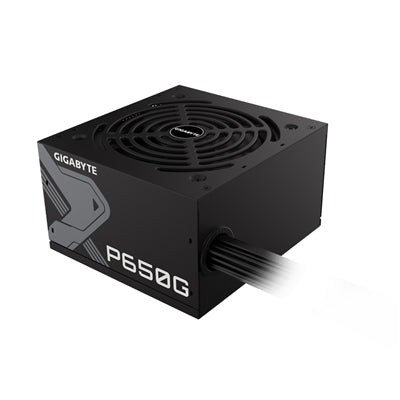

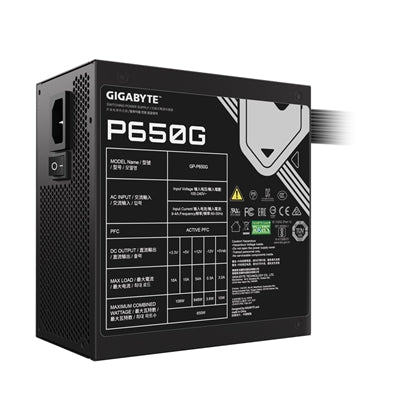

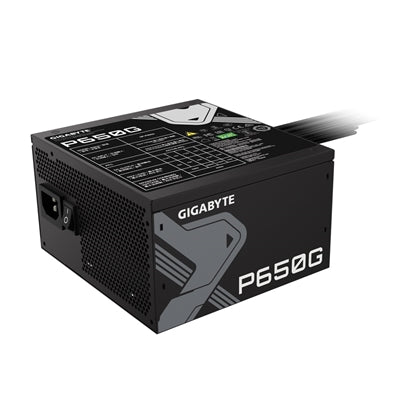

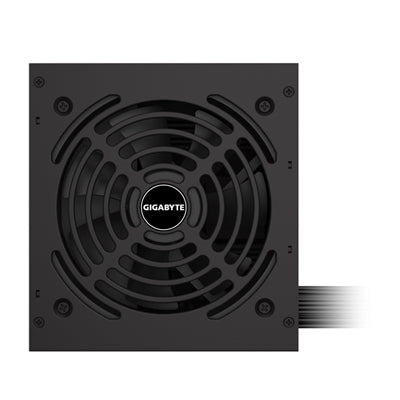

PSU

Model
GP-P650G

Type
Intel Form Factor ATX 12V

PFC
Active PFC(>0.9 typical)

Input Voltage
100-240 Vac(full range)

Input Current
9-4A

Input Frequency
60-50 Hz

Output Capacity
650W

Dimension
150 x 140 x 86 mm

Fan Type
120mm Hydraulic Bearing (HYB) Fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-500ms

Hold Up Time
>16ms

Cable Type
Flat, All black

Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-e 6+2 Pin x 4 : 500mm+150mm*2
SATA x 6 : 500mm+150mm+150mm*2
4 Pin Peripheral x 3: 500mm+150mm+150mm*1
