Gigabyte

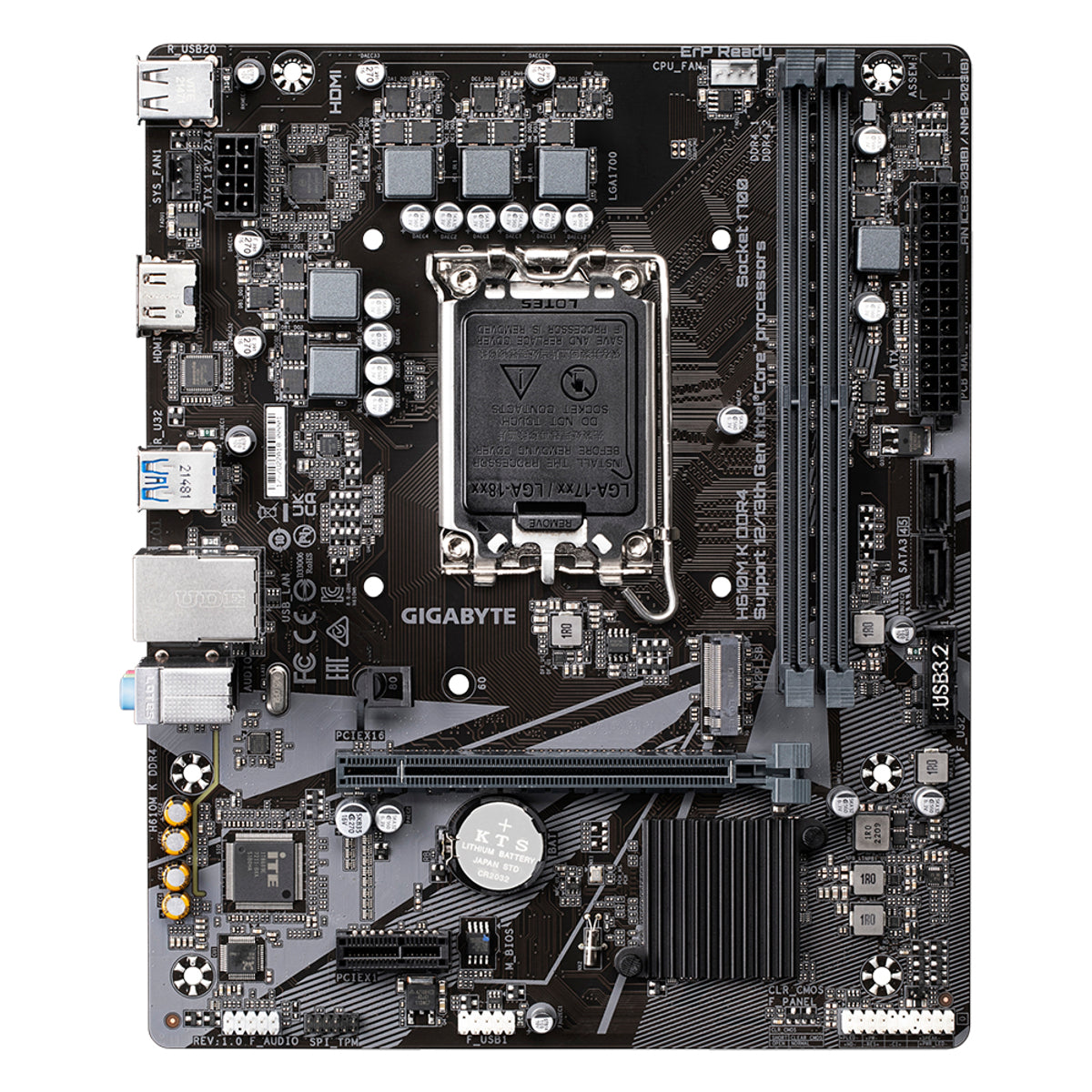

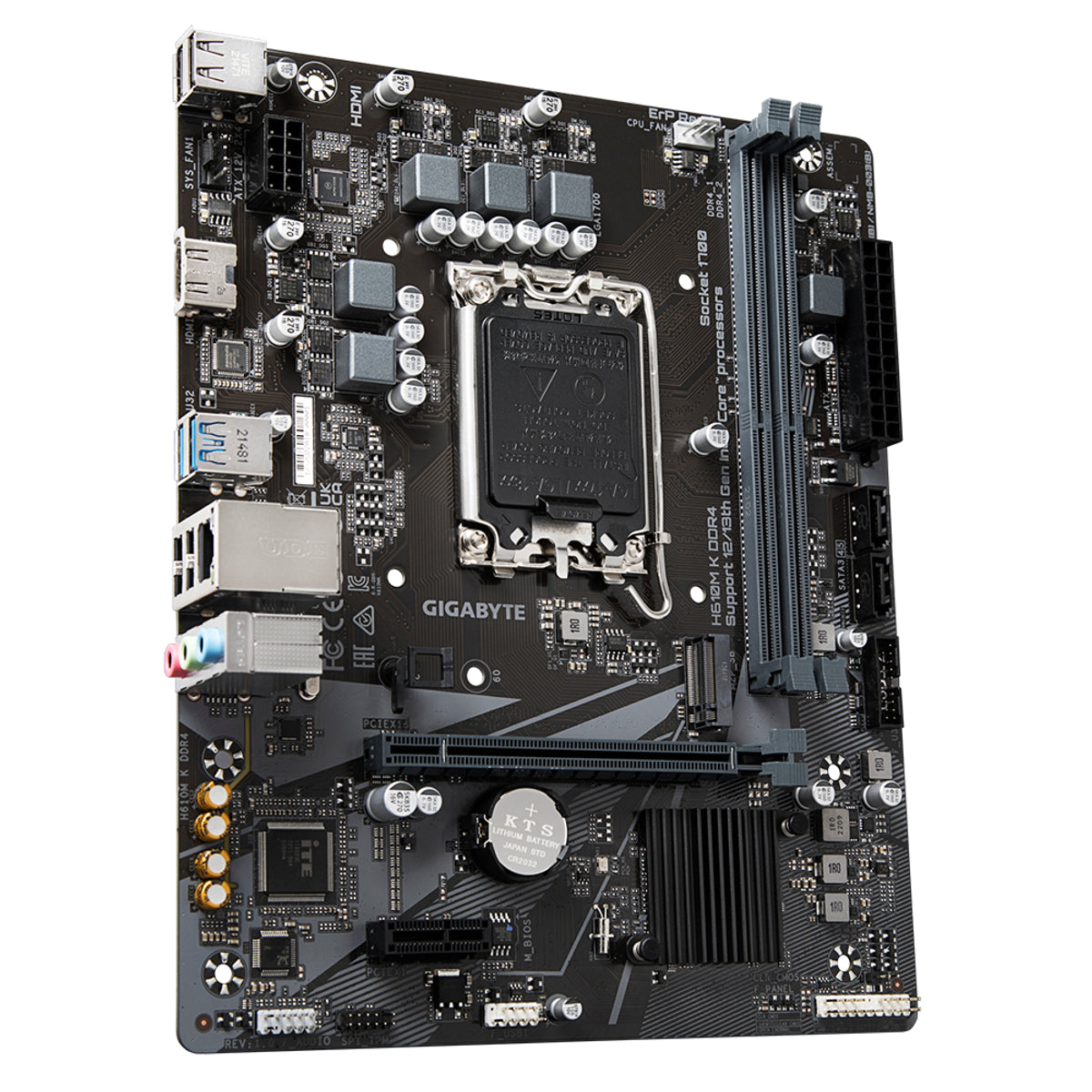

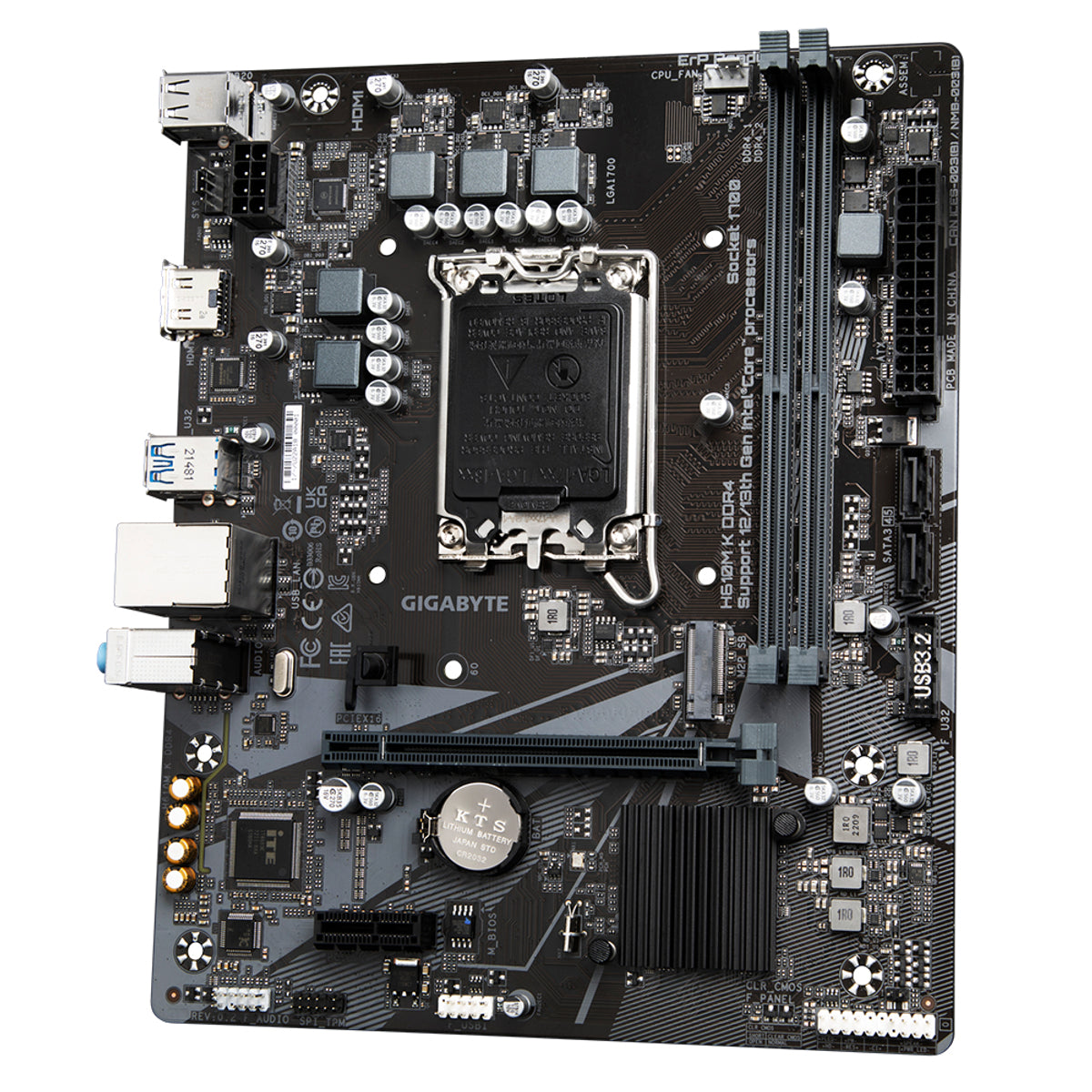

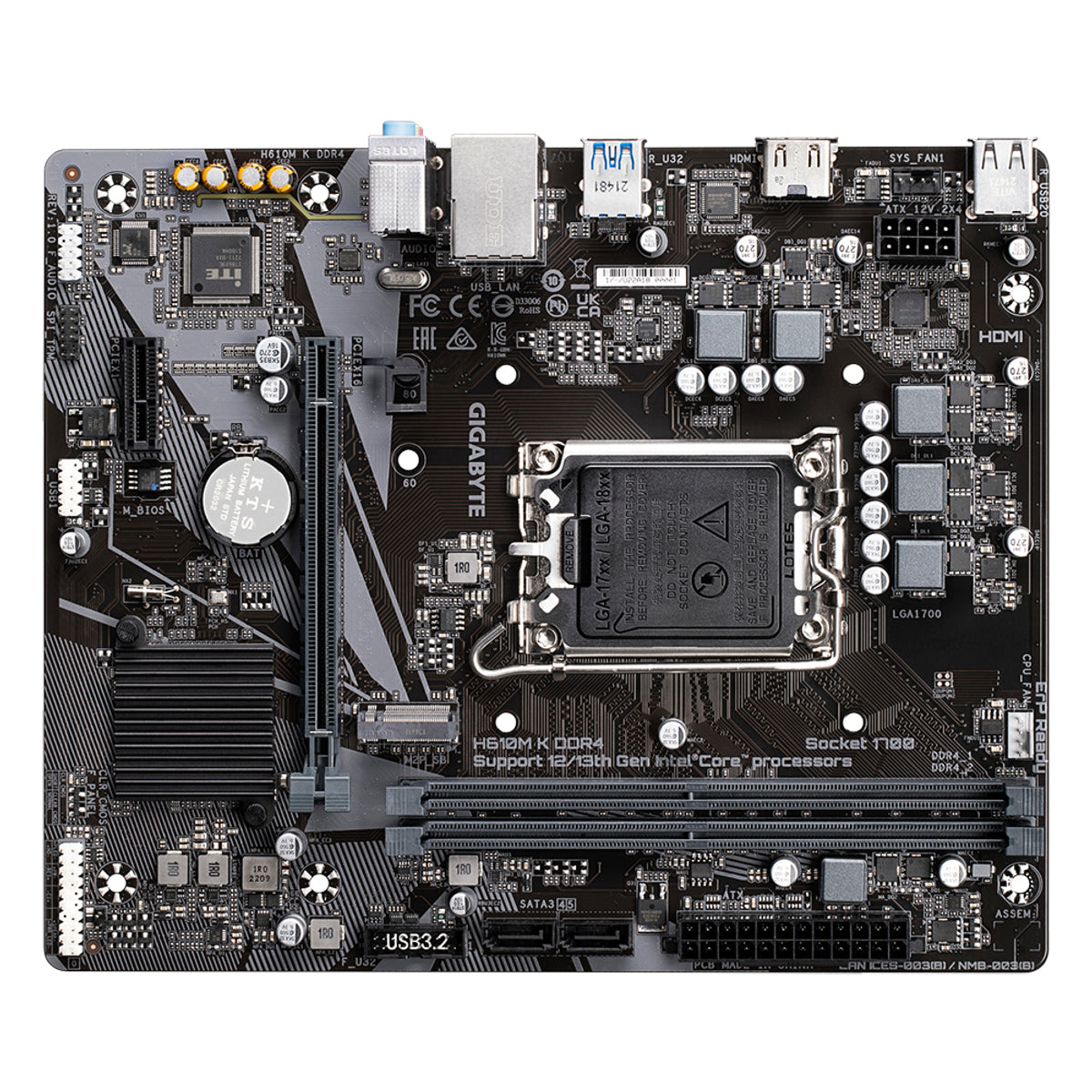

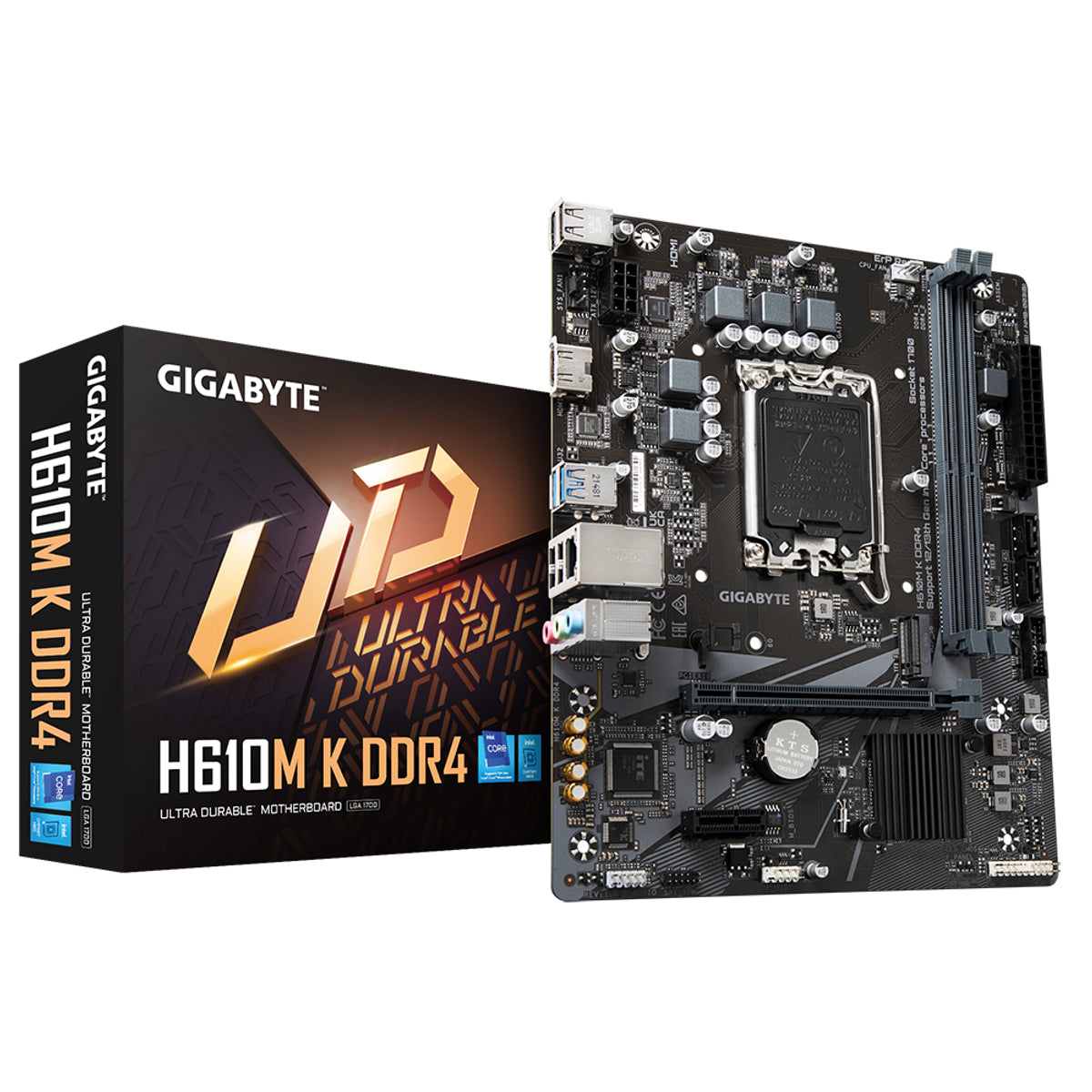

GIGABYTE H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel Celeron, Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium Gold, DDR4-SDRAM, 64 GB, DIMM
GIGABYTE H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel Celeron, Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium Gold, DDR4-SDRAM, 64 GB, DIMM
Couldn't load pickup availability
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Product Summary
Brand - Gigabyte
SKU - 10442576
Manu Part # - H610M K DDR4
EAN - 4719331851675
Warranty Information - 3 years
Features
Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
Processor
Maximum number of SMP processors - 1
Processor socket - LGA 1700
Processor manufacturer - Intel
Compatible processor series - Intel Celeron, Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium Gold
Memory
Supported memory types - DDR4-SDRAM
Unbuffered memory - Yes
Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum RDIMM memory - 64 GB
Supported memory clock speed (max) - 3200 MHz
Number of memory slots - 2
Maximum internal memory - 64 GB
Memory slots type - DIMM
Supported memory clock speeds - 2133,2400,2666,2933,3000,3200 MHz
Memory channels - Dual-channel
ECC ompatibility - ECC & Non-ECC

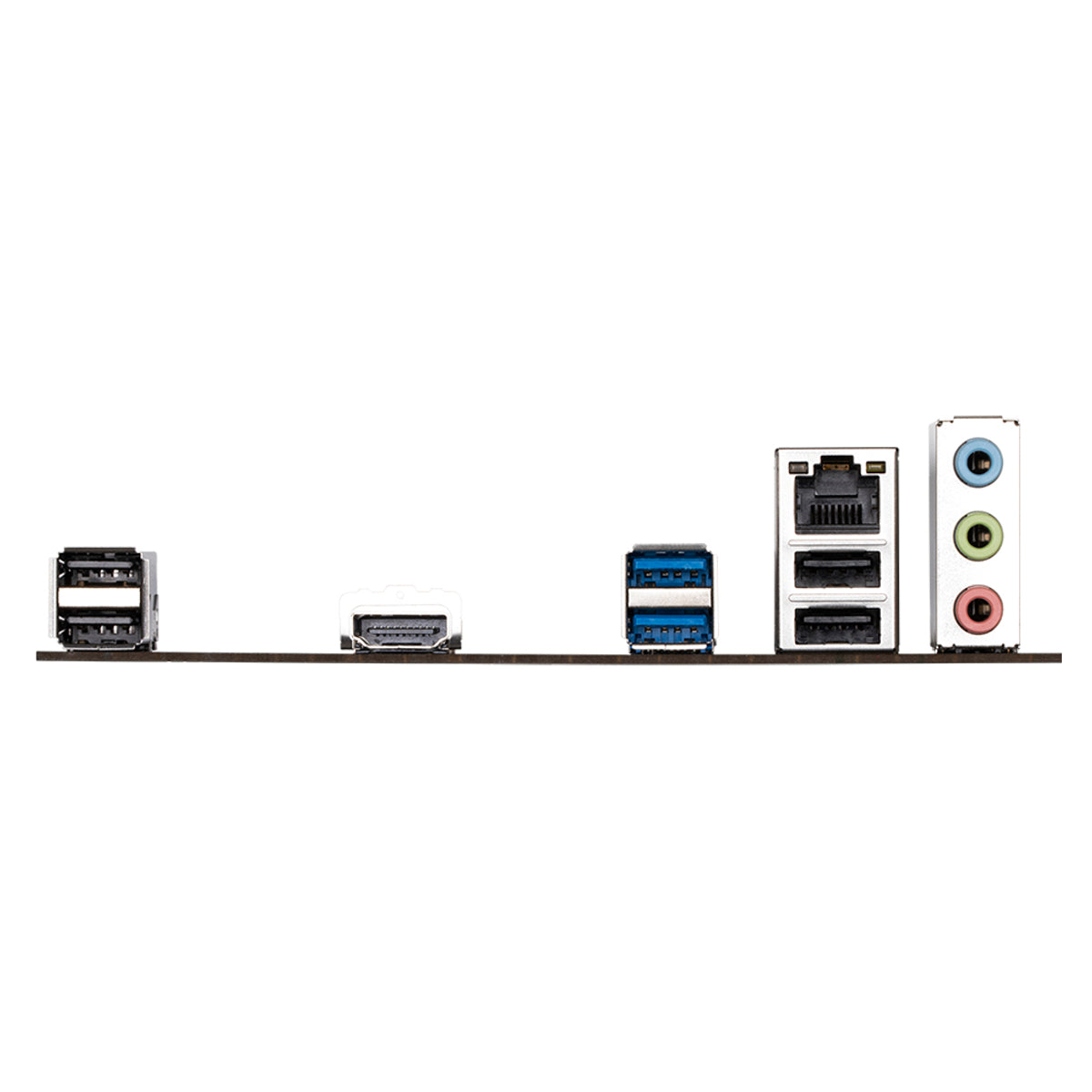

Rear panel I/O ports
HDMI ports quantity - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
USB connector type - USB Type-A
Microphone in - Yes
Headphone outputs - 1
Ethernet LAN (RJ-45) ports - 1
HDMI version - 2.1
Line-in - Yes
USB 2.0 ports quantity - 4
Internal I/O
Power fan connector - Yes
USB 2.0 connectors - 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
CPU fan connector - Yes
Total number of SATA connectors - 2
12V power connector - Yes
Number of EATX power connectors - 1
Front panel connector - Yes
TPM connector - Yes
Audio connector - Yes
Front panel audio connector - Yes
ATX Power connector (24-pin) - Yes
Number of SATA III connectors - 2
Number of chassis fan connectors - 1
EPS power connector (8-pin) - Yes
Graphics
Parallel processing technology support - Not supported
Maximum resolution - 4096 x 2160 pixels
HDCP - Yes
Weight & dimensions
Height - 35 mm
Width - 226 mm
Depth - 185 mm
BIOS
Clear CMOS button - Yes
ACPI version - 5.0
System Management BIOS (SMBIOS) version - 2.7
Desktop Management Interface (DMI) version - 2.7
BIOS type - UEFI AMI
BIOS memory size - 128 Mbit
Clear CMOS jumper - Yes
Packaging content
Cables included - SATA
Batteries included - Yes
Bundled software - Norton Internet Security (OEM version) LAN bandwidth management software
Storage controllers
Supported storage drive types - HDD & SSD
Number of storage drives supported - 3
Supported storage drive interfaces - M.2, SATA III
Number of HDDs supported - 2
Technical details
Warranty period - 3 year(s)
Network
LAN controller - Realtek RTL8111H
Wi-Fi - No
Ethernet LAN - Yes
Ethernet interface type - Gigabit Ethernet
Expansion slots
PCI Express x1 (Gen 3.x) slots - 1
Number of M.2 (M) slots - 1
PCI Express x16 (Gen 4.x) slots - 1
Battery
Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery type - CR2032
Battery weight - 3 g
Number of battery cells - 1
Lithium weight per battery - 0.07 g
Features
Motherboard chipset - Intel H610 Express
PC health monitoring - Fan, Temperature, Voltage, Water cooling
Windows operating systems supported - Windows 10 x64, Windows 11 x64
Product colour - Brown
Motherboard chipset family - Intel
Power source type - ATX
Component for - PC
Audio chip - Realtek ALC897
Audio output channels - 7.1 channels
Motherboard form factor - micro ATX
Packaging data
Package height - 52 mm
Package depth - 235 mm
Package width - 265 mm
Package weight - 717 g
