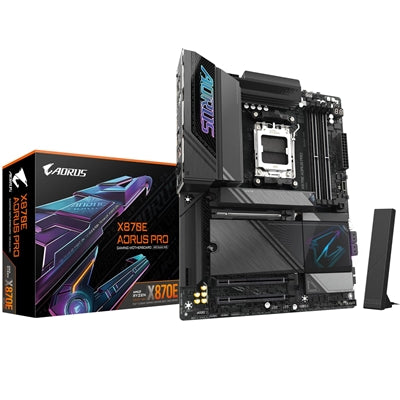

Gigabyte X870E AORUS PRO AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, 3x USB-C Port, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 7, 2x HDMI Port / 2x USB-C (USB4)
Gigabyte X870E AORUS PRO AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, 3x USB-C Port, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 7, 2x HDMI Port / 2x USB-C (USB4)
Couldn't load pickup availability
SHIPPING IS £6.70 FOR ENTIRE BASKET, OR SPEND £200 FOR FREE SHIPPING
Key Features
AMD Socket AM5:Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5:4*DIMMs with AMD EXPOMemory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click:M.2 heatsinks with screwless design
Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4
Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L

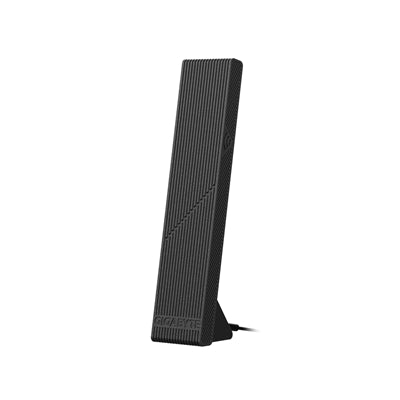

Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

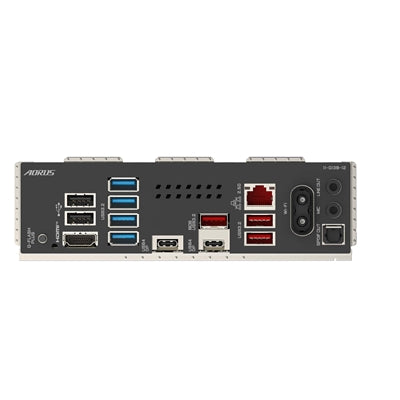

| BACK PANEL I/O PORTS | |
|---|---|
| PS/2 ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 0 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 2 |
| USB4 Gen 3x2 ports quantity | 0 |
| BATTERY | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| EXPANSION SLOTS | |
| PCI Express x4 slots | 2 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x1 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| PCI Express x1 (Gen 4.x) slots | 0 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 0 |
| PCI Express x8 (Gen 5.x) slots | 0 |
| 1st M.2 largest key size | 25110 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 highest PCI Express generation | 4.0 |
| FEATURES | |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| GRAPHICS | |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| On-board graphics card | No |
| INTERNAL I/O | |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 6 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of RGB LED pin headers | 4 |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| LOGISTICS DATA | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| MEMORY | |
| Maximum internal memory | 256 GB |
| Supported memory clock speeds | 4400,4800,5600,6000,6400,6600,6666,6800,7000,7200,7800,8000,8200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8200 MHz |
| Maximum internal memory per slot | 64 GB |
| ECC ?ompatibility | Non-ECC |
| NETWORKING | |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Qualcomm QCNCM865 |
| OTHER FEATURES | |
| Weight | 2.4 kg |
| mSATA ports quantity | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x4 (Gen 3.x) slots | 0 |
| PACKAGING CONTENT | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| PACKAGING DATA | |
| Package weight | 2.74 kg |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package width | 345 mm |
| PROCESSOR | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 256 GB |
| STORAGE CONTROLLERS | |
| RAID levels | 0, 1, 10 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| TECHNICAL DETAILS | |
| Warranty period | 3 year(s) |
| WEIGHT & DIMENSIONS | |
| Height | 35 mm |
| Width | 305 mm |
| Depth | 244 mm |
