Board & Case Bundle - 2

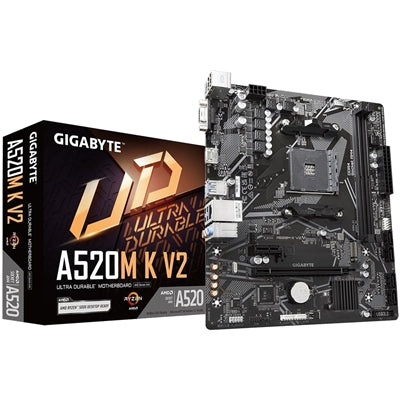

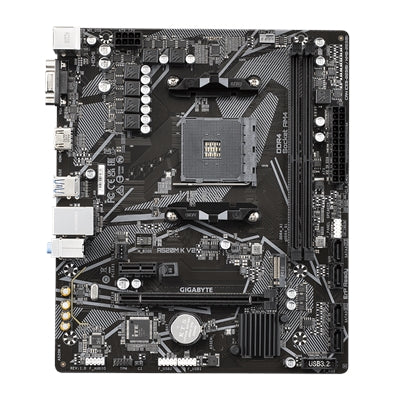

Specifications

CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors

Chipset
AMD A520

Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics
Integrated Graphics Processor:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

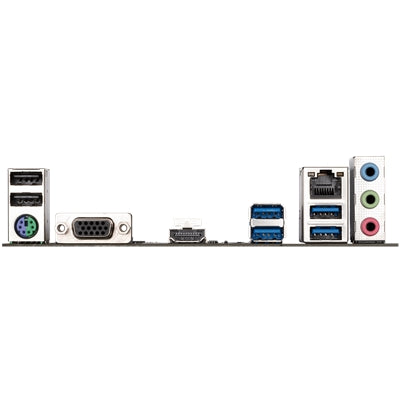

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
(Whether the fan speed control function is supported will depend on the cooler you install.)

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 23.3cm x 19.8cm

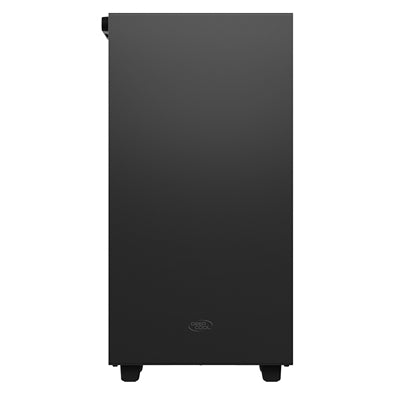

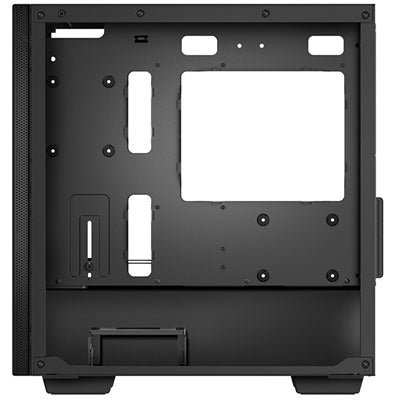

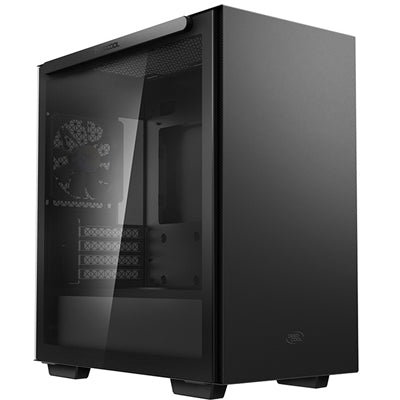

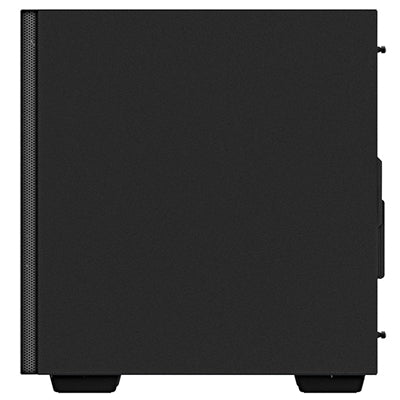

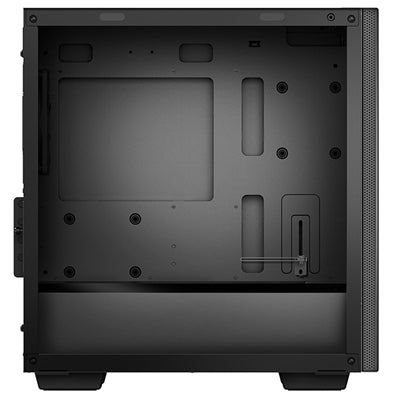

Case

Features
- Refined minimalism design
- Magnetic tempered glass side panel
- Mesh top panel
- Support up to six 120mm or four 140mm cooling fans
- Support radiators up to 280mm on top and in front
- Removable drive cage
- Adjustable GPU holder included

Form Factor
Micro Tower

Motherboard
Micro ATX
Mini-ITX

Colour
Black

Materials
ABS
SPCC
Tempered Glass

Drive Bays
Internal 3.5": 2
Internal 2.5": 2
External 3.5": 0
External 5.25": 0

Power Supply Support
ATX PS2

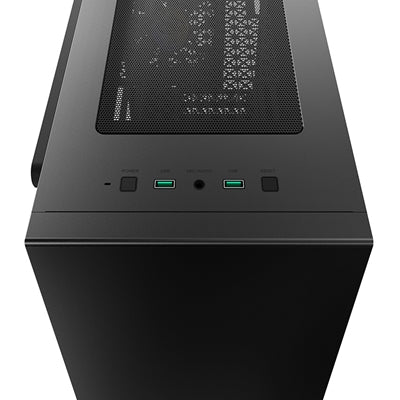

I/O Panel
2 x USB 3.0
1 x Audio

Expansion
Slots: 4

Cooling Fans Compatibility
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm DC fan (Pre-installed)

Liquid Cooler Compatibility
Front: 120 / 140 / 240 / 280
Top: 120 / 140 / 240 / 280
Rear: 120

Clearances
CPU Cooler Height Limit: 165mm
VGA Length Limit: 320mm
PSU Length Limit: 160mm
Cable Management: 20mm

Product Dimensions ( L x W x H )
400mm x 225mm x 431mm

Packaging Dimensions ( L x W x H )
470mm x 288mm x 470mm

Weight
Net: 6.2KG
