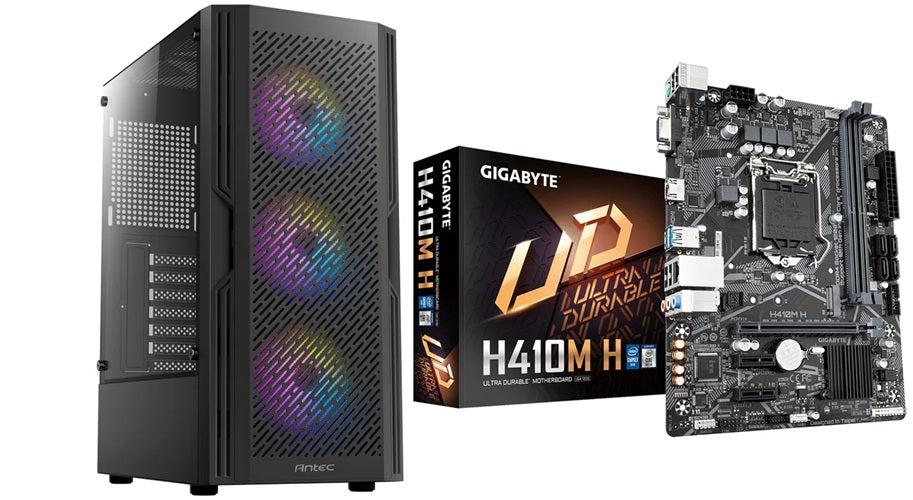

Case & Board bundle - ANTEC AX20 Case with Gigabyte H410M H V2 Ultra Durable Intel 1200 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port

Case

AX20
Mid-Tower Gaming Case

Unique Design & Powerful Heat Dissipation
AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.

Slanted Bar Air Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.

High-Airflow Front Panel
Massive air intake at the front, top, and bottom. Creating multiple airflow paths.

Pre-Installed
3 x 120mm RGB Fixed Model Fans

Form Factor
Mid Tower

Materials
Steel
Plastic

Mainboard Support
ATX
Micro ATX
Mini-ITX

RGB
FRGB so no header

I/O Panel
Power
Reset
2 x USB 2.0
1 x USB 3.0
MIC / HD-AUDIO

Side Panel
Tempered glass

Drive Bays
3.5" / 2.5": 2 / 1
2.5": 2

Expansion
Slots: 7

Fan Support
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm
Power Supply Shroud: 2 x 120mm
Rear: 1 x 120mm

Included Fans
3 x 120 RGB fixed model fans in front

Radiator Support
Front: 120 / 140 / 240 / 280mm

Clearance
Max GPU Length: = 270mm
Max CPU Cooler Height: = 155mm
Max PSU Length: = 170mm (with HDD) / = 295mm (without HDD)

Dust Filter
Front

Weight
Net: 4 Kgs
Gross: 4.71 Kgs

Dimensions ( D x W x H )
358 x 207 x 451mm

Motherboard

High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x2 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
4 Temperature Sensors
2 Fan Pin Headers
All Fan Pin Headers Upgraded to Hybrid Fan Headers
Interoperable Fans and Sensors
Intuitive UI for Fan Control

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

The Industry's Leading Surge Protection
GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.

Specifications

CPU
Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package

Chipset
Intel H410 Express Chipset

Memory
Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz

Audio
Realtek audio codec
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.

Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility

Operating System
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
