Case, Board, CPU - Bundle 1

Name: Case, Board, CPU - Bundle 1
Brand: PC Gear UK
SKU: Case Board CPU Bundle 1
Price: 259.59 GBP
Availability: OutOfStock

£259.59

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

100%SATISFACTION
GUARANTEE

30 DAYSRETURN
POLICY

100%SECURED
PAYMENT

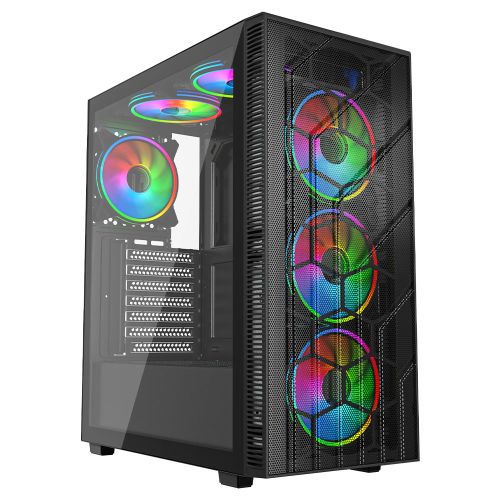

Black Gaming Case w/ Glass Side Panel, 6x ARGB Fans & Mesh Front

ATX
Tempered glass side panel
3 front 120mm ARGB fans
2 top 120mm ARGB fans
1 rear 120mm ARGB fan
Up to 240 mm radiator support

Vida's commitment to quality, performance, and aesthetics is second to none. Their products are meticulously designed to offer both form and function, providing gamers and professionals with the perfect blend of style and efficiency. With a focus on cutting-edge technology, Vida's components ensure that your computer runs at peak performance, even during intense gaming sessions or resource-heavy tasks.

Description

Specification

Form Factor: ATX
#Hide#Small Form Factor: No
Power Supply Wattage: No PSU
Motherboard Support: "ATX, Micro ATX, Mini ITX"
#Hide#Window(s): Yes (Window)
#Hide#LED Lighting: Yes (LED Lighting)
Connectors / Controls: 1 x USB 3.0
2 x USB 2.0
HD Audio
HD Mic
Drive Bays: 2 x 3.5""
2 x 2.5""
Expansion Slots: 7 x Full Size Expansion Slots
Cooling System: Included:
Front: 3 x 120mm ARGB Fans
Top: 2 x 120mm ARGB Fans
Rear: 1 x 120mm ARGB Fan
3-pin ARGB Motherboard SYNC cable

Fan Mounts
Front: 3 x 120 / 2 x 140 mm
Top: 2 x 120 / 2 x 140 mm
Rear: 1 x 120 mm
Side: None
Bottom: 2 x 120 mm
.:
Radiator Support:
Front: Up to 240 mm
Rear: 120 mm
Colour: Black
Material: Front Bezel: ABS Black + Dust Filter
Left Panel: Tempered Glass
Right Panel: Metal
Compatibility: GPU max length:
340 mm

CPU cooler max height:
160 mm

PSU:
ATX
Max length: 160 mm
Weight/Dimensions: 4 kg
(LxWxH) 380 x 195 x 445 mm
Excluding Fascia / Panels (LxWxH): 350 x 195 x 450 mm

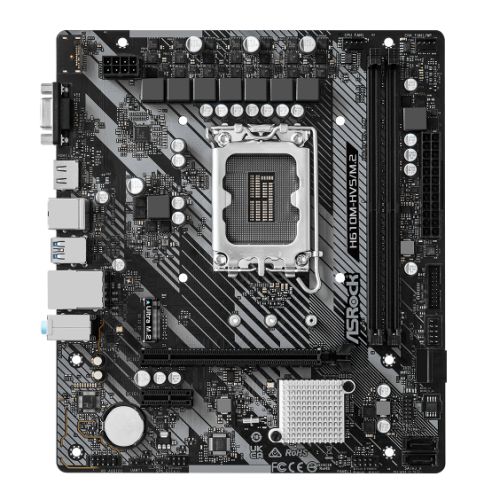

Motherboard

Supports 12th Gen Intel Core Processors (LGA1700)
7 Phase Power Design
Supports DDR4 3200MHz
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Ultra M.2 (PCIe Gen3 x4)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Specifications

Unique Features
ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
Supports 12th Gen Intel Core Processors (LGA1700)
7 Power Phase design
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology

Chipset
Intel H610

Memory
Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 non-ECC, un-buffered memory up to 3200
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB
Supports Intel Extreme Memory Profile (XMP) 2.0

BIOS
128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment

Graphics
Intel Xe Graphics Architecture (Gen 12)
Dual graphics output: support HDMI and D-Sub ports by independent display controllers
Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

Audio
7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
Supports Surge Protection

LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
1 x Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE1)

Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors

Connector
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Rear Panel I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
4 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
