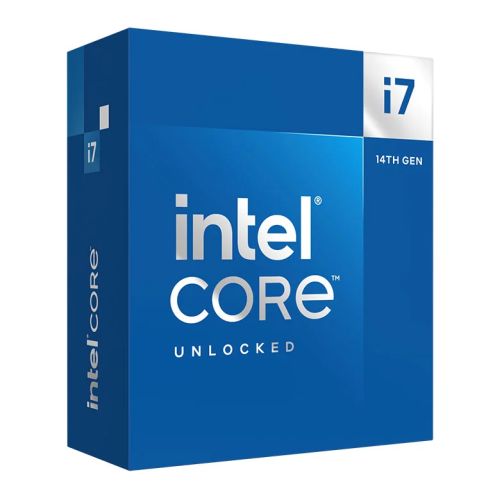

Intel Core i7-14700K CPU, 1700, 3.4 GHz (5.6 Turbo), 20-Core, 125W (253W Turbo), 10nm, 33MB Cache, Unlocked, Raptor Lake Refresh, NO HEATSINK/FAN
Intel Core i7-14700K CPU, 1700, 3.4 GHz (5.6 Turbo), 20-Core, 125W (253W Turbo), 10nm, 33MB Cache, Unlocked, Raptor Lake Refresh, NO HEATSINK/FAN
Key Specifications
| Socket | 1700 |
| On-Chip Graphics | Yes |
| Speed | 3.4GHz |
| Core Quantity | 20 |
| Prefix | Core i7 |
Ascend leaderboards, create worlds, and crunch numbers—all at once. Get next-generation performance for everything you do with the 13th Gen Intel Core processors. Do More with the Fastest Chip We've Ever Built.
Advancing Performance Hybrid Architecture
13th Gen Intel Core processors advances performance hybrid architecture with up to eight Performance-cores (P-core) and up to 16 Efficient-cores (E-core), combined with workloads intelligently routed by Intel Thread Director.
Built for Modern Gaming
Built for gamers looking for maximum performance to play the latest games, while also having the capabilities to tackle other workloads. New 13th Gen Intel Core processor-based PCs make it all possible.
Superior Creating Experience
The 13th Gen Intel Core processor family offers faster P-cores and more E-cores with support for DDR4/DDR5 and PCIe 4.0/5.0. That provides a platform that can max out multitasking and choice for configurability.
Customize for What You Do Every Day
13th Gen Intel Core processors deliver highly flexible architecture and industry-leading tools for the ultimate in performance customization.
Level Up Your Game and Then Some
Built for modern gaming, streaming, and recording, Intel's performance hybrid architecture with up to eight Performance-cores and up to 16 Efficient-core makes it all possible.
Multitask with Ease
Superior performance, no matter what type of creator you are, lets you stream, browse, edit, video chat, and just take care of business. Buckle up because multitasking won't slow you down with the 13th Gen Intel Core processor.
Industry Leading Overclocking
A great overclocking experience for enthusiasts of all levels – from beginners to experts. The Intel Extreme Tuning Utility, paired with an unlocked Intel Core processor, makes the overclocking process easy.
Frequently Asked Questions
What are Performance-cores and Efficient-cores?
Performance-cores (P-cores):
- Are optimized to handle single and lightly threaded performance.
- Enhance gaming and productivity workload.
Efficient-cores (E-cores):
- Are optimized to handle scaling highly threaded workloads.
- Minimize interruptions from background task management.
What is Intel Thread Director?
Intel Thread Director sends the right workload to the right core at the right time. It helps prioritize and manage the distribution of workloads, sending tasks to the most optimized thread. This feature is on by default and works in tandem with the operating system for intelligent workload distribution. To get the full capabilities of Intel Thread Director, pair a select 13th Gen Intel Core desktop processor with Windows 11.
What are the overclocking features?
Intel provides the best memory or motherboard overclocking experiences for everyone from - experts to beginners. With an unlocked Intel core processor anyone can overclock using Intel Extreme Tuning Utility with Intel Speed Optimizer. Intel Speed Optimizer provides a one click overclocking (removed memory comment) which makes the overclocking process easy.
| FEATURES | |
|---|---|
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| PCI Express slots version | 4.0, 5.0 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| Thermal solution specification | PCG 2020A |
| Maximum number of PCI Express lanes | 20 |
| Market segment | Desktop |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Use conditions | Workstation, PC/Client/Tablet |
| Direct Media Interface (DMI) Revision | 4.0 |
| GRAPHICS | |
| On-board graphics card model | Intel UHD Graphics 770 |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1600 MHz |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1 |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| Number of execution units | 32 |
| On-board graphics card ID | 0xA780 |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120 Hz |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| Discrete graphics card | No |
| Multi-Format Codec Engines | 2 |
| LOGISTICS DATA | |
| Harmonized System (HS) code | 8542310001 |
| MEMORY | |
| ECC | Yes |
| Non-ECC | Yes |
| Memory bandwidth (max) | 89.6 GB/s |
| Memory channels | Dual-channel |
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
| OPERATIONAL CONDITIONS | |
| Tjunction | 100 °C |
| OTHER FEATURES | |
| Maximum internal memory | 192 GB |
| L2 cache | 28672 KB |
| Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| PACKAGING DATA | |
| Package type | Box |
| PROCESSOR | |
| Processor model | i7-14700K |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Box | Yes |
| Processor socket | LGA 1700 |
| Stepping | B0 |
| Package type | Box |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 5.6 GHz |
| Processor cache | 33 MB |
| Processor codename | Raptor Lake |
| Processor cache type | Smart Cache |
| Memory bandwidth supported by processor (max) | 89.6 GB/s |
| Processor ARK ID | 236783 |
| Cooler included | No |
| Efficient cores | 12 |
| Performance cores | 8 |
| Maximum number of DMI lanes | 8 |
| Processor base power | 125 W |
| Maximum turbo power | 253 W |
| Efficient-core base frequency | 2.5 GHz |
| Efficient-core boost frequency | 4.3 GHz |
| Performance-core base frequency | 3.4 GHz |
| Performance-core boost frequency | 5.5 GHz |
| Processor generation | Intel® Core™ i7 (14th gen) |
| PROCESSOR SPECIAL FEATURES | |
| Intel� Hyper Threading Technology (Intel� HT Technology) | Yes |
| Intel� Turbo Boost Technology | 2.0 |
| Intel� Quick Sync Video Technology | Yes |
| Intel� Clear Video HD Technology (Intel� CVT HD) | Yes |
| Intel� AES New Instructions (Intel� AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel� Secure Key | Yes |
| Intel 64 | Yes |
| Intel� OS Guard | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel� Speed Shift Technology | Yes |
| Intel� Boot Guard | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel� Deep Learning Boost (Intel� DL Boost) | Yes |
| Intel� Volume Management Device (VMD) | Yes |
| Intel� Control-flow Enforcement Technology (CET) | Yes |
| Intel� Turbo Boost Max Technology 3.0 frequency | 5.6 GHz |
| Intel� Thread Director | Yes |
| Intel� Gaussian & Neural Accelerator (Intel� GNA) 3.0 | Yes |
| Intel� Standard Manageability (ISM) | Yes |
| TECHNICAL DETAILS | |
| OpenCL version | 3.0 |
| Status | Launched |
| Launch date | Q4''23 |
| WEIGHT & DIMENSIONS | |
| Processor package size | 45 x 37.5 mm |
