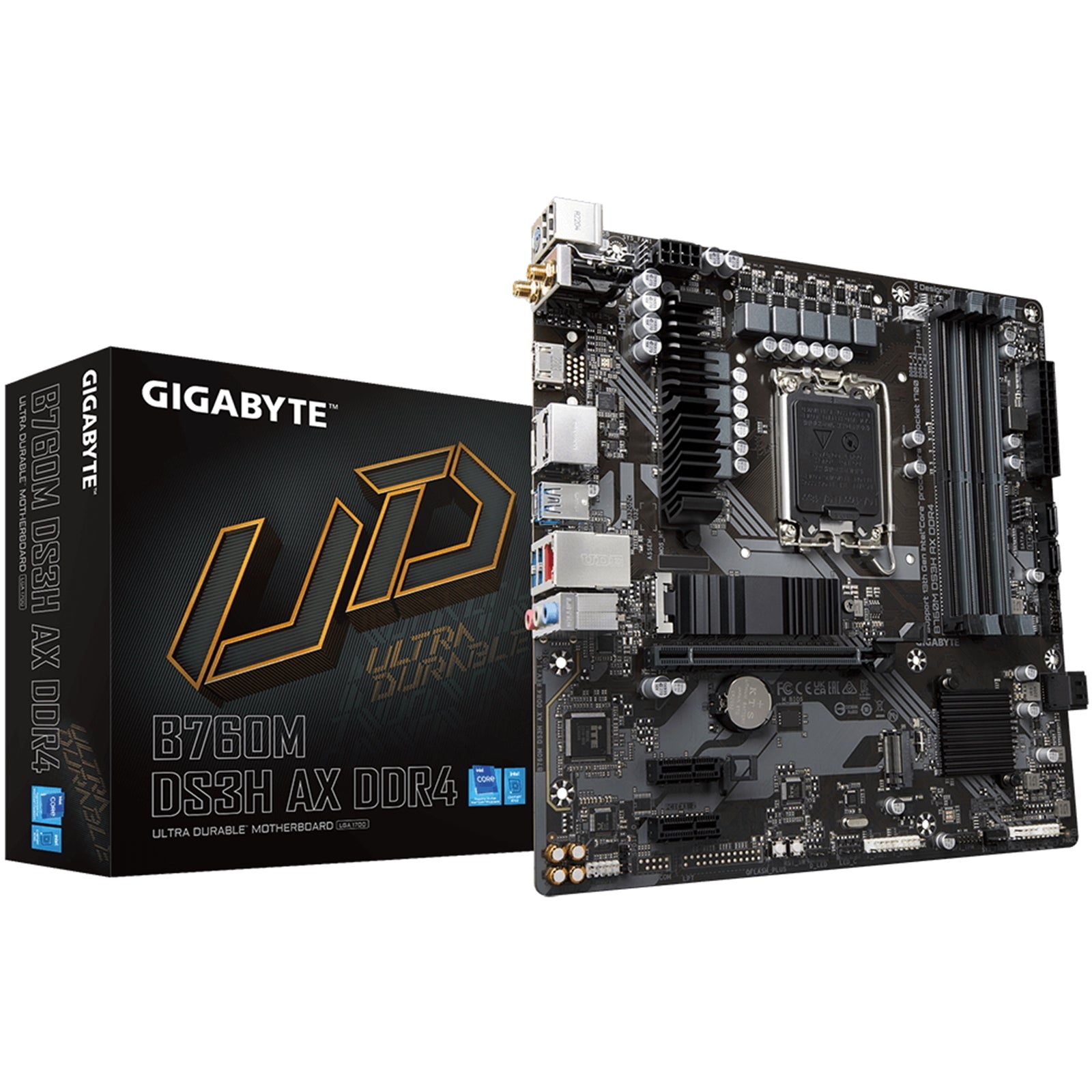

Gigabyte B760M DS3H AX DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 2x M.2 Sockets, 1x USB-C Port, 2.5GbE LAN, Wi-Fi 6E, 1x D-Sub / 1x DisplayPort / 1x HDMI Port

Key Specifications

Socket	1700
CPU Compatibility	Intel 12th/13th/14th Gen
Chipset	Intel B760
Form Factor	Micro ATX
Memory Slots	DDR4 - 4 Slots
M.2 Compatibility	PCIe 4 / PCIe 3
USB C Header	No

6+2+1 Phases Hybrid Digital VRM Design
- 6+2+1 Phases Low RDS(on) MOSFETs
- Premium Choke and Capacitors to improve transient response and minimize oscillation

GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!

BACK PANEL I/O PORTS
PS/2 ports quantity	1
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Headphone outputs	3
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
WiFi-AP antenna jack	2
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
DisplayPort version	1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
BATTERY
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Number of battery cells	1
Battery weight	3 g
Lithium weight per battery	0.07 g
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
EXPANSION SLOTS
PCI Express x16 slots	1
PCI Express x1 slots	2
Number of M.2 (M) slots	2
FEATURES
Motherboard chipset	Intel B760 Express
Motherboard form factor	micro ATX
Product colour	Brown
Audio output channels	7.1 channels
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Component for	PC
GRAPHICS
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported
DirectX version	12.0
HDCP	Yes
INTERNAL I/O
USB 2.0 connectors	2
S/PDIF out connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel audio connector	Yes
TPM connector	Yes
EPS power connector (8-pin)	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Total number of SATA connectors	4
Front panel connector	Yes
12V power connector	Yes
RGB LED pin header	Yes
LOGISTICS DATA
Country of origin	China
Products per shipping (inner) case	1 pc(s)
MEMORY
Maximum internal memory	128 GB
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Unbuffered memory	Yes
Memory slots type	DIMM
Number of memory slots	4
Supported memory clock speed (max)	5333 MHz
ECC ?ompatibility	ECC & Non-ECC
NETWORKING
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Ethernet LAN	Yes
Bluetooth	Yes
Wi-Fi	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	RZ608
PACKAGING CONTENT
Bundled software	Norton Internet Security
Cables included	SATA
Batteries included	Yes
PACKAGING DATA
Package weight	1.1 kg
Package depth	265 mm
Package height	54 mm
Package width	265 mm
PROCESSOR
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	128 GB
STORAGE CONTROLLERS
RAID levels	0, 1, 5, 10
Number of HDDs supported	4
RAID support	Yes
Number of storage drives supported	6
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
TECHNICAL DETAILS
Warranty period	3 year(s)
WEIGHT & DIMENSIONS
Height	35 mm
Width	244 mm
Depth	244 mm
