TP-Link TL-SG1210MP, 10-Port Gigabit Unmanaged PoE+ Switch
Overview
The TP-Link TL-SG1210MP is a 10-port unmanaged Gigabit PoE+ switch designed for small businesses and home networks. With 8 PoE+ ports delivering up to 30W per port and a total PoE budget of 123W, it powers IP cameras, access points, VoIP phones, and other PoE devices without additional cabling. A combo SFP uplink port provides flexible fibre connectivity, and the fanless design ensures silent operation.
Key Features
8x PoE+ Ports (IEEE 802.3at/af): Powers PoE and PoE+ devices at up to 30W per port with a total budget of 123W across all ports.
10-Port Gigabit: 9 RJ-45 Gigabit Ethernet ports (10/100/1000) plus 1 combo SFP uplink for fibre connectivity.
20 Gbps Switching Capacity: Non-blocking switching fabric with store-and-forward architecture and 14.88 MB packet buffer memory.
4,000-Entry MAC Address Table: Auto-learning and auto-aging MAC address table for efficient traffic management.
Fanless & Silent: Completely fanless design for noise-free operation in offices, classrooms, and home environments.
Auto MDI/MDI-X & Auto-Negotiation: Plug-and-play setup with automatic cable type detection and speed negotiation on all ports.
Flow Control Support: IEEE 802.3x flow control prevents packet loss under heavy traffic loads.

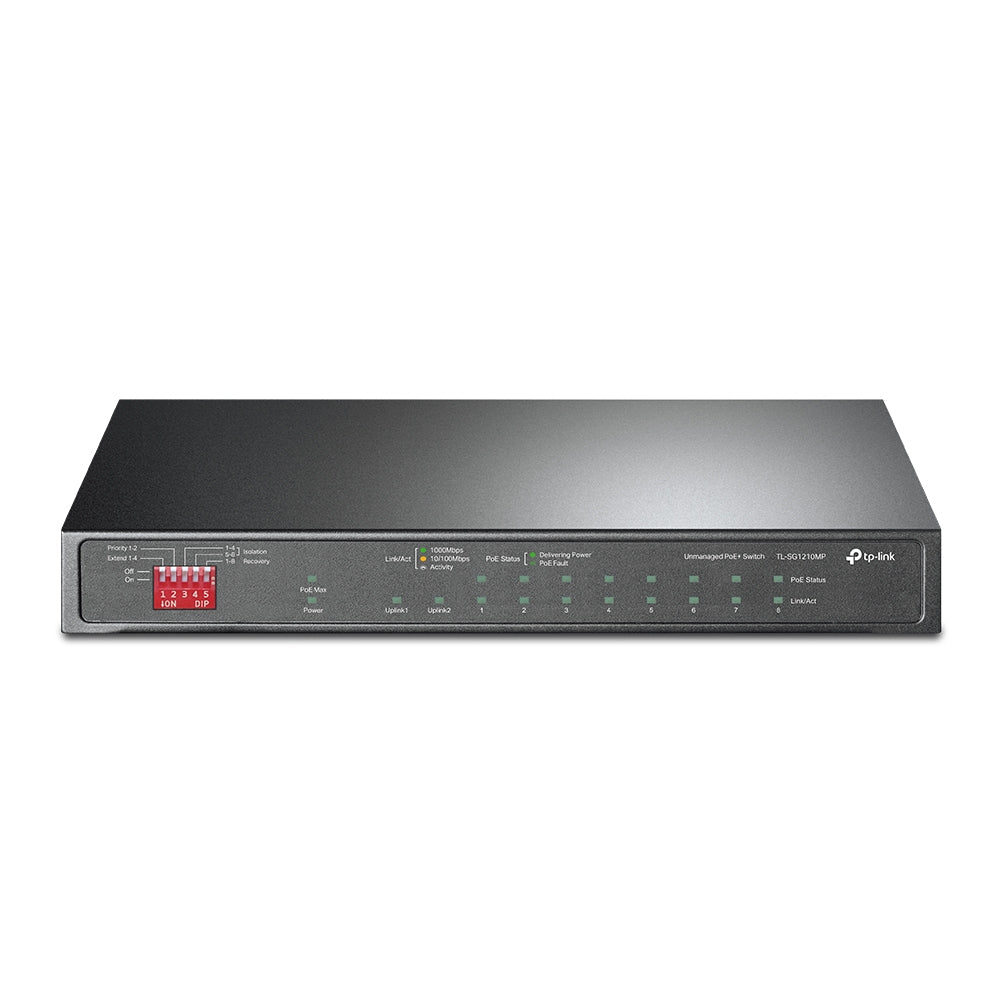

LED Indicators: Per-port LED indicators for quick status monitoring.
Connectivity

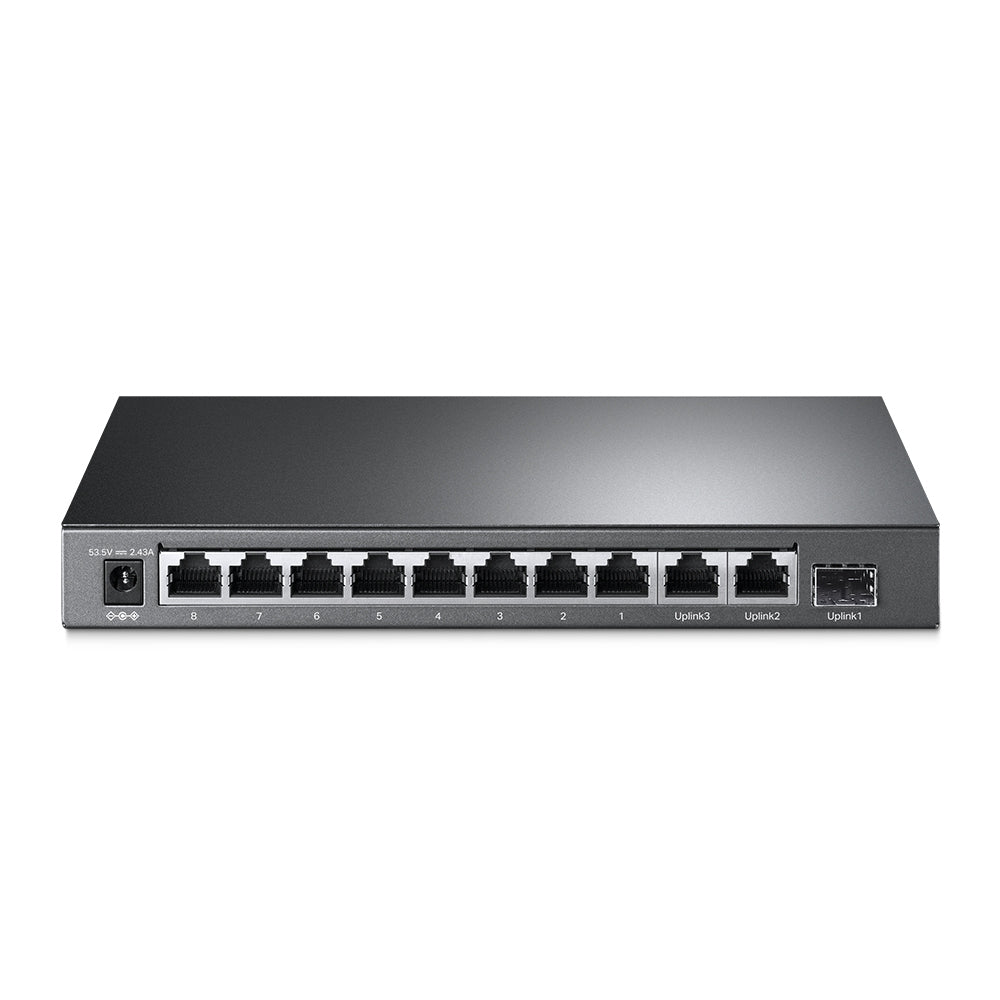

9 × RJ-45 Gigabit Ethernet ports (10/100/1000) + 1 × Combo SFP uplink. Supports Cat3, Cat4, Cat5, Cat5e cabling. Standards: IEEE 802.3af, 802.3at, 802.3i, 802.3u, 802.3x, 802.3z.
Design & Aesthetics
Colour: Black. Desktop/wall-mountable form factor (not rack-mountable). Fanless. Dimensions: 209 × 126 × 26 mm. LED indicators per port. Certifications: CE, FCC.
What's Included
TL-SG1210MP switch, power adapter, quick start guide.
Technical Specifications
Ports & Interfaces
| RJ-45 Ports | 9 × Gigabit Ethernet (10/100/1000) |
| Combo SFP Ports | 1 |
| PoE+ Ports | 8 |
| Installed SFP Modules | 0 |
PoE
| PoE Support | Yes (IEEE 802.3af / 802.3at) |
| PoE Power Per Port | Up to 30 W |
| Total PoE Budget | 123 W |
Performance
| Switching Capacity | 20 Gbit/s |
| MAC Address Table | 4,000 entries |
| Packet Buffer Memory | 14.88 MB |
| Switching Method | Store-and-Forward |
Network
| Switch Type | Unmanaged |
| Networking Standards | IEEE 802.3af, 802.3at, 802.3i, 802.3u, 802.3x, 802.3z |
| Cabling Technology | 10BASE-T, 100BASE-TX |
| Cable Types | Cat3, Cat4, Cat5, Cat5e |
| 10G Support | No |
| Flow Control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-Negotiation | Yes |
| MAC Auto-Learning | Yes |
| MAC Auto-Aging | Yes |
Power
| Power Source | DC |
| Input Voltage | 53.5 V |
| Input Current | 2.43 A |
| Max Power Consumption | 141.4 W |
| Heat Dissipation | 482.17 BTU/h |
| Fanless | Yes |
Operating Conditions
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -40 – 70°C |
| Operating Humidity | 10 – 90% (non-condensing) |
| Storage Humidity | 5 – 90% (non-condensing) |
Physical
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
| Colour | Black |
| Rack Mountable | No |
| LED Indicators | Yes |
| Certifications | CE, FCC |
Identifiers
| Part Number | TL-SG1210MP |
| EAN | 6935364052690 |
| HS Code | 85176990 |
