ARCTIC P14 Pro Reverse A-RGB 140mm PWM Fan with Cable Splitter Black
- Fan Size — 140mm (14 cm)
- Bearing Type — Fluid Dynamic Bearing (FDB)
- Speed Range — 400–2650 RPM (PWM controlled)
- Airflow — 166.5 m³/h (98 CFM)
- Static Pressure — 5.1 mmH²O
- Lighting — A-RGB, 12 LEDs, multi-colour (3-pin + 3-pin connector)
- Fan Connector — 4-pin PWM + 4-pin PWM (daisy-chain)
- Voltage — 12V rated, 4V start, 0.4A
- Dimensions — 140 × 140 × 30mm, 253g
- Quantity — 1 fan per pack, 4 screws included
- Warranty — 6 years
Overview
The ARCTIC P14 Pro Reverse A-RGB is a 140mm PWM case fan specifically engineered for rear air intake applications where conventional fans would compromise aesthetics. Part of ARCTIC's versatile fan lineup covering 80–140mm sizes, it combines innovative blade geometry, a high-quality fluid dynamic bearing, addressable RGB lighting, and PST daisy-chain technology for quiet, efficient, and easy-to-manage airflow in any build.
Reversed Airflow Design
The P14 Pro Reverse is specifically designed for air intake from the back side, making it particularly suitable when conventional fans would compromise the aesthetics. The reversed motor orientation allows the fan to draw air inward while keeping the visually appealing side of the blades facing outward.
Optimised Airflow Design
The trumpet-shaped intake and teardrop-shaped spokes direct airflow with reduced flow losses, minimising turbulence and aerodynamic noise. Minimum gap dimensions between blade tips and frame enable higher static pressure (5.1 mmH²O) and maximum airflow efficiency (166.5 m³/h / 98 CFM).
Fluid Dynamic Bearing (FDB)
The hydrodynamic FDB bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimising vibrations, contributing to long-term reliability across the fan's lifespan.
SOTA Microcontroller
An integrated state-of-the-art microcontroller reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity for stable, reliable operation. An automated measuring and balancing process applies balancing compound with pinpoint accuracy for smooth, vibration-free performance.
PST — Daisy-Chain PWM Control
Thanks to the additional PWM connector (4-pin + 4-pin), multiple fans can be daisy-chained and controlled simultaneously through a single motherboard header, simplifying cable management and enabling synchronised speed control across your build.

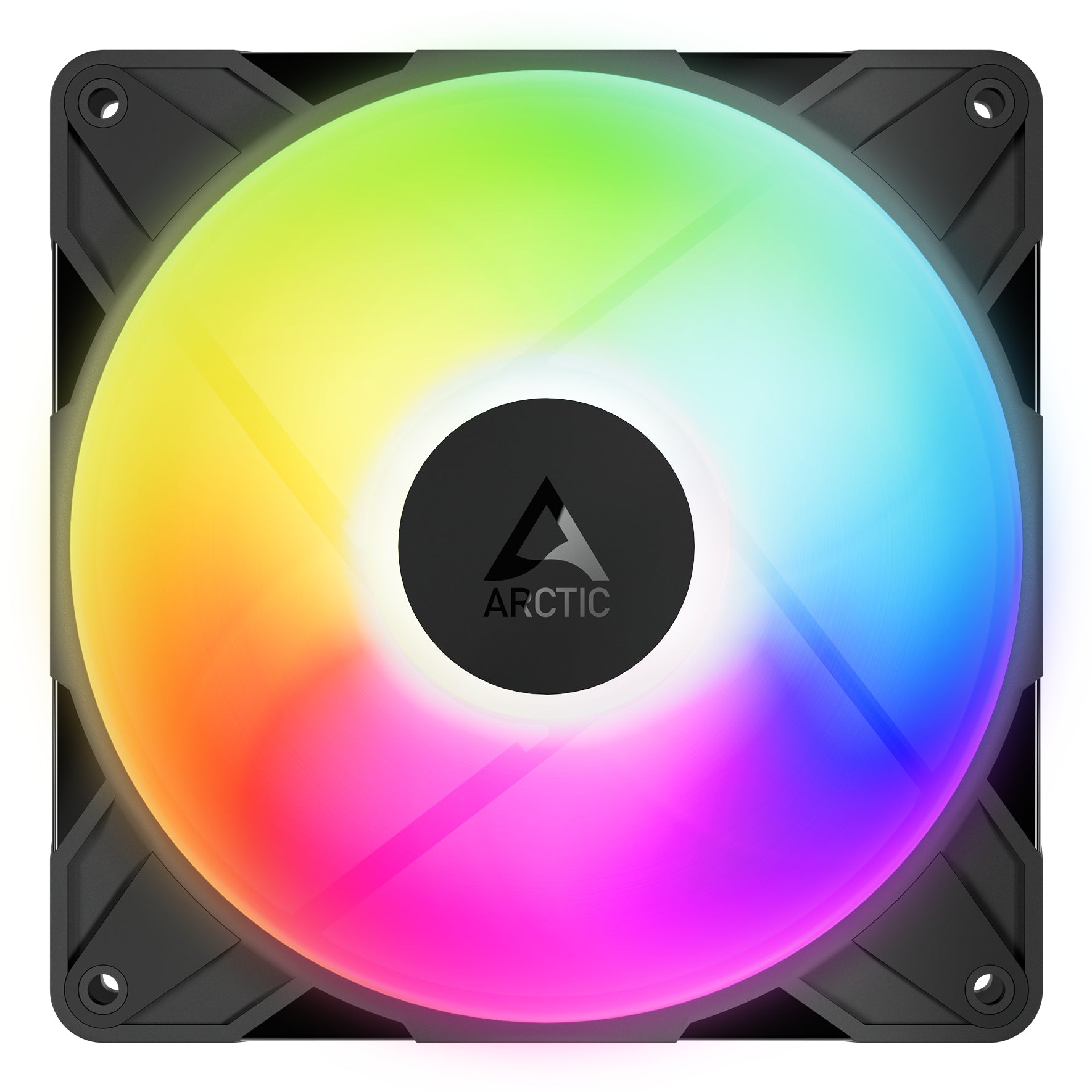

A-RGB Lighting
12 addressable RGB LEDs deliver vibrant, customisable multi-colour lighting via a 3-pin + 3-pin A-RGB connector, compatible with major motherboard RGB ecosystems for a cohesive build aesthetic.
6-Year Warranty
ARCTIC products are tested under extreme conditions. The 6-year warranty reflects their confidence in the durability and longevity of this fan.

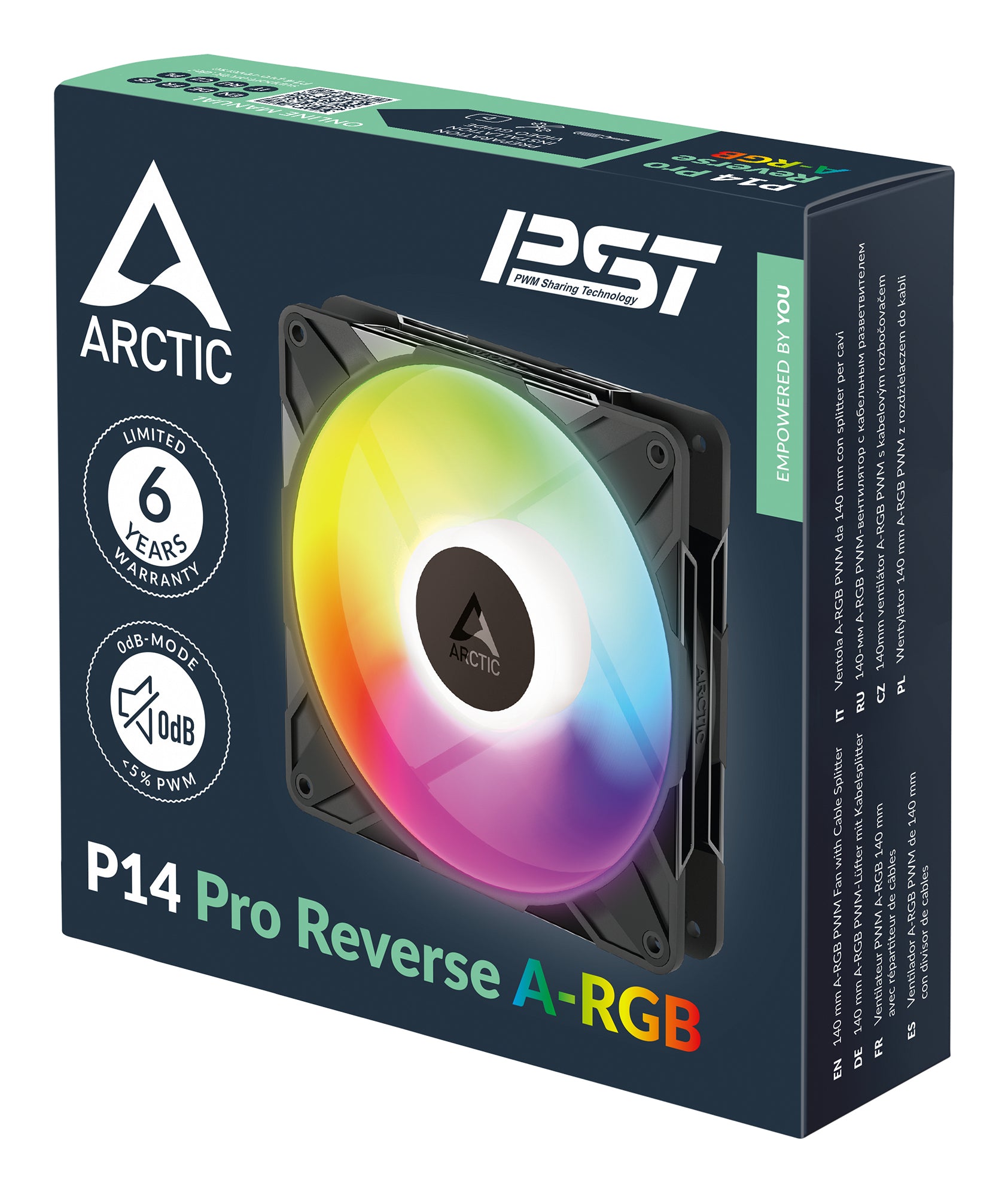

What's Included
1 × ARCTIC P14 Pro Reverse A-RGB 140mm PWM fan (Black), cable splitter, 4 mounting screws. MPN: ACFAN00323A. EAN: 4895265000607.
Technical Specifications
Fan
| Type | Case Fan |
| Suitable Location | Computer Case |
| Fan Diameter | 140mm (14 cm) |
| Fan Dimensions | 140 × 140 × 30mm |
| Fan Weight | 253g |
| Fan Blades | 5 |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Colour | Black |
| Quantity per Pack | 1 |
Performance
| Fan Speed (Min) | 400 RPM |
| Fan Speed (Max) | 2650 RPM |
| Airflow | 166.5 m³/h |
| Maximum Airflow | 98 CFM |
| Maximum Air Pressure | 5.1 mmH²O |
| PWM Support | Yes |
Lighting
| Illumination LED | Yes |
| Number of LEDs | 12 |
| Illumination Colour | Multi (A-RGB) |
| LED Connector | 3-pin + 3-pin |
| LED Voltage | 5V |
| LED Current | 0.4A |
Electrical
| Rated Voltage | 12V |
| Starting Voltage | 4V |
| Rated Current | 0.4A |
| Fan Connector | 4-pin + 4-pin (PST daisy-chain) |
Operational Conditions
| Operating Temperature | 0°C – 40°C |
Packaging & Identification
| MPN | ACFAN00323A |
| EAN | 4895265000607 |
| Package Type | Box |
| Package Dimensions | 145 × 145 × 35mm |
| Package Weight | 302g |
| Cable Length | 0.48m |
| Screws Included | Yes (4 screws) |
| Warranty | 6 Years |
