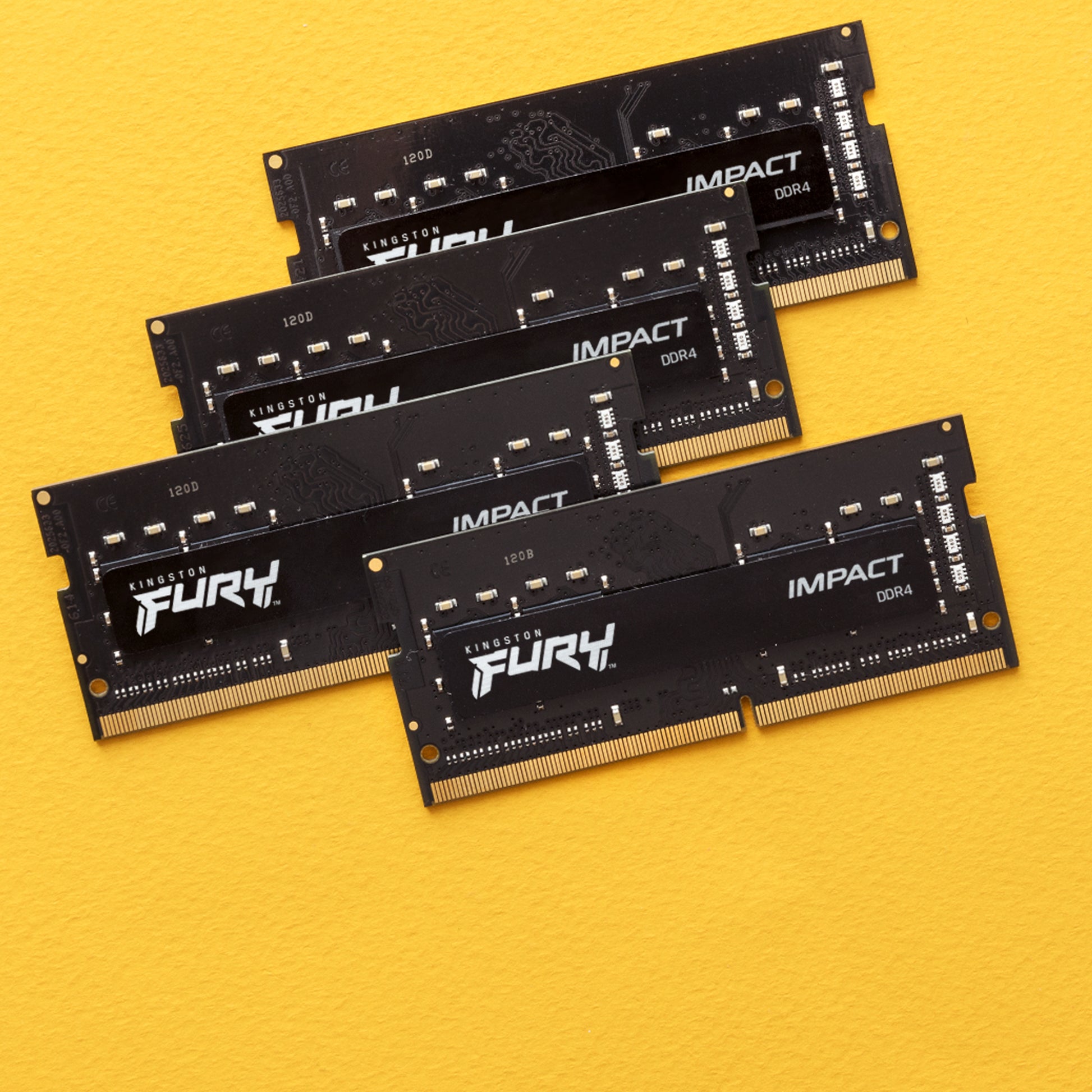

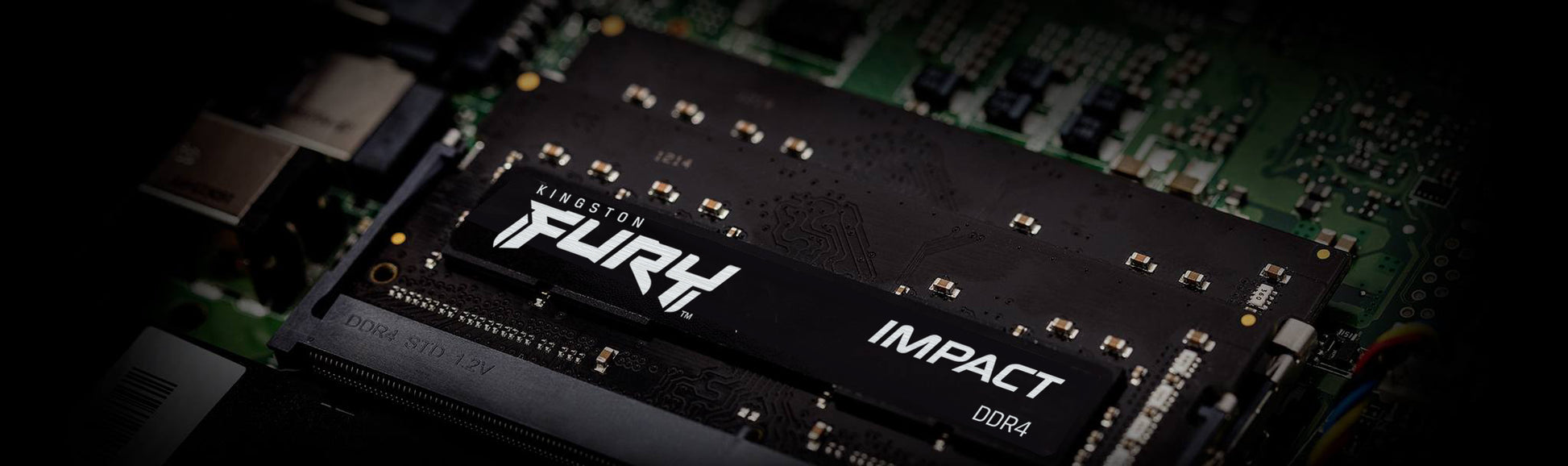

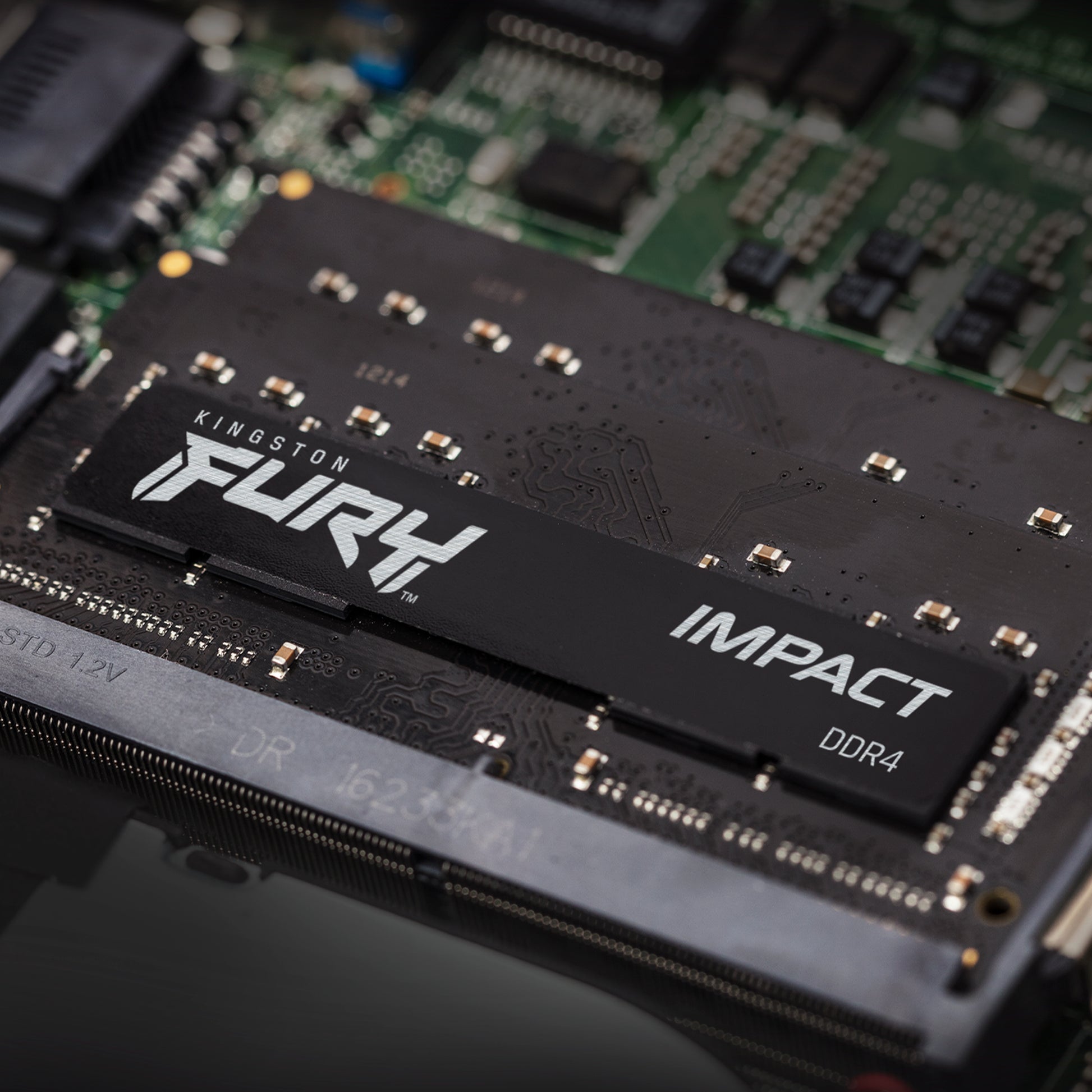

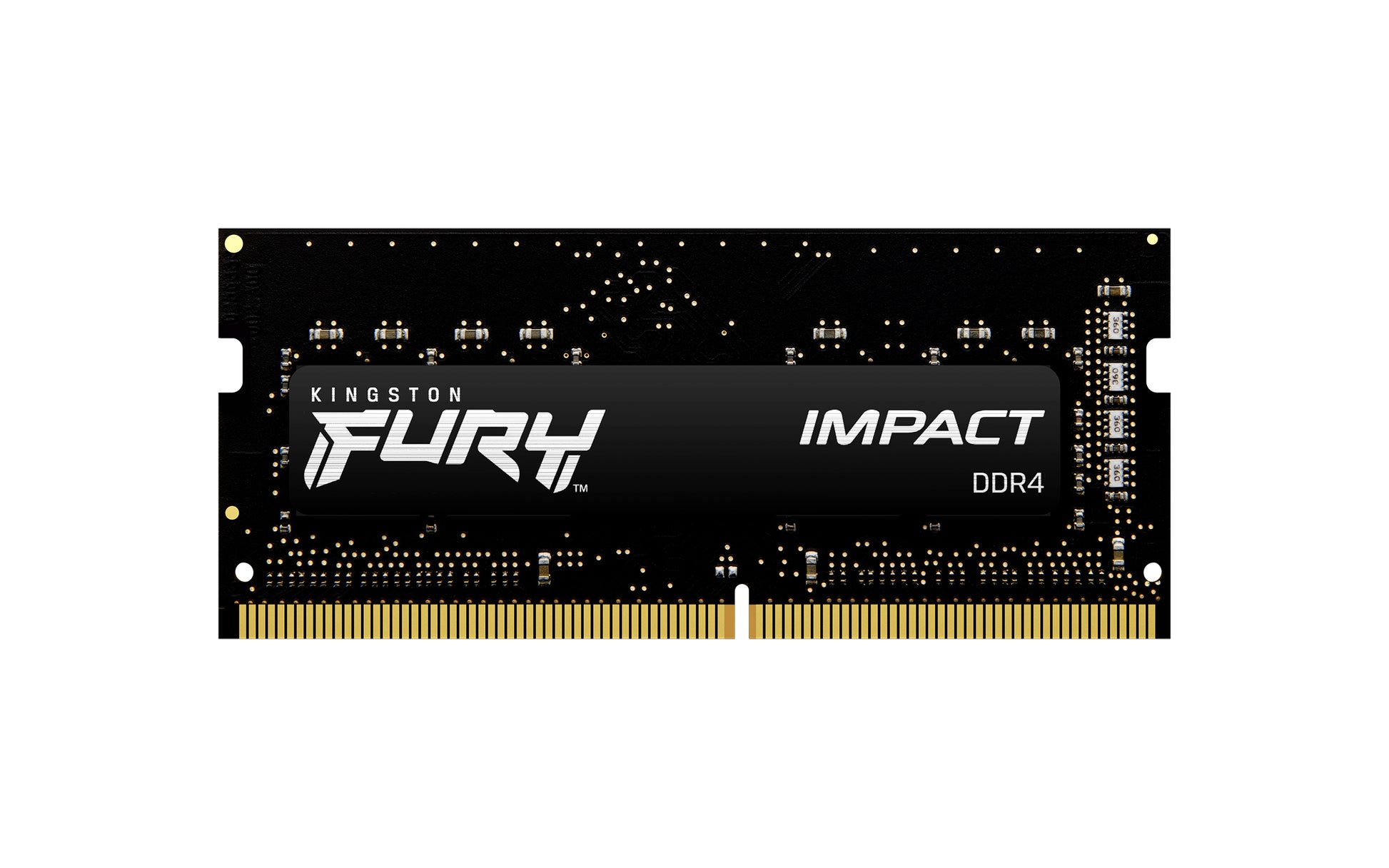

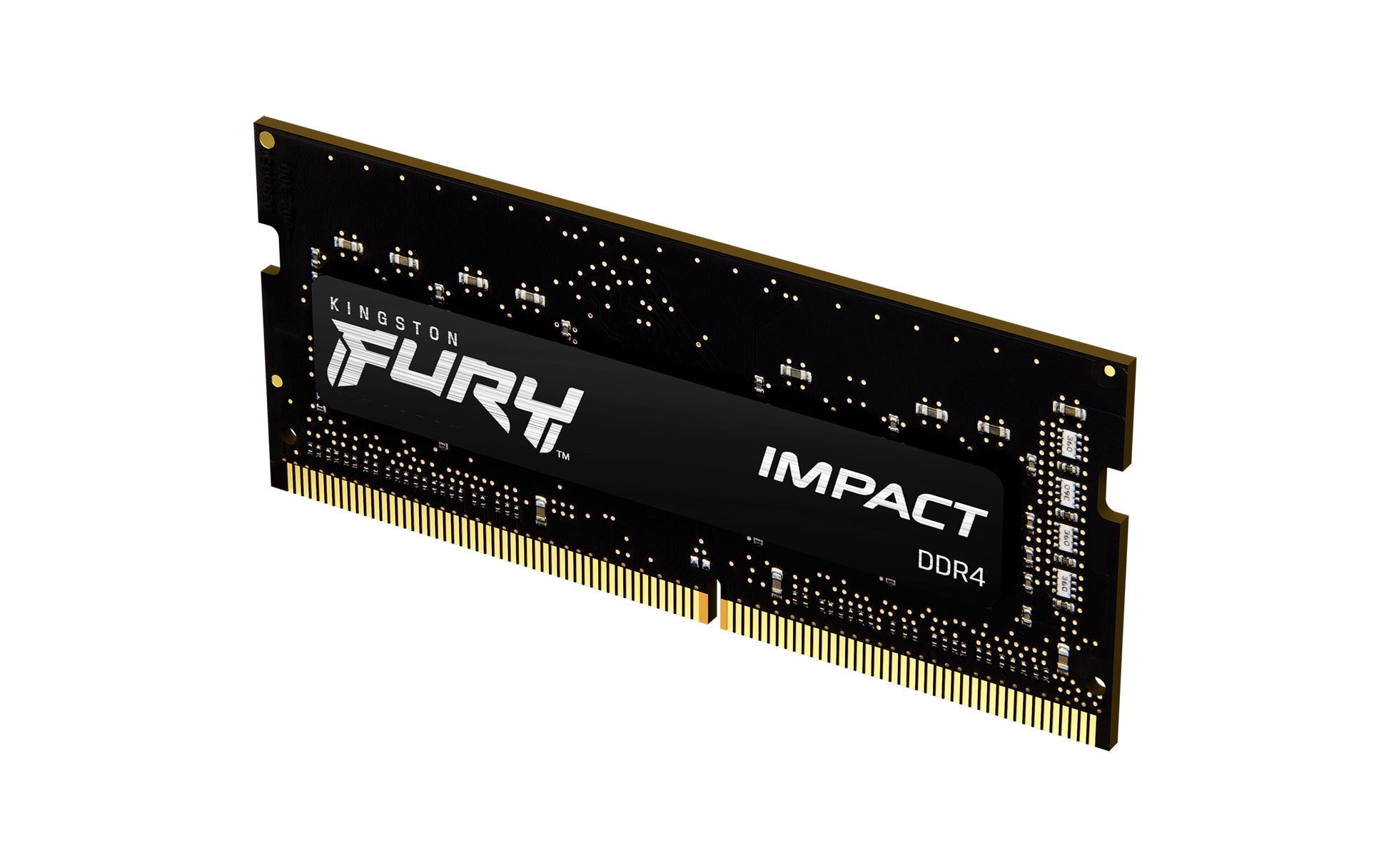

Kingston FURY Impact, 16GB, DDR4, 3200MT/s, CL20, 260-pin SO-DIMM
Overview

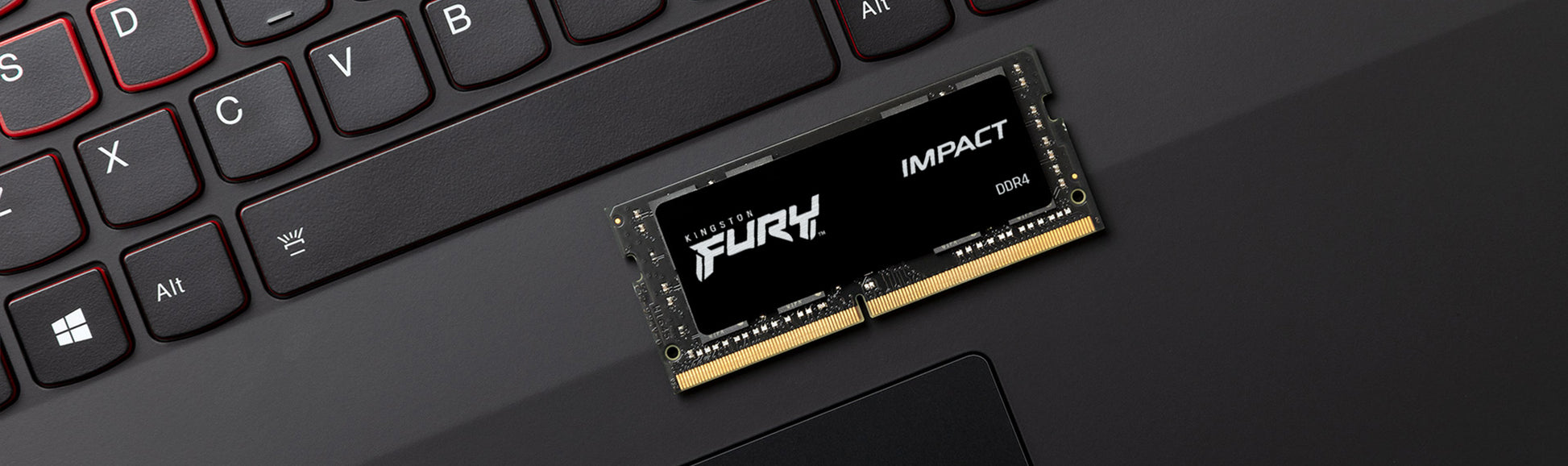

The Kingston FURY Impact DDR4 SO-DIMM delivers powerful single-module laptop memory performance in a sleek, low-profile form factor. This 16GB module runs at 3200MT/s with CL20 latency at just 1.2V, and features Kingston's innovative Plug N Play automatic overclocking technology — no BIOS changes required. Intel XMP 2.0 Ready, XMP Certified, and Ready for AMD Ryzen™, it's a hassle-free performance upgrade for notebooks and small form factor systems. Backed by a lifetime warranty.
Key Features
Plug N Play Automatic Overclocking: FURY Impact DDR4 automatically overclocks to the highest published frequency without any BIOS configuration. Simply install and go.
Intel XMP 2.0 Ready & Certified: Predefined XMP profiles enable one-click overclocking up to 3200MT/s on compatible platforms.

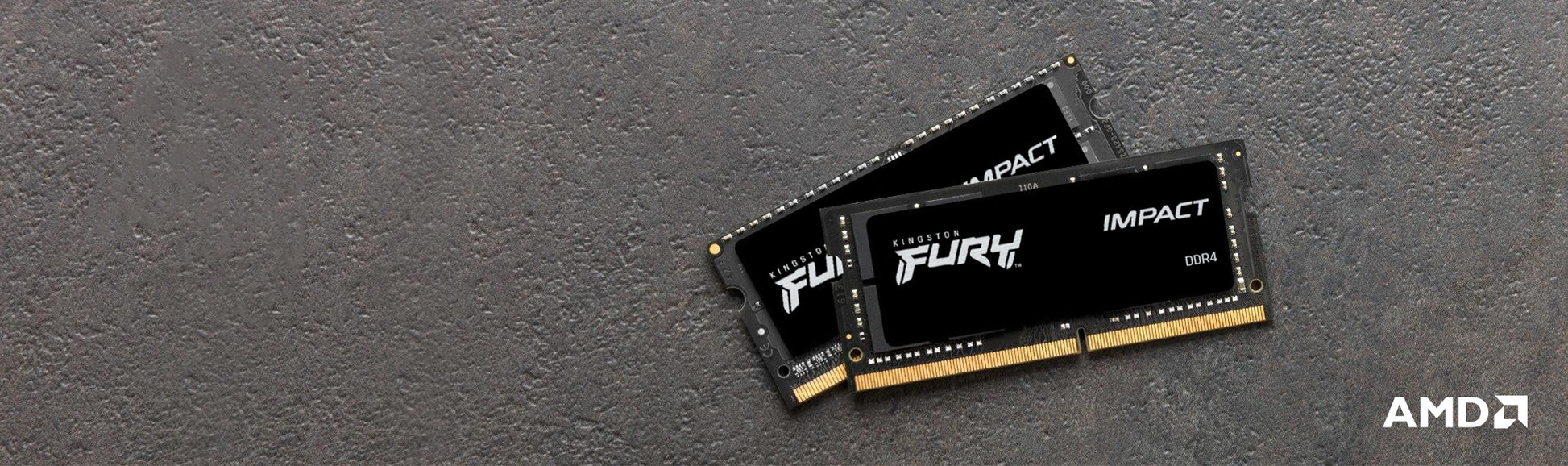

Ready for AMD Ryzen™: Seamlessly integrates with AMD Ryzen-based SO-DIMM compatible systems for reliable, compatible performance.
Low Power 1.2V Operation: Runs cool, quiet, and efficiently at 1.2V — ideal for thermally constrained laptop environments.
JEDEC Standard Compliant: Meets JEDEC DDR4 specifications for broad platform compatibility.
Slim Black PCB Design: Low-profile SO-DIMM form factor with sleek black thermal label — big style in a small footprint.
Lifetime Warranty: 100% tested at speed and backed by Kingston's lifetime warranty.
Compatibility

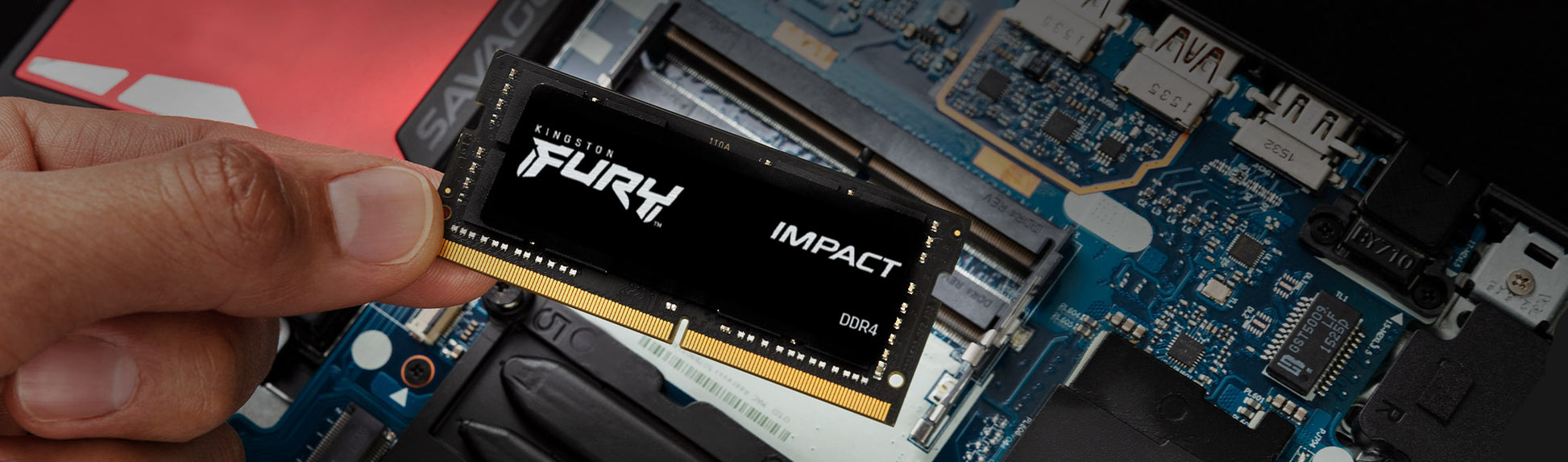

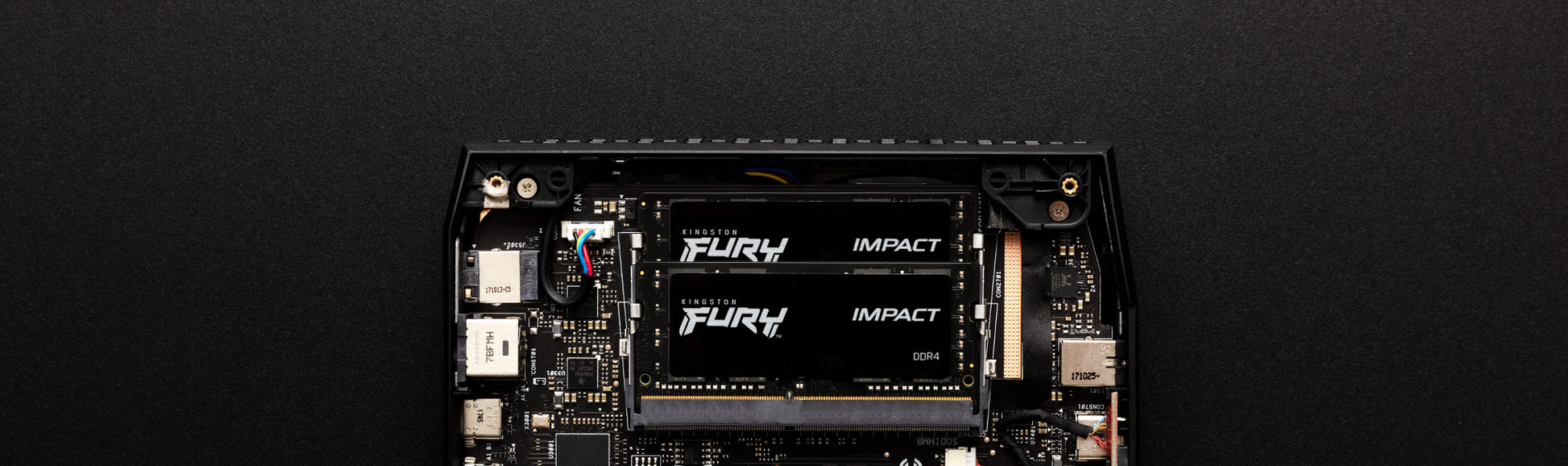

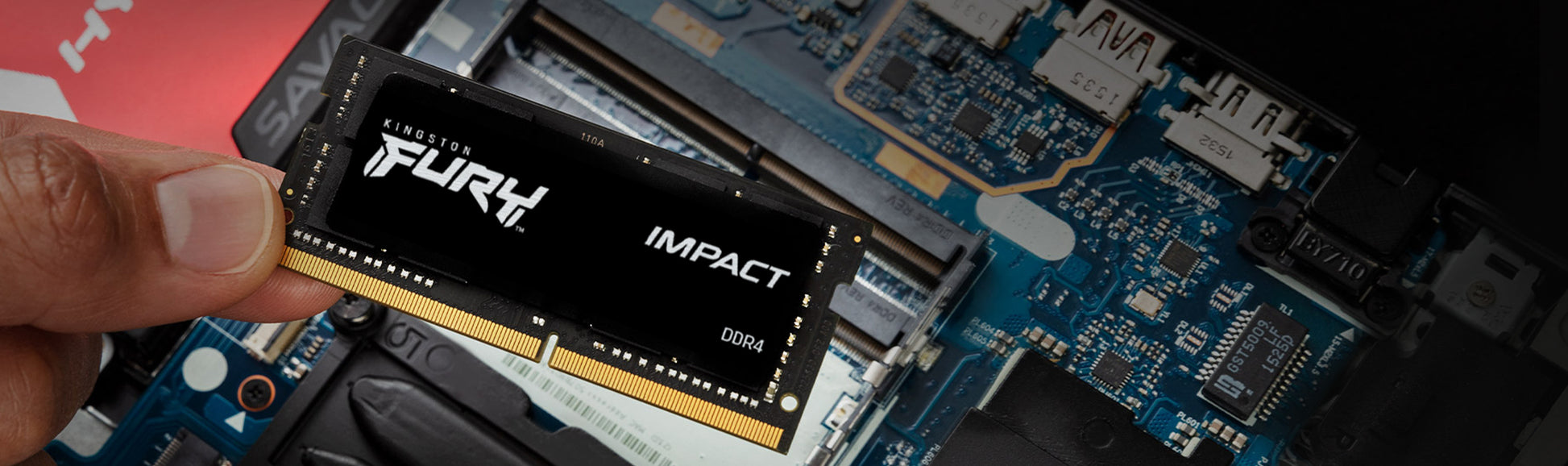

Designed for laptops, notebooks, and small form factor systems with 260-pin SO-DIMM DDR4 slots. Compatible with Intel and AMD Ryzen notebook platforms. Supports XMP 2.0 on compatible motherboards.
Design & Aesthetics
Sleek black PCB with thermal label. No backlight/RGB. Dimensions: 69.6 × 3.8 × 30 mm. Weight: 8.3 g. Country of origin: China / Taiwan.
What's Included

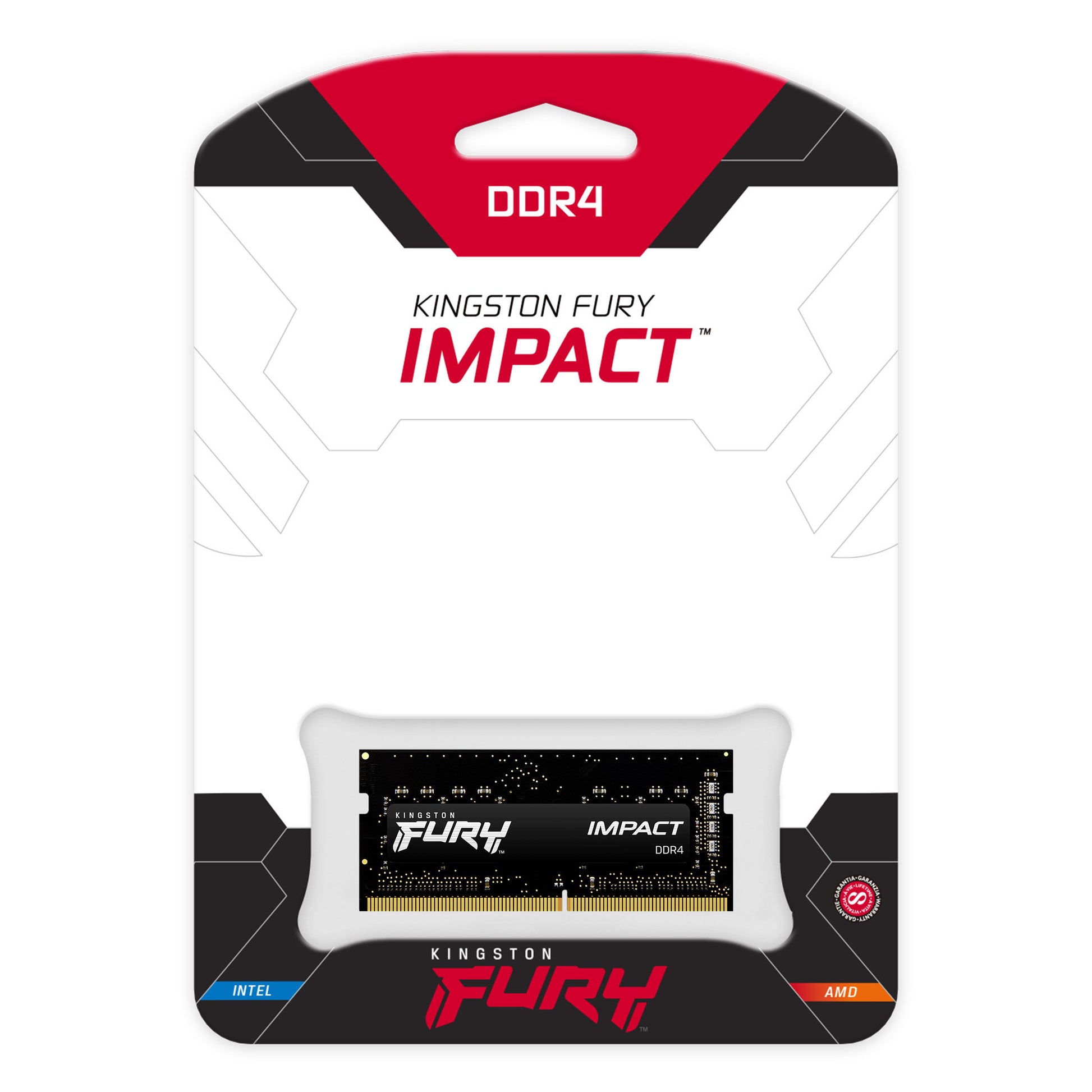

1 × Kingston FURY Impact 16GB DDR4 3200MT/s CL20 260-pin SO-DIMM (KF432S20IB/16).
Technical Specifications
Memory
| Capacity | 16 GB |
| Memory Layout | 1 × 16 GB |
| Module Configuration | 2048M × 64 |
| Memory Type | DDR4 SDRAM |
| Speed | 3200 MT/s (DDR4-3200) |
| Form Factor | 260-pin SO-DIMM |
| CAS Latency | CL20 |
| Voltage | 1.2 V |
| VPP Voltage | 2.5 V |
| ECC | No |
| Buffered Type | Unregistered (Unbuffered) |
| Memory Ranking | Single-Rank |
| Row Cycle Time | 45.75 ns |
| Refresh Row Cycle Time | 350 ns |
| Row Active Time | 26.25 ns |
| Cooling Type | Heatsink (Thermal Label) |
| Backlight | No |
| Component For | Laptop / Notebook |
| Warranty | Lifetime |
Overclocking & Compatibility
| Intel XMP | Yes — XMP 2.0 |
| Plug N Play OC | Yes |
| AMD Ryzen Ready | Yes |
| JEDEC Standard | Yes |
Operating Conditions
| Operating Temperature | 0 – 85°C |
| Storage Temperature | -55 – 100°C |
Physical
| Length | 69.6 mm |
| Width | 3.8 mm |
| Height | 30 mm |
| Weight | 8.3 g |
| Country of Origin | China / Taiwan |
Identifiers
| Part Number | KF432S20IB/16 |
| EAN | 0740617318395 |
| HS Code | 84733020 |
