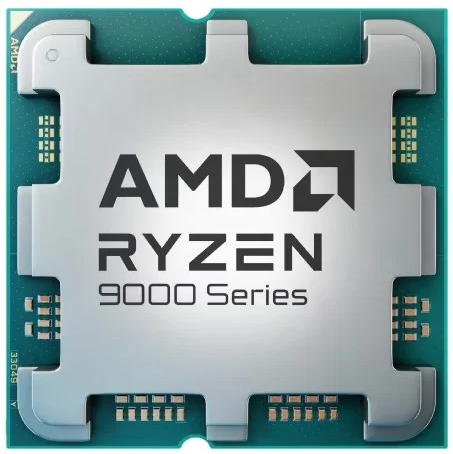

AMD Ryzen 5 9600X (AM5, 6-Core, 5.4GHz Boost)
Overview
The AMD Ryzen 5 9600X is a powerful next-generation processor from the Ryzen 9000 Series, delivering high clock speeds and efficient performance for modern gaming and desktop workloads.
Key Highlights
- 6 Cores / 12 Threads
- Up to 5.4 GHz Boost Clock
- 38 MB Cache
- 4nm Architecture
- 65W TDP
- DDR5 & PCIe 5.0 Ready
Technical Specifications
Processor
| Manufacturer | AMD |
| Family | AMD Ryzen™ 5 |
| Generation | Ryzen 9000 Series |
| Model | 9600X |
| Cores / Threads | 6 / 12 |
| Base Clock | 3.9 GHz |
| Boost Clock | Up to 5.4 GHz |
| Cache | 38 MB (L2 + L3) |
| Process Node | 4 nm |
| Socket | AM5 |
| TDP | 65 W |
| Operating Mode | 64-bit |
| Package | Tray |
| Cooler Included | No |
Memory Support
| Memory Type | DDR5 |
| Memory Speed | 3600 / 5600 MHz |
| Max Capacity | 192 GB |
| Channels | Dual-channel |
| ECC | Non-ECC |
Graphics
| Integrated GPU | AMD Radeon |
| GPU Frequency | 2200 MHz |
| Discrete GPU | Not Included |
Expansion & Features
| PCIe Version | 5.0 |
| PCIe Lanes | 28 |
| Instruction Sets | AES, AVX, AVX2, AVX-512, SSE |
Connectivity
| USB Support | USB 2.0 / USB 3.2 Gen 2 |
| USB Ports | 5 |
