Product Description

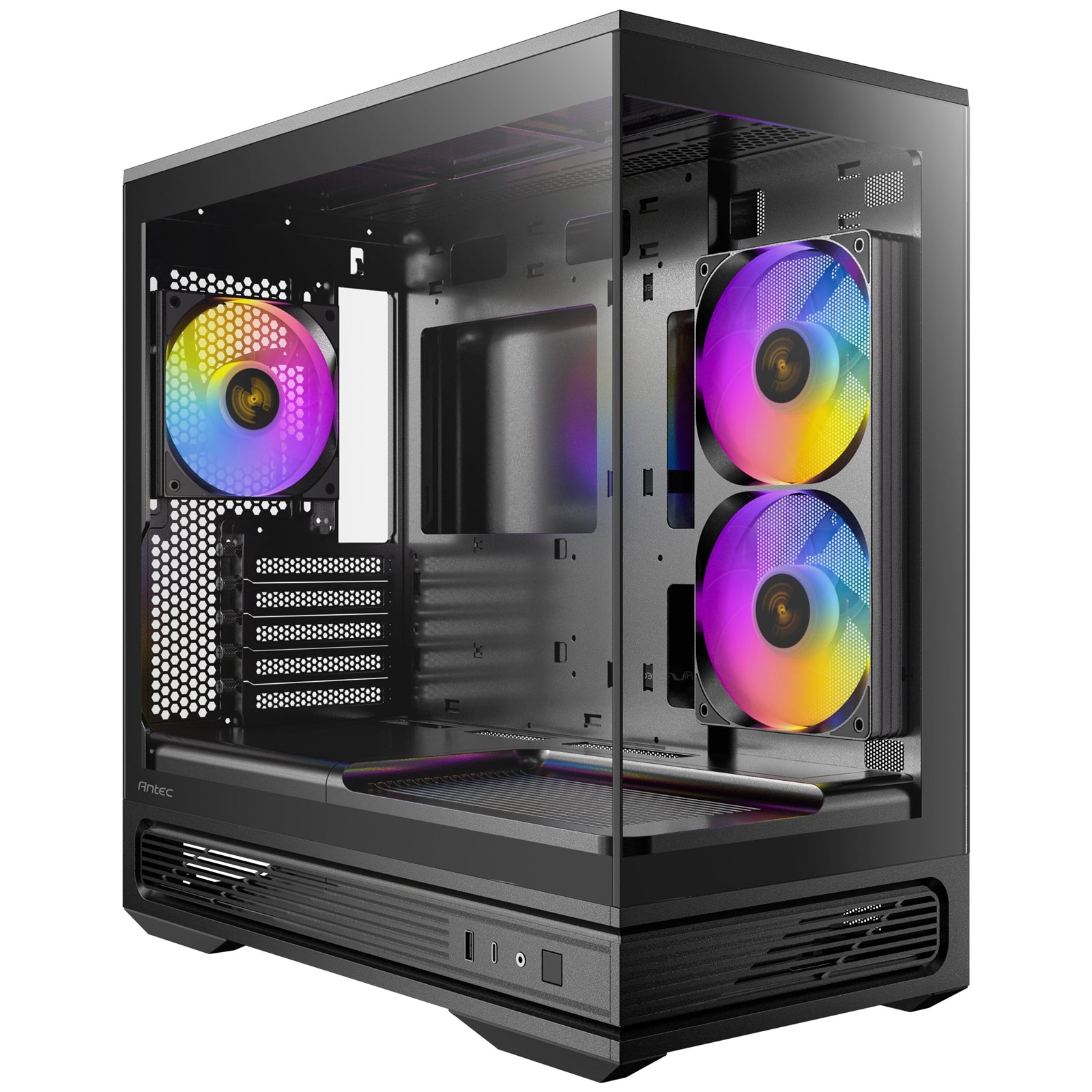

The Antec Constellation C2M ARGB is a compact Micro-ATX PC case combining panoramic presentation, efficient airflow and extensive hardware compatibility. Its 270° full-view tempered-glass design provides a clear, unobstructed view of the internal components and ARGB lighting, making it ideal for stylish gaming and performance-focused PC builds.
Mesh panels on the top, bottom and side provide powerful airflow, while the ventilated power supply shroud helps improve vertical cooling. The case comes equipped with a 240mm ARGB PWM reverse single-frame intake fan on the right side and a 120mm ARGB PWM exhaust fan at the rear.
The C2M ARGB supports Micro-ATX and Mini-ITX motherboards, graphics cards up to 415mm long, CPU coolers up to 165mm high and power supplies up to 225mm long, excluding cables. It also supports a 360mm radiator at the top, a 240mm radiator at the side and a 120mm radiator at the rear.
Tool-free removable panels, removable dust filters and 30mm of cable-management clearance make installation, maintenance and cable routing easier. The front I/O panel includes a high-speed USB Type-C 3.2 Gen 2 port capable of transfer speeds up to 10Gbps.
270° Full-view tempered glass
The panoramic tempered-glass design provides a clear and unobstructed view of the installed components and ARGB lighting.
Massive airflow design
Top, bottom and side mesh panels provide powerful airflow throughout the case while helping to reduce dust entering the system.
PSU shroud ventilation grille
The ventilated power supply shroud improves vertical airflow and helps direct cool air towards heat-generating components.
Pre-installed ARGB PWM fans
The case includes a 240mm ARGB PWM reverse single-frame fan on the right side and a 120mm ARGB PWM fan at the rear.
Versatile water-cooling support
Supports a radiator up to 360mm at the top, 240mm at the side and 120mm at the rear for flexible liquid-cooling configurations.
Extensive component compatibility
Supports graphics cards up to 415mm long, CPU coolers up to 165mm high and power supplies up to 225mm long, excluding cables.
Tool-free removable panels
The front, side and top panels feature fixing slots and studs, allowing them to be removed easily for hardware installation, maintenance and cleaning.
Ample cable-management space
Provides 30mm of clearance behind the motherboard tray for neat and organised cable routing.
High-speed front connectivity
The front I/O panel includes USB 3.0, USB Type-C 3.2 Gen 2 with speeds up to 10Gbps and a combined headphone and microphone connection.
Removable dust filters
Removable top and bottom dust filters help prevent dust buildup and make routine cleaning quick and easy.
Cooling compatibility
Supports the simultaneous installation of up to six 120mm fans for extensive system cooling.
SPECIFICATIONS
Manufacturer
Antec
Product Range
Constellation
Model
C2M ARGB
Manufacturer Part Number
0-761345-10281-0
EAN
0761345102810
Colour
Black
Dimensions
440 x 222 x 440mm (DWH)
Form Factor
Compact MicroATX PC Case
Materials
Steel + Plastic + Glass
Mainboard Support
Micro-ATX, Mini-ITX
Front Access & Controls
Power, USB 3.0 x 1, Type-C 3.2 Gen 2 x 1 at 10Gbps, Headphone/Mic Combo Jack
Side Panel
4mm Tempered Glass
Drive Bays
3.5"
1
2.5"
1
Expansion Slots
5
Fan Support
Top
3 x 120mm / 2 x 140mm
Side
2 x 120mm
Rear
1 x 120mm
Included Fan(s)
1 x 240mm ARGB PWM reverse single-frame fan on the right side + 1 x 120mm ARGB PWM fan at the rear
Radiator Support
Top
120 / 240 / 360mm
Side
120 / 240mm
Rear
120mm
Clearance
Max GPU Length
Up to 415mm
Max GPU Length with Right-side Radiator
Less than 280mm
Max CPU Cooler Height
Up to 165mm
Max PSU Length
Up to 225mm, cables excluded
Cable-management Clearance
30mm behind the motherboard tray
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
6.88kg
Gross Weight
8.11kg
Warranty
2 Years
