Description

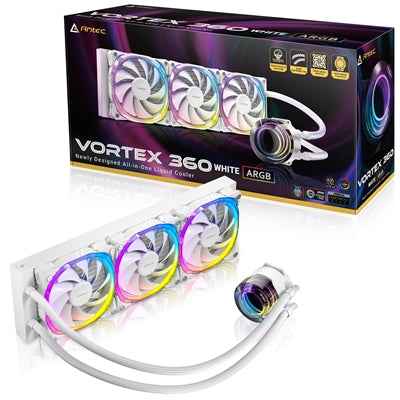

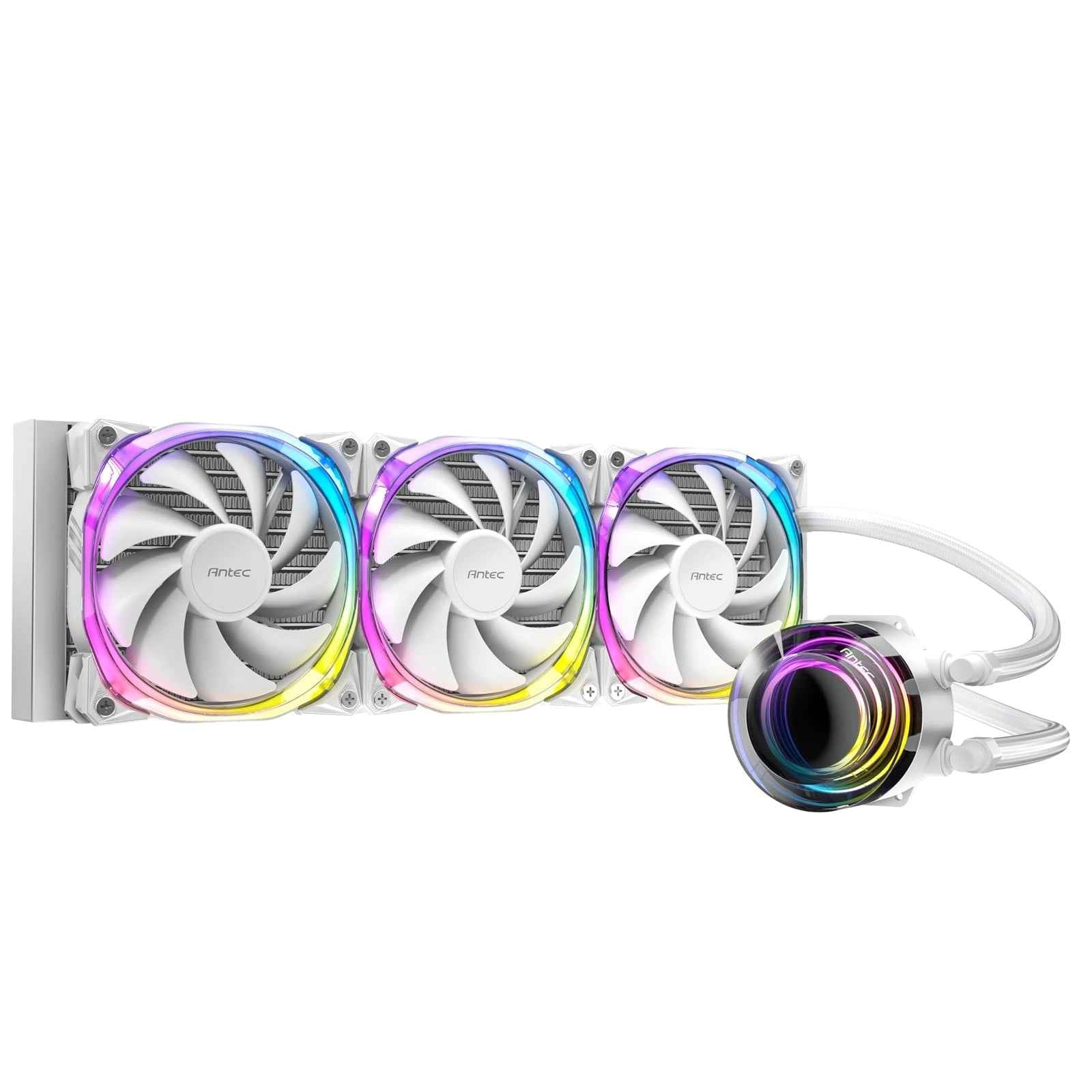

Antec Vortex 360 ARGB AIO Liquid CPU Cooler | White | 360mm Radiator
Suspended Spiral Pump Head Design: The suspended spiral pump head, inspired by the image of a vortex, provides outstanding cooling performance and various lighting effects from different angles. EPDM High-Density Tubing: The EPDM high-density tubing is very durable, making for less loss of liquid. Included ARGB Controller Working in Sync with the Motherboard: The included ARGB controller works with the motherboard, customizing each individual LED in color and effect. Mode Control:: Long press for 3 seconds to switch to motherboard control, single press to switch back ARGB Hub:: Connect the ARGB fan to this connector. Each hub supports up to 48 LEDs and 4 hubs support up to 120 LEDs
Specs
Processor
| CPU Socket Compatibility | AM3 / AM4 / TR4LGA 115X / 1200 / 1700 / 20XX / 1851 |
Storage Controllers
| SATA Connector: | Connect to the SATA connector of the power supply |
Internal I/O Headers
| VORTEX 360 ARGB White | The Epoch-Making All-in-One ARGB CPU Liquid Cooler |

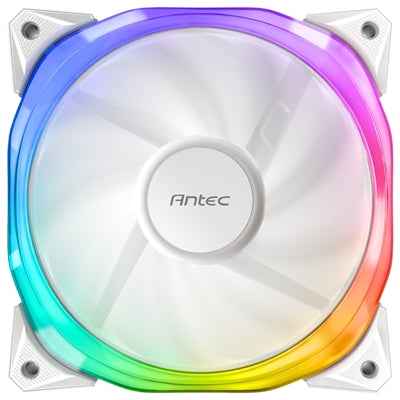

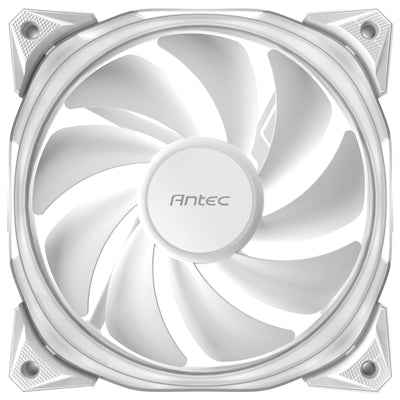

| Antec Fusion PWM ARGB Fan | The Vortex 360 ARGB White uses the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame and 16 LEDs for harmonious lighting effects and powerful CPU cooling. |
| ARGB Connector: | Connect to the motherboard for sync lighting effects |
Physical
| Material: | Aluminum |
Other
| Highly Efficient Cooling Pump | High Performance Cooling. Performance data tested with Vortex 360 on AMD Ryzen 5600x. |
| Massive Copper Base Plate | Provides highly efficient cooling at all loads. |
| Superior Fin Density | 13 fins dissipate heat rapidly. |
| Speed: | 600+/-200 - 2000+/-10% RPM |
| Airflow: | 57.93 CFM (max) |
| Noise Level: | 31.24 dB(A) (max) |
| Air Pressure: | 2.11 mmH2O (max) |
| Lighting Effect Switch Connector: | Connect to the rest hub for LED control (as the Mode button) |

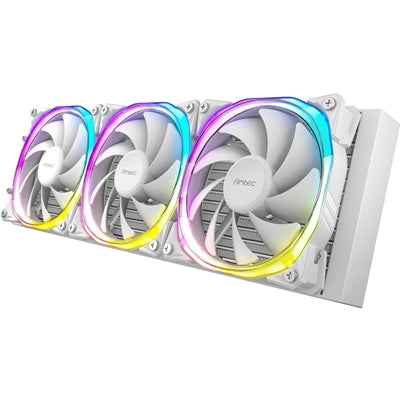

| Radiator Specifications | Dimensions: 394 x 120 x 27 mm |
| Pump Specifications | Dimensions: 67 x 48.5 mm |
| Rating Voltage: | DC 12 V |
| Minimum Startup Voltage: | 5.0 V |
| Fan Speed: | 2800+/-10% RPM |
| Rated Current: | 0.25+/-20% A |
| Consumed Power: | 3.0 W |
| Flow Rate: | 1300 mL/min |
| Water Pressure: | 1.4M |
| Operating Temperature: | -10�C ~ +60�C |
| Noise Level: | 28 dB(A) max |
| Lifespan: | 40,000 hours |
| Connector: | PUMP: 3-pin / LED: 3-pin |
