Description

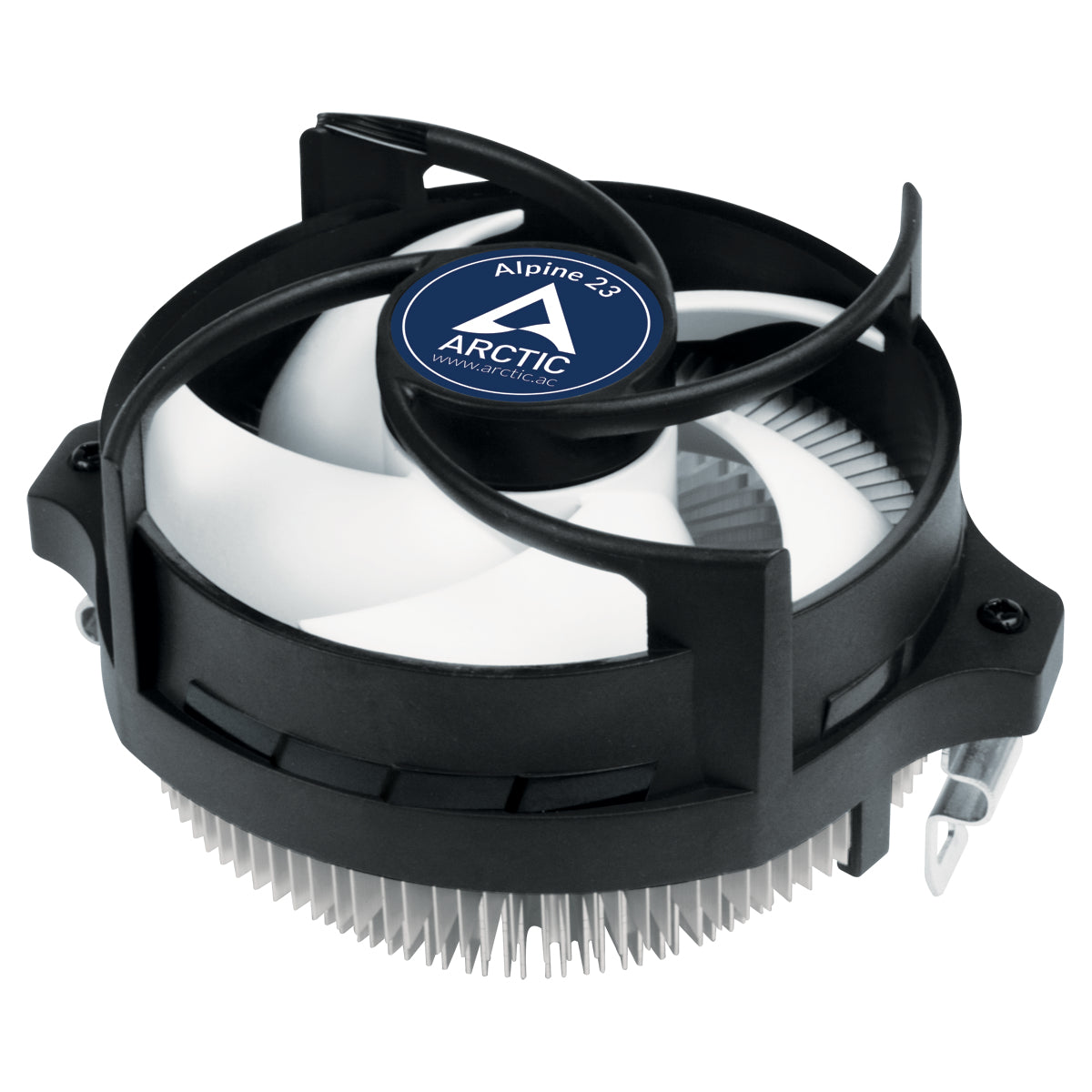

ARCTIC Alpine 23 Compact AMD CPU Air Cooler, AM4/AM5, 90mm PWM Fan, FDB Bearing, 65mm Height, Black

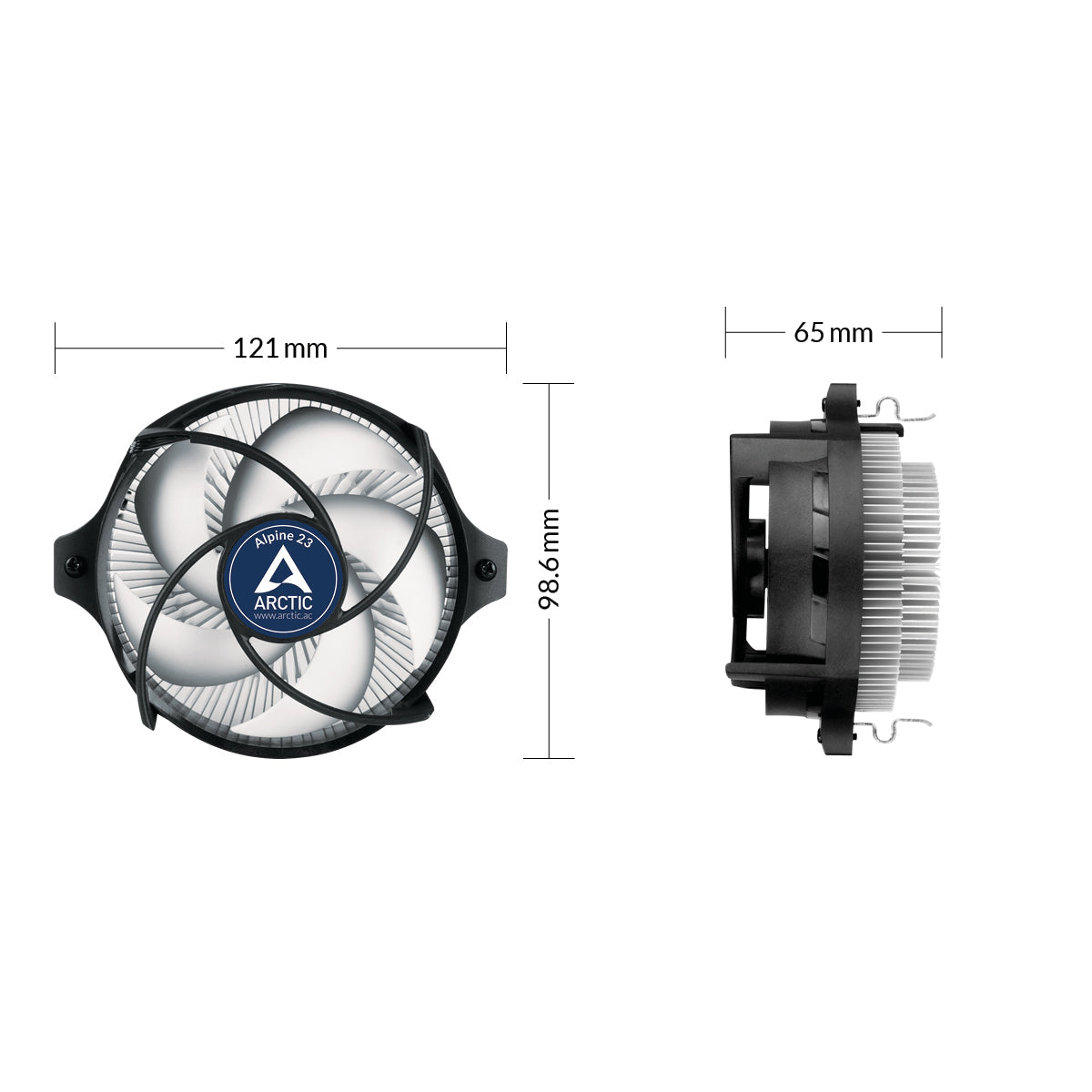

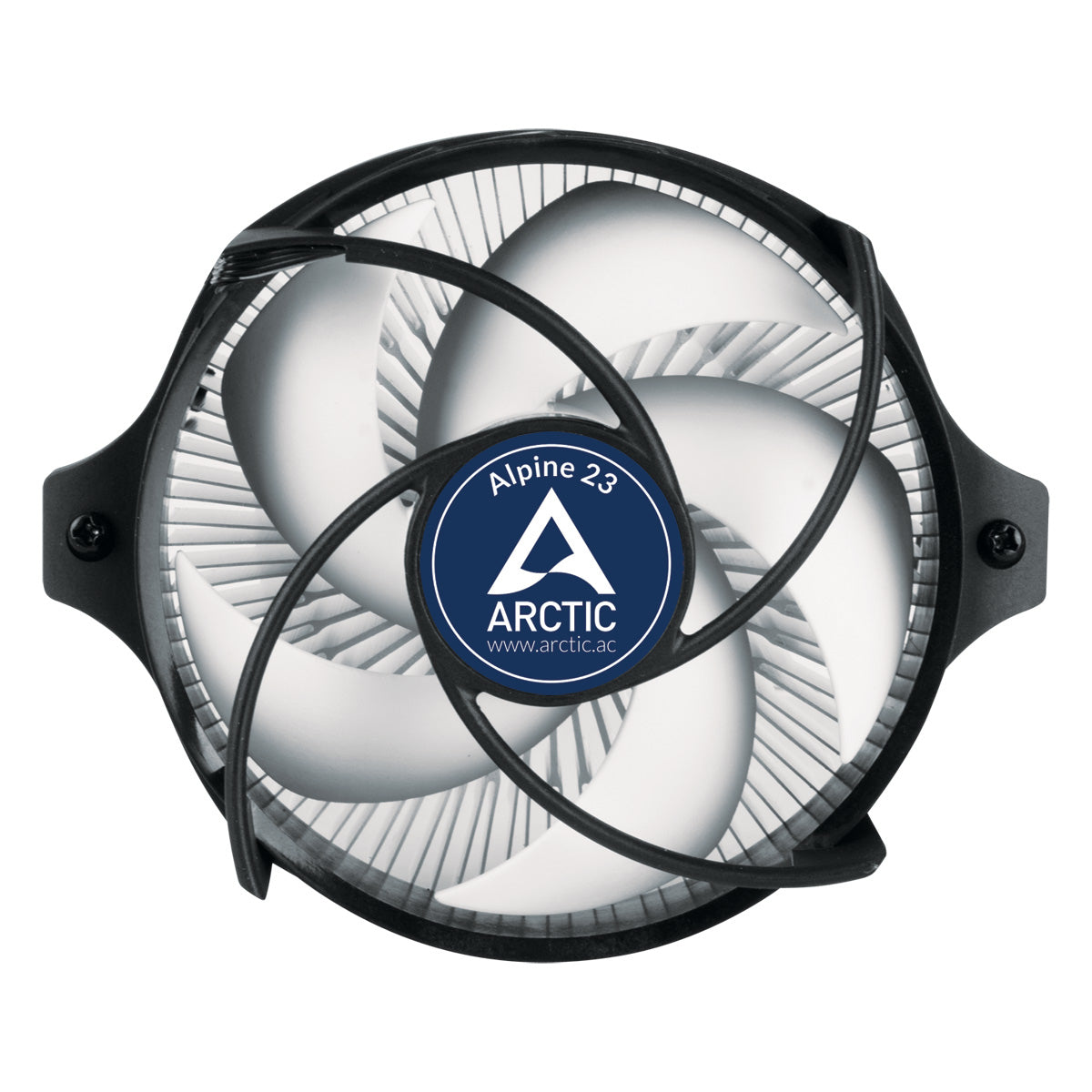

ARCTIC Alpine 23 Compact AMD CPU Air Cooler, AM4/AM5, 90mm PWM Fan, FDB Bearing Overview The ARCTIC Alpine 23 is a compact, no-frills AMD CPU air cooler designed for budget and SFF builds where space is at a premium. At just 65mm tall, it fits in cases with tight CPU cooler height restrictions while delivering quiet, reliable cooling for AM4 and AM5 processors. Backed by ARCTIC's renowned 6-year warranty and exceptional price-to-performance ratio. 90mm PWM Fan with FDB Bearing The 90mm fan operates across a wide speed range of 100-2000 RPM via 4-pin PWM control, allowing the motherboard to automatically adjust fan speed based on CPU temperature. At minimum speed the fan is virtually silent at just 0.3 sone. The Fluid Dynamic Bearing (FDB) provides superior longevity and quieter operation compared to sleeve bearing designs, with a rated current of just 0.06A at 12V. AM4 & AM5 Compatible The Alpine 23 supports both AMD Socket AM4 and Socket AM5, making it compatible with Ryzen 3000/5000 series through to the latest Ryzen 7000/8000 series processors. The mounting kit is included for straightforward installation on both platforms. Compact 65mm Height At only 65mm tall (98.6mm wide, 121mm deep), the Alpine 23 is ideal for compact and micro ATX builds with limited CPU cooler clearance. The aluminium heatsink with 32mm heat pipe provides efficient heat dissipation for processors within its thermal envelope. What's Included ARCTIC Alpine 23 cooler, 90mm PWM fan (pre-installed), AM4/AM5 mounting kit, documentation. 6-year warranty. Cooler Type Air Cooler Colour Aluminium / Black Heatsink Material Aluminium Heat Pipe Diameter 32mm Dimensions 98.6 x 121 x 65mm (W x D x H) Weight 275.5g Warranty 6 years Fan Fan Size 90mm Fan Connector 4-pin PWM Speed Range 100 - 2000 RPM Noise Level 0.3 sone Bearing Type Fluid Dynamic Bearing (FDB) Voltage 12V DC Rated Current 0.06A Compatibility Supported Sockets AMD AM4, AMD AM5 Mounting Kit Included Yes
