Description

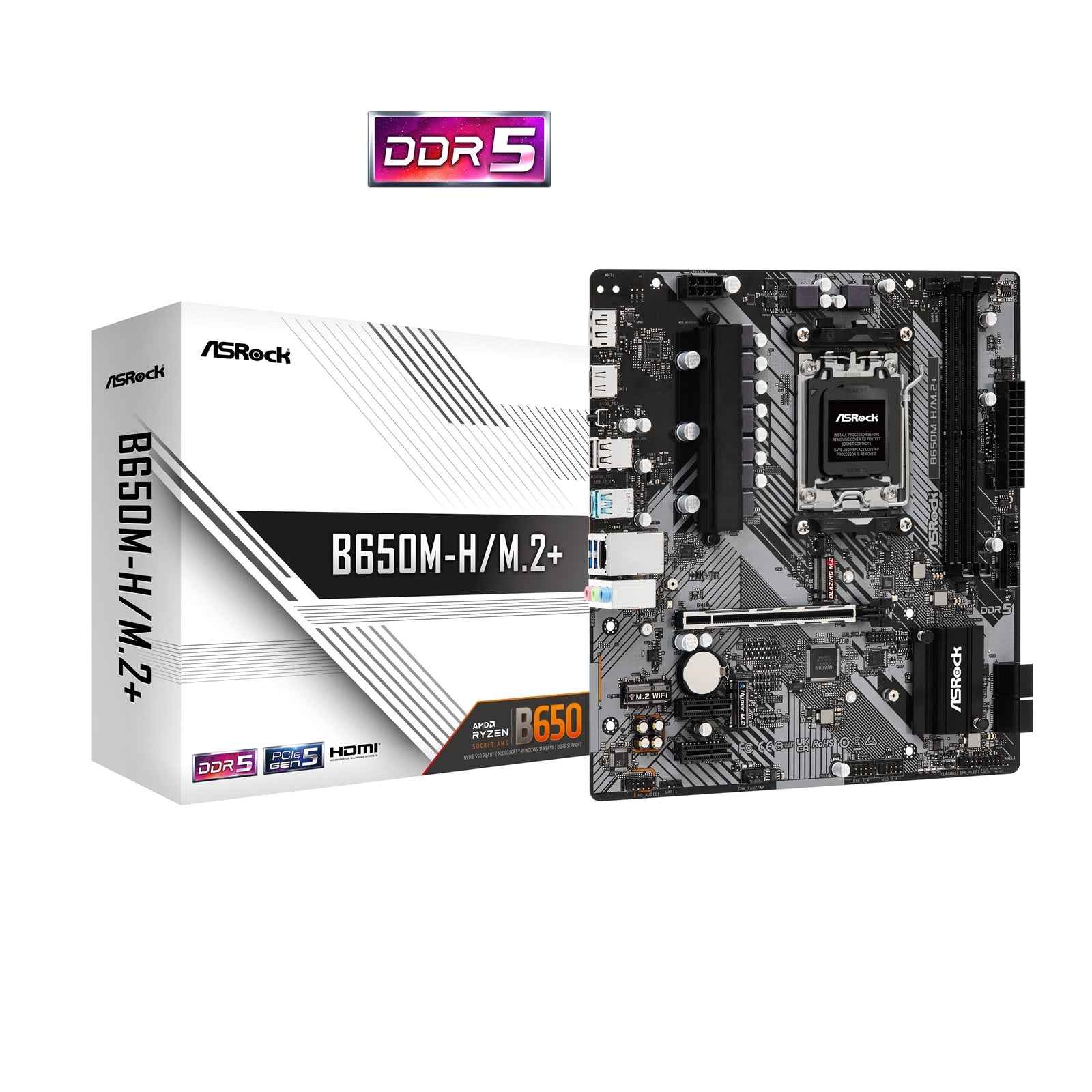

ASRock B650M-H/M.2+ AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, GbE LAN, 1x DsiplayPort / 1x HDMI Port
* CPU_FAN1 supports the fan power up to 1A (12W).** CHA_FAN1~3/WP support the fan power up to 2A (24W).CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. Software and UEFI: Software- ASRock Motherboard Utility (A-Tuning)UEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash Certifications: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | - AMD B650 |
| Memory | - Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)*- Max. capacity of system memory: 128GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
Storage Controllers
| Unique Feature | Superb Productivity- PCIe Gen5 (M.2)- Dual Channel DDR5Rock-Solid Durability- 6+1+1 Power Phase, 50A Dr.MOS for VCoreEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status Checker |
BIOS
| Graphics | Integrated AMD RDNA� graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
Network
| Wireless LAN | - N/A |
| Slots | CPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*- 15� Gold Contact in VGA PCIe Slot (PCIE1) |
Rear Panel I/O Ports
| Connector | - 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Rear Panel I/O | - 2 x Antenna Mounting Points- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen1 Type-C Port- 3 x USB 3.2 Gen1 Type-A Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | - 1 x User Manual- 1 x I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm |
| OS | - Microsoft Windows� 10 64-bit / 11 64-bit |
