Description

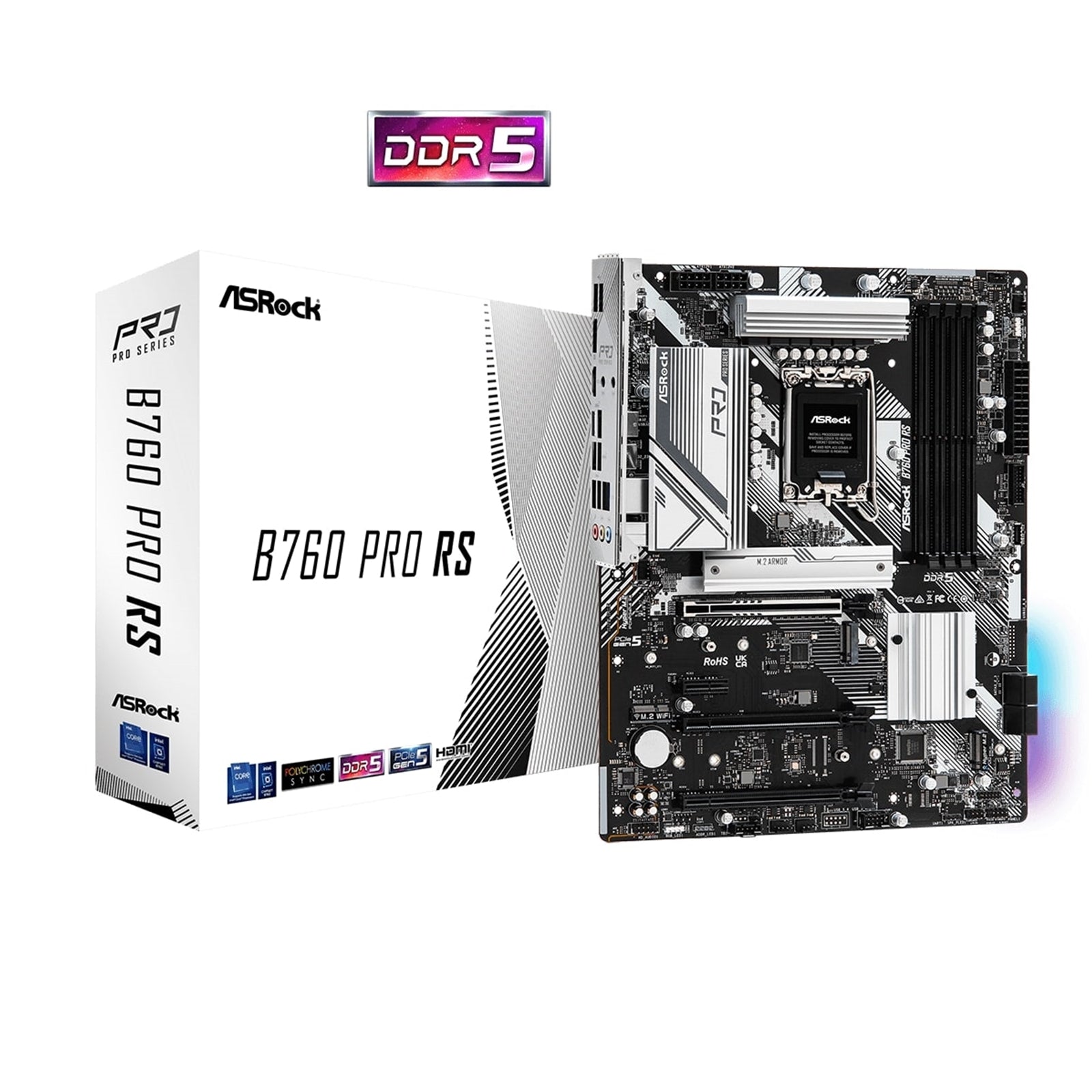

ASRock B760 PRO RS Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming � with style and speed! Built in eDP Signal Connector: Supports ASRock 13.3� Side Panel kitAn eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock�s exclusive 13.3� Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment. Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | Intel� B760 |
| Memory | Dual Channel DDR5 Memory Technology4 x DDR5 DIMM SlotsSupports DDR5 non-ECC, un-buffered memory up to 7200+(OC)Max. capacity of system memory: 192GBSupports Intel� Extreme Memory Profile (XMP) 3.0 |
Memory
| DDR5 XMP & EXPO Support | Derived from the �built for stable and reliable� designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel� XMP/AMD EXPO� capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. |
| DDR5 Memory with Protection Circuit | Due to the unique electrical architecture of DDR5 DIMM, there�s a high risk of damaging the memory module if AC power isn�t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. |
BIOS
| Graphics | Intel� Xe Graphics Architecture (Gen 12)1 x eDP 1.4, supports max. resolution up to Full HD 60Hz1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
Expansion Slots
| PCIe 5.0 + Surface-Mount Tech | Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. |
Network
| Slots | CPU:1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 modeChipset:1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode1 x PCIe 3.0 x1 Slot (PCIE2)1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel� CNVio/CNVio2 (Integrated WiFi/BT)Supports AMD CrossFire� |
Rear Panel I/O Ports
| Connector | 1 x eDP Signal Connector1 x SPI TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers2 x Addressable LED Headers1 x CPU Fan Connector (4-pin)1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)1 x Front Panel Audio Connector1 x Thunderbolt� AIC Connector (5-pin) (Supports ASRock Thunderbolt� 4 AIC Card)1 x USB 2.0 Header (Supports 2 USB 2.0 ports)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
| Rear Panel I/O | 2 x Antenna Mounting Points1 x HDMI Port1 x DisplayPort 1.41 x USB 3.2 Gen2 Type-A Port (10 Gb/s)1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)4 x USB 3.2 Gen1 Ports2 x USB 2.0 Ports1 x RJ-45 LAN PortHD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | SoftwareASRock Motherboard Utility (A-Tuning)ASRock Dragon 2.5G LAN SoftwareASRock Polychrome SYNCUEFIASRock EZ ModeASRock Full HD UEFIASRock My Favorites in UEFIASRock Auto Driver InstallerASRock Instant FlashASRock Easy RAID Installer |
| Accessories | 1 x User Manual2 x SATA Data Cables4 x Screws for M.2 Sockets1 x Standoff for M.2 Socket |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| OS | Microsoft� Windows� 10 64-bit / 11 64-bit |
Internal I/O Headers
| High Speed M.2 Solution(PCIe Gen4 x4) | Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience |
| Dragon 2.5 Gb/s LAN | The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you�ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. |
| Dual USB 3.2 Gen2 (Type-A + Type-C) | This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. |
| Front USB 3.2 Gen2 Type-C | Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. |
| Unique Feature | Superb ProductivityPCIe Gen5 (Graphics)Dual Channel DDR5Rock-Solid Durability10+1+1 Power Phase, 50A Dr.MOS for VCore+GTPre-Installed I/O ShieldUltrafast Connectivity2.5G LANEZ UpdateASRock Auto Driver InstallerEZ TroubleshooterASRock Post Status Checker |
