Description

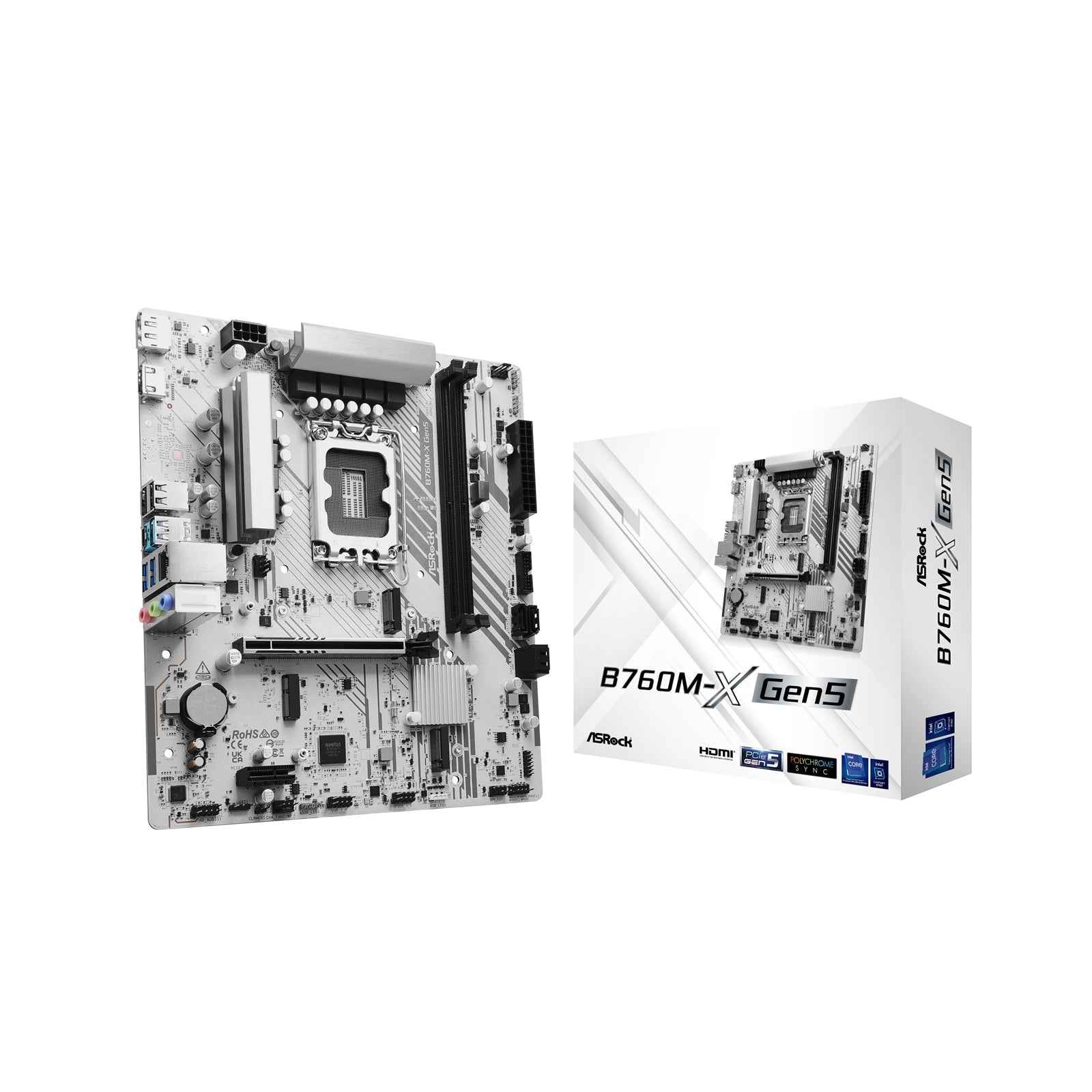

ASRock B760M-X Gen5 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Socket, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port
Certifications: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | - Intel� B760 |
| Memory | - Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*- Max. capacity of system memory: 128GB*- Supports Intel� Extreme Memory Profile (XMP) 3.0 |
BIOS
| Graphics | - Intel� Xe Graphics Architecture (Gen 12)- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
Network
| Wireless LAN | N/A |
| Slots | CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 3.0 x1 Slots (PCIE2)*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
Rear Panel I/O Ports
| Connector | - 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Rear Panel I/O | - 2 x Antenna Mounting Points- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen1 Type-C Port- 3 x USB 3.2 Gen1 Type-A Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Easy RAID Installer |
| Accessories | - 1 x I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm |
| OS | - Microsoft Windows� 10 64-bit / 11 64-bit |
Other
| Unique Feature | Superb Productivity- PCIe Gen5 (Graphics)- Dual Channel DDR5Rock-Solid Durability- 7+1+1 Power Phase- ASRock Intel� 4-Layer Memory POOL (Planes on Outer Layers) TechnologyUltrafast Connectivity- 2.5G LANEZ Update- ASRock Auto Driver Installer |
