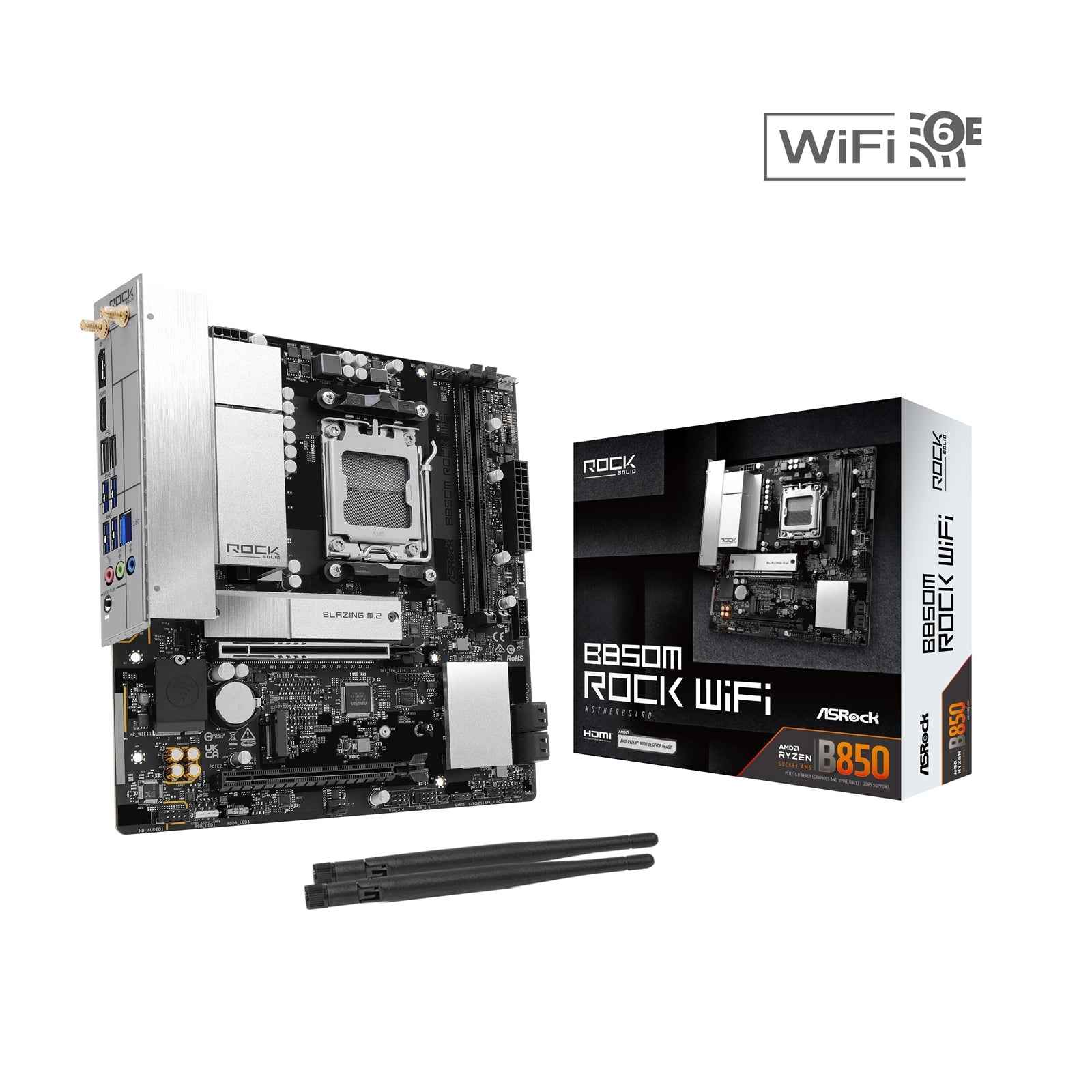

ASRock B850M Rock WiFi AMD AM5 Motherboard | Micro-ATX | 2x DDR5 | 2x M.2 | Wi-Fi 6E
Certifications: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | - AMD B850 |
| Memory | - Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*- Max. capacity of system memory: 128GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
BIOS
| Graphics | Integrated AMD RDNA� graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
Network
| Unique Feature | Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- 6+1+1 Power Phase, Dr.MOS for VCore- Pre-Installed I/O ShieldUltrafast Connectivity- 2.5G LAN, 802.11axe Wi-Fi 6E ModuleEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter |
| Wireless LAN | - 802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 with extended 6GHz band support- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.3- Supports MU-MIMO |
| Slots | CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
Rear Panel I/O Ports
| Connector | - 1 x Thermistor Cable Header- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)****- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Rear Panel I/O | - 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 4 x USB 3.2 Gen1 Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash |
| Accessories | - 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm |
| OS | - Microsoft Windows� 10 64-bit / 11 64-bit |
