Description

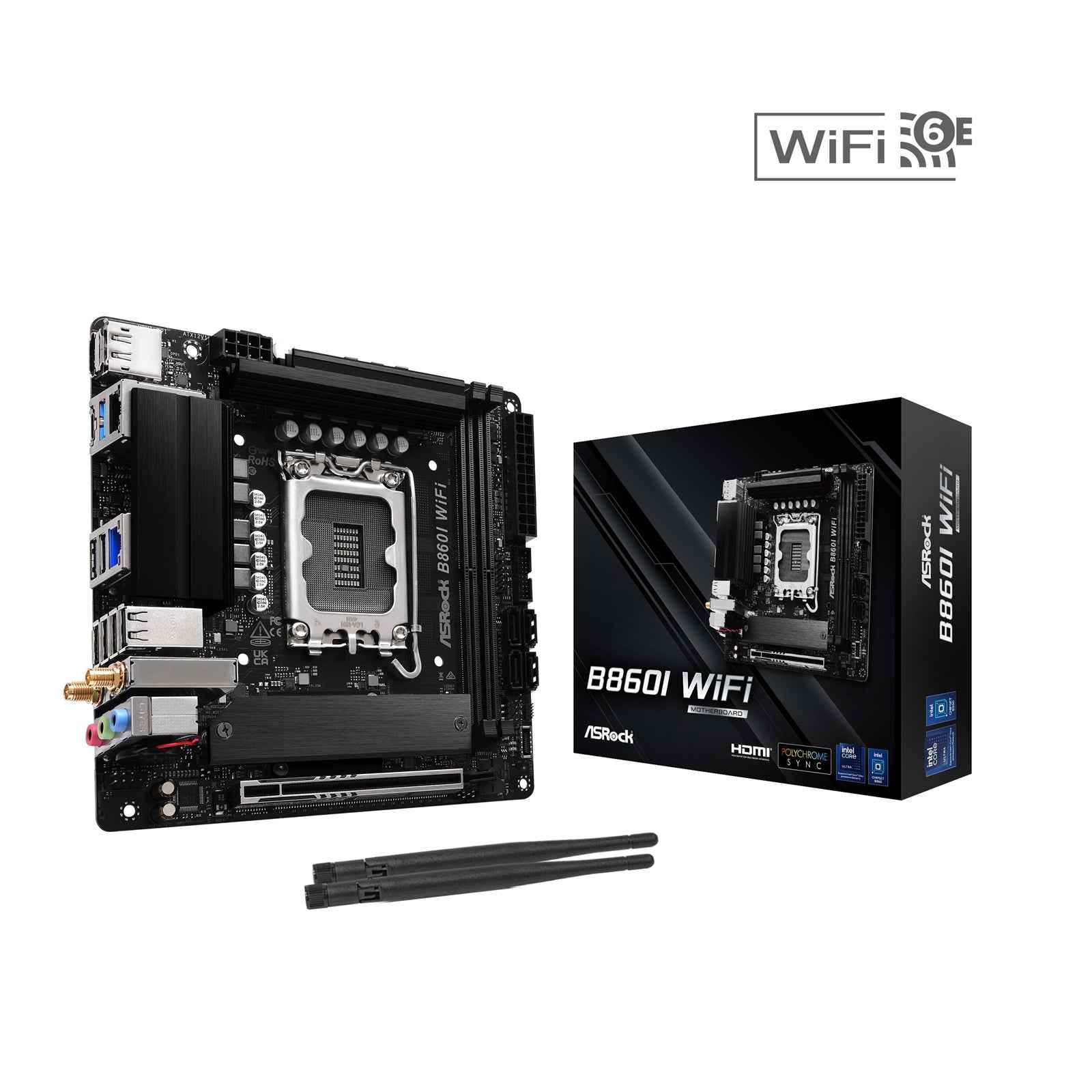

ASRock B860I WiFi Intel LGA1851 Motherboard | Mini-ITX | 2x DDR5 | Wi-Fi 6E | Dual LAN
1 x Gigabit LAN 10/100/1000 Mb/s (Intel� I219V) Certifications: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | - Intel� B860 |
| Memory | - Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC)*- Supports Clocked Unbuffered DIMM (CUDIMM)- Max. capacity of system memory: 128GB- Supports Intel� Extreme Memory Profile (XMP) 3.0x |
BIOS
| Graphics | - Intel� Xe LPG Graphics Architecture- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
Network
| Unique Feature | Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- 8+1+1+1+1 Power Phase, SPS for VCore+GT+VCCSAUltrafast Connectivity- 2.5G LAN, 802.11axe Wi-Fi 6E ModuleEZ Update- ASRock Auto Driver Installer |
| Wireless LAN | - 802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 with extended 6GHz band support*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.3- Supports MU-MIMO |
| Slots | CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
Rear Panel I/O Ports
| Connector | - 1 x Addressable LED Header*- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)- 1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
| Rear Panel I/O | - 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)- 1 x USB 3.2 Gen2 Type-A Port- 2 x USB 3.2 Gen1 Ports- 4 x USB 2.0 Ports- 2 x RJ-45 LAN Ports- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash |
| Accessories | - 1 x I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 2 x Screws for M.2 Sockets |
| Form Factor | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm |
| OS | - Microsoft Windows� 11 64-bit |
