Description

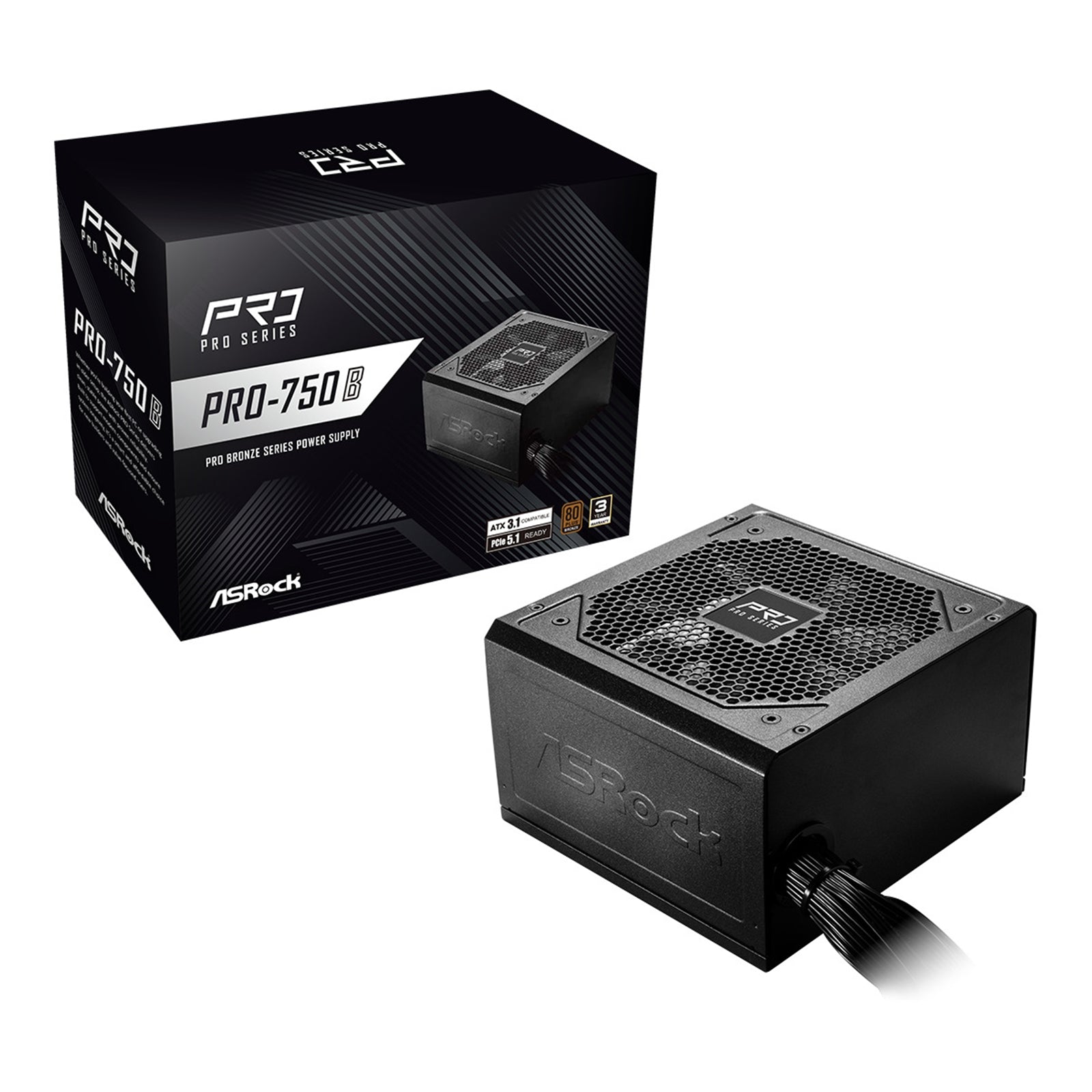

ASRock PRO-750B 750W ATX Power Supply Unit, 80 Plus Bronze Certified, 120mm Silent Cooling Fan, High Efficiency PSU
Native PCIe 12V-2x6 Cable Dual Color Design: With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly. Safety First with ASRock: Full suite of protections to keep all components safe during normal to extreme power levels.ASRock offers an outstanding 3 –Year warranty, guaranteeing long term reliable and peace of mind operation.
Specs
Processor
| PCIe 5.1 Cable TempGuard | No |
| Total Power Excursion | 200% |
| MTBF (Hours)@25°C | 100,000 |
| Cable Type | Flat |
| Motherboard cable (24pin) | 1 |
| EPS 12V CPU connectors (4+4pin) | 1 |
| PCIe5.1 connectors(12+4pin) Dual Color | 1 (450W) |
| PCIe connectors (6+2pin) | 1 |
| 4-pin Peripheral connectors | 2 |
| SATA 5-pin connectors | 4 |
Chipset & Form Factor
| ATX 12V Version | ATX 3.1 |
Physical
| Dimensions(L x W x H) | 140mm x 150mm x 86mm |
Other
| 80 Plus Efficiency | BRONZE |
| AC Input | 100-240V~, 50-60Hz, 10-5A |
| Continuous 12V output | 62.5 A |
| Warranty (Years) | 3 |
| Fan | 120mm Fan |
| iCOOL MODE | No |
| Protections | OCP, SCP, OVP, UVP, OTP, OPP |
| Capacitors | All Taiwanese |
