Description

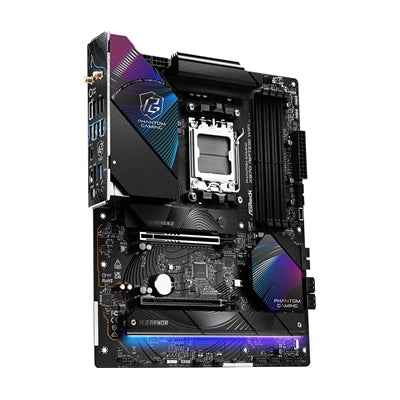

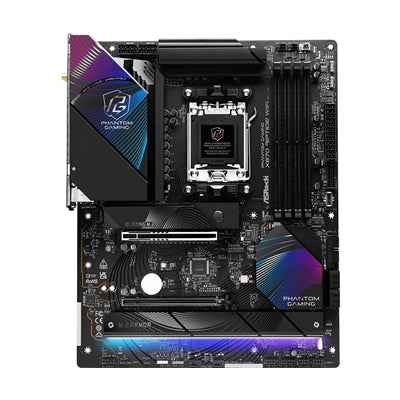

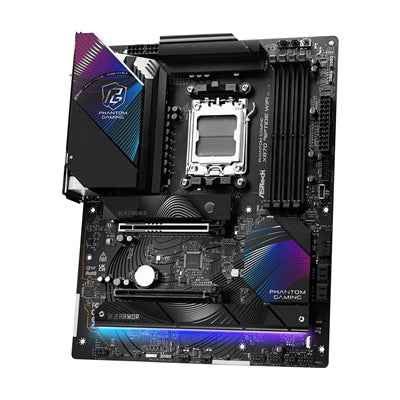

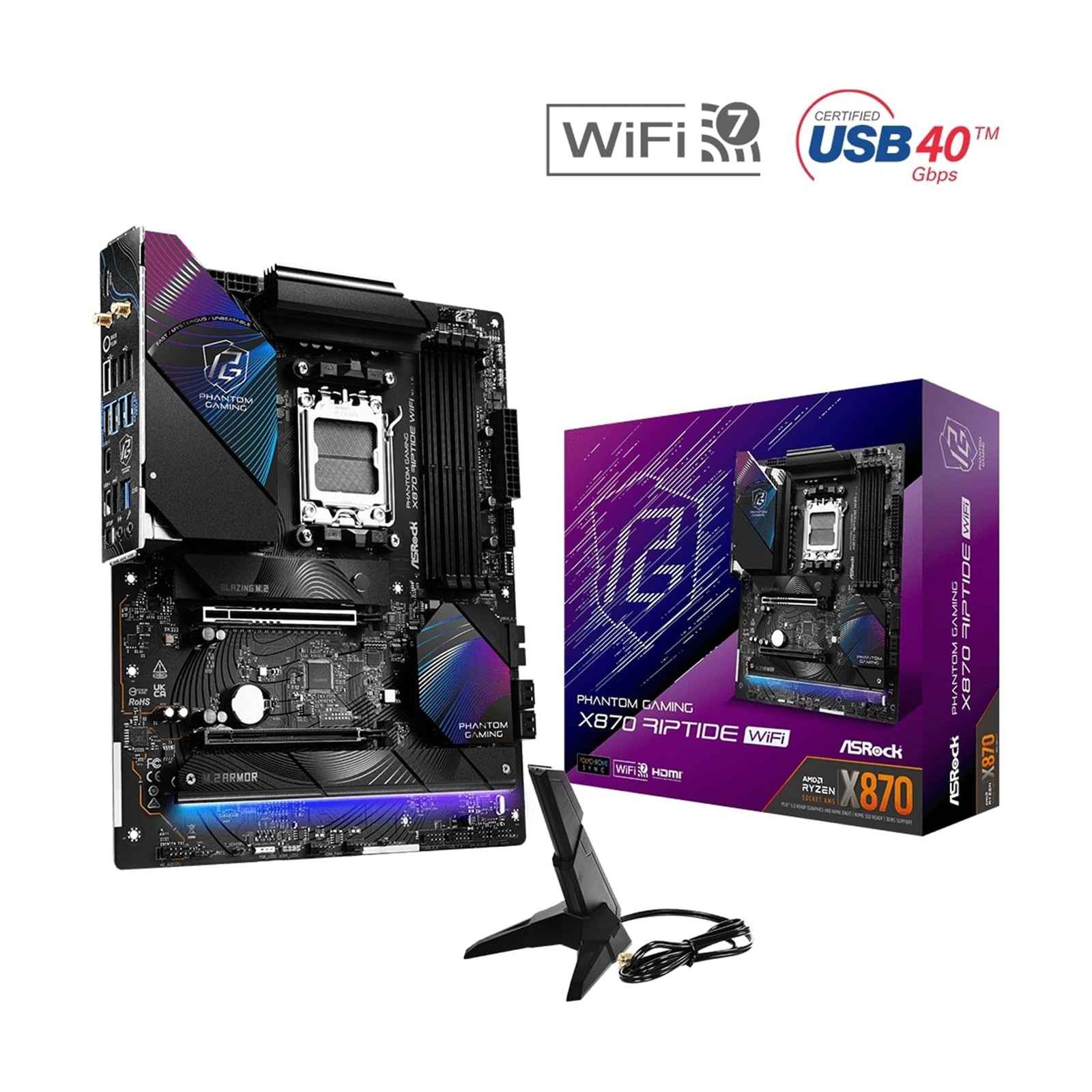

ASRock X870 Riptide WiFi AMD AM5 Motherboard | ATX | 4x DDR5 | USB4 | Wi-Fi 7
Phantom Gaming X870 Riptide WiFi: Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea�s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability. Fast, Mysterious, Unbeatable: Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It�s all about bringing a new gaming experience to gamers! Exclusive 20K Cap with 1000uF Capacitance: The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits 14+2+1 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr. MOS: Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Hi-Density Power Connector: CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking. 8 Layer PCB: The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! Aluminum Heatsink: The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Enhanced VR Experience: Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected. Wi-Fi 7 802.11be: Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing. Multi-link Operation(MLO): Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience. New Wi-Fi Antenna Design: The new Wi-Fi antenna design is ideal for high-bandwidth, low-latency applications and ensures a stable connection. Lightning Gaming Ports: Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency! Software and UEFI: SoftwareASRock Motherboard Utility (Phantom Gaming Tuning)Killer Control CenterASRock Polychrome SYNCUEFIASRock EZ ModeASRock Full HD UEFIASRock Auto Driver InstallerASRock Instant Flash Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | AMD X870 |
| Memory | Dual Channel DDR5 Memory Technology4 x DDR5 DIMM SlotsSupports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)Max. capacity of system memory: 256GBSupports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
Memory
| DDR5 XMP & EXPO Support | Derived from the �built for stable and reliable� designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. |
Storage Controllers
| PCIe Gen5 Blazing M.2 | The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. |
BIOS
| Graphics | Integrated AMD RDNA� graphics (Actual support may vary by CPU)1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
Network
| Killer Ethernet E3100 | The Killer E3100 2.5 Gbps Ethernet controller is designed specially for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. |
| Wireless LAN | 802.11be 2x2 Wi-Fi 7 ModuleSupports IEEE 802.11a/b/g/n/ac/ax/axe/beSupports 2.4GHz/5GHz/6GHz frequency bandSupports 160MHz channel bandwidth with 6GHz frequency band1 antenna to support 2 (Transmit) x 2 (Receive) diversity technologySupports Bluetooth 5.4Supports MU-MIMO |
| Slots | CPU:1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 modeChipset:1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi moduleSupports AMD CrossFire15� Gold Contact in VGA PCIe Slot (PCIE1) |
Rear Panel I/O Ports
| Enhanced USB4 Type-C | USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate. |
| Ultra USB Power | Provides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED. |
| Front Panel USB 3.2 Gen2x2 Type-C Header | The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. |
| Connector | 1 x Thermistor Cable Header1 x Power LED and Speaker Header1 x RGB LED Header3 x Addressable LED Headers2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector (Hi-Density Power Connector)2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)1 x Front Panel Audio Connector2 x USB 2.0 Headers (Support 4 USB 2.0 ports)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Rear Panel I/O | 2 x Antenna Ports1 x HDMI Port1 x Optical SPDIF Out Port2 x USB4 Type-C Ports (40 Gb/s)3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.)2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.)4 x USB 2.0 Ports1 x RJ-45 LAN Port1 x BIOS Flashback Button1 x Line Out Jack (Gold Audio Jack)1 x Microphone Input Jack (Gold Audio Jack) |
| Accessories | 2 x SATA Data Cables1 x ASRock WiFi 2.4/5/6 GHz Antenna1 x ARGB Splitter Cable1 x Thermistor Cable |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm8 Layer PCB |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
Other
| Unique Feature | Superb ProductivityPCIe Gen5 (Graphics, M.2)Dual Channel DDR5USB4 Type-C Ports (40 Gb/s)Rock-Solid Durability14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink ArmorFlexible Integrated I/O Shield20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast GamingKiller 2.5G LAN, 802.11be Wi-Fi 7 ModuleASRock Lightning Gaming PortsEZ UpdateBIOS Flashback ButtonASRock Auto Driver InstallerEZ Troubleshooter |
