Description

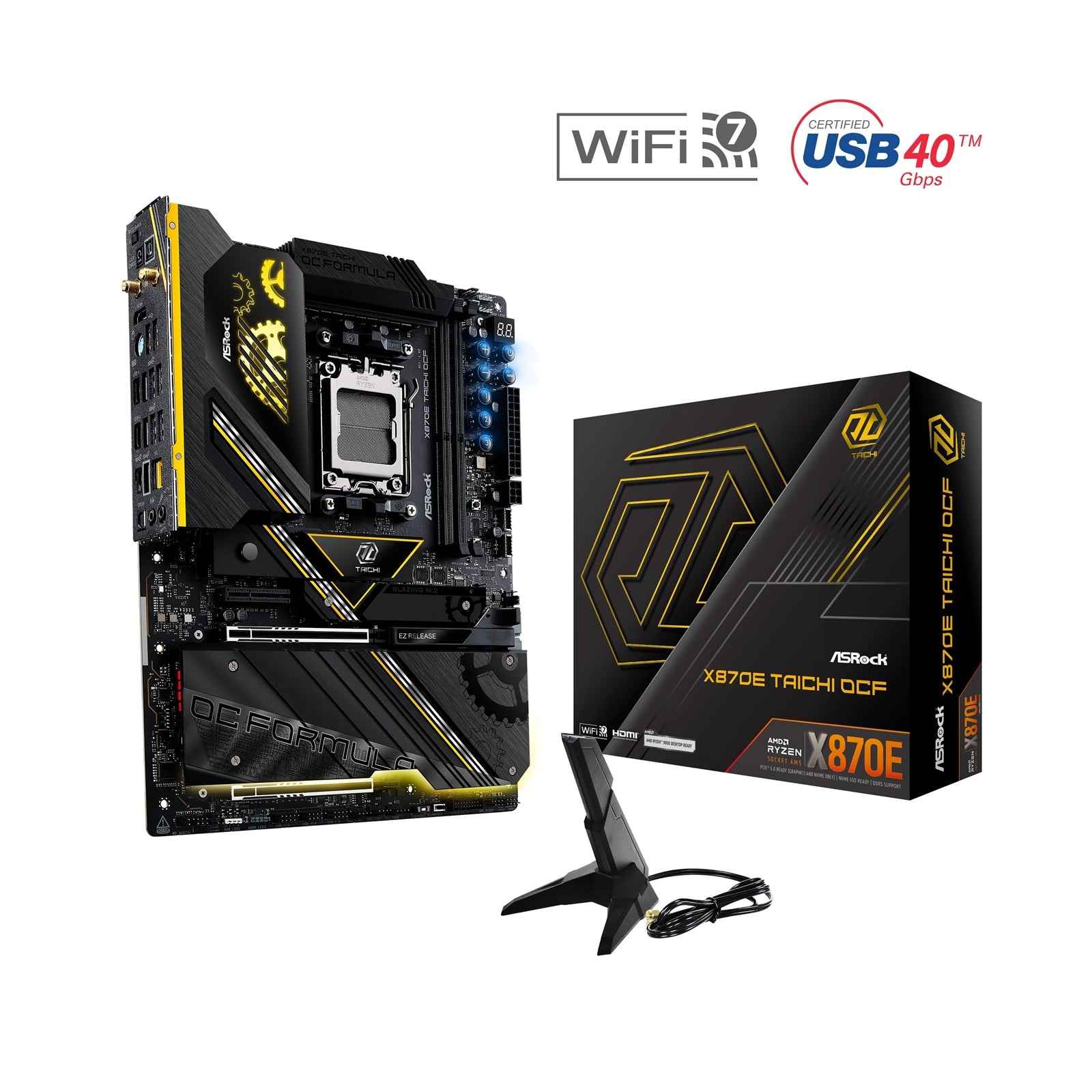

ASRock X870E TAICHI OCF AMD AM5 Motherboard | ATX | 6x M.2 | USB4 | 5GbE | Wi-Fi 7
Software and UEFI: Software- ASRock Formula Drive- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash Certifications: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | - AMD X870E |
| Memory | - Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- AMD Ryzen� 9000 Series Processors supports DDR5 ECC/non-ECC, un-buffered memory up to 8400+(OC)*- AMD Ryzen� 8000 Series Processors supports DDR5 ECC/non-ECC, un-buffered memory up to 10400+(OC)*- AMD Ryzen� 7000 Series Processors supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*- Max. capacity of system memory: 128GB*- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
BIOS
| Graphics | Integrated AMD RDNA� graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
Network
| Wireless LAN | - 802.11be 2x2 Wi-Fi 7 Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be- Supports 2.4GHz/5GHz/6GHz* frequency band- Supports 160MHz channel bandwidth with 6GHz* frequency band- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.4- Supports MU-MIMO |
| Slots | CPU:- 2 x PCIe 5.0 x16 Slots (PCIE2 and PCIE3), support x16 or x8/x8 modes*Chipset:- 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode*- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire� |
Rear Panel I/O Ports
| Connector | - 2 x Thermistor Cable Headers- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector)****- 1 x Front Panel Audio Connector (15� Gold Audio Connector)- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Support 2 USB 3.2 Gen1 ports)- 2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s)*****- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED- 1 x Retry Button- 1 x Safe Boot Button- V-Probe�: 6-set of onboard voltage measurement points laid- Rapid OC Buttons: +/- buttons to adjust OC frequency- 1 x Slow Mode Switch- 1 x LN2 Mode Switch- 1 x NickShih's OC Profile 1 Button with LED- 1 x NickShih's OC Profile 2 Button with LED- 1 x NickShih's OC Profile 3 Button with LED |
| Rear Panel I/O | - 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 2 x USB4 Type-C Ports (40 Gb/s)*- 7 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x Clear CMOS Button- 1 x BIOS Flashback Button- 1 x BIOS Selection Switch- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack) |
| Accessories | - 2 x SATA Data Cables- 1 x ASRock WiFi 2.4/5/6 GHz Antenna- 1 x DRAM Cooling Fan- 1 x ARGB Splitter Cable- 2 x Thermistor Cables |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm- 10 Layer PCB- 2oz Copper PCB |
| OS | - Microsoft Windows� 10 64-bit / 11 64-bit |
Other
| Unique Feature | Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5- USB4 Type-C Ports (40 Gb/s)- 6 x M.2 SocketsRock-Solid Durability- Server-Grade Low-Loss PCB- 22+2+1 Power Phase, 110A SPS for Vcore+SOC with Enlarged Heatsink Armor- Flexible Integrated I/O Shield- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming- 5G LAN, 802.11be Wi-Fi 7 ModuleProfessional Overclocking- ASRock Hyper BCLK Engine- Physical OC Buttons- V-Probe�EZ Update- BIOS Flashback Button- ASRock Auto Driver Installer |
