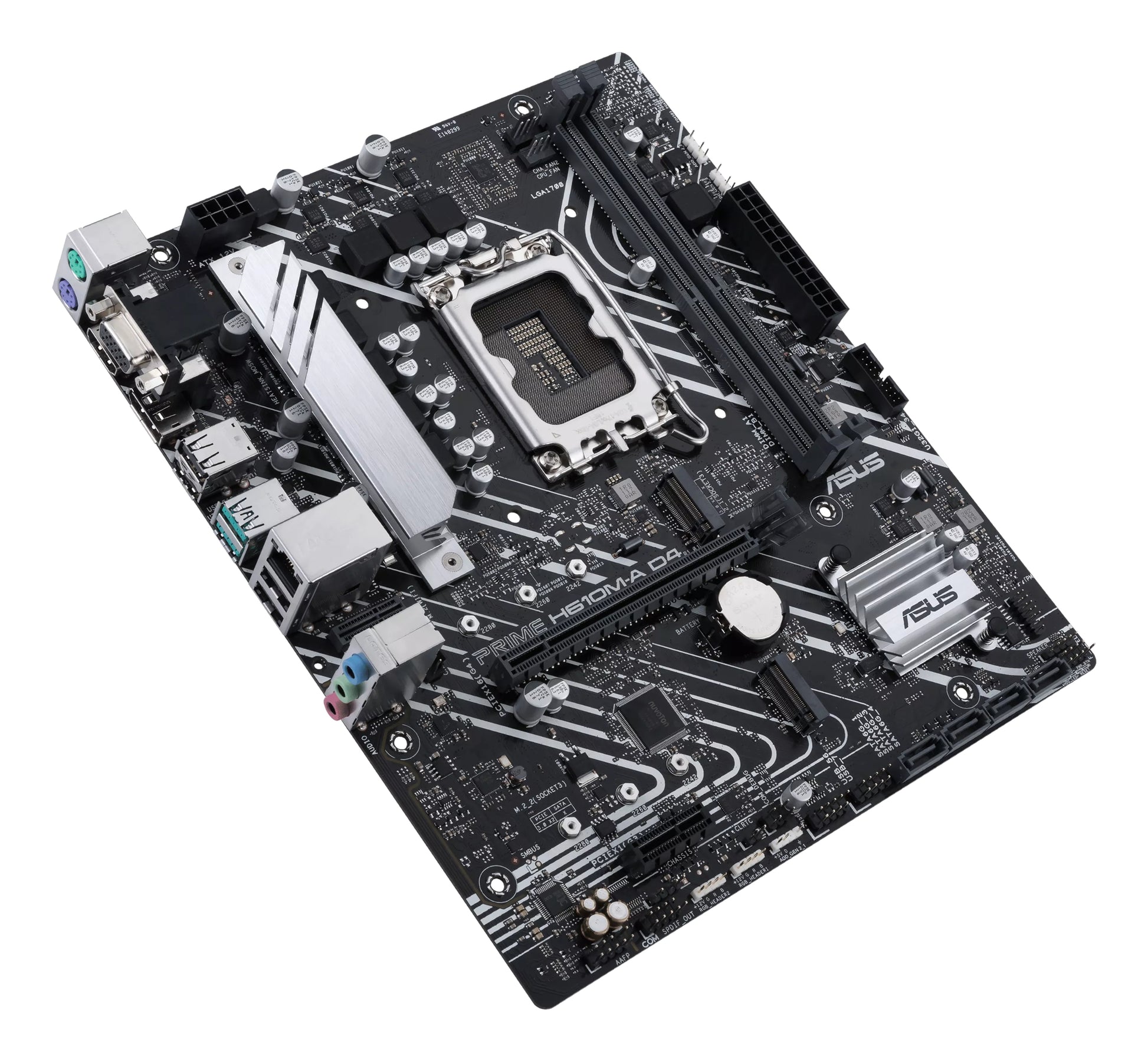

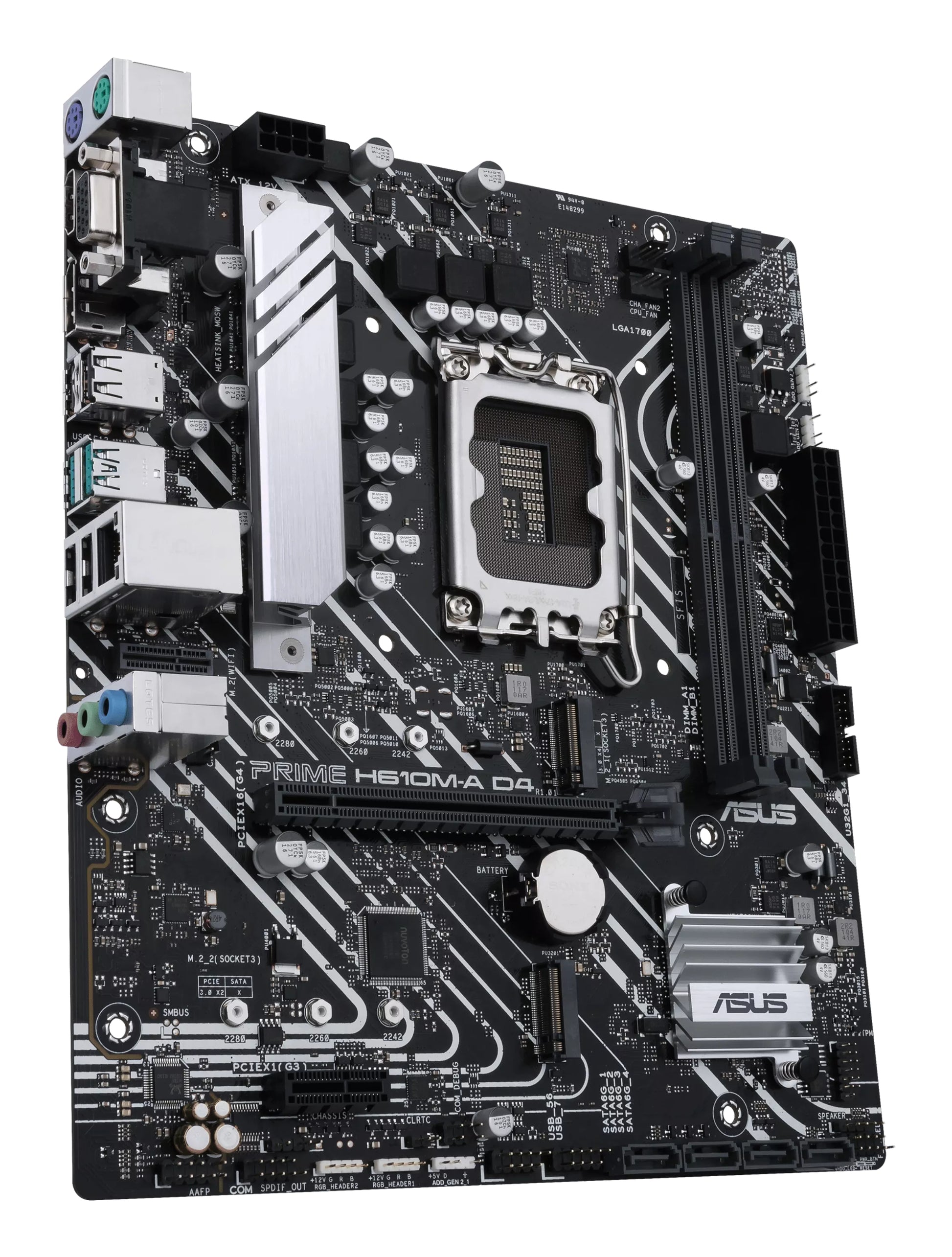

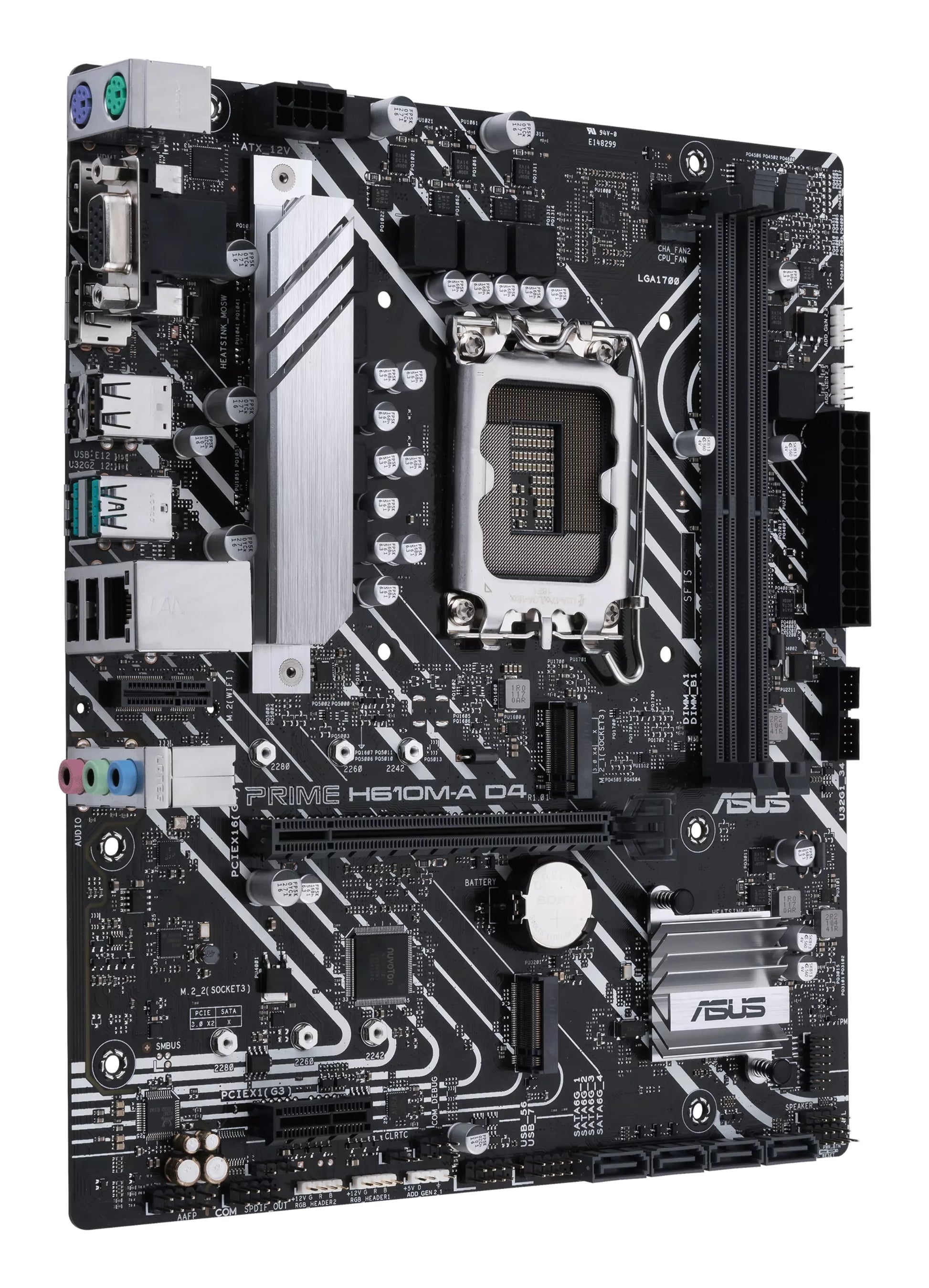

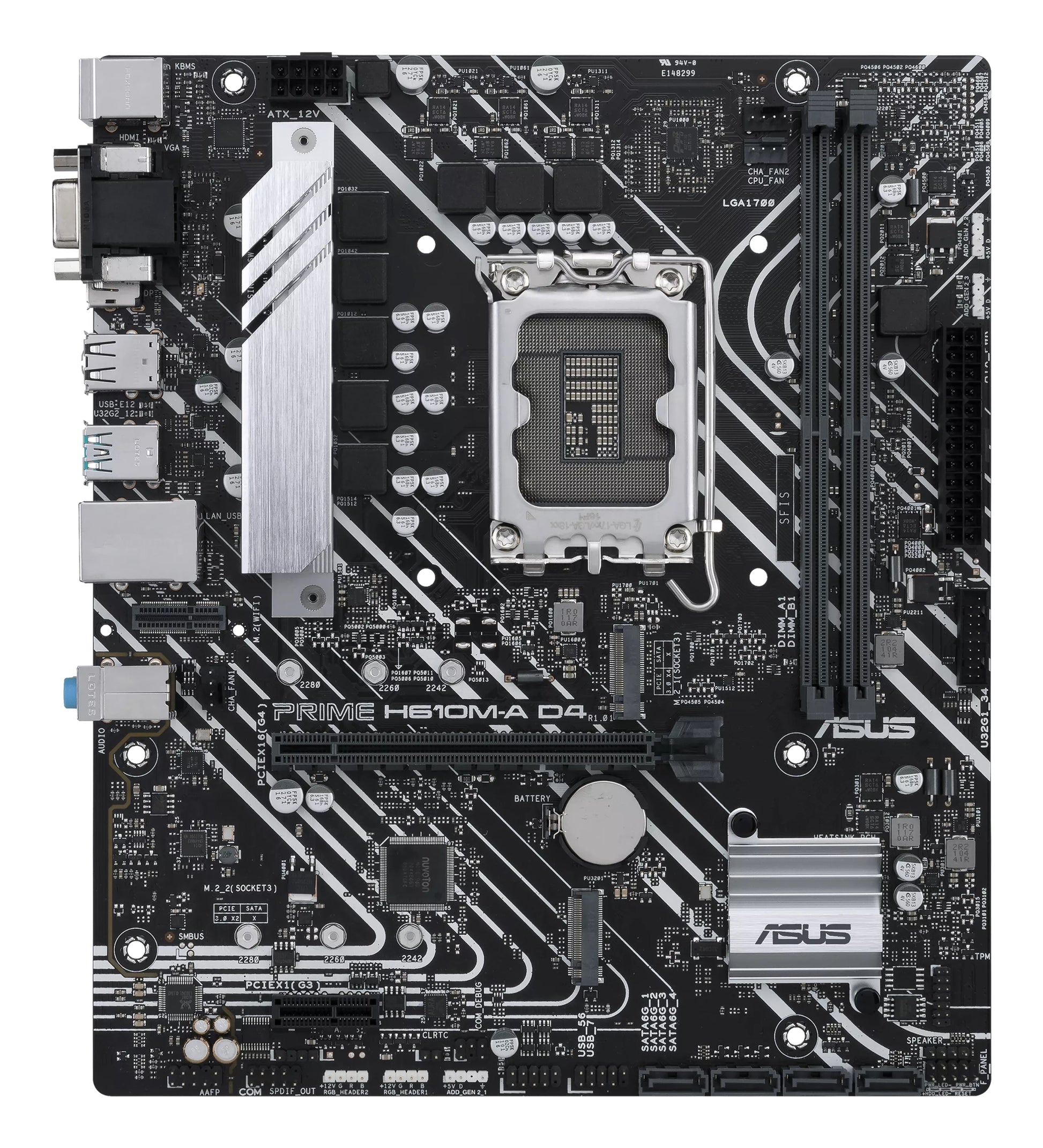

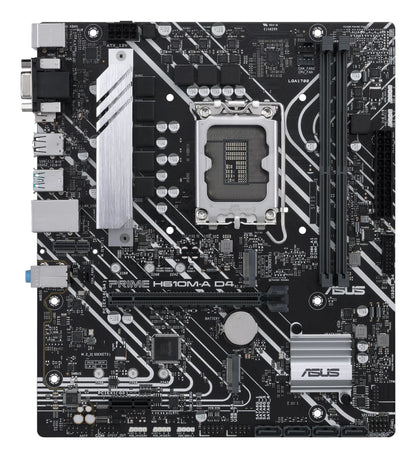

ASUS Prime H610M-A D4-CSM Intel LGA1700 Micro-ATX Motherboard, 2x DDR4, 2x M.2, PCIe 4.0, 4x SATA, 1GbE, HDMI 2.1, DP 1.4

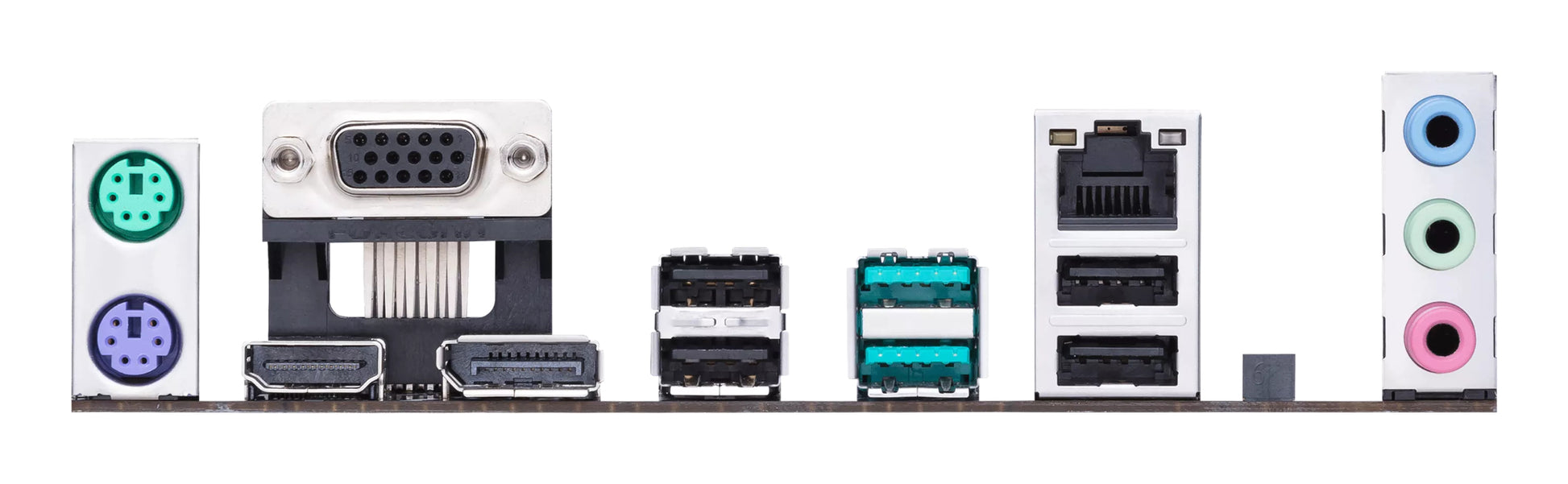

ASUS Prime H610M-A D4-CSM Intel LGA1700 Micro-ATX Motherboard Overview The ASUS Prime H610M-A D4-CSM is a Micro-ATX motherboard for 12th Gen Intel Core processors on the LGA1700 platform. Built on the H610 chipset with DDR4 memory support, it offers PCIe 4.0, dual M.2 slots, Intel Gigabit Ethernet, HDMI 2.1, and DisplayPort 1.4 — all backed by ASUS Corporate Stable Model (CSM) commercial lifecycle support with up to 36-month product availability and ASUS Control Center Express IT management software. Key Features Intel H610 chipset with LGA1700 socket for 12th Gen Core processors. 2x DDR4 DIMM slots up to 64GB (3200 MHz). 2x M.2 slots (PCIe 3.0 x4, up to 32Gbps). 1x PCIe 4.0 x16 slot (SafeSlot Core). 1x PCIe 3.0 x1 slot. 4x SATA III ports. Intel I219-V Gigabit Ethernet with LANGuard. HDMI 2.1 + DisplayPort 1.4 + VGA video outputs. 2x USB 3.2 Gen 2 Type-A rear ports. 4x USB 2.0 rear ports. 2x PS/2 ports. TPM connector. 2x chassis fan headers. S/PDIF out. 7.1-channel HD audio. Aura Sync RGB header. UEFI AMI BIOS (128Mbit). Q-LED Core diagnostics. CSM commercial support + ASUS Control Center Express. Rear I/O 4x USB 2.0, 2x USB 3.2 Gen 2 Type-A, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x VGA (D-Sub), 1x GbE RJ-45, 2x PS/2, audio jacks. What's Included ASUS Prime H610M-A D4-CSM motherboard, SATA cables, driver disc. Platform Socket Intel LGA1700 Chipset Intel H610 Form Factor Micro-ATX (244 x 211 mm) CPU Support Intel 12th Gen Core (LGA1700) Commercial CSM (36-month lifecycle) Memory Slots 2x DIMM DDR4 Max RAM 64 GB Speeds 2133–3200 MHz Channels Dual-channel, Non-ECC Storage & Expansion M.2 Slots 2x M.2 (PCIe 3.0 x4, up to 32Gbps) SATA Ports 4x SATA III (6Gb/s) PCIe x16 1x PCIe 4.0 (SafeSlot Core) PCIe x1 1x PCIe 3.0 Connectivity & Audio LAN Intel I219-V Gigabit Ethernet Wi-Fi None (wired only) Video Out HDMI 2.1, DisplayPort 1.4, VGA Audio 7.1-channel HD, S/PDIF BIOS UEFI AMI, 128Mbit Weight 382 g
