Description
ASUS Prime Z790-P WiFi Intel LGA1700 ATX Motherboard, 4x DDR5, 3x M.2, PCIe 5.0, 4x SATA, WiFi 6, 2.5GbE, USB-C 20Gbps

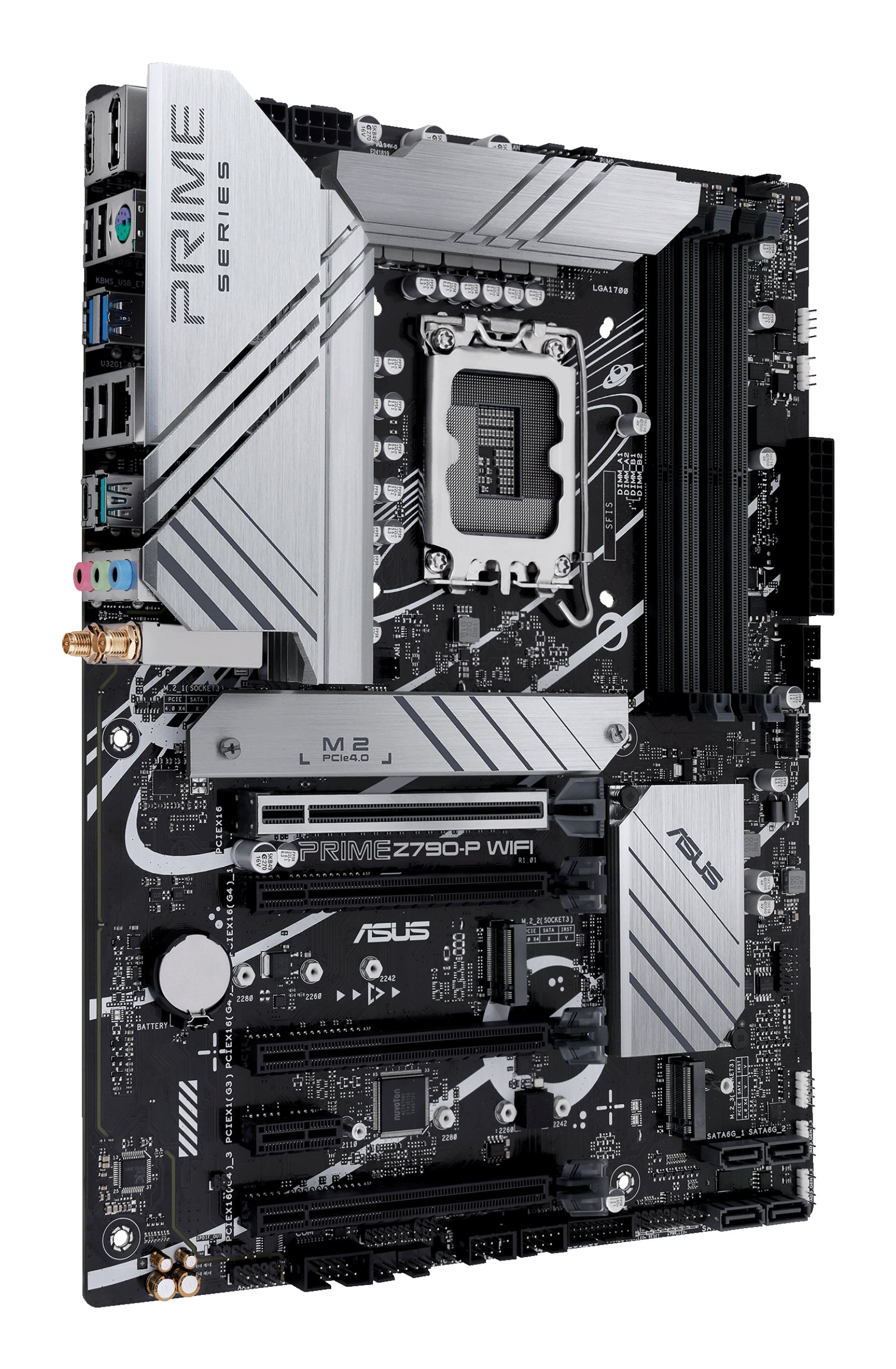

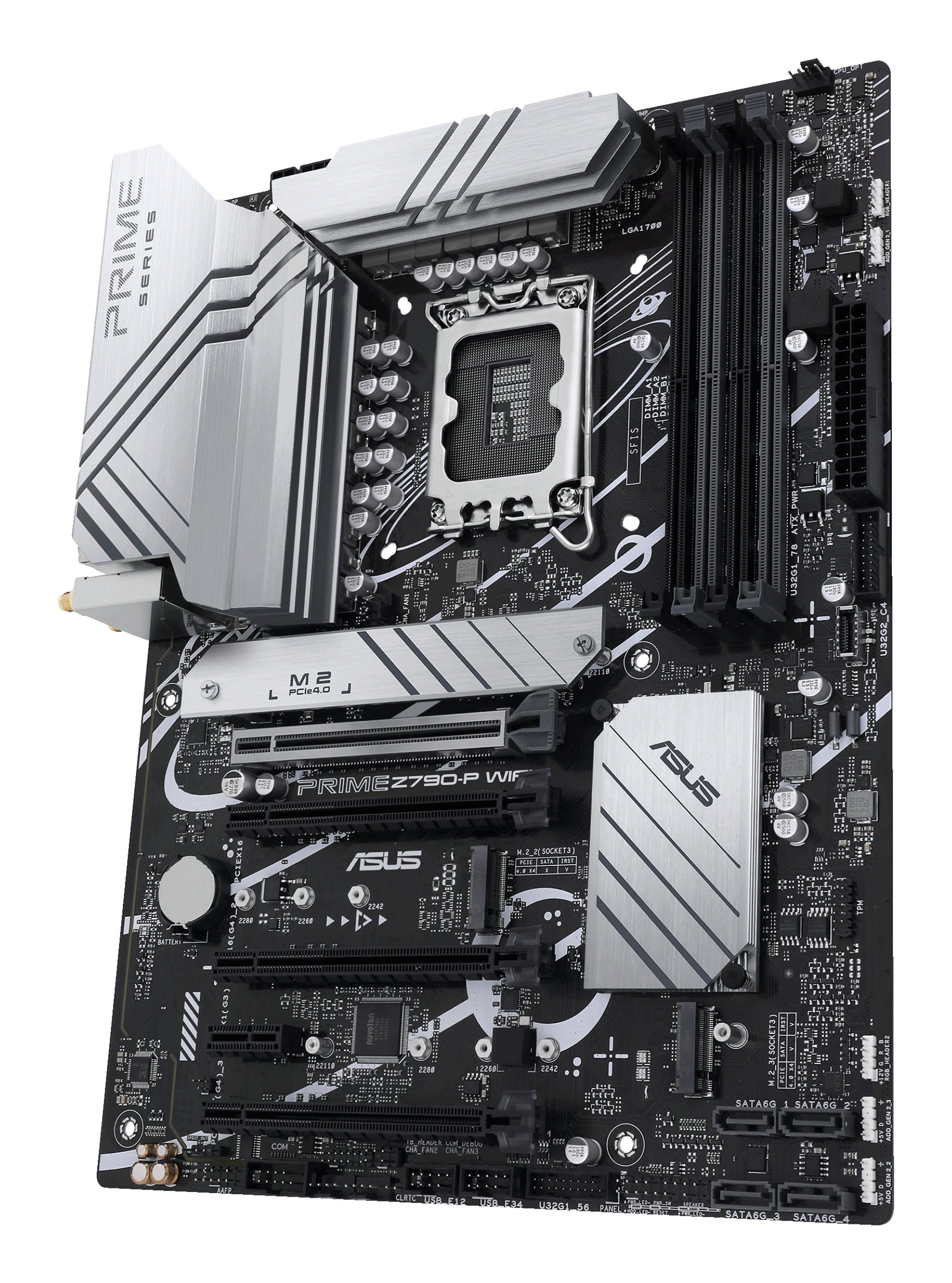

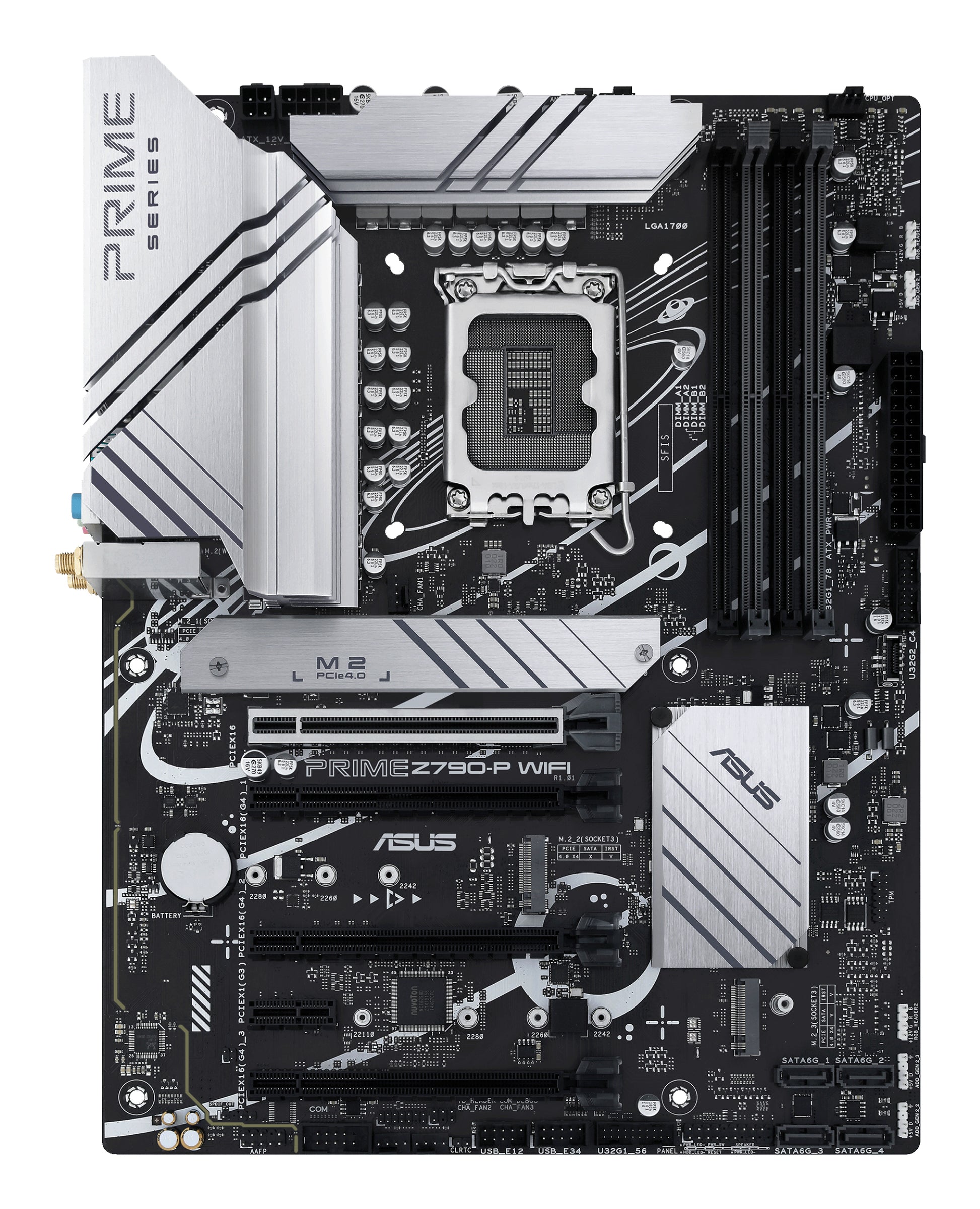

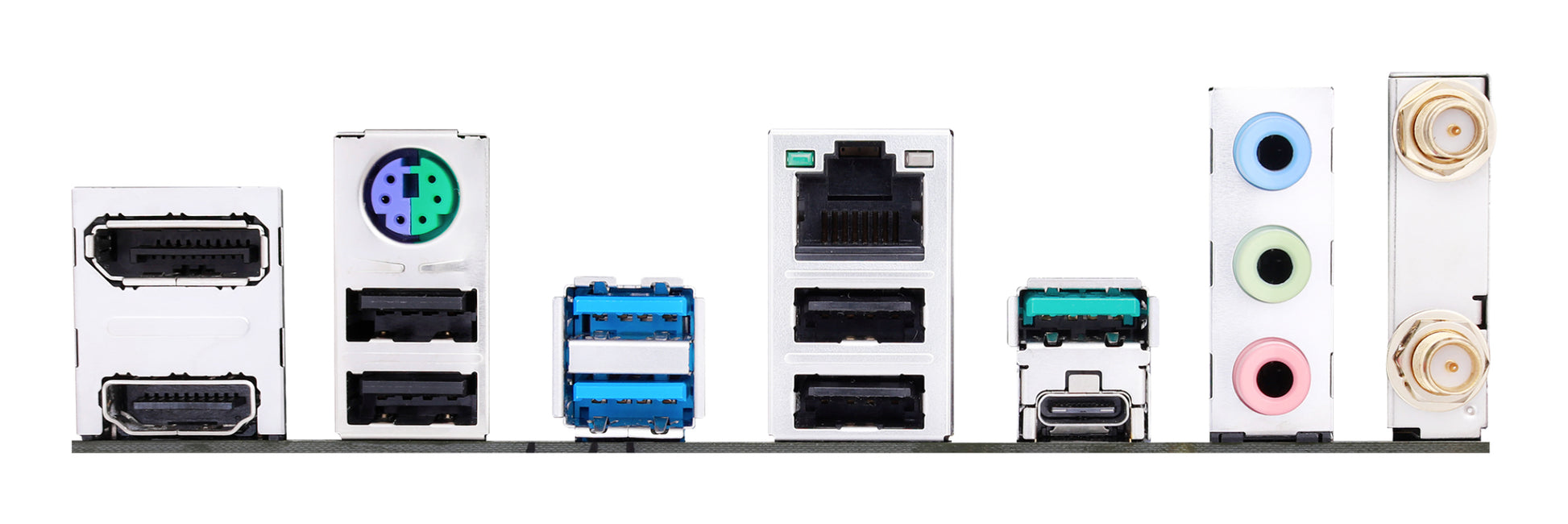

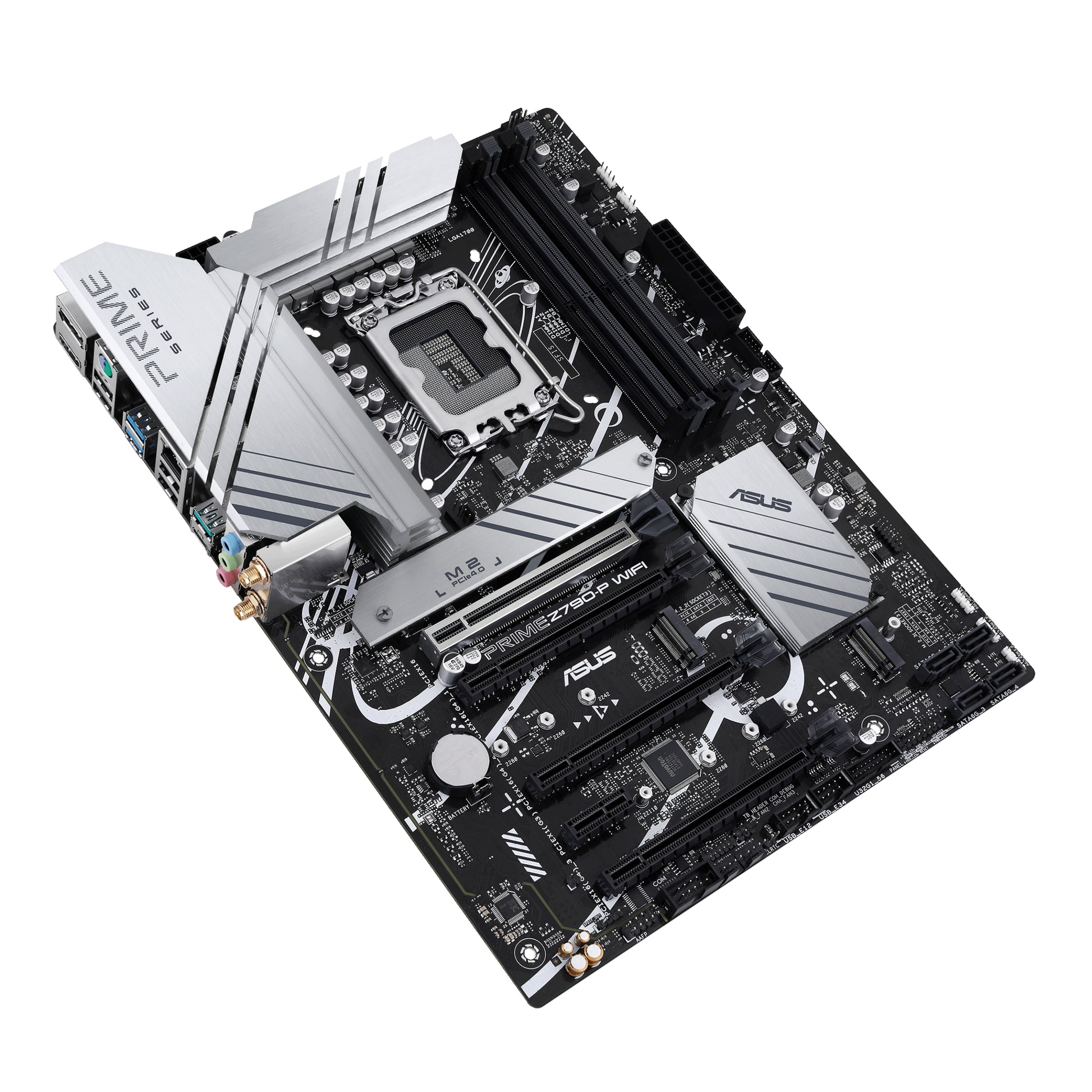

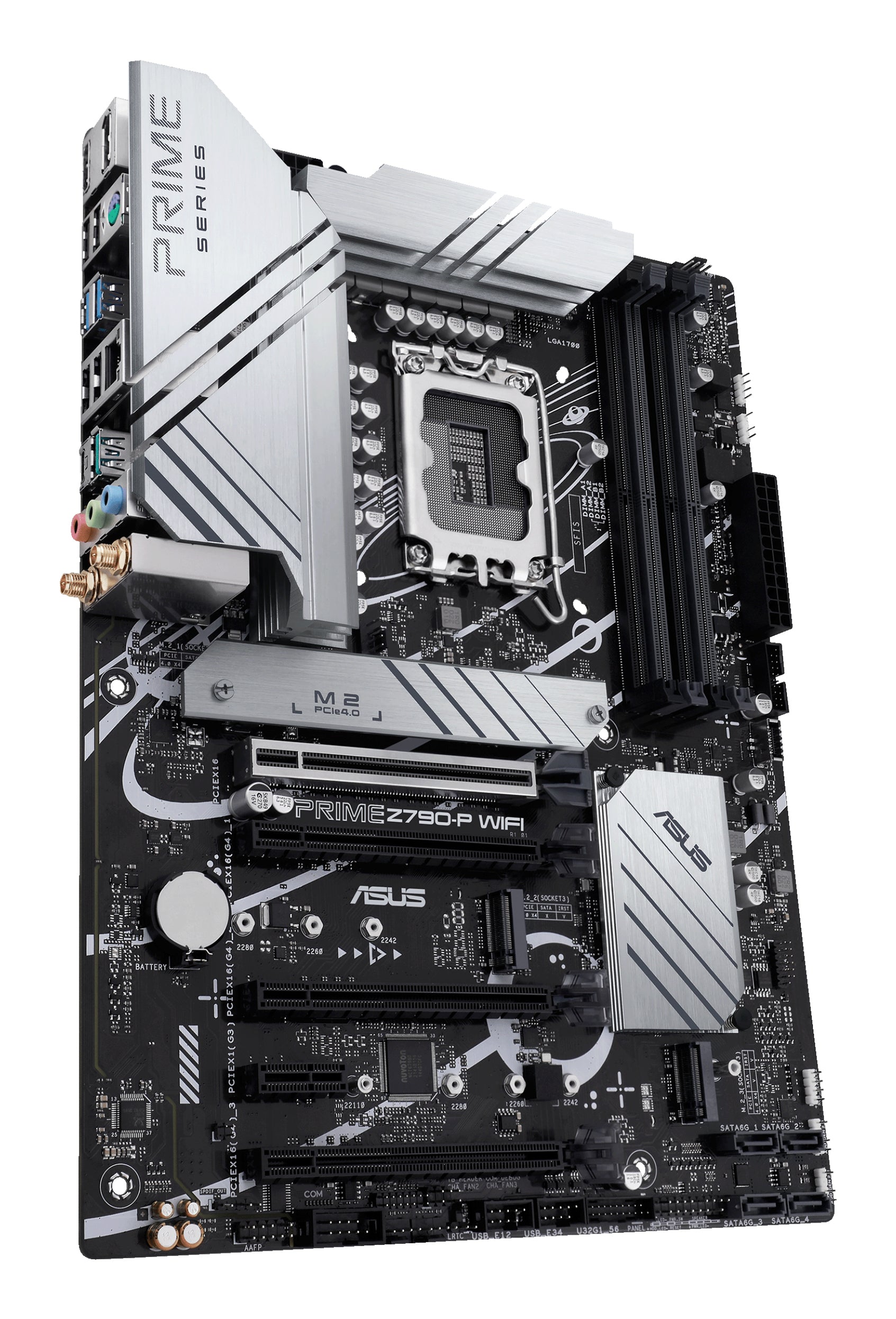

ASUS Prime Z790-P WiFi Intel LGA1700 ATX Motherboard Overview The ASUS Prime Z790-P WiFi is a full-size ATX motherboard for 12th and 13th Gen Intel Core processors on the LGA1700 platform. Powered by the Z790 chipset, it delivers PCIe 5.0 for GPU and M.2 storage, WiFi 6 (802.11ax), Intel 2.5Gb Ethernet, and 7.1-channel HD audio — all in a clean Aluminium/Black aesthetic with Aura Sync RGB and comprehensive cooling controls. Key Features Intel Z790 chipset with LGA1700 socket for 12th/13th Gen Core processors. 3x M.2 slots — 1x PCIe 5.0 x4, 2x PCIe 4.0 x4, all with heatsinks. 1x PCIe 5.0 x16 primary slot + 3x PCIe 4.0 x16 slots. 4x SATA III ports with RAID 0/1/5/10. WiFi 6 (802.11ax, 2.4/5 GHz) + Bluetooth 5.2. 2.5Gb Ethernet. 7.1-channel HD audio with S/PDIF. USB 3.2 Gen 2x2 Type-C (20Gbps) rear port. Thunderbolt header. TPM connector. 3x chassis fan headers + AIO pump header. Aura Sync ARGB headers. UEFI AMI BIOS (192Mbit) with Clear CMOS button. ProCool 4+8-pin power connectors. Fan Xpert 4. Rear I/O 4x USB 2.0, 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 1x HDMI, 1x DisplayPort, 1x 2.5GbE RJ-45, 1x PS/2, WiFi antenna connectors, audio jacks. What's Included ASUS Prime Z790-P WiFi motherboard, SATA cables, WiFi antenna, driver disc. Platform Socket Intel LGA1700 Chipset Intel Z790 Form Factor ATX (305 x 234 mm) CPU Support Intel 12th & 13th Gen Core (LGA1700) Colour Aluminium / Black Memory Slots 4x DIMM DDR5 Max RAM 128 GB Speeds 4800–7200 MHz (XMP/OC) Channels Dual-channel, Non-ECC Storage & Expansion M.2 Slots 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) SATA Ports 4x SATA III (6Gb/s) PCIe x16 1x PCIe 5.0 + 3x PCIe 4.0 PCIe x1 1x PCIe 3.0 RAID 0, 1, 5, 10 Connectivity & Audio LAN 2.5Gb Ethernet Wi-Fi WiFi 6 (802.11ax), 2.4/5 GHz Bluetooth 5.2 Audio 7.1-channel HD, S/PDIF BIOS UEFI AMI, 192Mbit Weight 1.03 kg
