Description

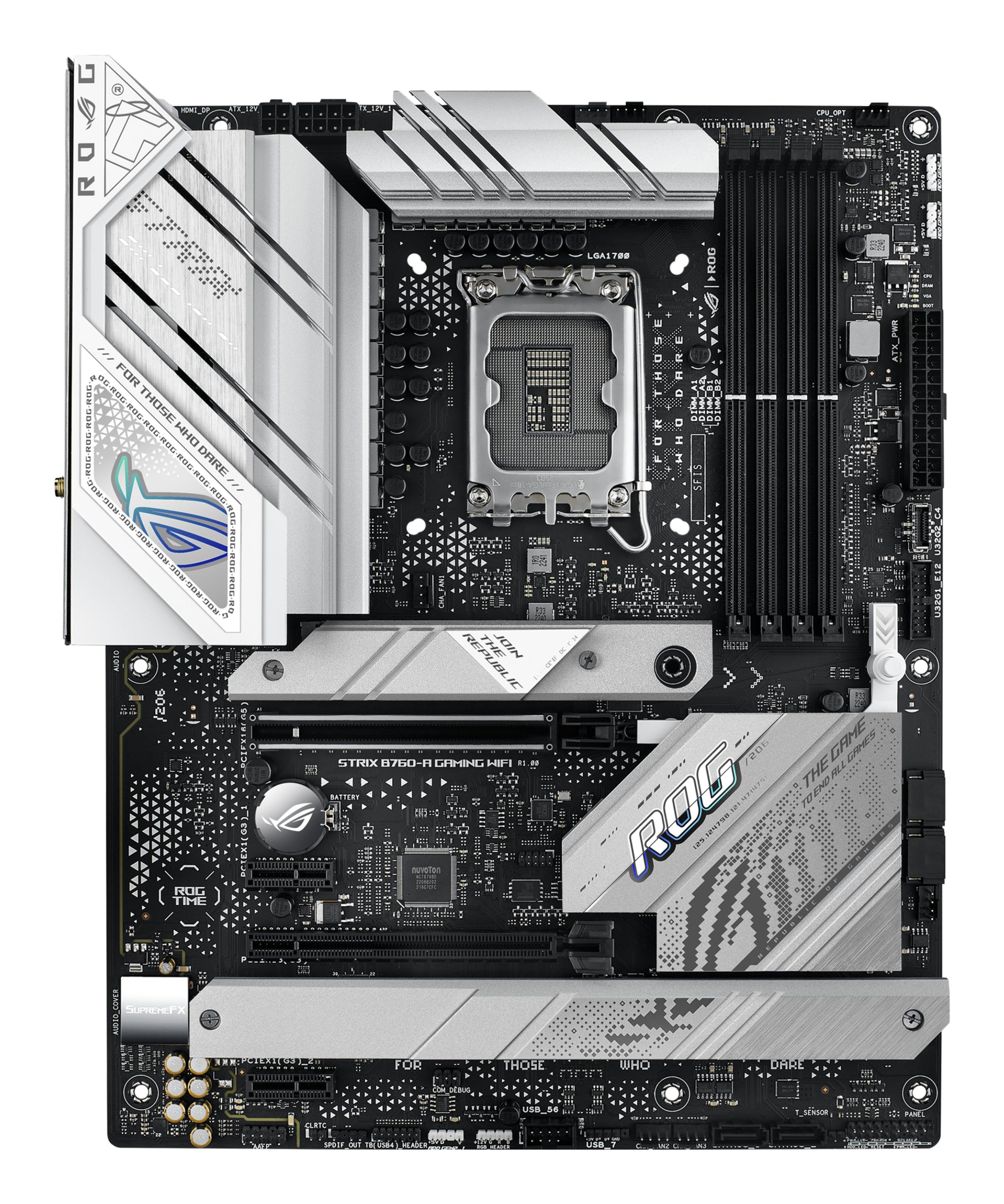

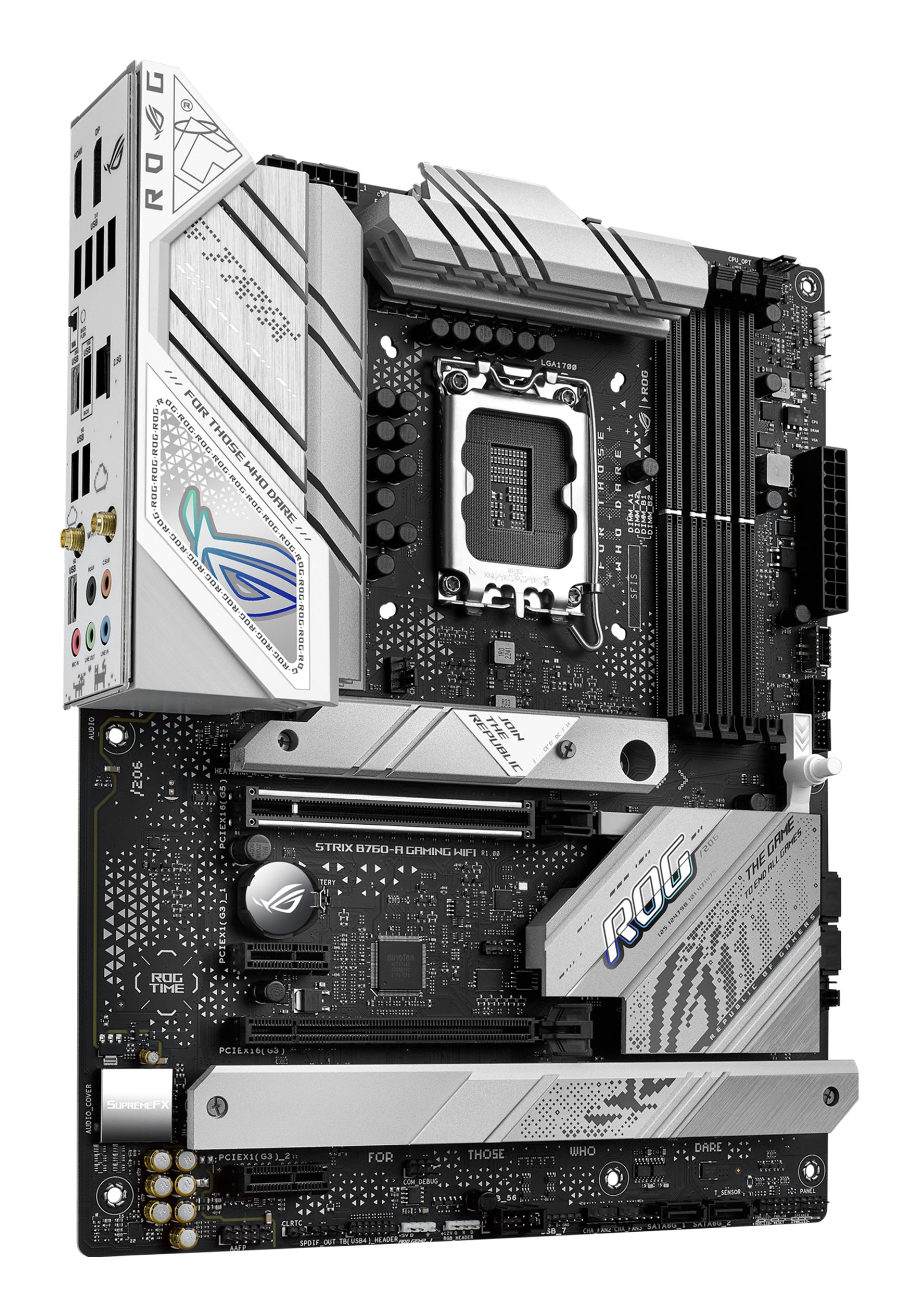

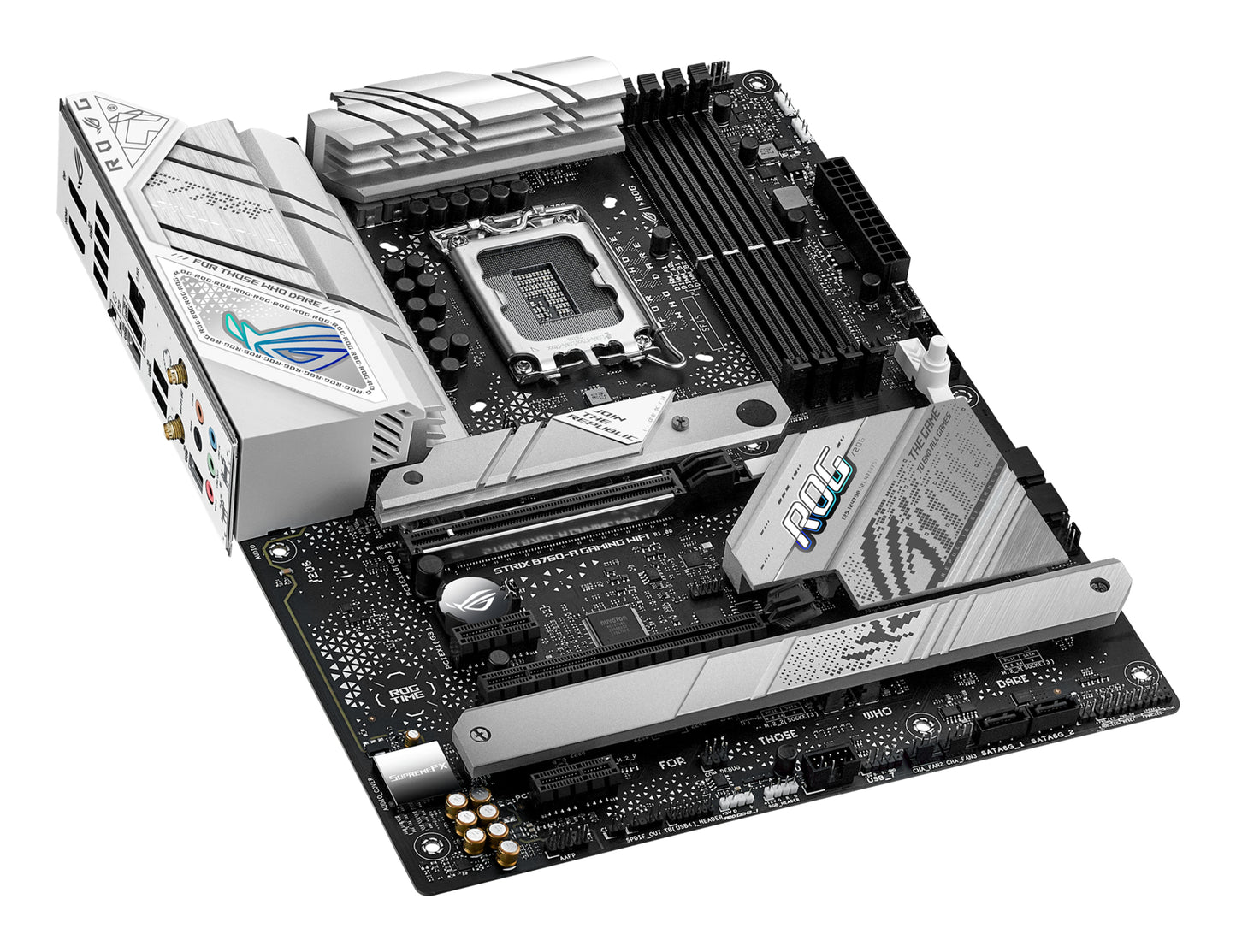

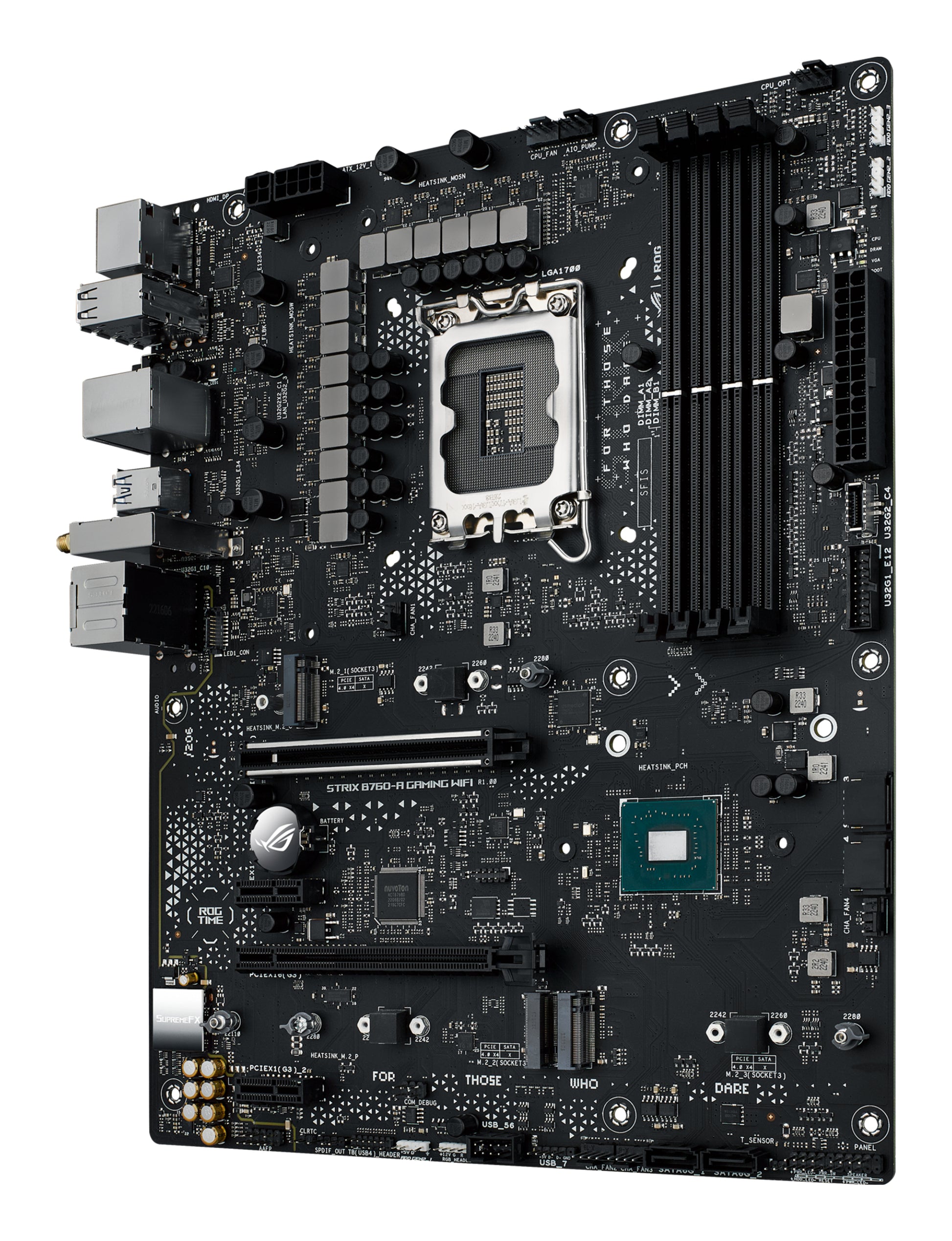

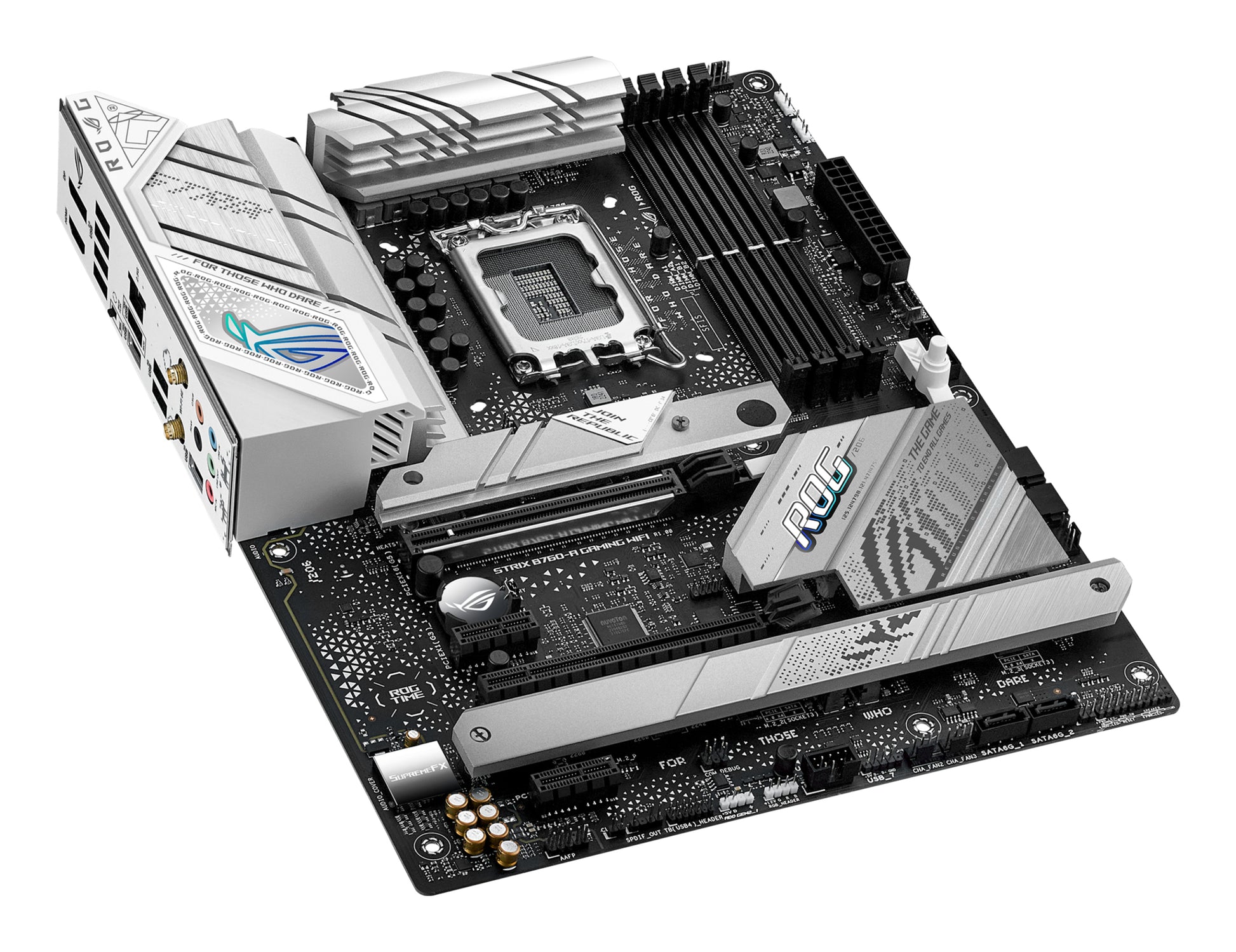

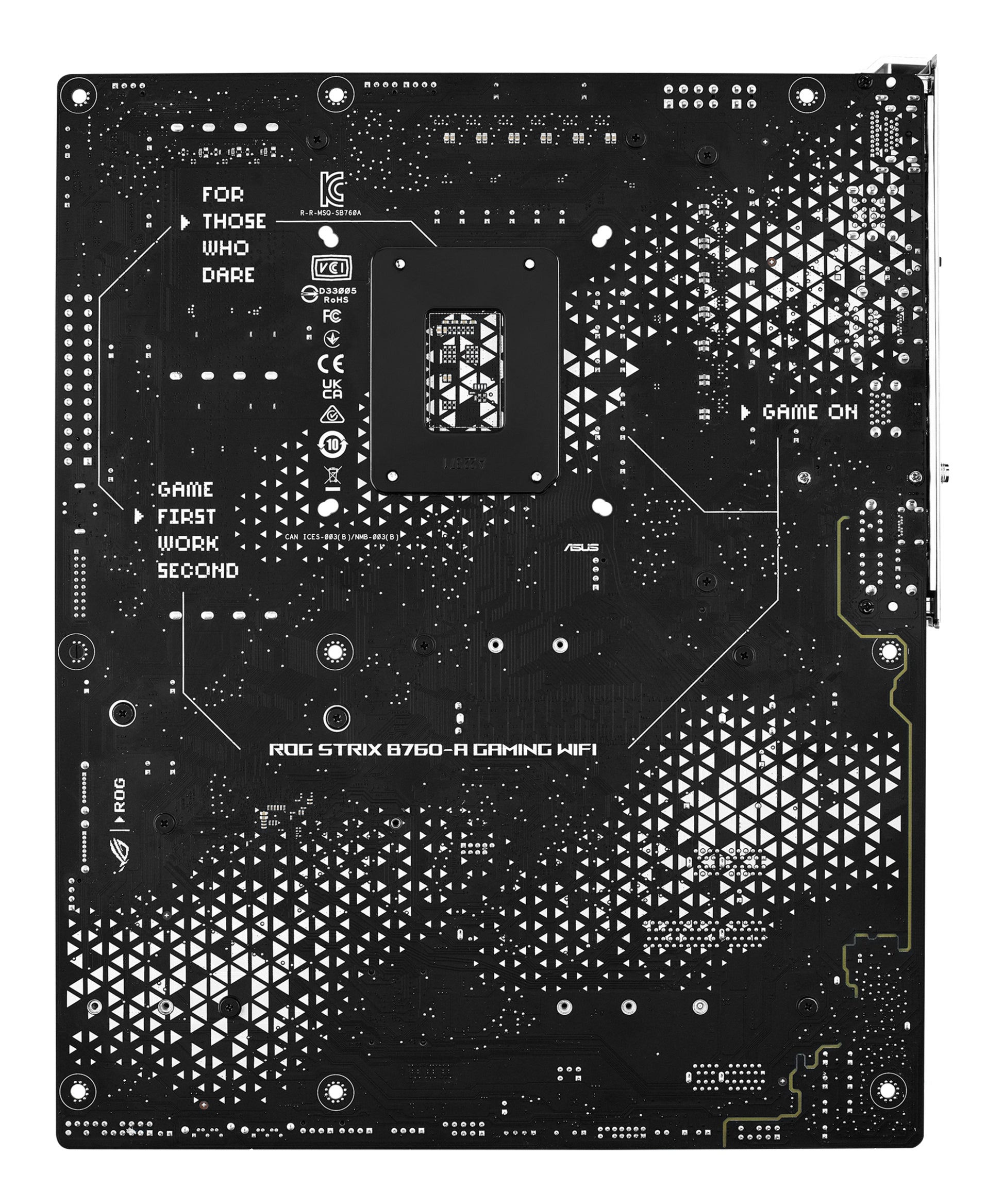

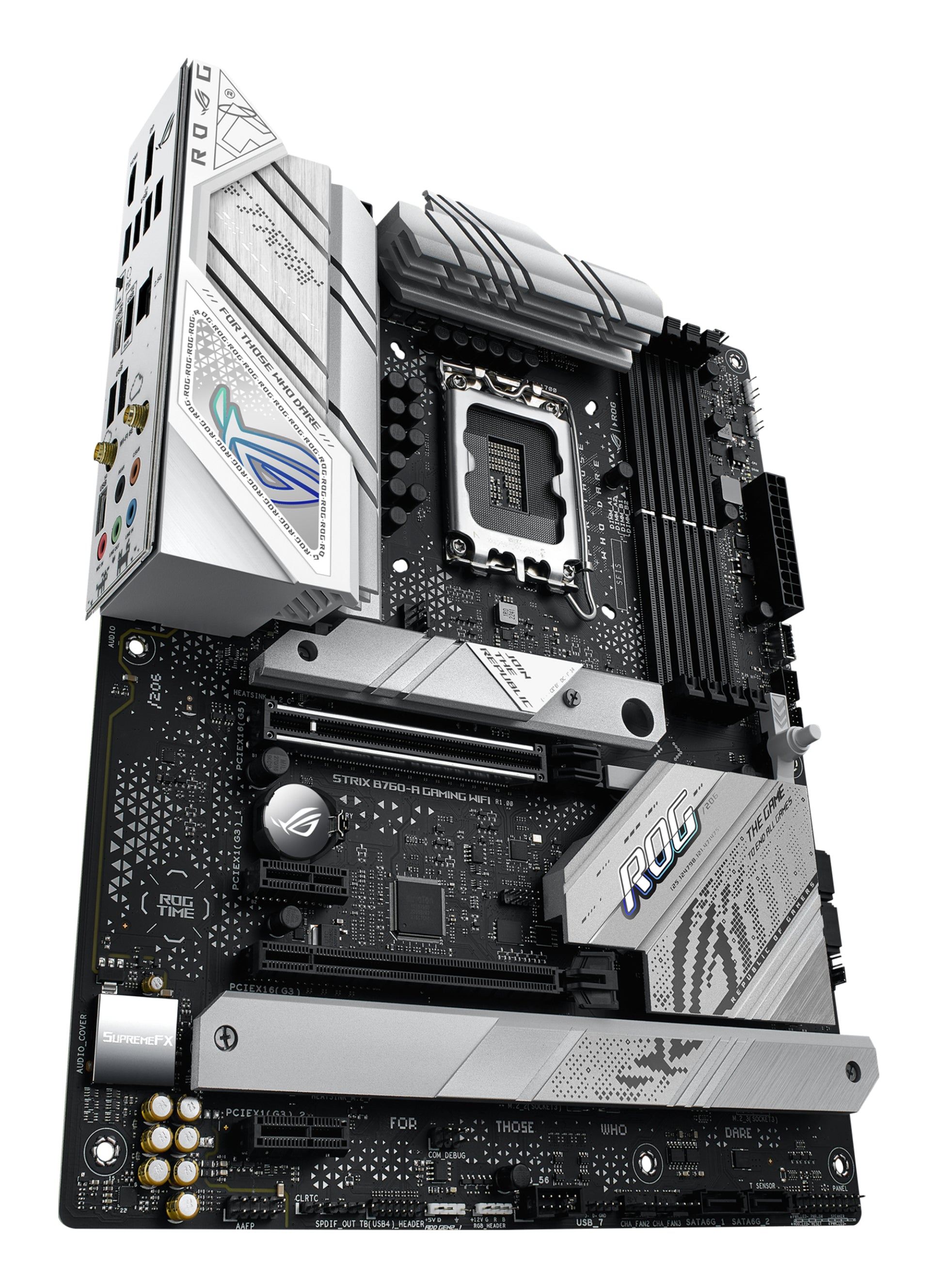

ASUS ROG Strix B760-A Gaming WiFi Intel LGA1700 ATX Motherboard

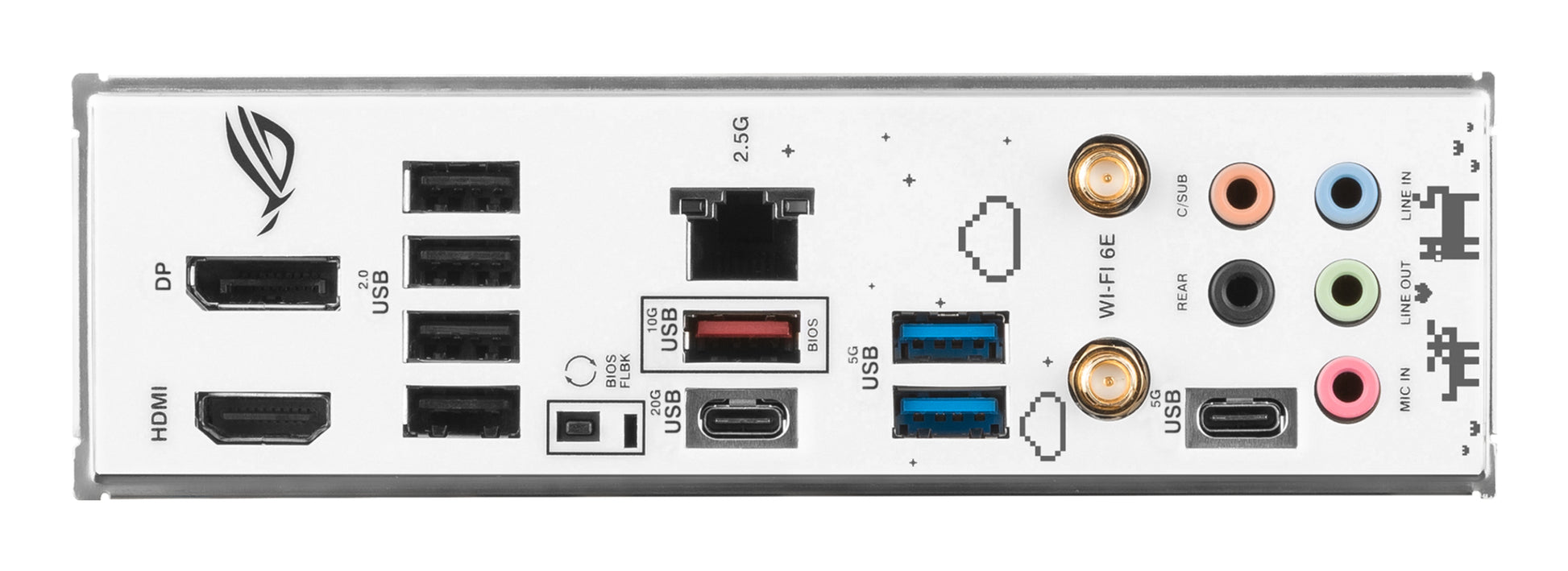

ASUS ROG Strix B760-A Gaming WiFi Intel LGA1700 ATX Motherboard Overview The ASUS ROG Strix B760-A Gaming WiFi is a premium Intel LGA1700 ATX motherboard built for 12th and 13th Gen Intel Core processors. Featuring Wi-Fi 6E, 2.5GbE LAN, PCIe 5.0 support, and a clean white aesthetic, it's designed for high-performance gaming and content creation builds. Key Features Wi-Fi 6E (802.11ax) with Bluetooth 5.3 for ultra-fast wireless connectivity. 2.5 Gigabit Ethernet for low-latency wired networking. DDR5 support up to 192GB across 4 DIMM slots. 3x M.2 slots plus 4x SATA III for flexible storage. 7.1-channel HD audio via Realtek ALC4080. Thunderbolt header support. HDMI 2.1 and DisplayPort 1.4 rear outputs. What's Included ROG Strix B760-A Gaming WiFi motherboard, SATA cables, user manual, support DVD, Wi-Fi antenna. Processor & Chipset Socket Intel LGA1700 Chipset Intel B760 Compatible CPUs Intel Core i3/i5/i7/i9, Pentium Gold, Celeron (12th/13th Gen) Form Factor ATX (305 x 244mm) Memory Type DDR5-SDRAM Slots 4x DIMM (Dual-channel) Max Capacity 192GB Max Speed 7800MHz Storage M.2 Slots 3x M.2 (M-key) SATA III 4 ports RAID 0, 1, 5, 10 Connectivity LAN 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3 Rear I/O USB 2.0 4x Type-A USB 3.2 Gen 1 2x Type-A, 1x Type-C USB 3.2 Gen 2 1x Type-A USB 3.2 Gen 2x2 1x Type-C Video Out HDMI 2.1, DisplayPort 1.4 Audio 7.1ch Realtek ALC4080 BIOS & OS BIOS UEFI AMI, 256Mbit Flash OS Support Windows 10 x64, Windows 11
