ASUS ROG Strix B760-I Gaming WiFi Intel LGA1700 Mini-ITX Motherboard, 2x DDR5, 2x M.2, PCIe 5.0, 4x SATA, WiFi 6E, 2.5GbE, USB-C 20Gbps

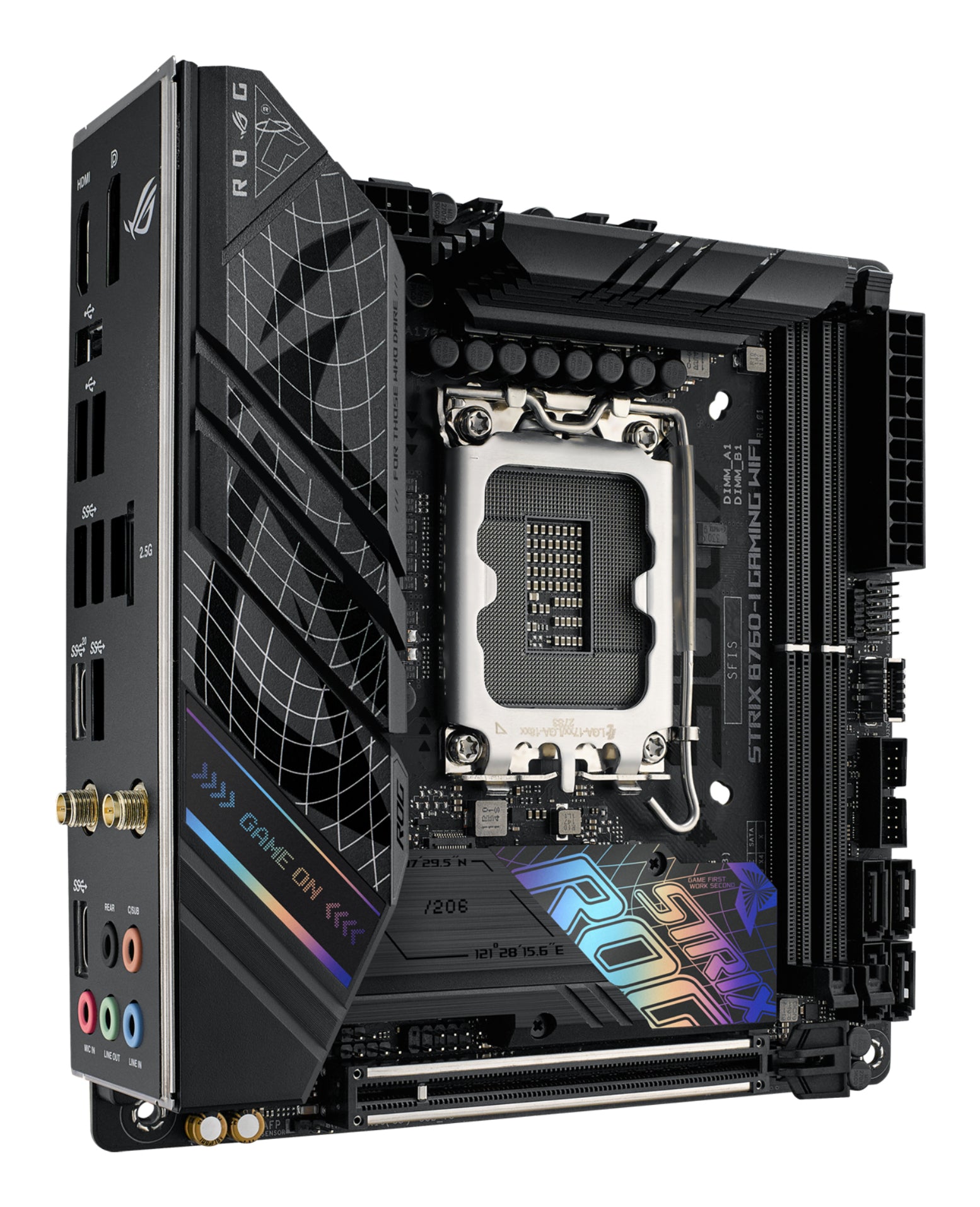

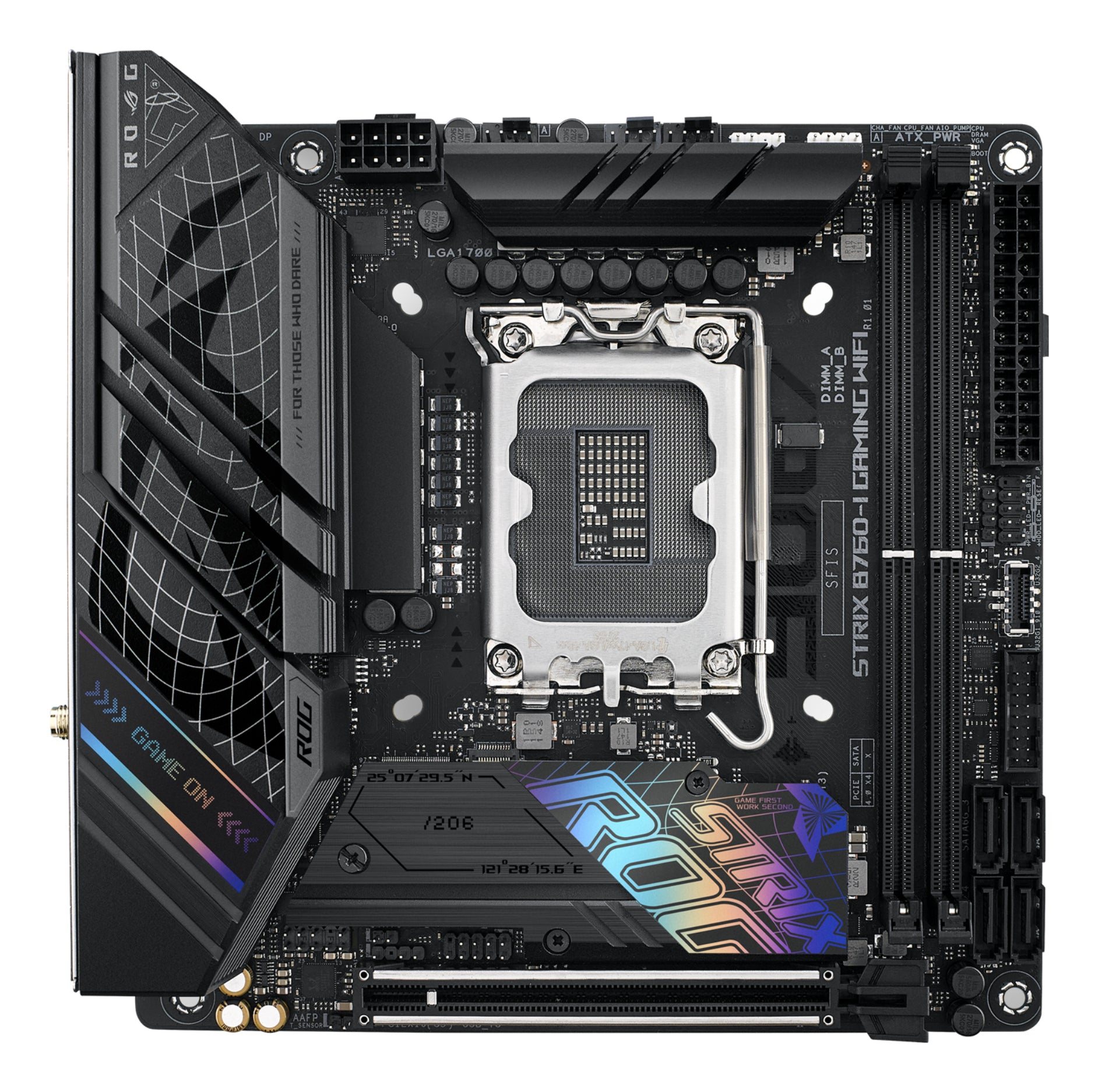

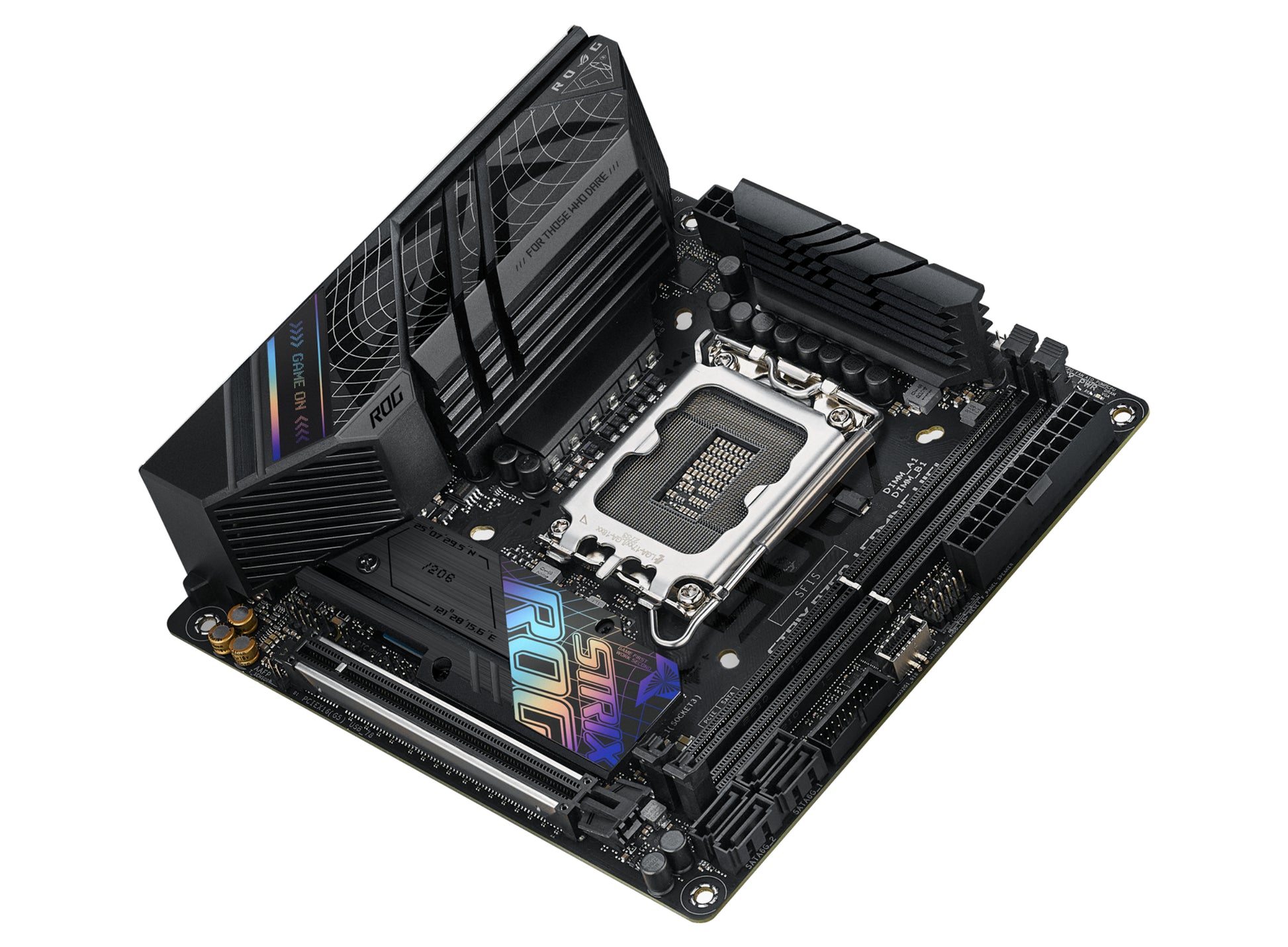

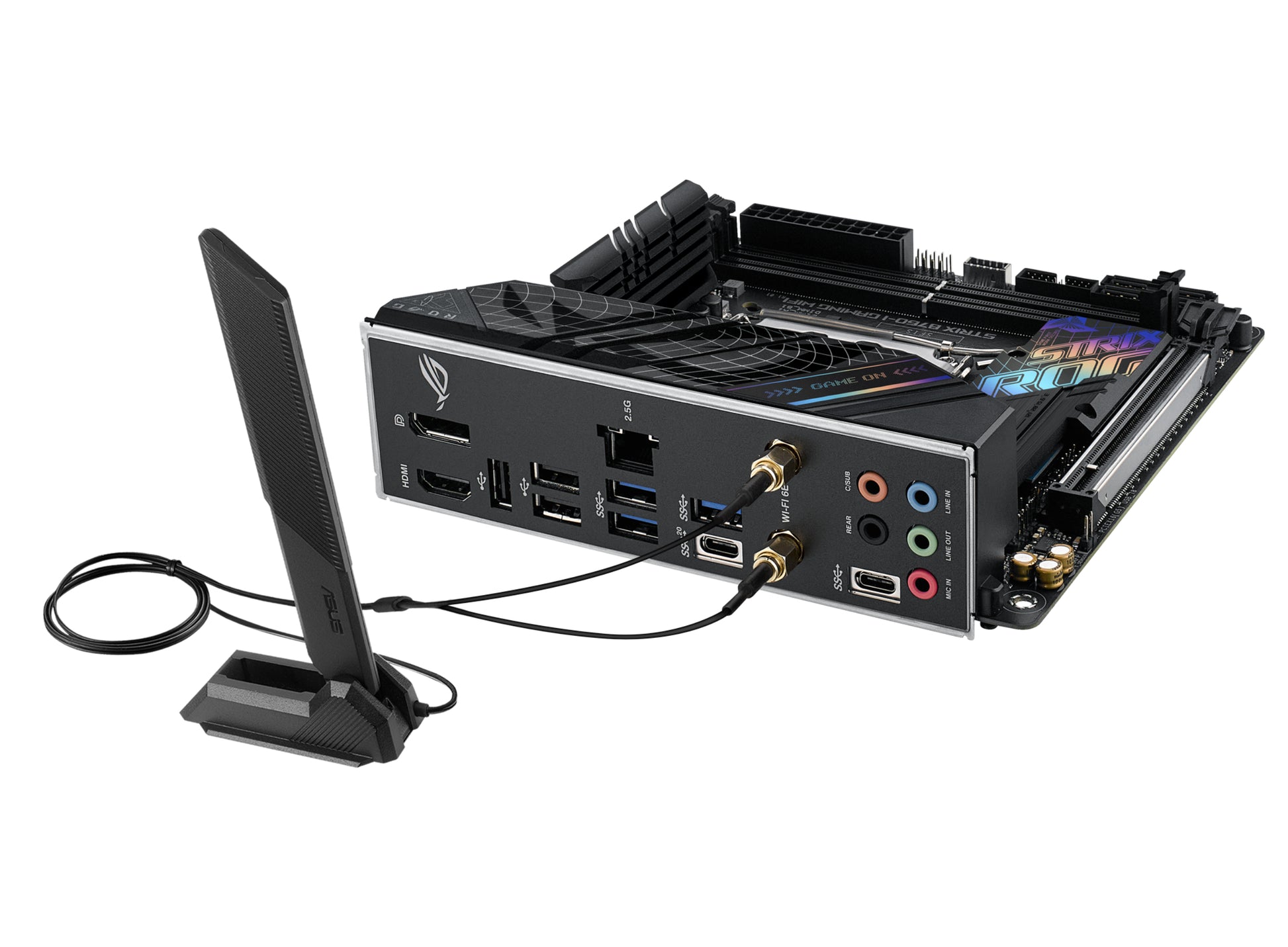

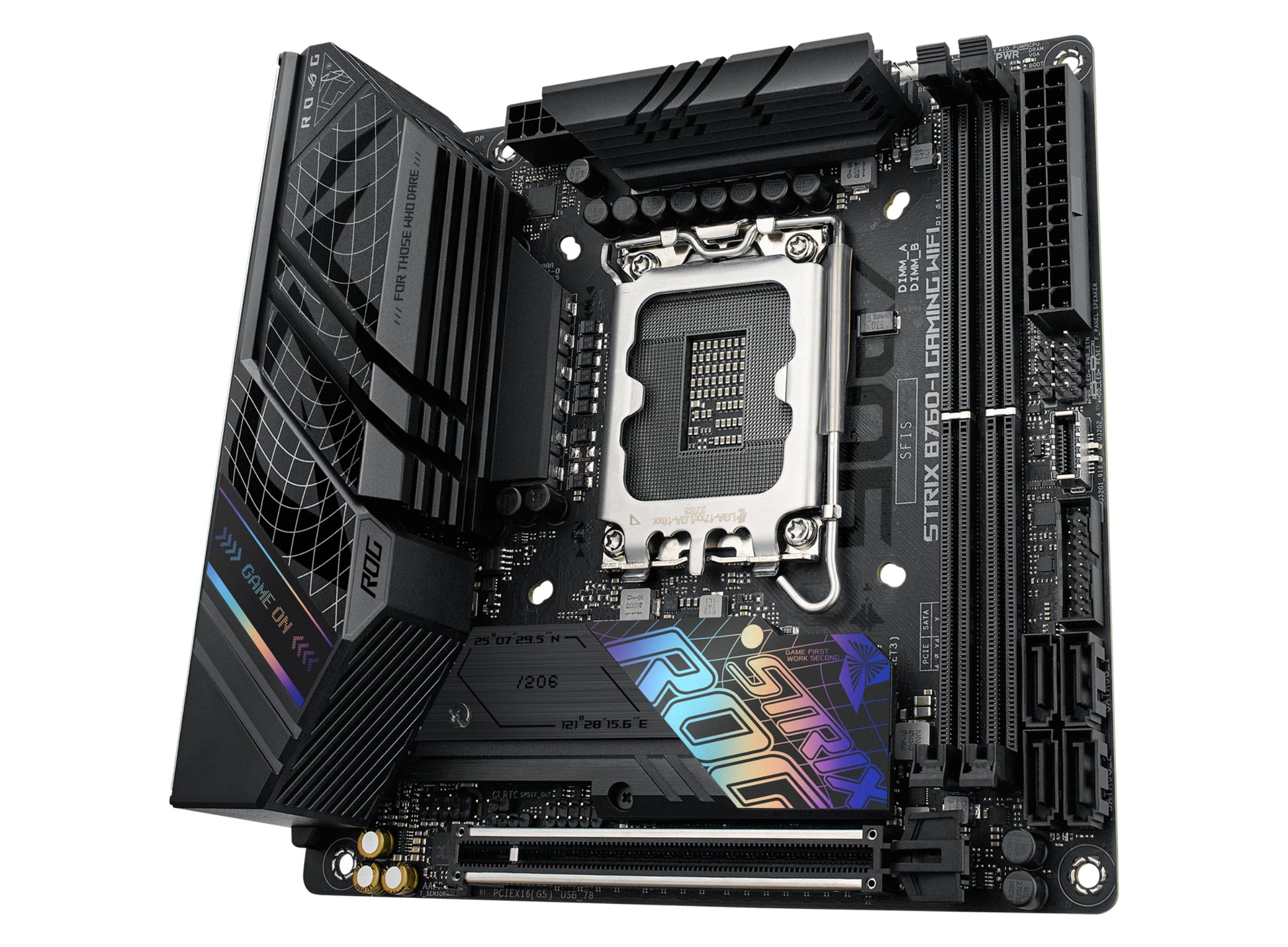

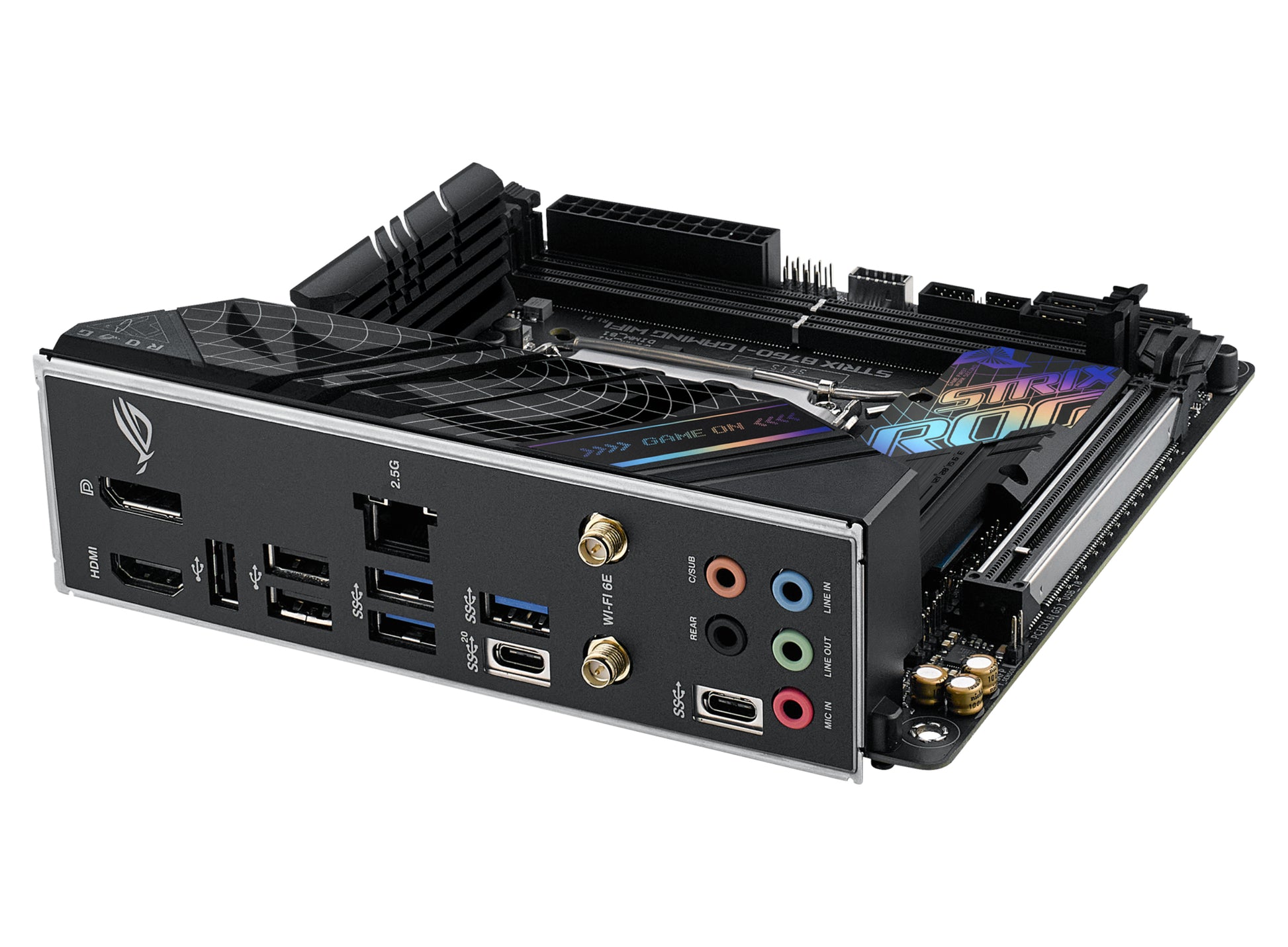

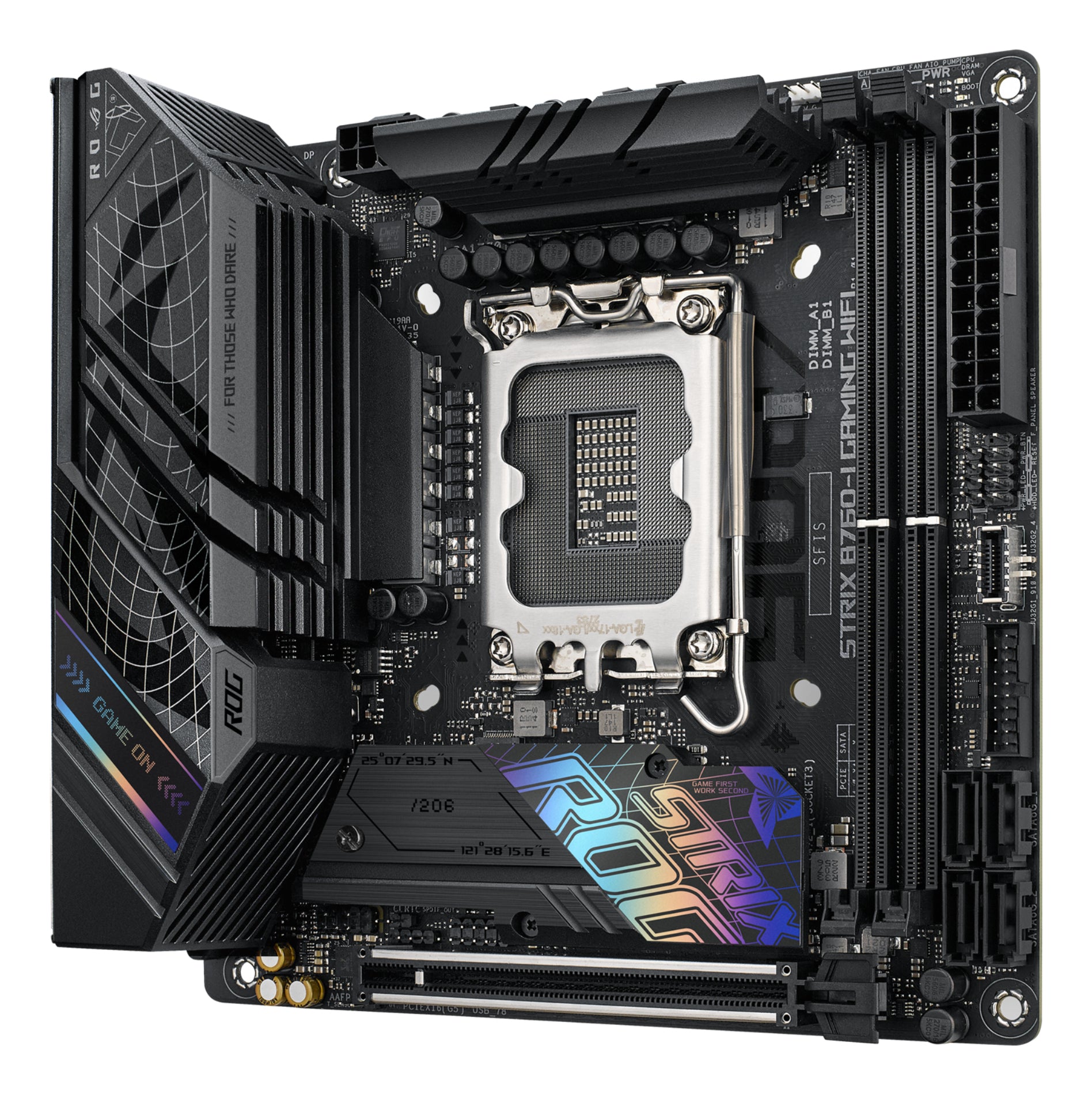

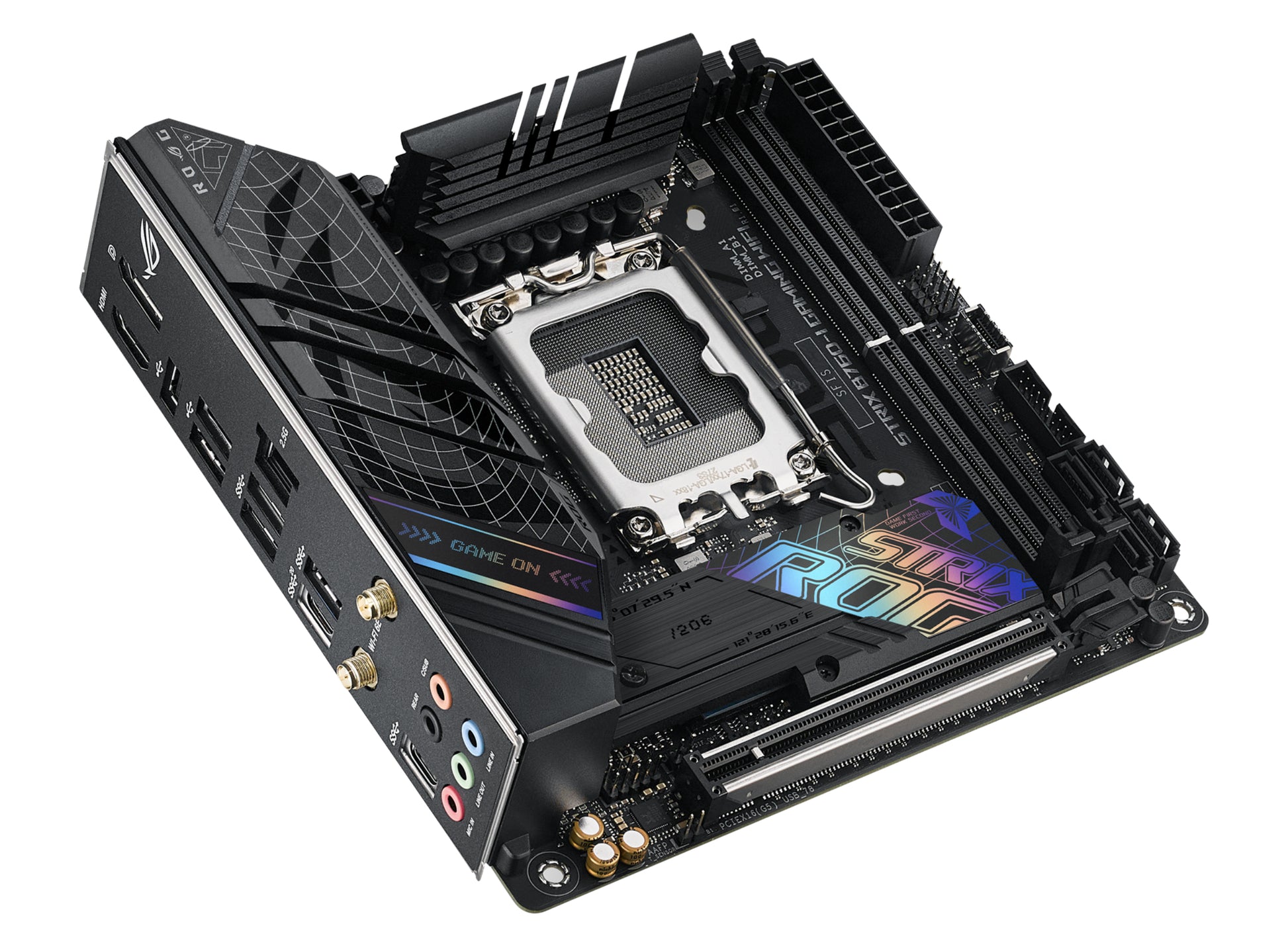

ASUS ROG Strix B760-I Gaming WiFi Intel LGA1700 Mini-ITX Motherboard Overview The ASUS ROG Strix B760-I Gaming WiFi is a Mini-ITX motherboard for 12th and 13th Gen Intel Core processors on the LGA1700 platform. Built on the B760 chipset, it packs PCIe 5.0 x16, dual PCIe 4.0 M.2 slots, WiFi 6E (6 GHz tri-band), Intel 2.5Gb Ethernet, and SupremeFX S1220A audio into a compact 170 x 170 mm form factor — with an 8+1 power stage design (80A each) and an eight-layer PCB for SFF builds that demand full performance. Key Features Intel B760 chipset with LGA1700 socket for 12th/13th Gen Core processors. 8+1 power stages (80A each) with 8-layer PCB. 2x M.2 slots — both PCIe 4.0 x4 (front with heatsink + backplate, rear on back of board). 1x PCIe 5.0 x16 slot (SafeSlot). 4x SATA III ports with RAID 0/1/5/10. WiFi 6E (802.11ax, 2.4/5/6 GHz) + Bluetooth 5.3. Intel 2.5Gb Ethernet. SupremeFX S1220A 7.1-channel audio with Savitech amp. USB 3.2 Gen 2x2 Type-C (20Gbps) rear port. USB 3.2 Gen 2 front-panel connector. M.2 Q-Latch tool-free installation. Q-LED diagnostics. Pre-mounted I/O shield. UEFI AMI BIOS (128Mbit). AEMP II DDR5 overclocking. Aura Sync ARGB header. Rear I/O 3x USB 2.0, 3x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 1x HDMI, 1x DisplayPort, 1x 2.5GbE RJ-45, WiFi antenna connectors, audio jacks. What's Included ASUS ROG Strix B760-I Gaming WiFi motherboard, SATA cables, WiFi antenna, quick start guide. Platform Socket Intel LGA1700 Chipset Intel B760 Form Factor Mini-ITX (170 x 170 mm) CPU Support Intel 12th & 13th Gen Core (LGA1700) Power Stages 8+1 (80A each), 8-layer PCB Memory Slots 2x DIMM DDR5 Max RAM 64 GB Speeds 4800–7600 MHz (XMP/AEMP II OC) Channels Dual-channel, Non-ECC Storage & Expansion M.2 Slots 2x M.2 PCIe 4.0 x4 (front + rear) SATA Ports 4x SATA III (6Gb/s) PCIe x16 1x PCIe 5.0 (SafeSlot) RAID 0, 1, 5, 10 Connectivity & Audio LAN Intel 2.5Gb Ethernet Wi-Fi WiFi 6E (802.11ax), 2.4/5/6 GHz Bluetooth 5.3 Audio SupremeFX S1220A, 7.1-channel BIOS UEFI AMI, 128Mbit Weight 644 g
