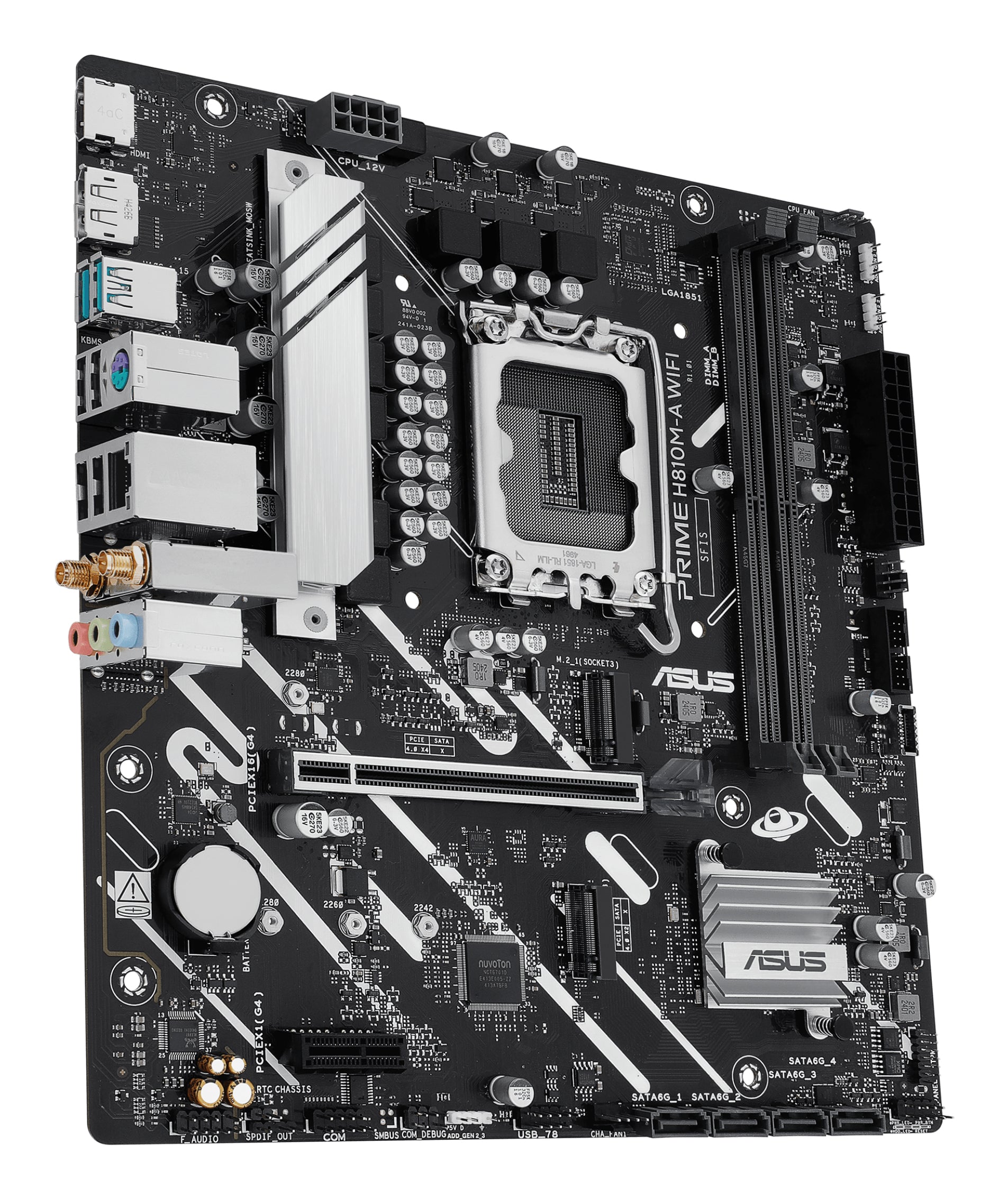

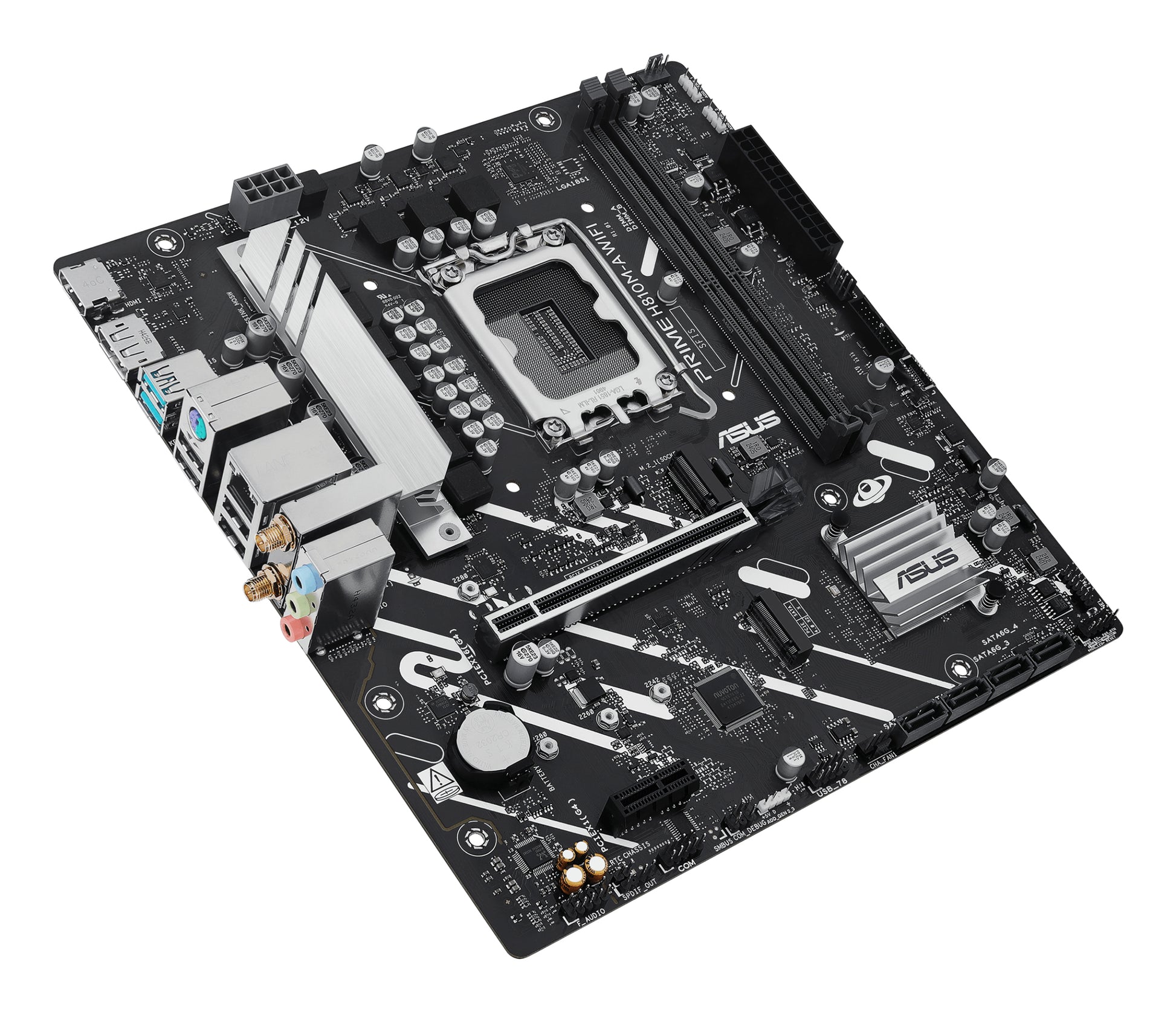

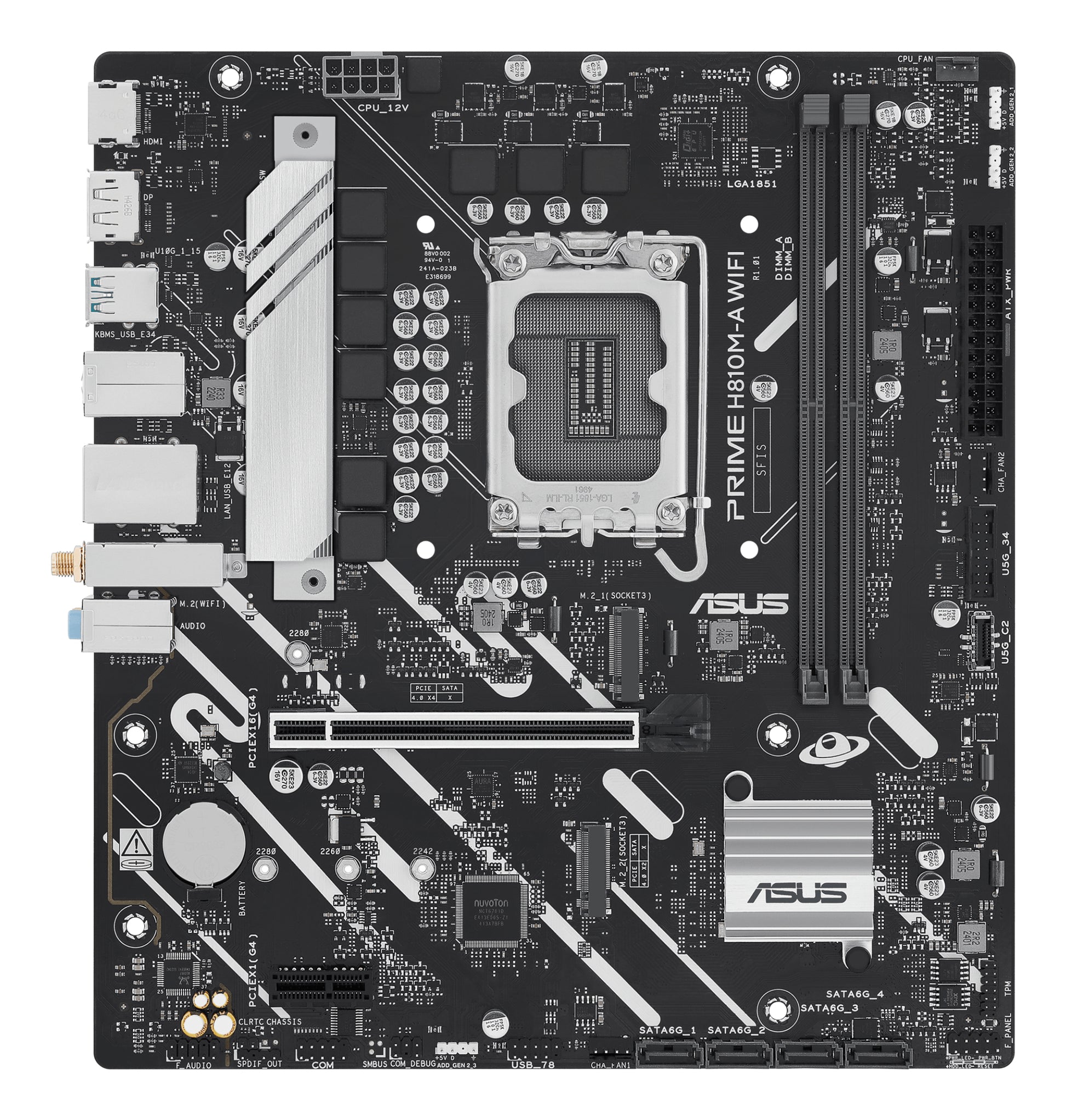

ASUS PRIME H810M-A WIFI, Intel H810, LGA 1851, micro ATX
Overview
The ASUS PRIME H810M-A WIFI is an Intel H810 micro ATX motherboard engineered to unleash the full potential of Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, it provides PC builders with a range of performance optimisations via intuitive software and firmware features. Designed to be Advanced AI PC-ready, it delivers the power and connectivity needed for demanding AI applications.
Performance
Intel Core Ultra Series 2 Ready
Supports Intel Core Ultra (Series 2) processors in the LGA 1851 (Socket V1) socket, enabling next-generation AI PC workloads and gaming performance.
PCIe 4.0 x16 GPU Slot
One PCIe 4.0 x16 slot for the latest discrete graphics cards, plus one PCIe 4.0 x1 slot for additional expansion.
Two M.2 PCIe 4.0 Slots
Both M.2 (M-key) slots support up to 2280 form factor at PCIe 4.0 speeds for fast NVMe SSD storage.
Memory & Storage
Two DIMM slots support DDR5-SDRAM in dual-channel configuration, Non-ECC unbuffered, up to 128 GB maximum. Four SATA III connectors support up to 6 storage drives total, with RAID 0, 1, 5, and 10. SATA cables included.
Connectivity
Gigabit Ethernet
Reliable 1 GbE wired networking via a single RJ-45 port.
Wi-Fi 6 (802.11ax) + Bluetooth 5.3
Wi-Fi 6 wireless with one Wi-Fi antenna jack on the rear I/O. Bluetooth 5.3 for peripheral connectivity.

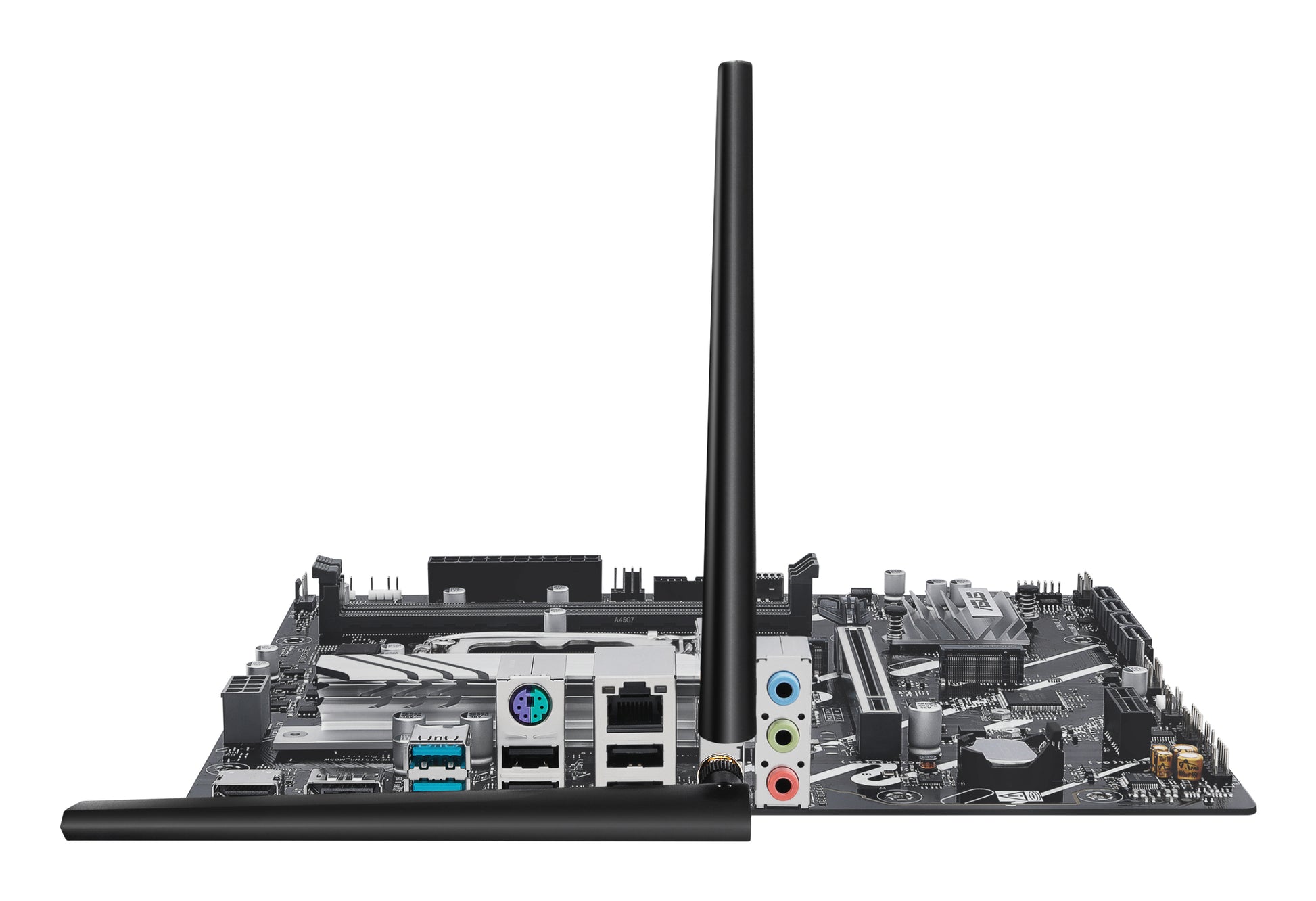

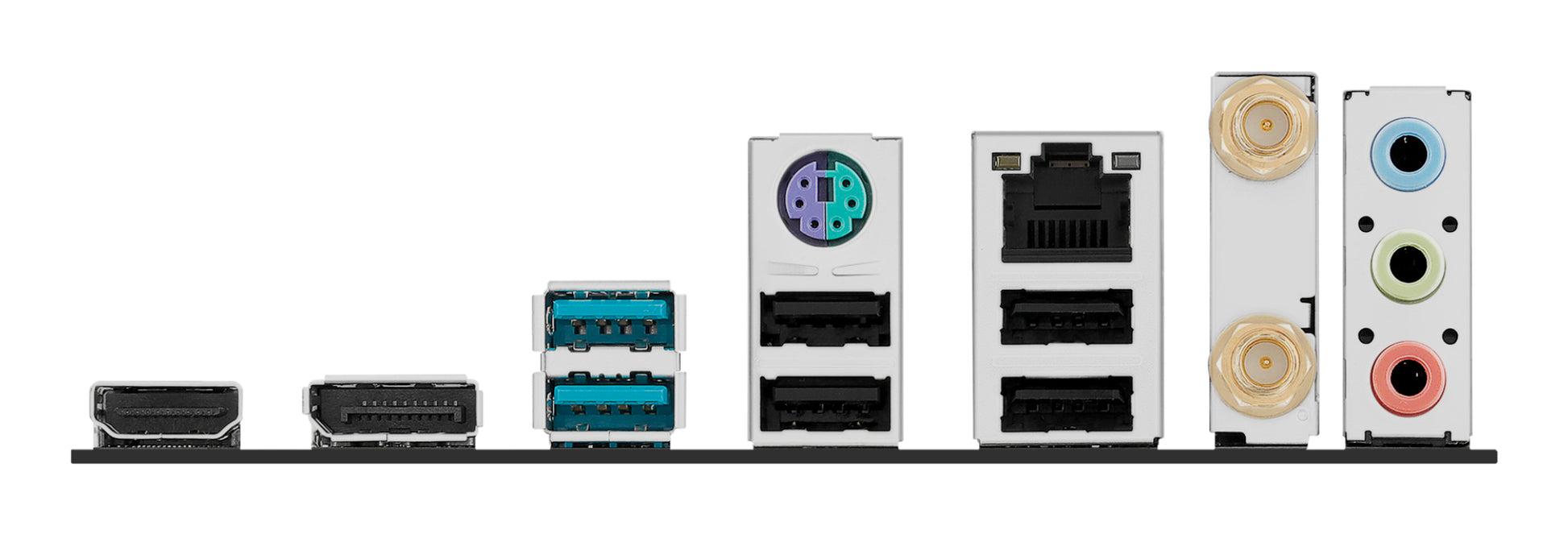

Rear I/O Summary: 4× USB 2.0 Type-A, 2× USB 3.2 Gen 2 Type-A (10 Gbps), 1× HDMI, 1× DisplayPort, 1× RJ-45 (GbE), 1× PS/2, 1× Wi-Fi antenna jack, Mic-in, S/PDIF out.
Audio
7.1-channel onboard audio with front panel audio connector, S/PDIF out connector (internal), and Mic-in on the rear I/O.
Design & Aesthetics
micro ATX form factor (244 × 222 mm). Aura Sync RGB support. TPM connector included. COM connector (1×). Supports Windows 10 x64 and Windows 11.

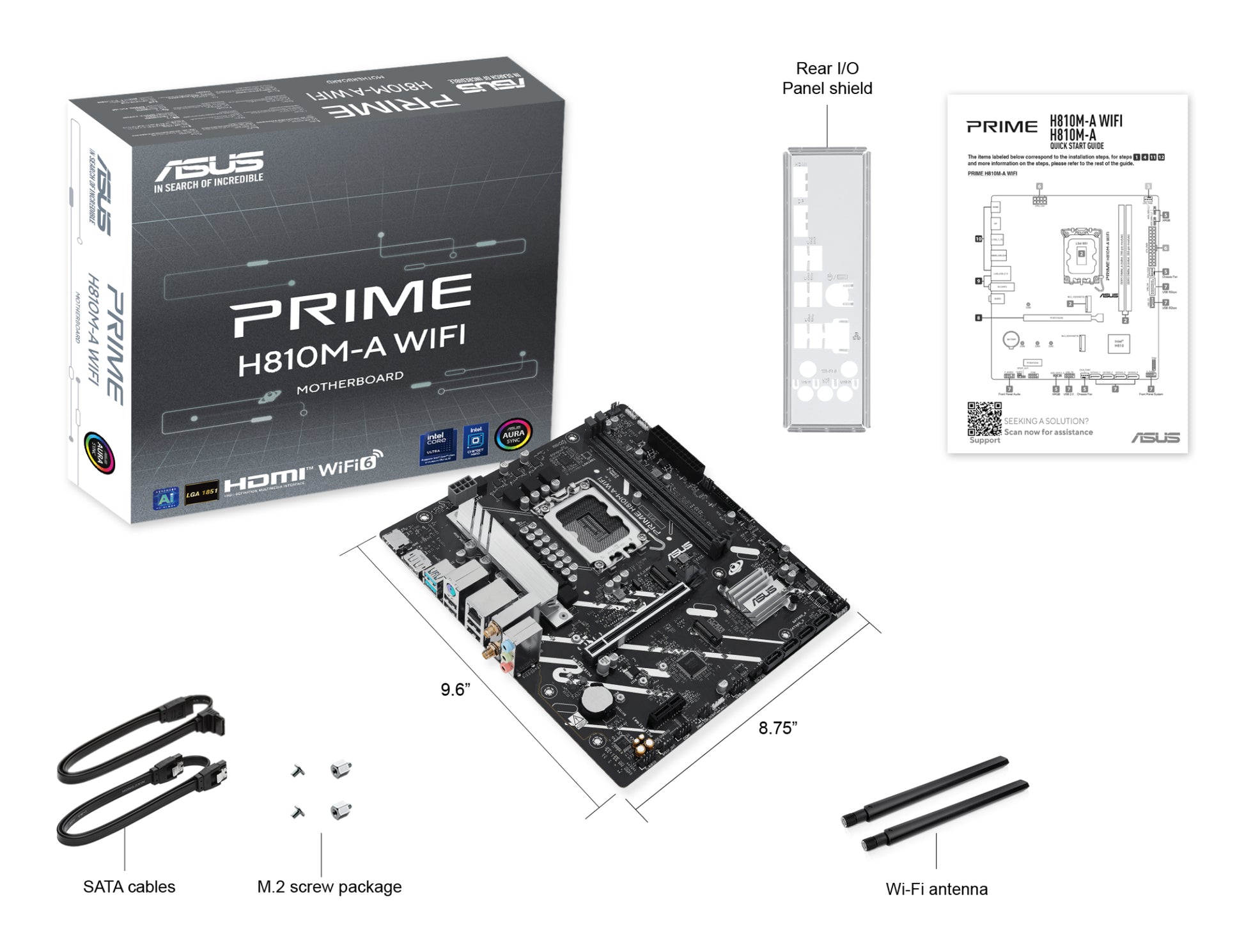

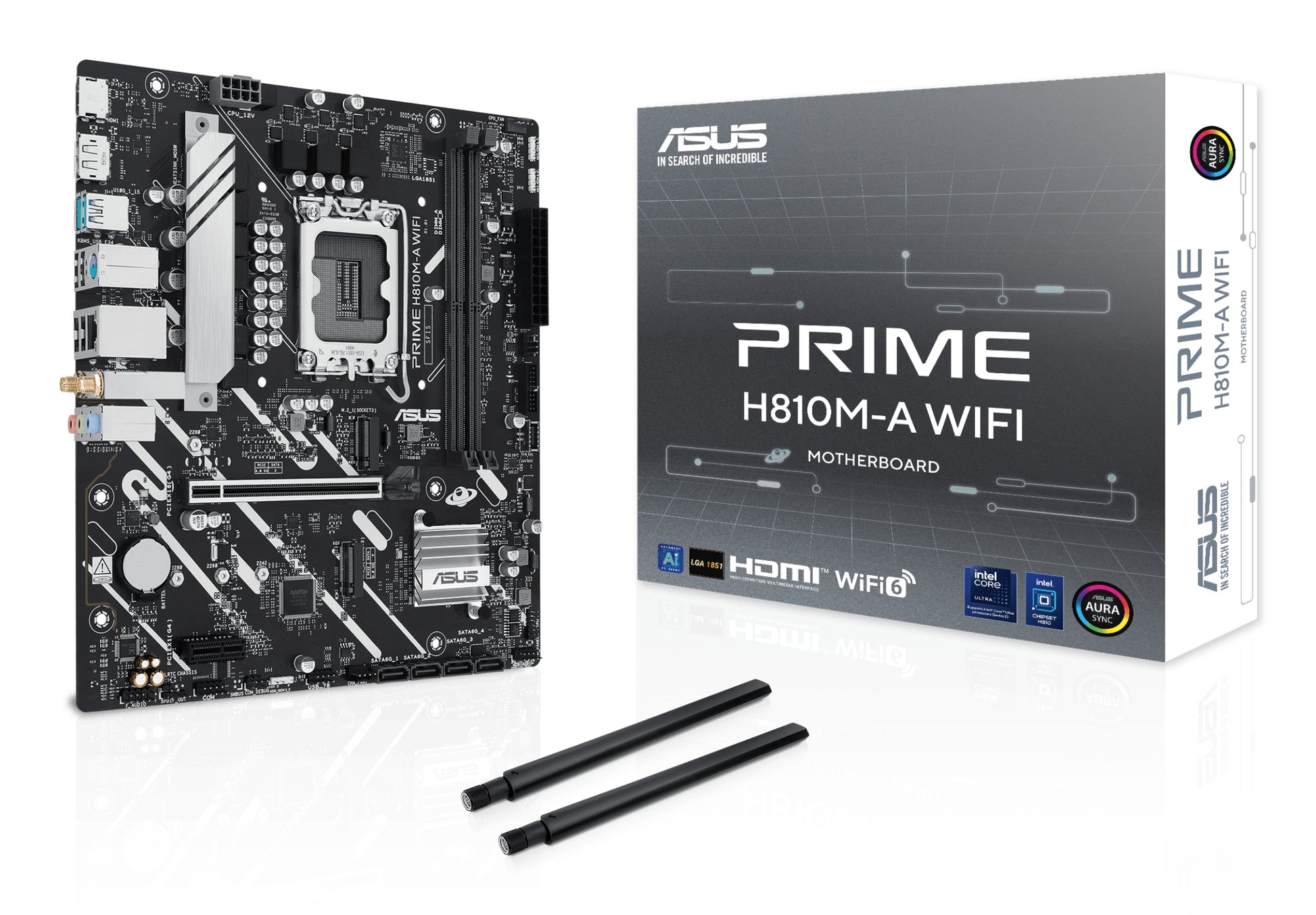

What's Included
ASUS PRIME H810M-A WIFI motherboard, SATA cables, screws, documentation.
Technical Specifications
Processor
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1851 (Socket V1) |
| Compatible Processor Series | Intel Core Ultra (Series 2) |
| Supported Processor Sockets | LGA 1851 |
Chipset & Form Factor
| Motherboard Chipset | Intel H810 |
| Chipset Family | Intel |
| Form Factor | micro ATX |
| OS Support | Windows 10 x64, Windows 11 |
Memory
| Supported Memory Types | DDR5-SDRAM |
| Memory Slots | 2× DIMM |
| Memory Channels | Dual-channel |
| Maximum Memory | 128 GB |
| ECC Compatibility | Non-ECC |
| Unbuffered Memory | Yes |
Storage Controllers
| Supported Drive Types | HDD & SSD |
| Storage Interfaces | M.2, SATA III |
| Total Storage Drives Supported | 6 |
| HDDs Supported | 4 |
| RAID Support | Yes — 0, 1, 5, 10 |
Expansion Slots
| PCIe 4.0 x16 Slots | 1 |
| PCIe 4.0 x1 Slots | 1 |
| M.2 (M) Slots | 2 (both PCIe 4.0 x4, up to 2280) |
| SATA III Connectors | 4 |
Network
| Ethernet LAN | Yes |
| Ethernet Interface Type | Gigabit Ethernet (1 GbE) |
| Wi-Fi | Yes |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes — version 5.3 |
Rear Panel I/O Ports
| USB 2.0 Type-A | 4 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| HDMI | 1 |
| DisplayPort | 1 |
| Ethernet (RJ-45) | 1 |
| PS/2 | 1 |
| Wi-Fi Antenna Jack | 1 |
| Microphone In | Yes |
Internal I/O Headers
| USB 2.0 Connectors | 1 |
| USB 3.2 Gen 1 Connectors | 2 |
| CPU Fan Connector | 1 |
| Chassis Fan Connectors | 2 |
| ATX Power Connector (24-pin) | Yes |
| 12V Power Connector | Yes |
| Front Panel Audio Connector | Yes |
| S/PDIF Out Connector | Yes |
| TPM Connector | Yes |
| COM Connectors | 1 |
Audio
| Audio Output Channels | 7.1 Channels |
BIOS
| BIOS Type | UEFI AMI |
| BIOS Memory Size | 256 Mbit |
Physical
| Width | 244 mm |
| Depth | 222 mm |
In the Box
| Cables Included | SATA |
| Screws Included | Yes |
