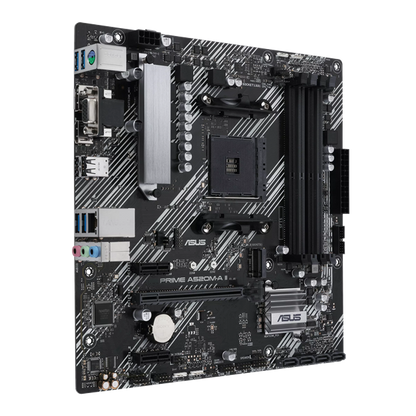

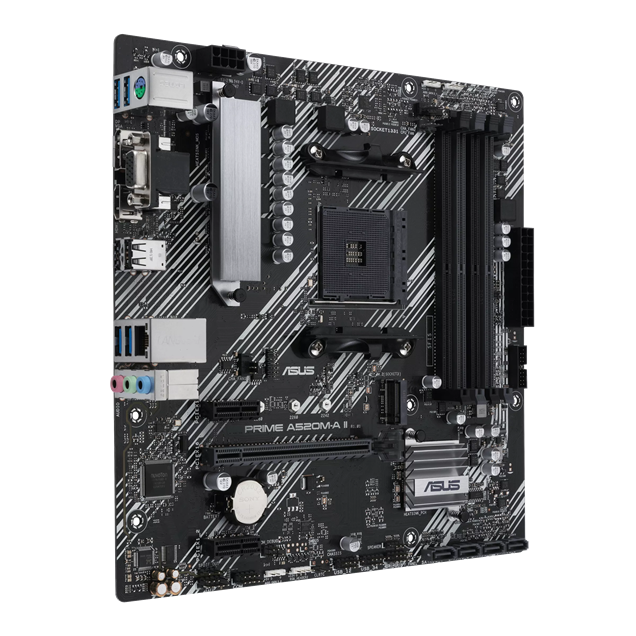

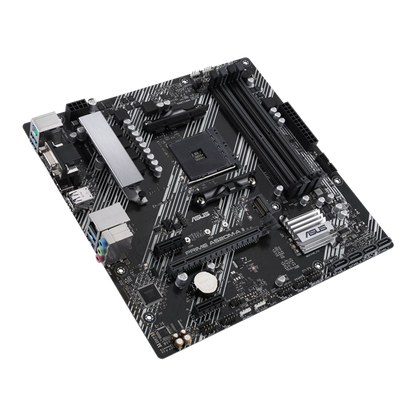

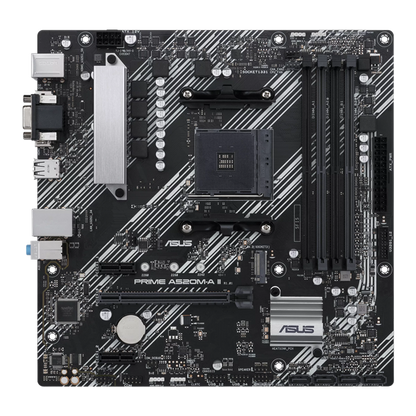

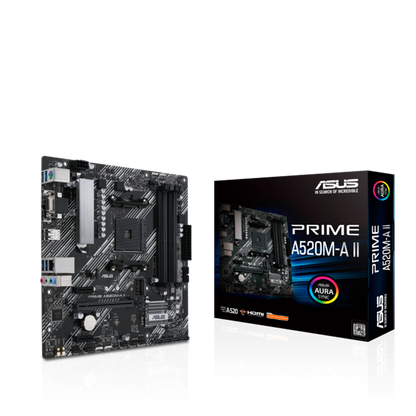

ASUS Prime A520M-A II/CSM AMD AM4 Micro-ATX Motherboard

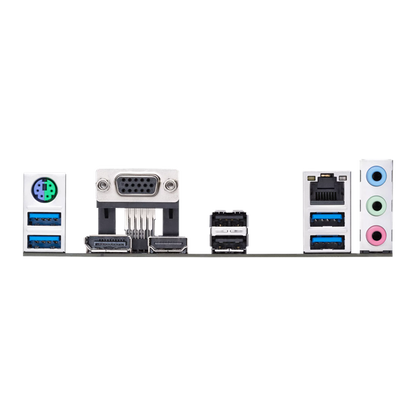

ASUS Prime A520M-A II/CSM AMD AM4 Micro-ATX Motherboard Overview The ASUS Prime A520M-A II/CSM is a feature-rich AMD A520 Micro-ATX motherboard for Ryzen AM4 processors. With four DDR4 DIMM slots, triple display outputs, CSM commercial lifecycle support, and ASUS Control Center Express IT management, it's an excellent choice for both home and business builds. Key Features 4x DDR4 DIMM slots up to 128GB with DDR4-4800 OC support. PCIe 3.0 x16 SafeSlot Core reinforced GPU slot. 1x M.2 PCIe 3.0 x4 (up to 32Gbps). Triple display outputs: D-Sub + HDMI + DisplayPort simultaneously. Gigabit LAN with ASUS LANGuard surge protection. Realtek ALC887/897 7.1-channel HD audio with audio shielding. Aura Sync RGB + Addressable Gen 2 header. ASUS CSM — 36-month lifecycle support with Control Center Express. What's Included ASUS Prime A520M-A II/CSM motherboard, SATA cables, I/O shield, M.2 screw, quick installation guide, support DVD, ASUS Control Center Express licence. Processor & Chipset Socket AMD AM4 Chipset AMD A520 Compatible CPUs AMD Ryzen 3, Ryzen 5 (AM4) Form Factor Micro-ATX (244 x 244mm) Memory Type DDR4 (Dual Channel, Unbuffered) Slots 4x DIMM Max Capacity 128GB Max Speed DDR4-4800 (OC) Storage M.2 Slots 1x M.2 PCIe 3.0 x4 (up to 32Gbps) SATA III 4 ports RAID 0, 1, 10 Connectivity LAN Gigabit Ethernet (LANGuard) Wi-Fi No Rear I/O USB 3.2 Gen1 4x Type-A USB 2.0 2x Type-A Video Out D-Sub, HDMI, DisplayPort Audio 7.1ch Realtek ALC887/897 Other 1x PS/2, RJ-45 LAN BIOS & OS BIOS 128Mbit UEFI AMI OS Support Windows 10 x64
