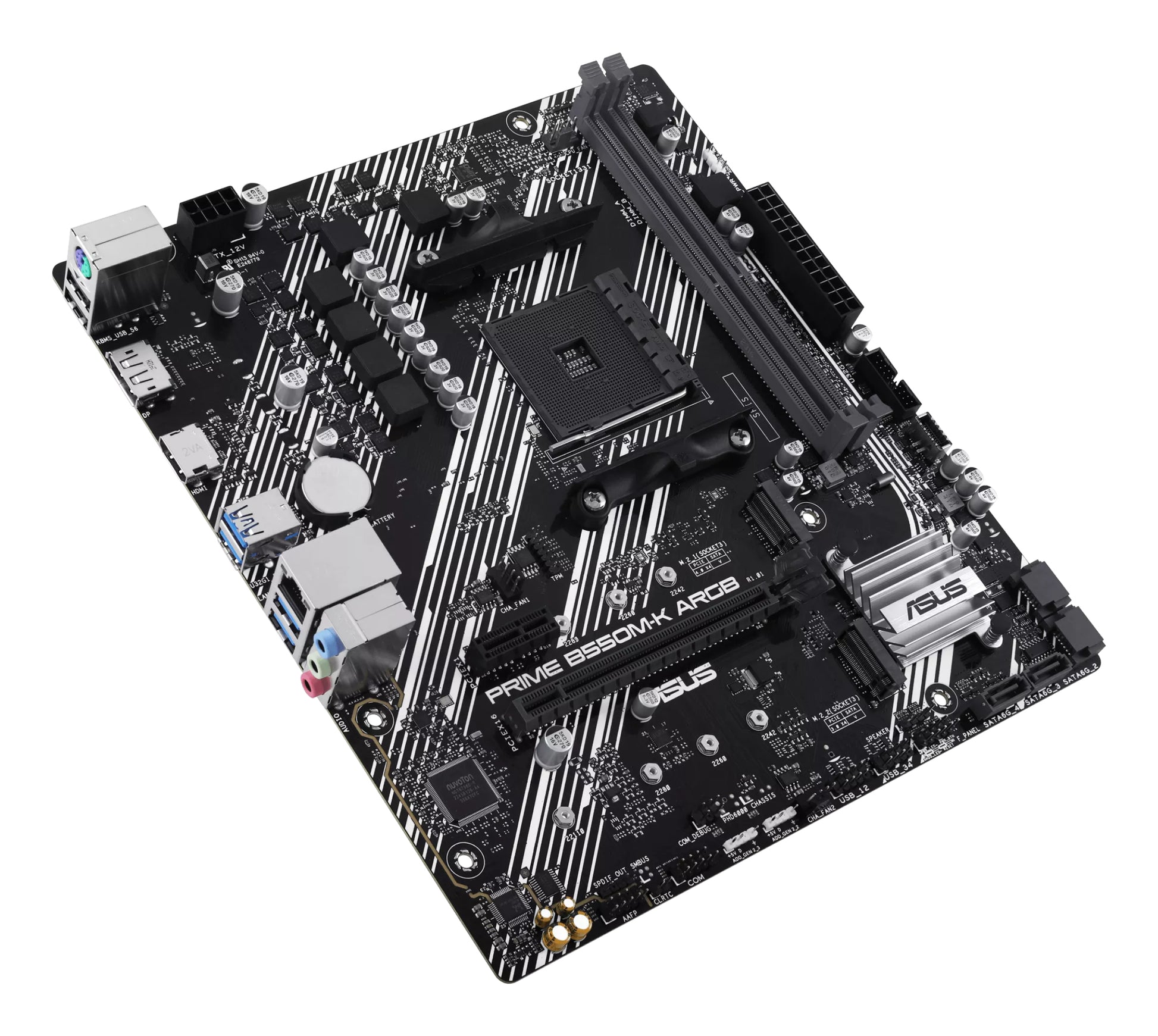

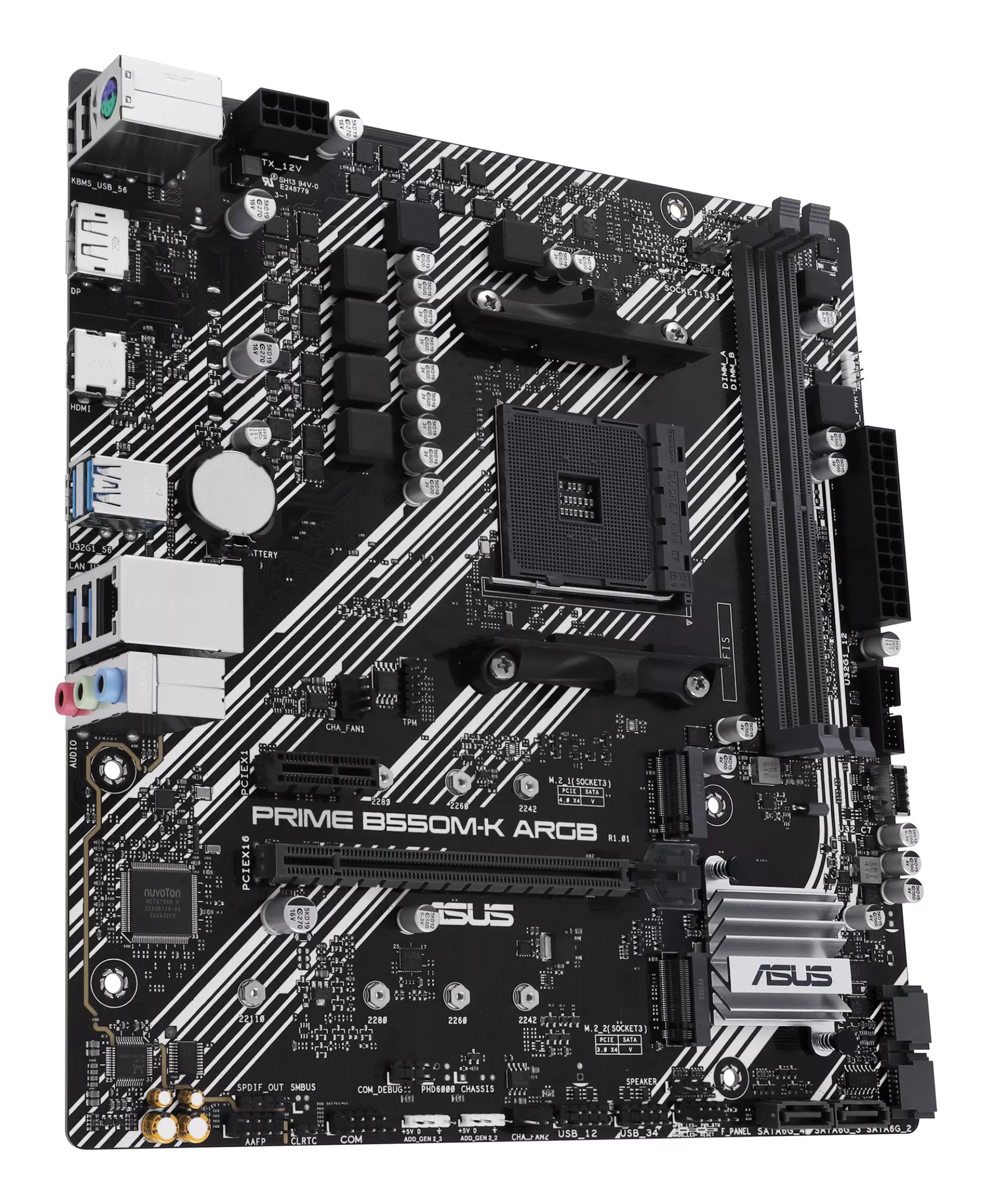

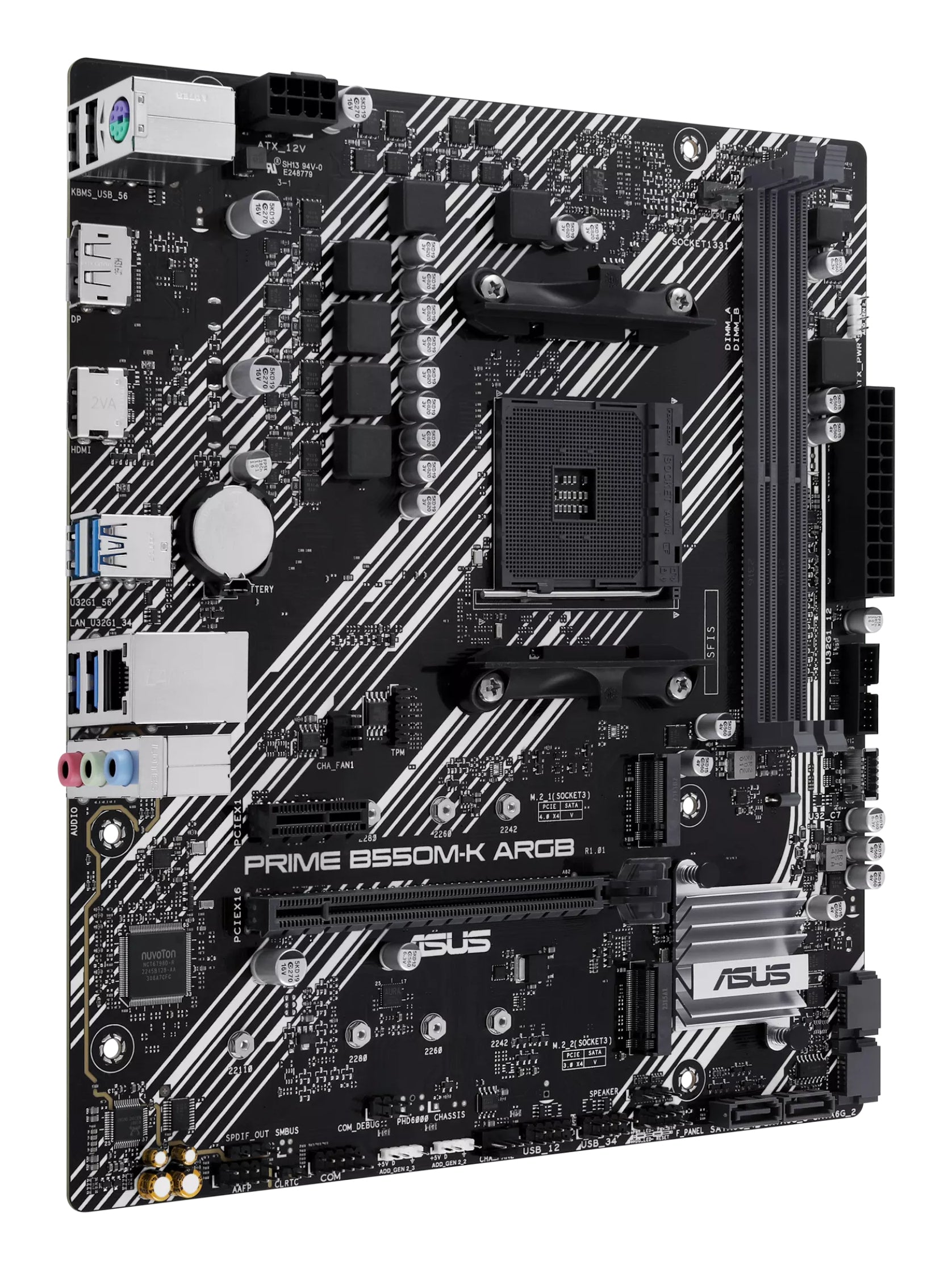

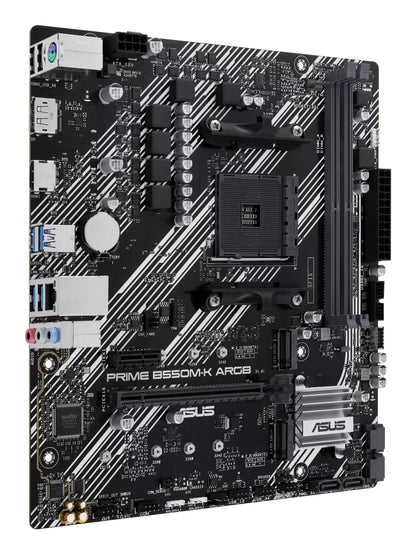

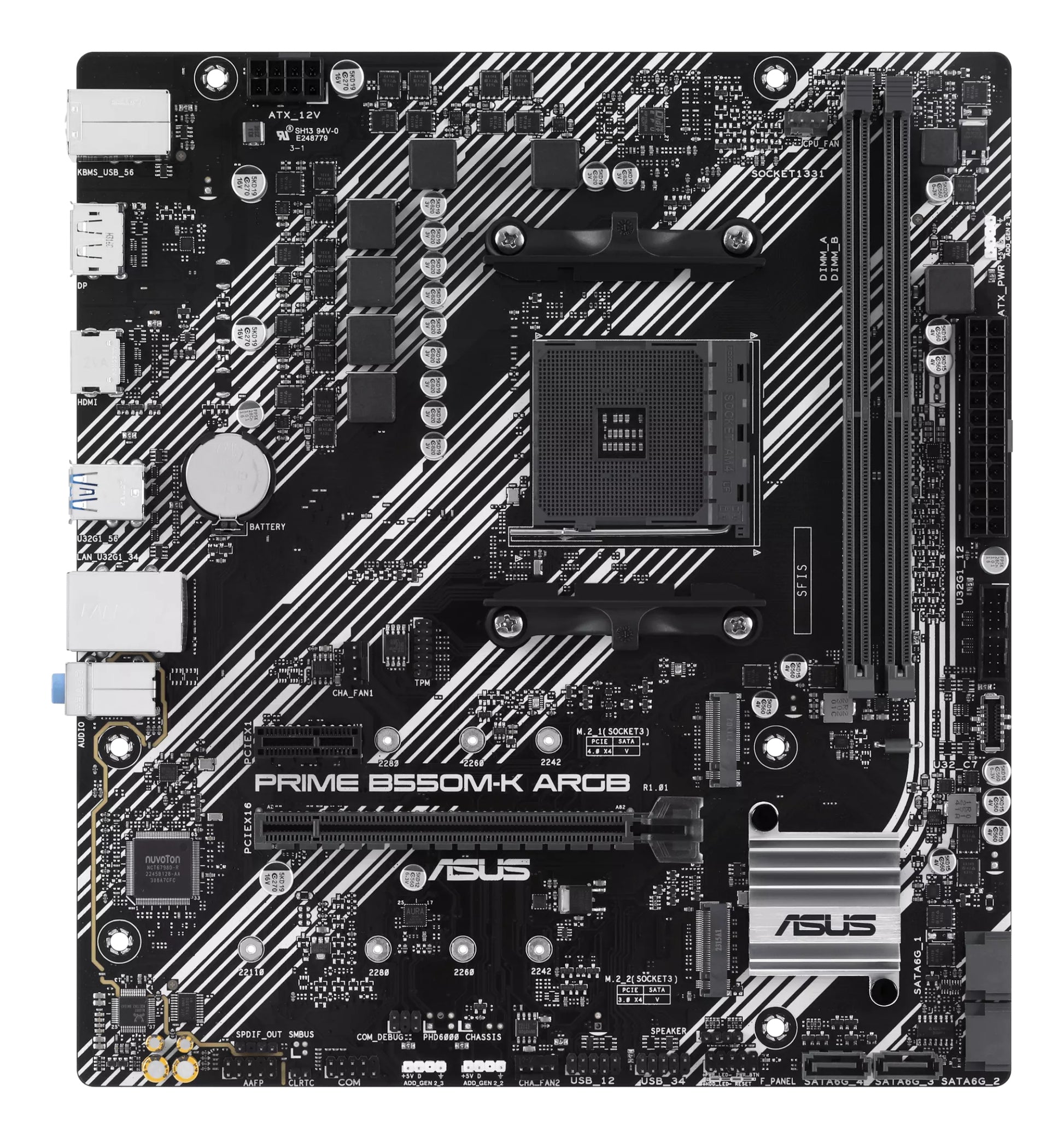

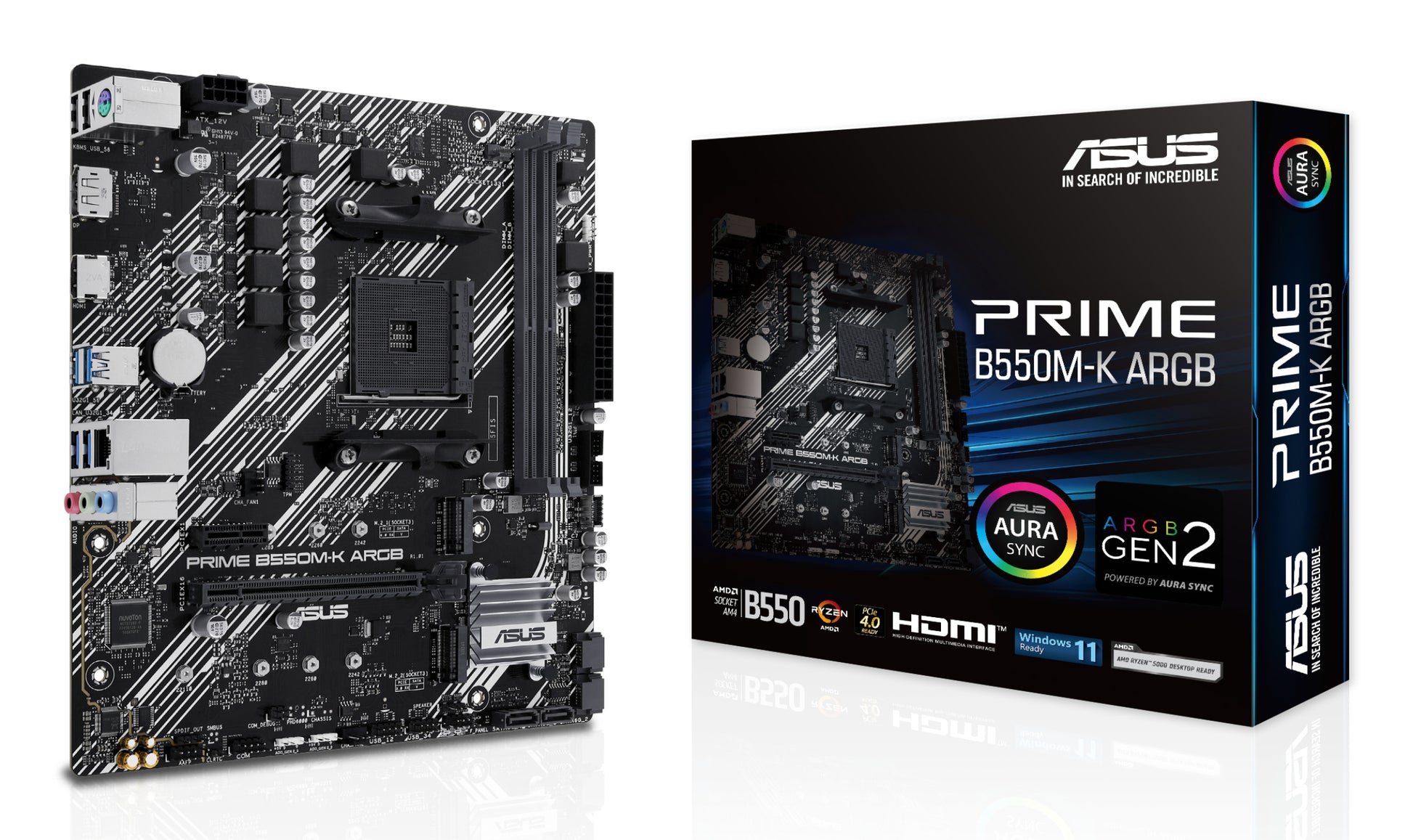

ASUS PRIME B550M-K ARGB, AMD B550, Socket AM4, micro ATX
Overview
ASUS PRIME series is expertly engineered to unleash the full potential of AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B550M-K ARGB provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Performance
Dual M.2 Slots (up to 64 Gbps)
The PRIME B550M-K ARGB offers two M.2 slots, one of which supports data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe 4.0 Support
The primary PCIe 4.0 x16 slot delivers double the bandwidth of PCIe 3.0 for the latest graphics cards and NVMe SSDs.
Memory & Storage
Two DIMM slots support DDR4-SDRAM in dual-channel configuration, with a maximum capacity of 64 GB and speeds from 2133 MHz up to 5100 MHz (OC). Unbuffered memory. Four SATA III connectors support HDD and SSD storage with RAID 0, 1, and 10.
Connectivity
Rear I/O Summary: 2× USB 2.0 Type-A, 4× USB 3.2 Gen 1 Type-A, 1× HDMI 2.1, 1× DisplayPort 1.4, 1× RJ-45 (Gigabit Ethernet), 1× PS/2, Line-in, Headphone out, Mic-in.
Gigabit Ethernet
Realtek 1 Gb wired networking with Wake-on-LAN support.
Front Panel USB
Internal headers include 2× USB 2.0 and 2× USB 3.2 Gen 1 connectors for front-panel ports. Also includes a front USB 3.2 Gen 1 Type-C® header.
Cooling
PCH heatsink, hybrid fan headers (1× CPU fan, 2× chassis fan), and Fan Xpert 2+ software for comprehensive cooling control. Each header can dynamically reference three thermal sensors, and Fan Xpert 2+ allows mapping of supported ASUS GPU temperatures for optimised cooling.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimises power consumption and maximises savings with Away mode.
Audio
7.1-channel onboard audio with audio shielding, dedicated audio PCB layers, and premium audio capacitors for warm, natural, immersive sound. Front panel audio header, S/PDIF out connector, headphone output, Line-in, and Mic-in on the rear I/O.
Design & Aesthetics
Addressable Gen 2 RGB (ARGB) header for RGB LED strips, easily synced with Aura Sync-compatible hardware. micro ATX form factor (244 × 221 mm, 36.5 mm height). Supports Windows 10 x64 and Windows 11.

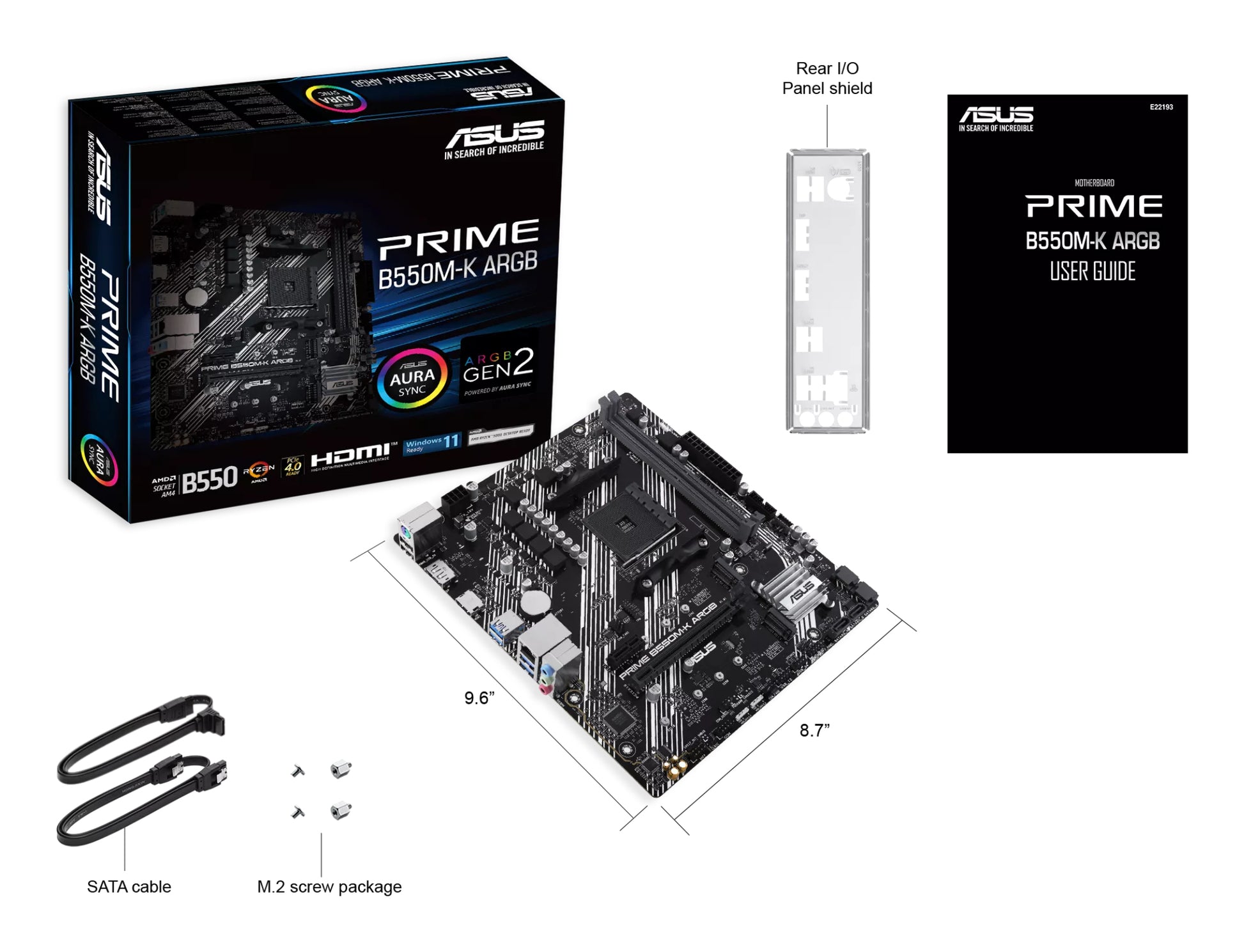

What's Included
ASUS PRIME B550M-K ARGB motherboard, SATA cables, documentation.
Technical Specifications
Processor
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM4 |
| Compatible Processors | AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series |
Chipset & Form Factor
| Motherboard Chipset | AMD B550 |
| Chipset Family | AMD |
| Form Factor | micro ATX |
| OS Support | Windows 10 x64, Windows 11 |
Memory
| Supported Memory Types | DDR4-SDRAM |
| Memory Slots | 2× DIMM |
| Memory Channels | Dual-channel |
| Maximum Memory | 64 GB |
| Supported Memory Speeds | 2133 / 2400 / 2666 / 2800 / 2933 / 3000 / 3200 / 3333 / 3400 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 / 4200 / 4266 / 4333 / 4400 / 4466 / 4600 / 4866 / 5100 MHz |
| Unbuffered Memory | Yes |
Storage Controllers
| Supported Drive Types | HDD & SSD |
| Storage Interfaces | M.2 |
| RAID Support | Yes — 0, 1, 10 |
Expansion Slots
| PCIe 4.0 x16 Slots | 1 |
| PCIe 3.0 x16 Slots | 1 |
| PCIe 3.0 x1 Slots | 1 |
| M.2 (M) Slots | 2 (1× PCIe 4.0 up to 64 Gbps, 1× PCIe 3.0) |
Network
| Ethernet LAN | Yes |
| Ethernet Interface Type | Gigabit Ethernet (1 Gbps) |
| Wake-on-LAN | Yes |
| Wi-Fi | No |
Rear Panel I/O Ports
| USB 2.0 Type-A | 2 |
| USB 3.2 Gen 1 Type-A | 4 |
| HDMI | 1× HDMI 2.1 |
| DisplayPort | 1× DisplayPort 1.4 |
| Ethernet (RJ-45) | 1 |
| PS/2 | 1 |
| Line-In | Yes |
| Headphone Out | 1 |
| Microphone In | Yes |
Internal I/O Headers
| USB 2.0 Connectors | 2 |
| USB 3.2 Gen 1 Connectors | 2 |
| SATA III Connectors | 4 |
| CPU Fan Connector | Yes |
| Chassis Fan Connectors | 2 |
| ATX Power Connector (24-pin) | Yes |
| EPS Power Connector (8-pin) | Yes |
| 12V Power Connector | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| S/PDIF Out Connector | Yes |
| RGB LED Header (ARGB) | Yes |
| TPM Connector | Yes |
| COM Connector | 1 |
Audio
| Audio Output Channels | 7.1 Channels |
BIOS
| BIOS Type | EFI AMI |
| BIOS Memory Size | 128 Mbit |
| Clear CMOS Jumper | Yes |
Physical
| Width | 244 mm |
| Depth | 221 mm |
| Height | 36.5 mm |
| Weight (Board) | 460 g |
Packaging
| Package Width | 260 mm |
| Package Depth | 270 mm |
| Package Height | 515 mm |
| Package Weight | 960 g |
| Cables Included | SATA |
