ASUS ROG Strix B550-F Gaming WiFi II AMD AM4 ATX Motherboard, 4x DDR4, 2x M.2, PCIe 4.0, 6x SATA, WiFi 6, 2.5GbE, USB-C

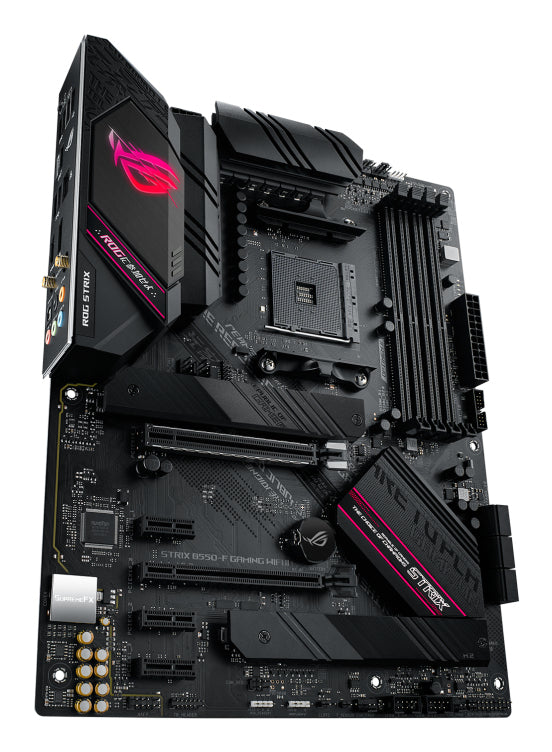

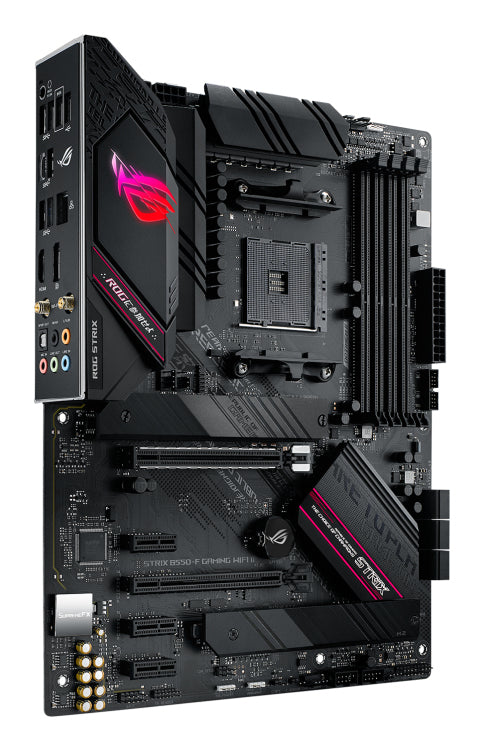

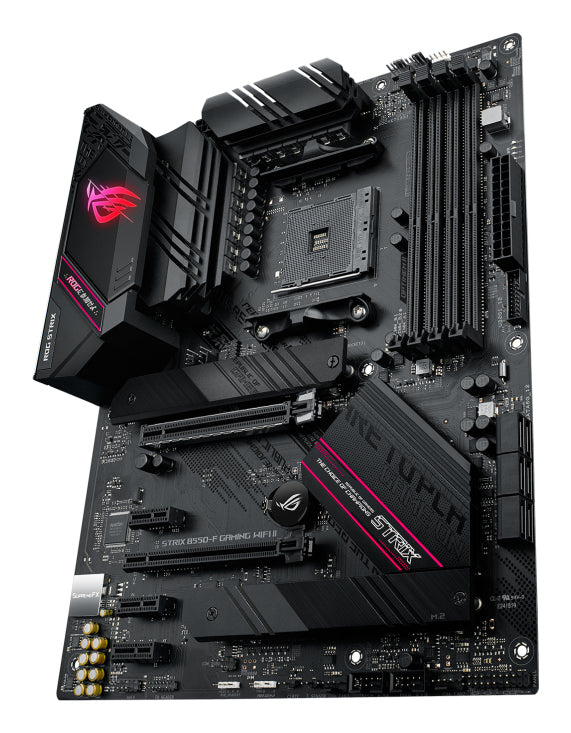

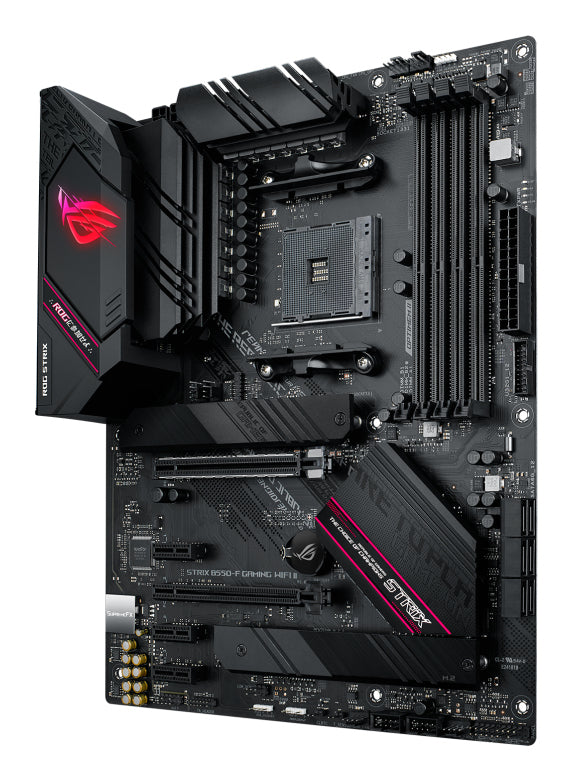

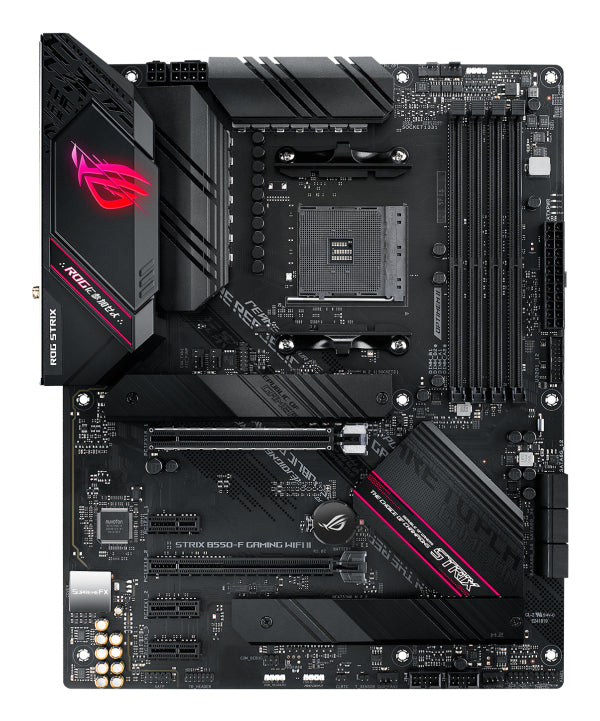

ASUS ROG Strix B550-F Gaming WiFi II AMD AM4 ATX Motherboard Overview The ASUS ROG Strix B550-F Gaming WiFi II is a full-size ATX gaming motherboard for AMD AM4 Ryzen processors. Built on the B550 chipset with PCIe 4.0 support, it delivers premium connectivity including WiFi 6 (802.11ax), Intel 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C, and ROG SupremeFX audio — all wrapped in bold ROG Strix aesthetics with Aura Sync RGB. Key Features AMD B550 chipset with AM4 socket supporting Ryzen 3000 series and newer. 2x M.2 slots — one PCIe 4.0 x4 (up to 32Gbps) and one PCIe 3.0 x4. 6x SATA III ports with RAID 0/1/10. WiFi 6 (802.11ax) + Bluetooth 5.2. Intel I225-V 2.5Gb Ethernet with Wake-on-LAN. ROG SupremeFX 7.1-channel HD audio with S/PDIF out. USB 3.2 Gen 2 Type-A and Type-C rear ports. Thunderbolt header. Aura Sync ARGB headers. Fan Xpert 4 with 3x chassis fan headers. UEFI AMI BIOS (256Mbit). Pre-mounted I/O shield. Rear I/O 2x USB 2.0, 4x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x HDMI 2.1, 1x DisplayPort 1.2, 1x 2.5GbE RJ-45, WiFi antenna connectors, 5x audio jacks, 1x S/PDIF optical out. What's Included ASUS ROG Strix B550-F Gaming WiFi II motherboard, SATA cables, WiFi antenna, driver disc, AIDA64 Extreme 60-day licence. Platform Socket AMD AM4 Chipset AMD B550 Form Factor ATX (305 x 244 mm) CPU Support AMD Ryzen 3000 series & newer (AM4) Memory Slots 4x DIMM DDR4 Max RAM 128 GB Speeds 2133–4600 MHz (OC) Storage & Expansion M.2 Slots 2x M.2 (1x PCIe 4.0 x4, 1x PCIe 3.0 x4) SATA Ports 6x SATA III (6Gb/s) PCIe x16 1x PCIe 4.0 + 1x PCIe 3.0 PCIe x1 3x PCIe 3.0 RAID 0, 1, 10 Connectivity & Audio LAN Intel I225-V 2.5Gb Ethernet Wi-Fi WiFi 6 (802.11ax), 2.4/5/6GHz Bluetooth 5.2 Audio ROG SupremeFX, 7.1-channel, S/PDIF BIOS UEFI AMI, 256Mbit Weight 945 g
