Description
ASUS TUF Gaming B550M-Plus WiFi II AMD AM4 Micro-ATX Motherboard, 4x DDR4, 2x M.2, PCIe 4.0, 4x SATA, Wi-Fi 6

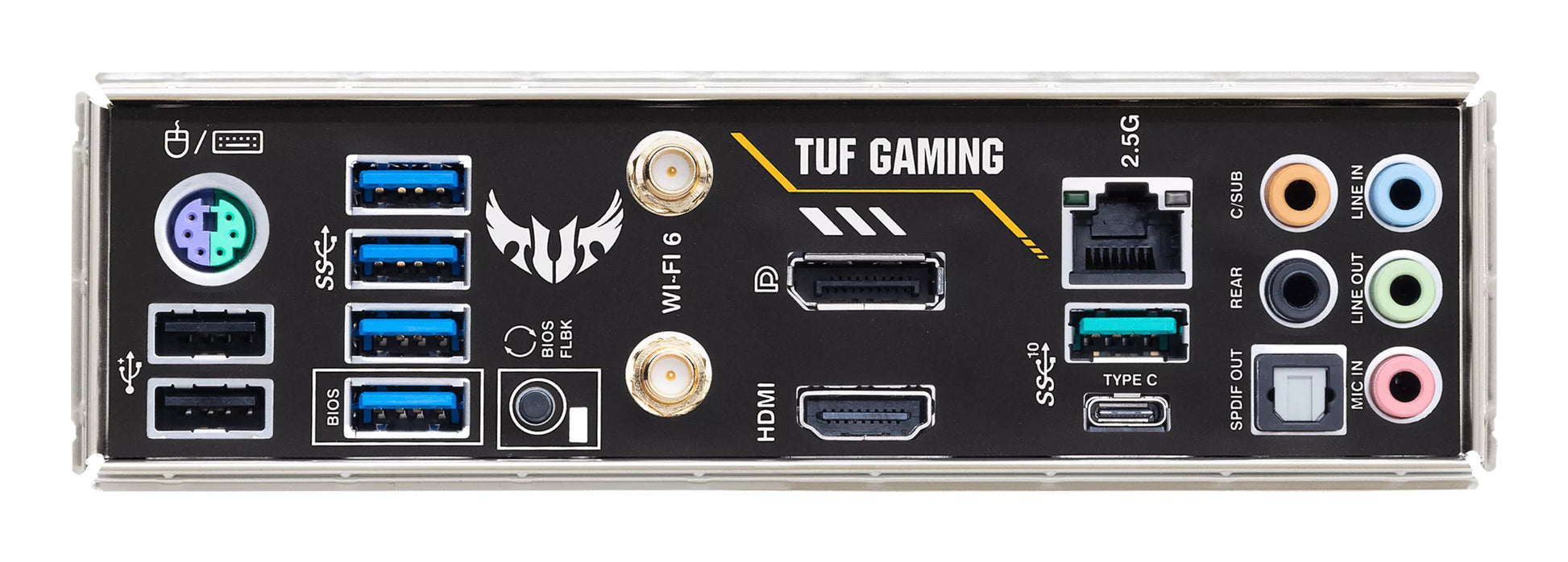

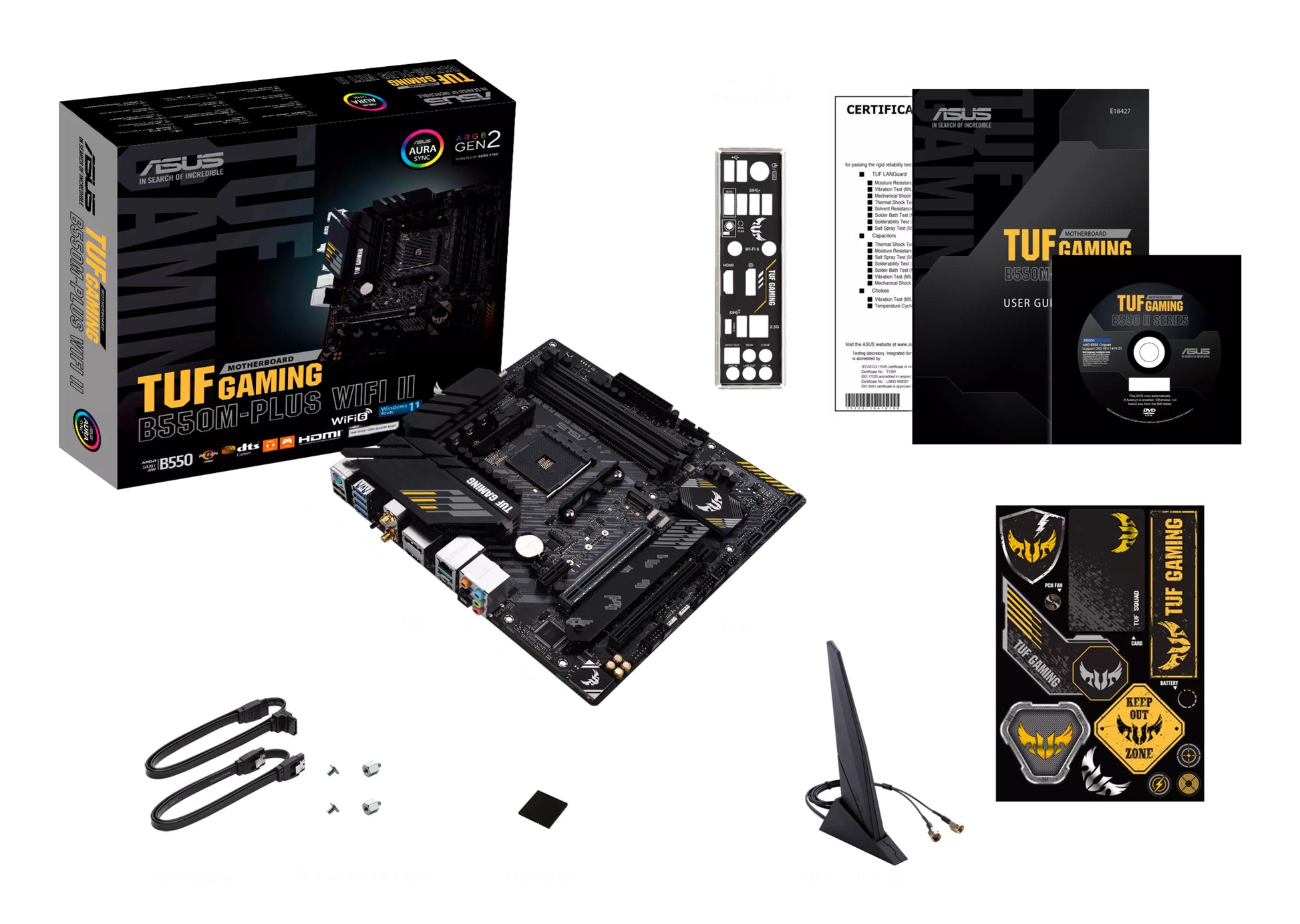

ASUS TUF Gaming B550M-Plus WiFi II AMD AM4 Micro-ATX Motherboard Overview The TUF Gaming B550M-Plus WiFi II packs full ATX-class B550 features into a compact Micro-ATX form factor. With an 8+2 DrMOS VRM, PCIe 4.0 M.2 storage, Wi-Fi 6, Bluetooth 5.2, and 2.5GbE LAN, it delivers military-grade durability and gaming-ready performance for Ryzen 3000 and 5000 series builds where space is at a premium. Key Features 8+2 DrMOS power stages with ProCool socket and Stack Cool 3+ for clean, efficient CPU power. PCIe 4.0 M.2 slot with heatsink (up to 64Gbps). TUF military-grade chokes and capacitors. SafeSlot reinforced PCIe x16. BIOS FlashBack for CPU-free updates. Two-Way AI Noise Cancelation. DTS Custom gaming audio. Aura Sync ARGB with onboard RGB and addressable Gen 2 headers. 2.5GbE LAN with TUF LANGuard. Connectivity Rear I/O: 2x USB 2.0, 4x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C, 1x HDMI 2.1, 1x DisplayPort 1.2, 1x PS/2, 1x RJ-45 2.5GbE, Wi-Fi antenna, 3x audio jacks, S/PDIF out. Internal: 2x USB 2.0, 1x USB 3.2 Gen1, 4x SATA III, 2x fan headers, TPM, COM port, RGB header. What's Included TUF Gaming B550M-Plus WiFi II motherboard, SATA cables, Wi-Fi antenna, M.2 rubber & screw package, TUF Gaming sticker, TUF certification card, support DVD, user guide. CPU & Chipset Socket AMD AM4 Chipset AMD B550 CPU Support AMD Ryzen 3000 & 5000 Series (incl. G-Series) Form Factor Micro-ATX (244 x 244 mm) Power Design 8+2 DrMOS Memory Slots 4x DIMM DDR4 (Dual Channel) Max Capacity 128 GB Speeds DDR4-2133 to 4866 (OC) ECC Supported (Unbuffered) Storage M.2 Slots 2x M.2 (1x PCIe 4.0 x4 64Gbps, 1x PCIe 3.0 x4 32Gbps) SATA III 4x SATA 6Gb/s RAID 0, 1, 10 Expansion Slots PCIe x16 1x PCIe 4.0 x16 (SafeSlot), 1x PCIe 3.0 x16 (x4 mode) PCIe x1 1x PCIe 3.0 x1 Networking & Wireless LAN Intel 2.5GbE (TUF LANGuard) Wi-Fi Wi-Fi 6 (802.11ax), 2.4/5GHz Bluetooth Bluetooth 5.2 Audio Realtek 7.1 HD, DTS Custom Physical Dimensions 244 x 244 mm Weight 845 g BIOS 256Mbit UEFI AMI, BIOS FlashBack, Clear CMOS OS Support Windows 10 x64, Windows 11
