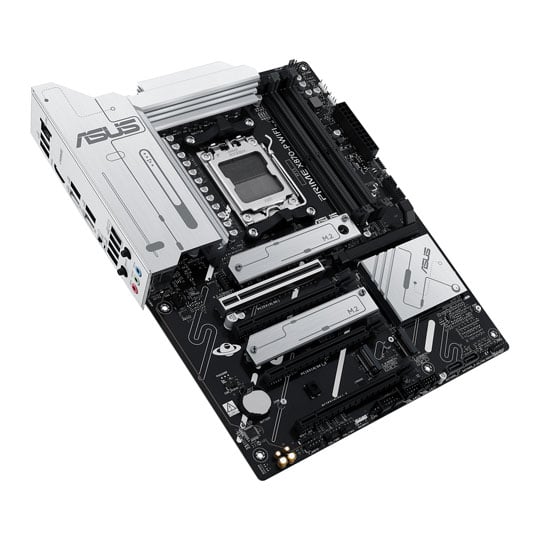

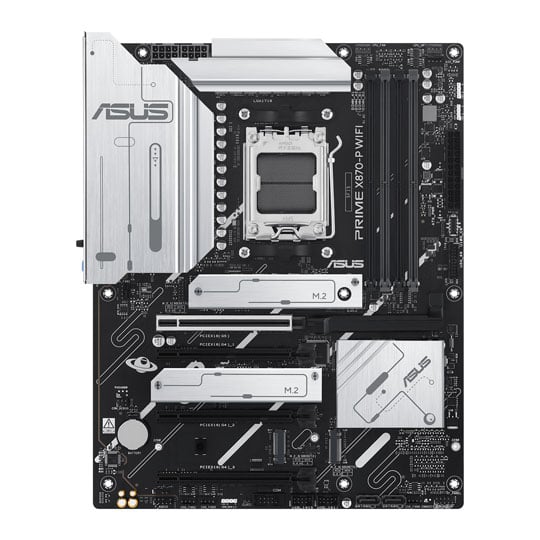

ASUS Prime X870-P WiFi AMD AM5 ATX Motherboard

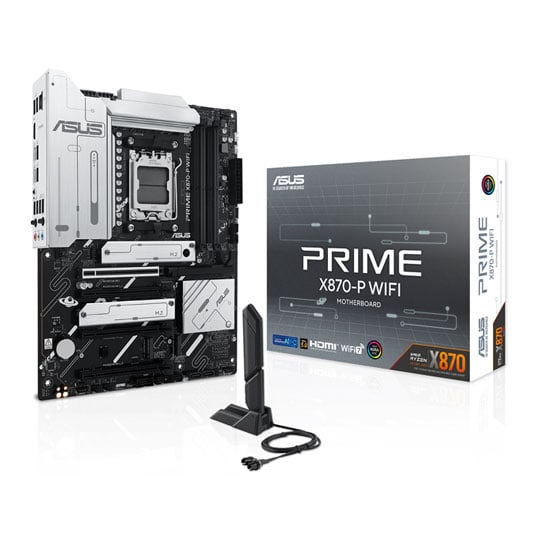

ASUS Prime X870-P WiFi AMD AM5 ATX Motherboard Overview The ASUS Prime X870-P WiFi is a feature-rich AMD X870 ATX motherboard for Ryzen 7000, 8000, and 9000 Series processors. With PCIe 5.0 GPU and M.2 slots, Wi-Fi 7, USB4 40Gbps, DDR5 up to 8000MHz, and four M.2 slots, it delivers next-generation connectivity at a Prime price point. Key Features 14+2+1 power stages (80A each) for robust CPU power delivery. PCIe 5.0 x16 GPU slot (SafeSlot, Q-Release). 4x M.2 slots: 1x PCIe 5.0 (128Gbps) + 2x PCIe 4.0 (64Gbps) + 1x PCIe 3.0. Wi-Fi 7 (802.11be) tri-band + Bluetooth 5.4. 2x USB4 Gen 2x2 (40Gbps) rear ports. Realtek 2.5 Gigabit Ethernet. DDR5 up to 192GB at DDR5-8000 OC. BIOS FlashBack, M.2 Q-Latch, Q-Antenna. Aura Sync RGB with 3x Addressable Gen 2 headers. What's Included ASUS Prime X870-P WiFi motherboard, SATA cables, Wi-Fi antenna (Q-Antenna), quick installation guide. Processor & Chipset Socket AMD AM5 Chipset AMD X870 Compatible CPUs AMD Ryzen 7000 / 8000 / 9000 Series Form Factor ATX (305 x 244mm) Memory Type DDR5 (Dual Channel, ECC & Non-ECC) Slots 4x DIMM Max Capacity 192GB Max Speed DDR5-8000 (OC) Profiles AMD EXPO, ASUS AEMP Storage M.2 Slot 1 PCIe 5.0 x4 (up to 128Gbps) M.2 Slots 2 & 3 PCIe 4.0 x4 (up to 64Gbps each) M.2 Slot 4 PCIe 3.0 SATA III 2 ports RAID 0, 1, 5, 10 Connectivity LAN Realtek 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be), 2.4/5/6GHz Bluetooth 5.4 Rear I/O USB4 Gen 2x2 2x (40Gbps) USB 3.2 Gen2 1x Type-A (10Gbps) USB 3.2 Gen1 3x Type-A (5Gbps) USB 2.0 4x Type-A Video Out HDMI 2.1, DisplayPort 1.4a Audio 7.1ch HD Audio BIOS & OS BIOS 256Mbit UEFI AMI Features BIOS FlashBack, Fan Xpert 4, AMD EXPO, ASUS AEMP OS Support Windows 10, Windows 11
