Description

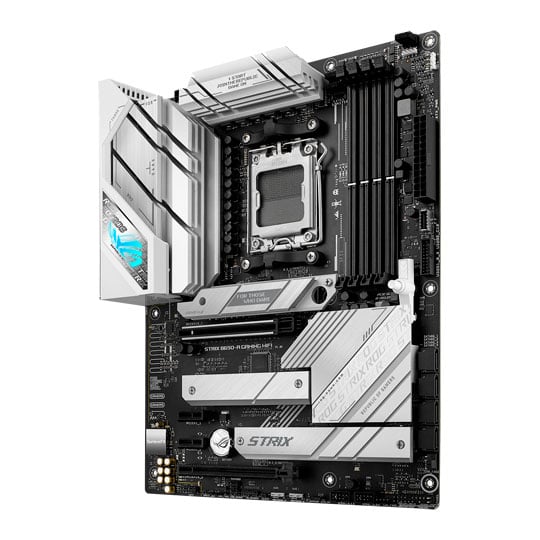

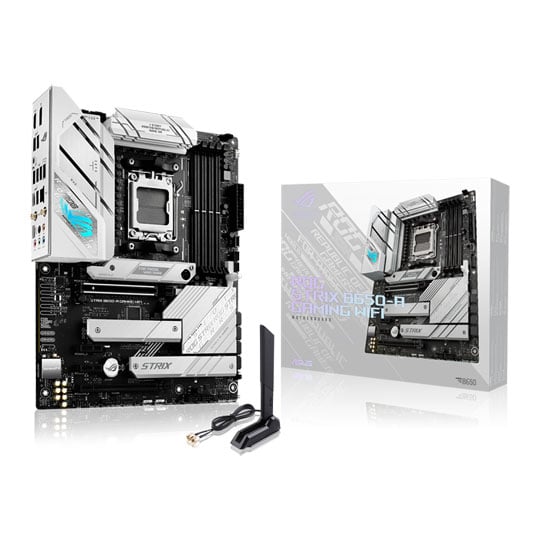

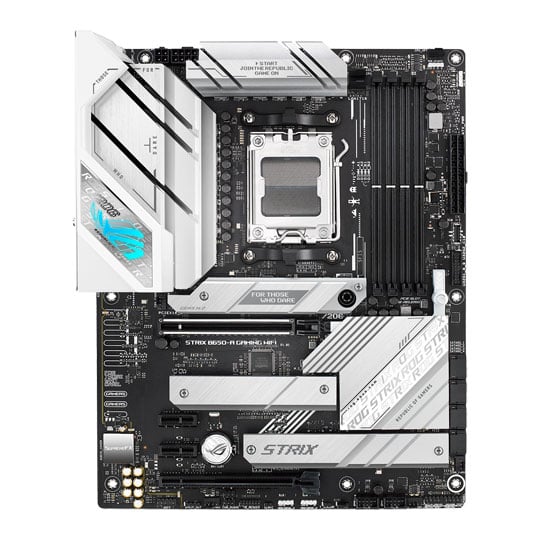

ASUS ROG Strix B650-A Gaming WiFi AMD AM5 ATX Motherboard

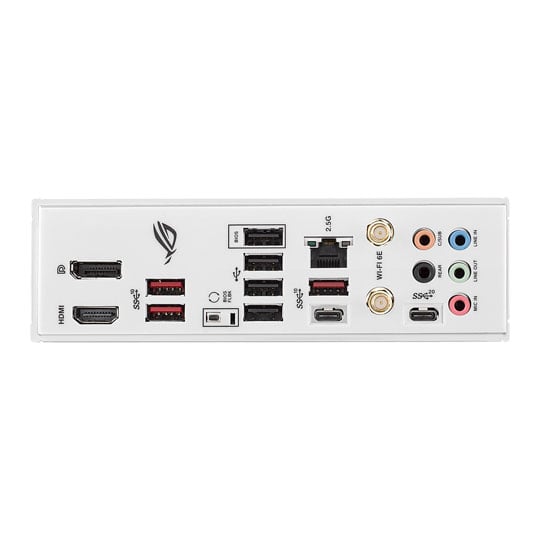

ASUS ROG Strix B650-A Gaming WiFi AMD AM5 ATX Motherboard Overview The ASUS ROG Strix B650-A Gaming WiFi is a full-size ATX motherboard for AMD Ryzen 7000 Series processors on the AM5 platform. Built on the B650 chipset, it delivers PCIe 5.0 for both GPU and M.2 storage, WiFi 6E (6 GHz tri-band), Intel 2.5Gb Ethernet, and Realtek ALC4080 7.1-channel audio — all in a bold Black/Silver ROG Strix aesthetic with Aura Sync RGB and PCIe Q-Release for tool-free GPU swaps. Key Features AMD B650 chipset with AM5 socket for Ryzen 7000 Series (Zen 4). 3x M.2 slots — 1x PCIe 5.0 x4, 2x PCIe 4.0 x4, all with heatsinks. 1x PCIe 5.0 x16 SafeSlot with Q-Release button. 4x SATA III ports with RAID 0/1/10. WiFi 6E (802.11ax, 2.4/5/6 GHz) + Bluetooth 5.2. Intel I225-V 2.5Gb Ethernet. Realtek ALC4080 7.1-channel HD audio with S/PDIF. USB 3.2 Gen 2 Type-C rear port. Thunderbolt header. 4x chassis fan headers (Fan Xpert 4). Aura Sync ARGB headers. UEFI AMI BIOS (256Mbit) with Clear CMOS button. Two-Way AI Noise Cancellation. AMD EXPO DDR5 overclocking support. Rear I/O 4x USB 2.0, 3x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x HDMI, 1x DisplayPort, 1x 2.5GbE RJ-45, WiFi antenna connectors, audio jacks. What's Included ASUS ROG Strix B650-A Gaming WiFi motherboard, SATA cables, WiFi antenna, quick installation guide. Platform Socket AMD AM5 Chipset AMD B650 Form Factor ATX (305 x 244 mm) CPU Support AMD Ryzen 7000 Series (AM5, Zen 4) Colour Black / Silver Memory Slots 4x DIMM DDR5 Max RAM 128 GB Speeds 4800–6400 MHz (EXPO/OC) Channels Dual-channel, ECC & Non-ECC Storage & Expansion M.2 Slots 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) SATA Ports 4x SATA III (6Gb/s) PCIe x16 1x PCIe 5.0 (SafeSlot + Q-Release) + 1x PCIe 4.0 PCIe x1 2x PCIe 4.0 RAID 0, 1, 10 Connectivity & Audio LAN Intel I225-V 2.5Gb Ethernet Wi-Fi WiFi 6E (802.11ax), 2.4/5/6 GHz Bluetooth 5.2 Audio Realtek ALC4080, 7.1-channel, S/PDIF BIOS UEFI AMI, 256Mbit Weight ~1.4 kg
