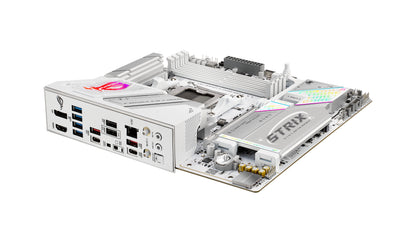

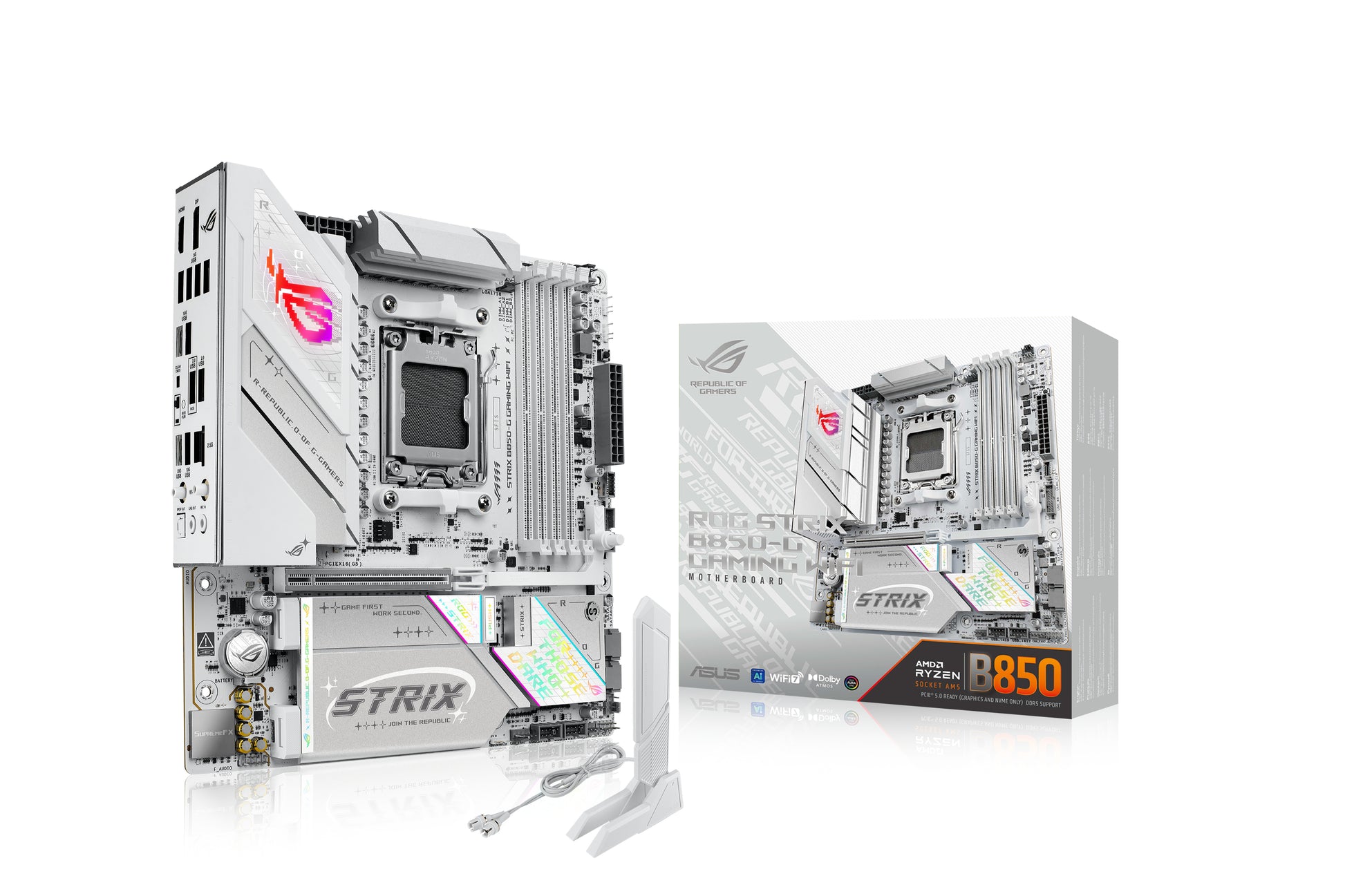

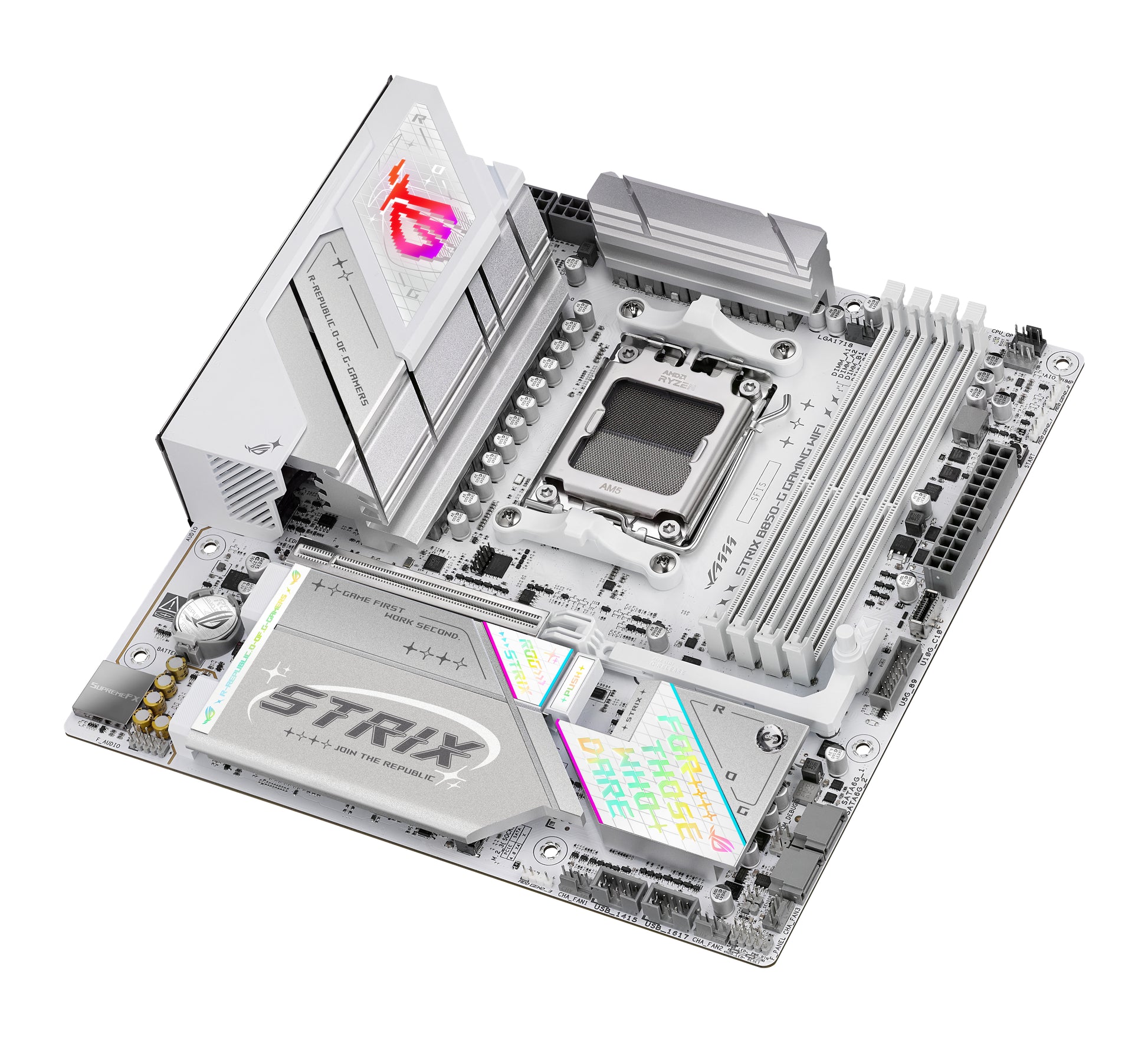

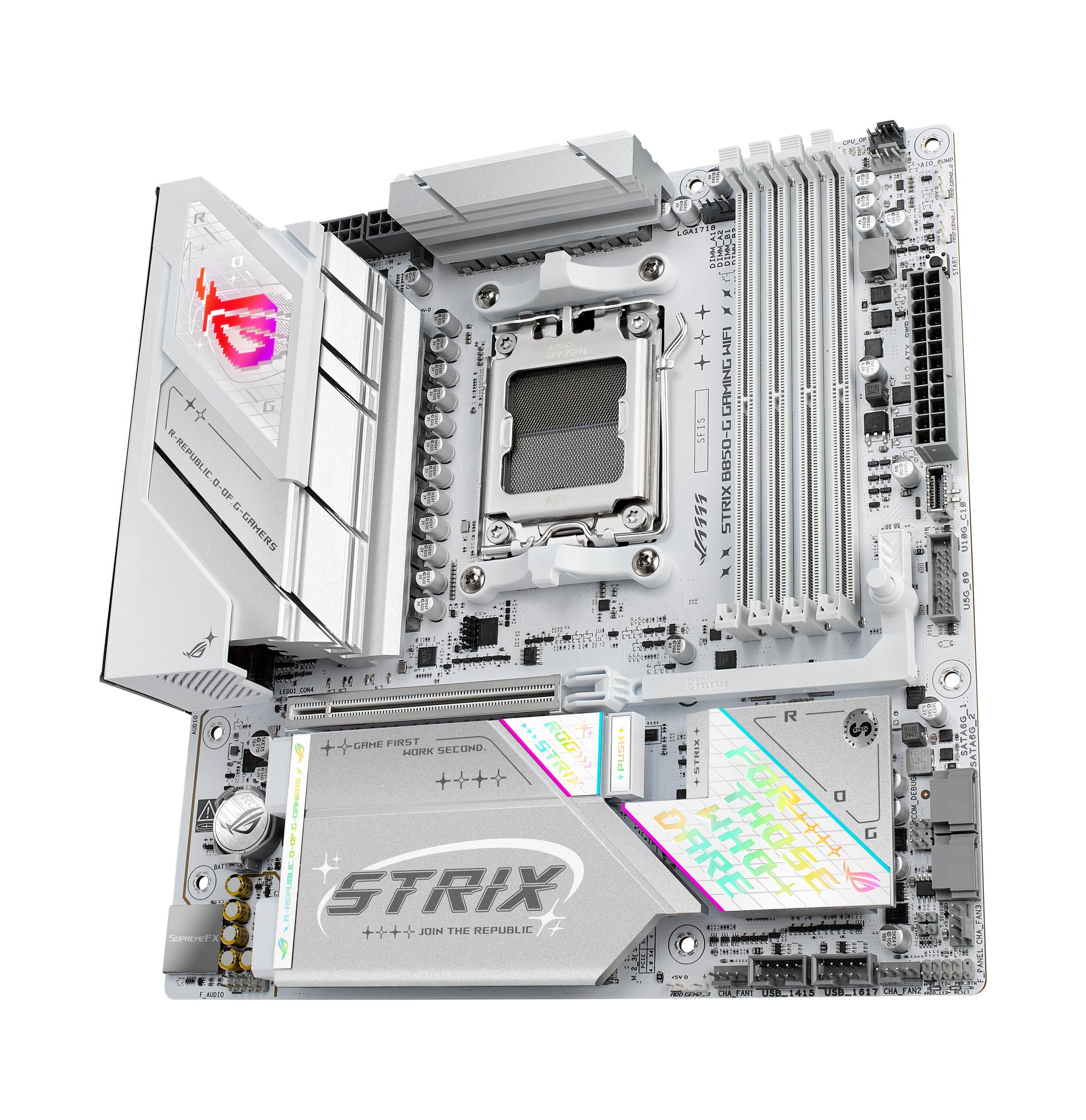

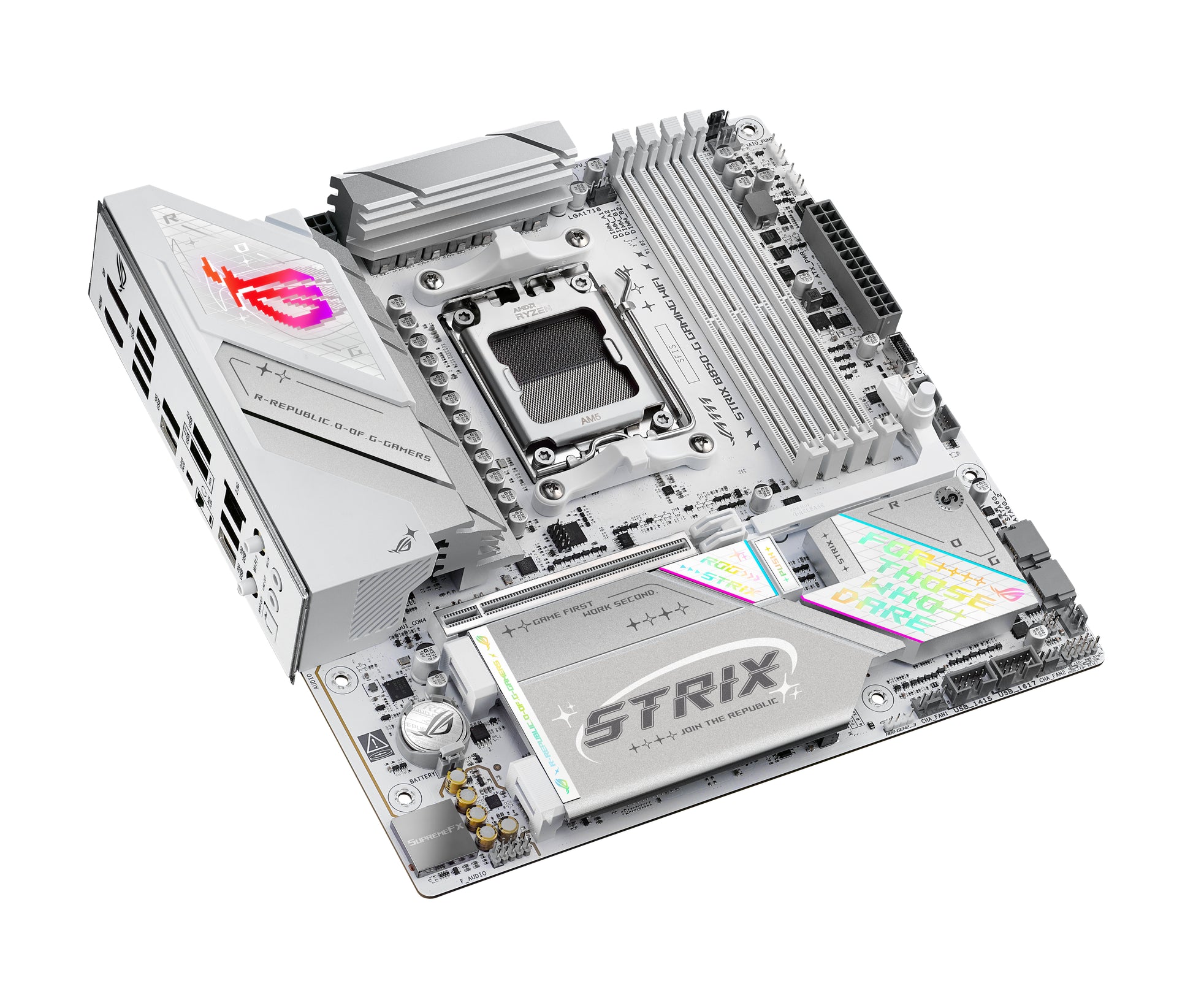

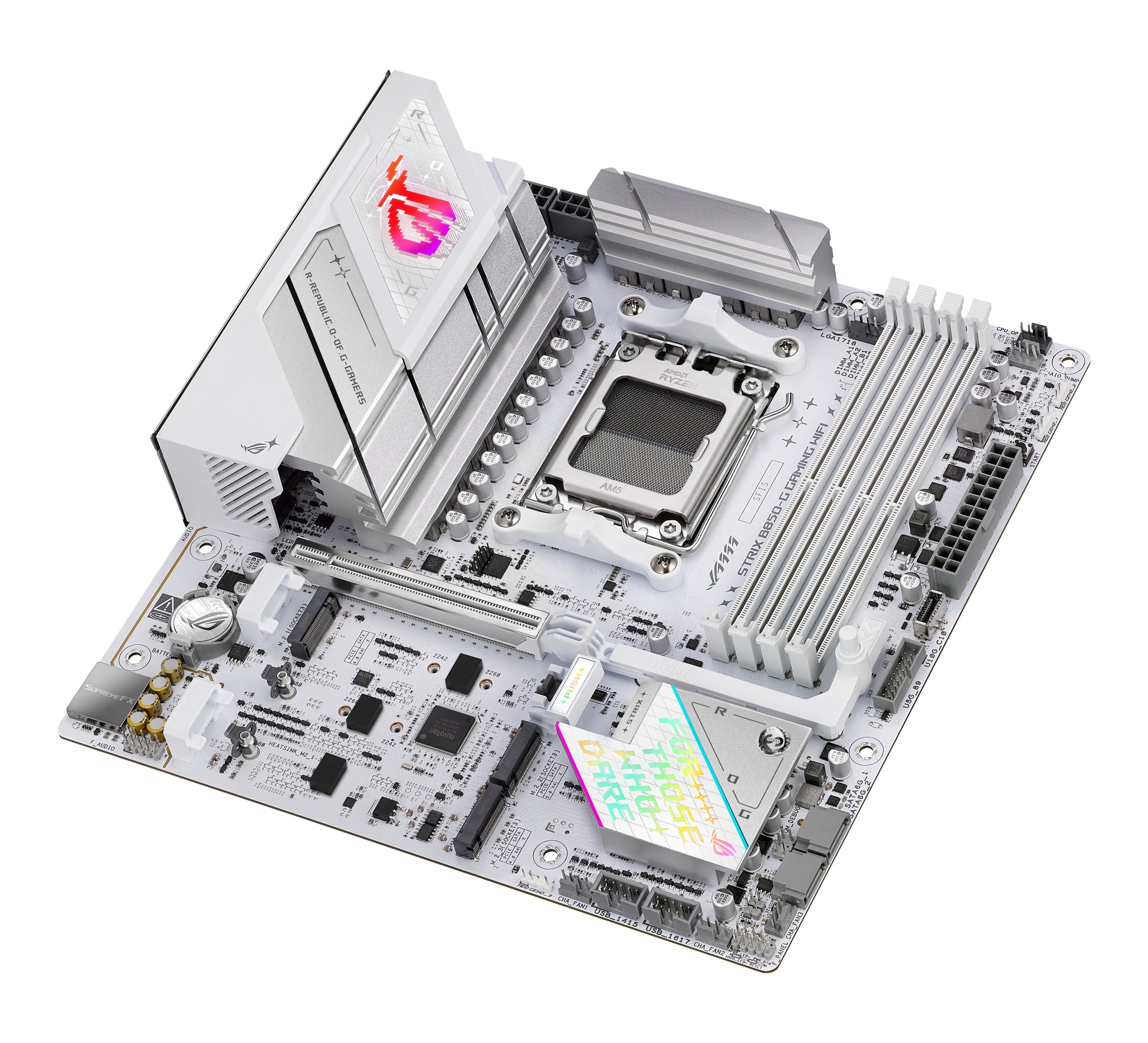

ASUS ROG STRIX B850-G GAMING WIFI, AMD B850, Socket AM5, micro ATX
Overview

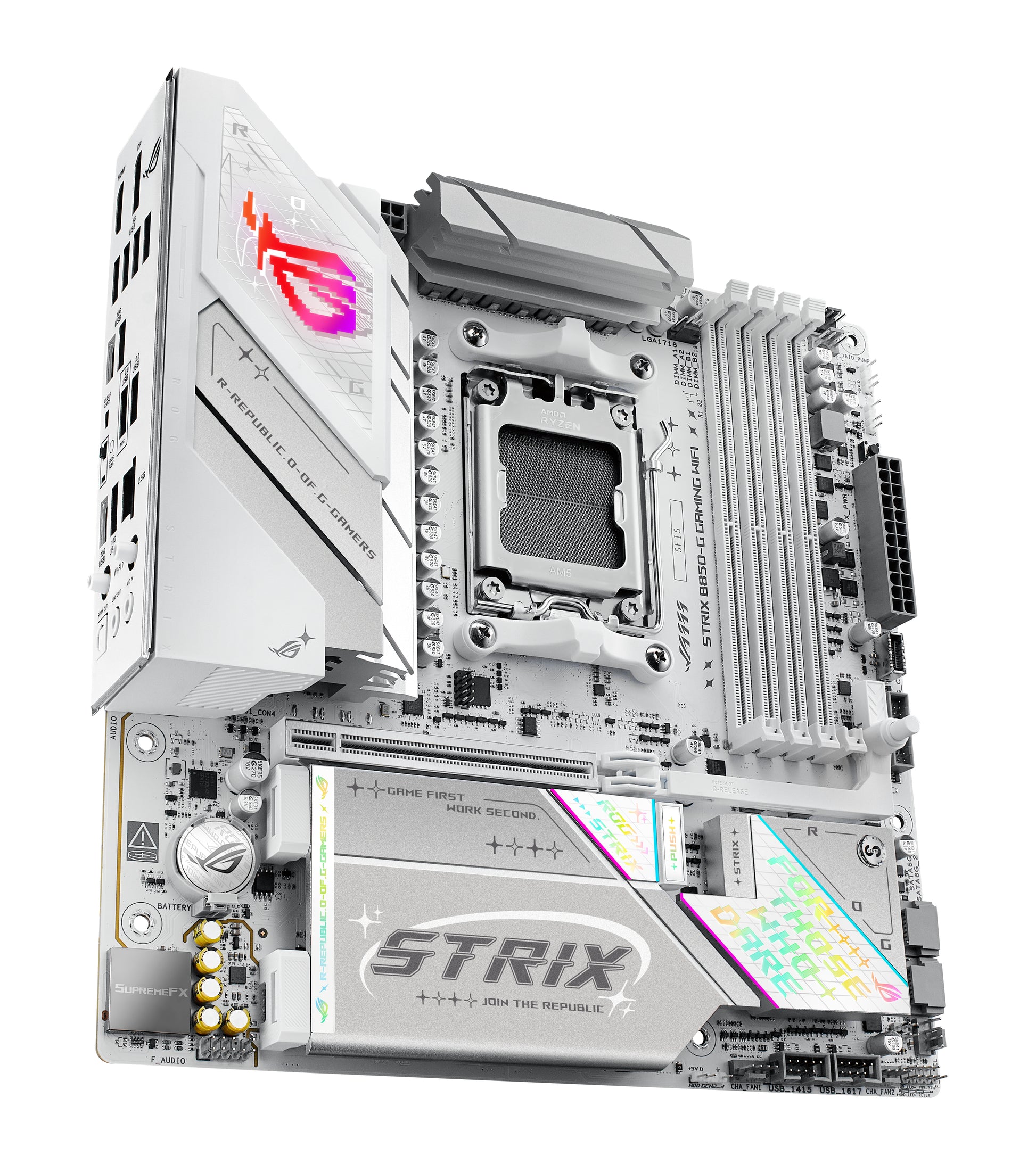

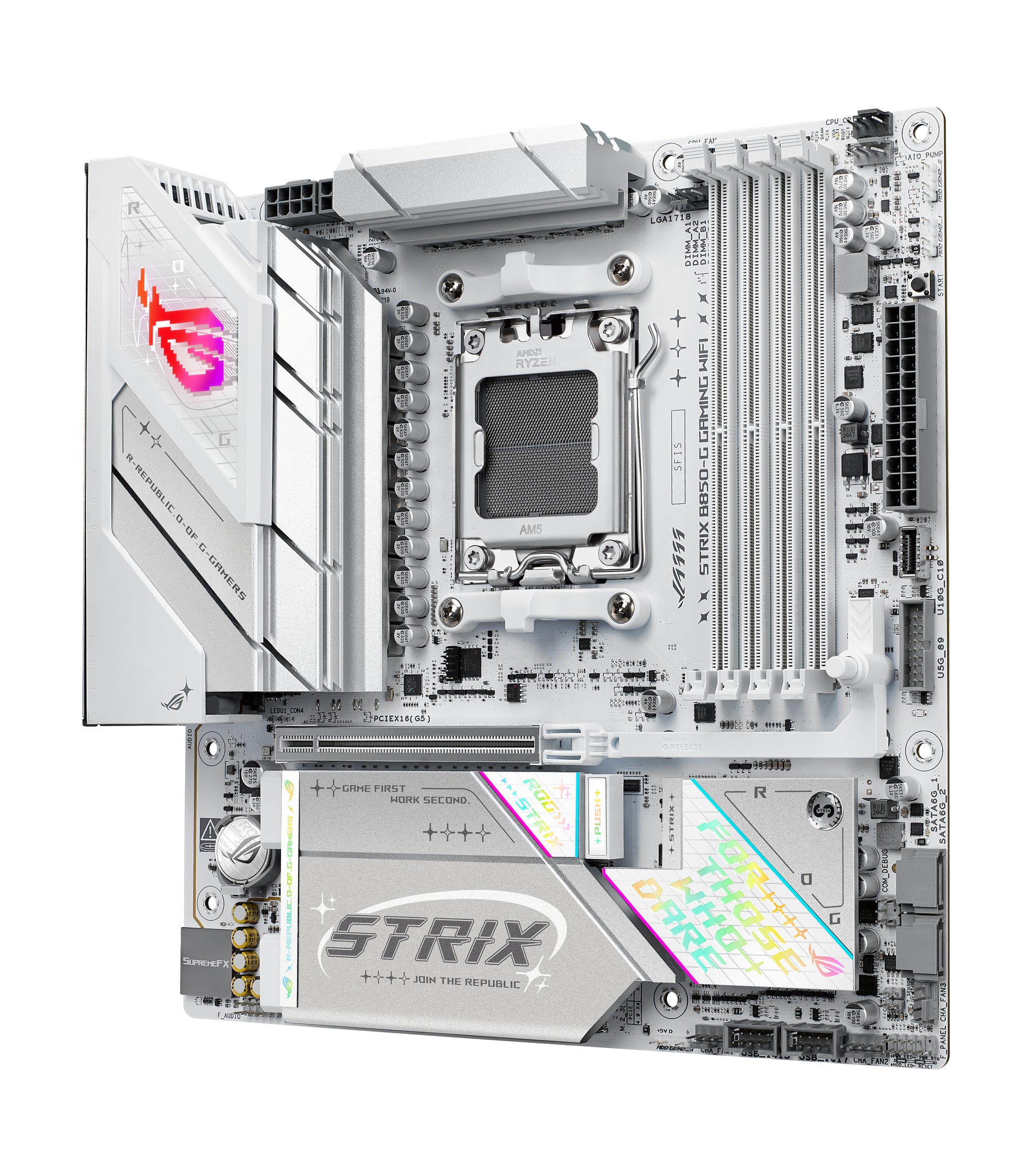

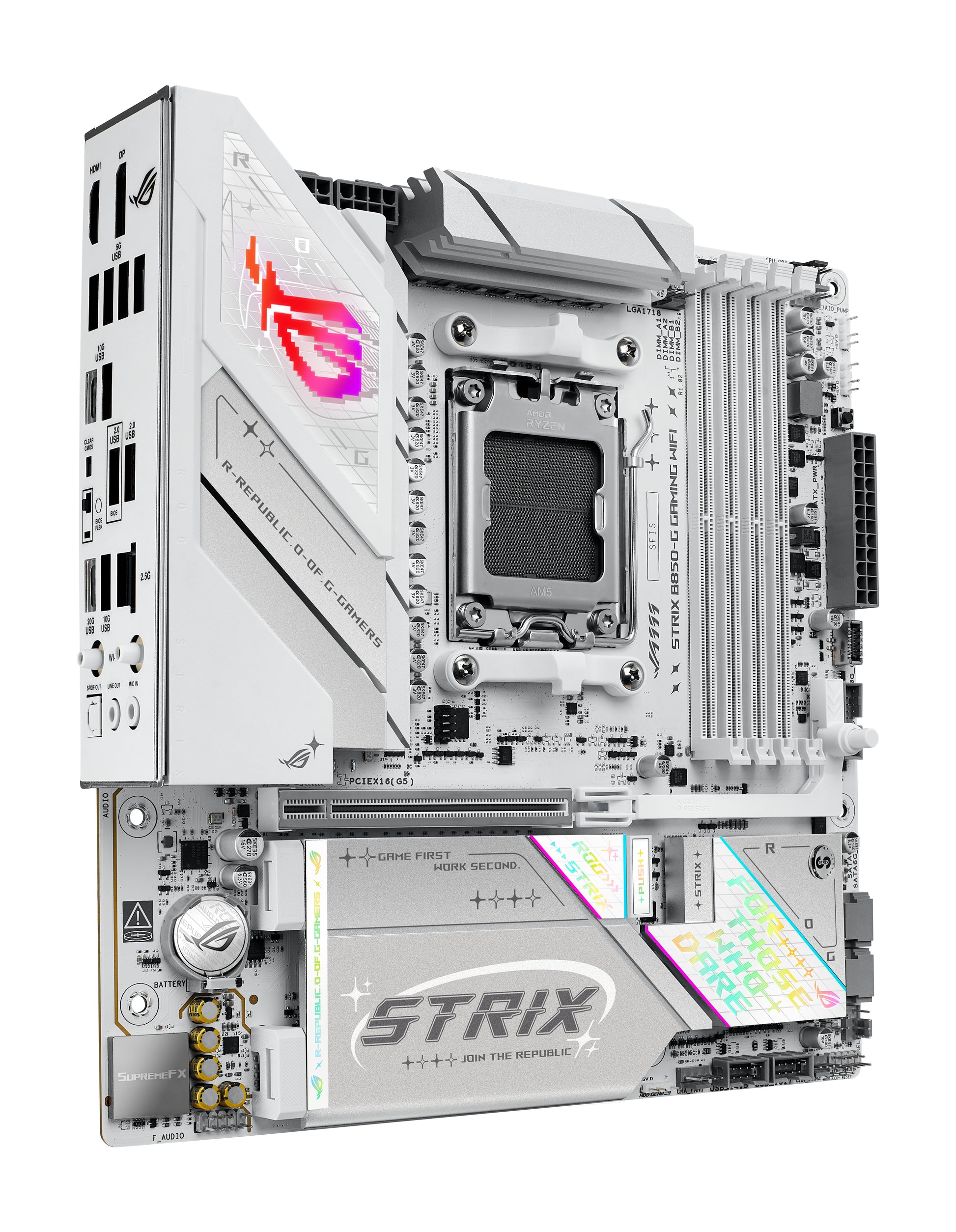

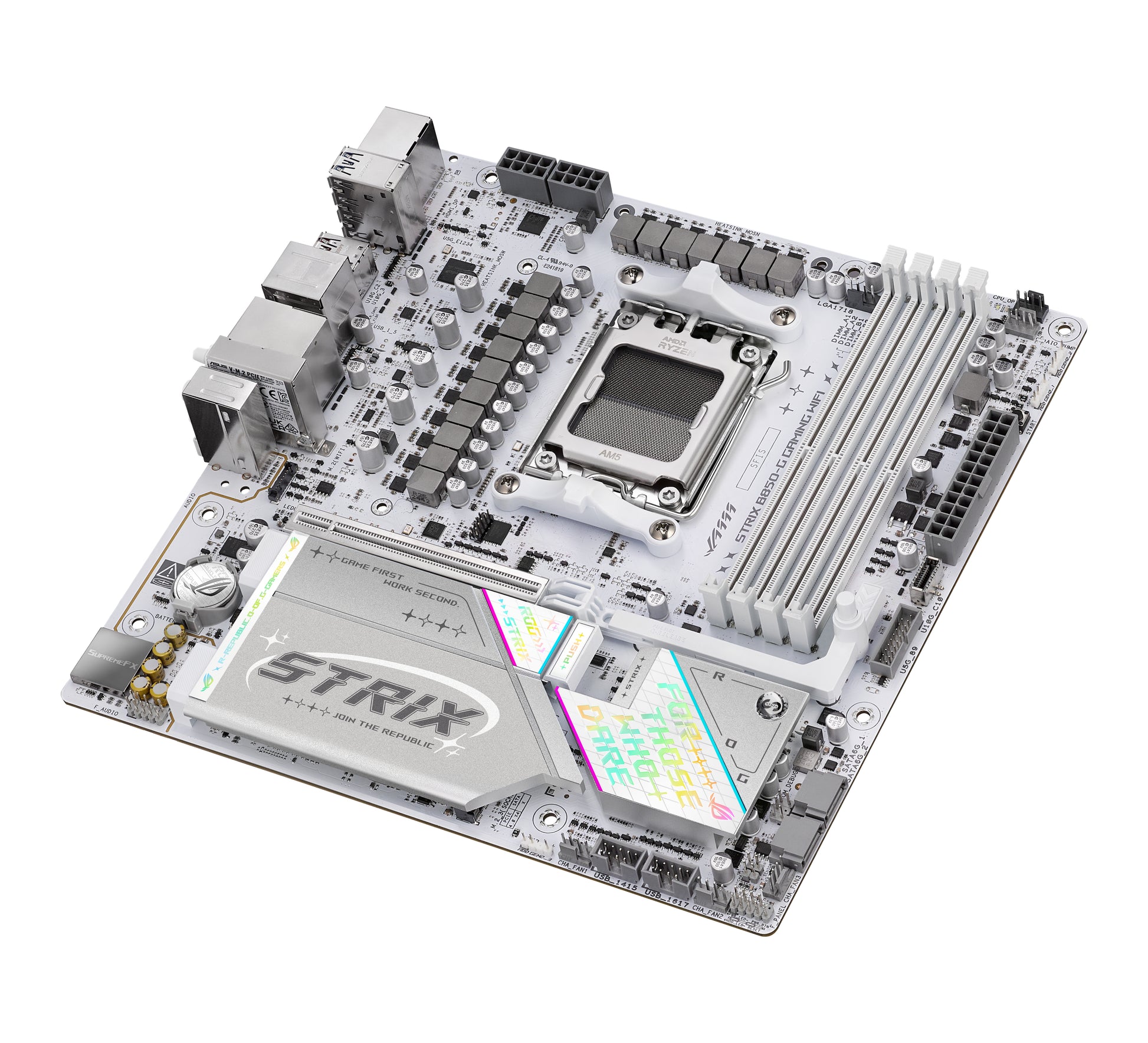

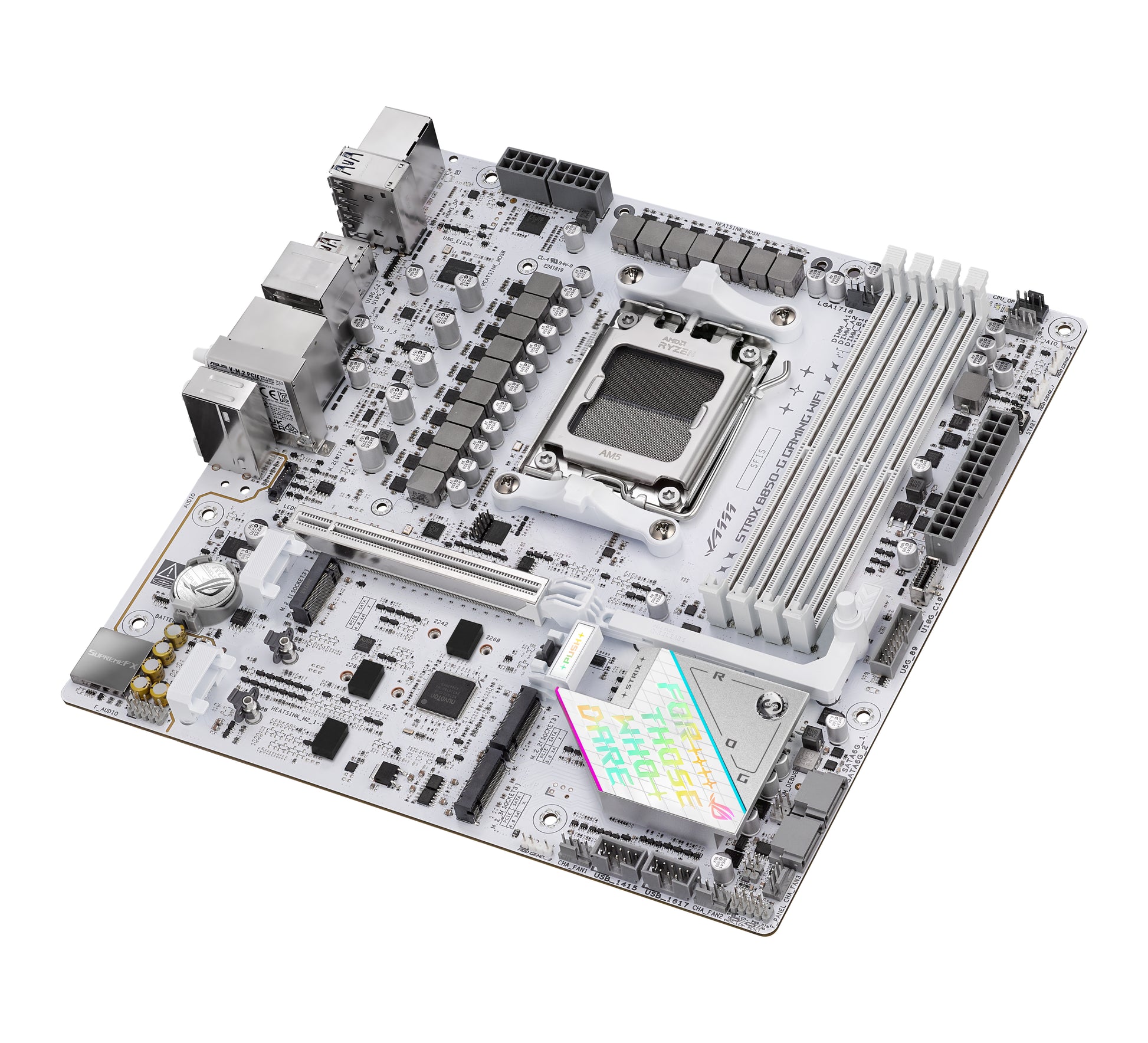

The ASUS ROG Strix B850-G Gaming WiFi is an AMD mATX motherboard built for serious gaming in a compact form factor. Featuring a 14+2+1 power stage design, DDR5 support, four M.2 slots, PCIe® 5.0, Wi-Fi 7, USB 20Gbps Type-C®, and Aura Sync RGB, it delivers flagship-tier connectivity and performance in a micro ATX footprint. Available in a striking white colourway.
Performance
PCIe 5.0 x16 GPU Slot
The primary x16 slot runs at PCIe 5.0, delivering double the bandwidth of PCIe 4.0 for the latest graphics cards.
Four M.2 Slots

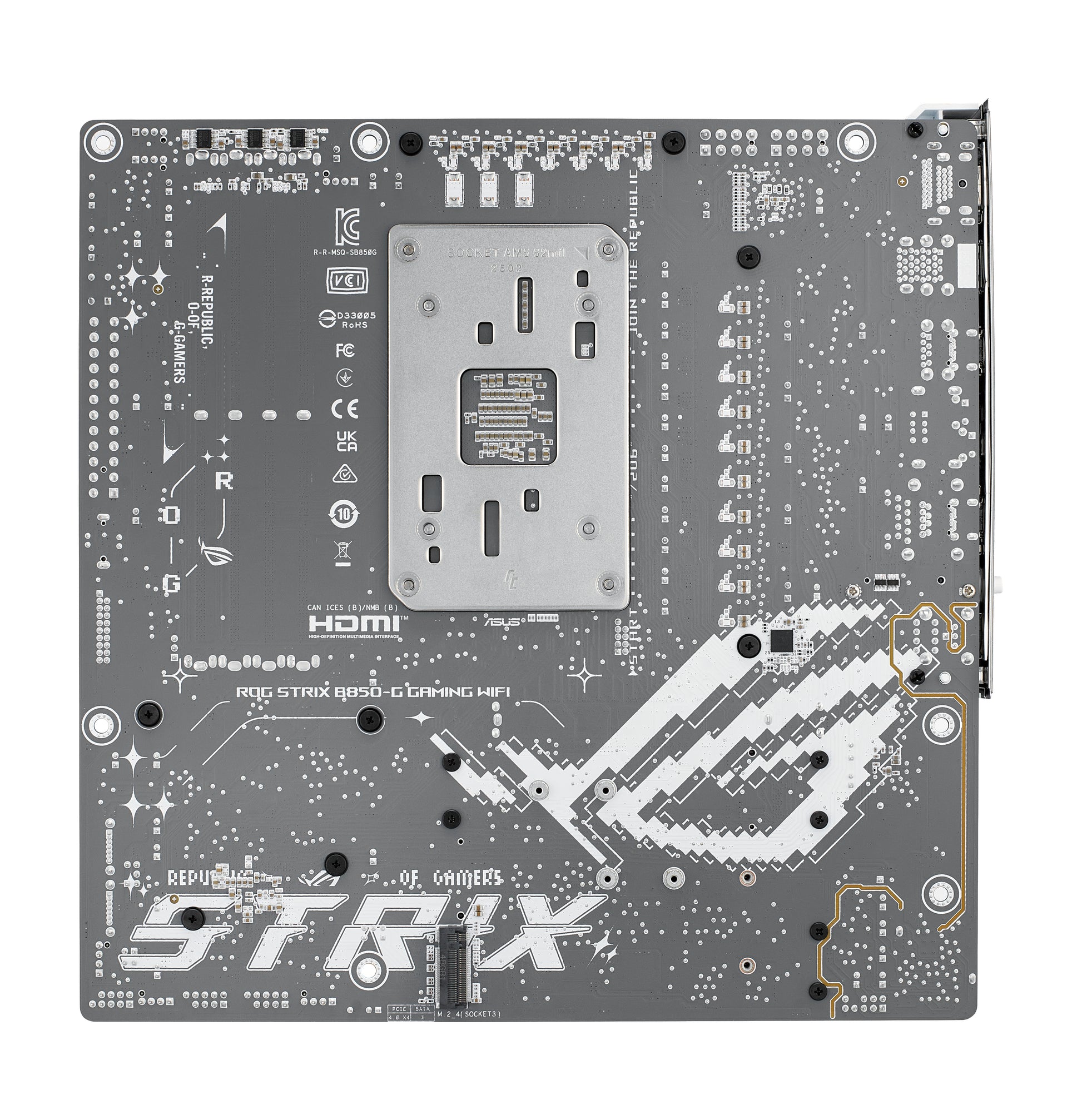

Total of four M.2 (M-key) slots supporting NVMe SSDs across PCIe 5.0 and PCIe 4.0 interfaces, depending on CPU generation. M.2_2 supports PCIe 5.0 x4 with Ryzen 9000/7000 series. M.2_3 and M.2_4 (underside) are chipset-connected PCIe 4.0 x4. Specifications vary by CPU type.
DDR5 up to 8000+ MT/s
Supports AMD EXPO™ and ASUS AEMP overclocking profiles for maximum memory performance.
Memory & Storage
Four DIMM slots support DDR5-SDRAM in dual-channel configuration, with ECC & Non-ECC unbuffered memory, up to 256 GB maximum. Supported memory clock speed up to 8000 MHz (OC). Two SATA III connectors support up to 6 storage drives total, with RAID 0, 1, 5, and 10.
Connectivity
2.5 Gigabit Ethernet
High-speed wired networking for low-latency gaming and fast transfers.
Wi-Fi 7 (802.11be) + Bluetooth 5.4

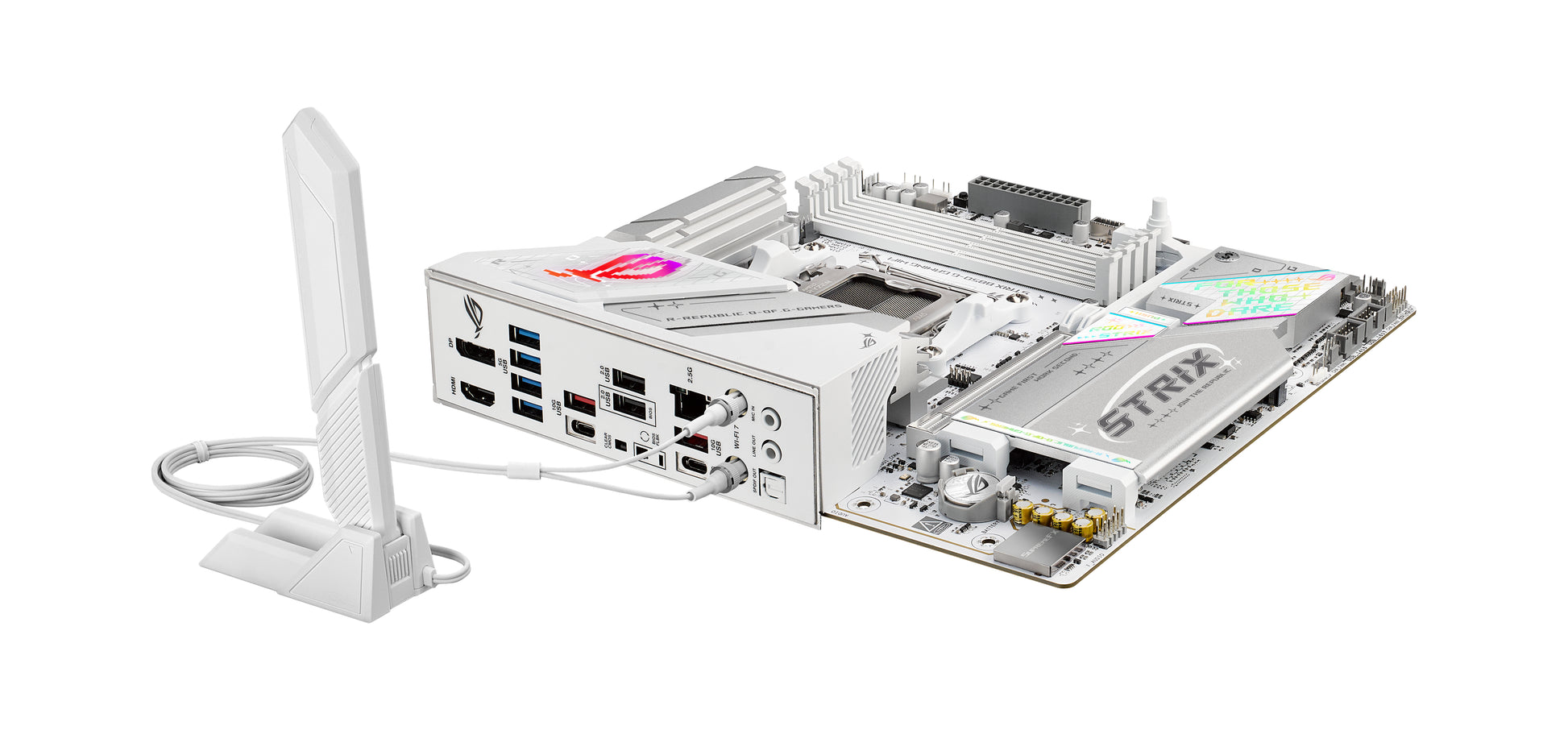

Latest-generation wireless with Wi-Fi 7 for multi-link operation and ultra-low latency. Two Wi-Fi antenna jacks on the rear I/O. Antenna included.

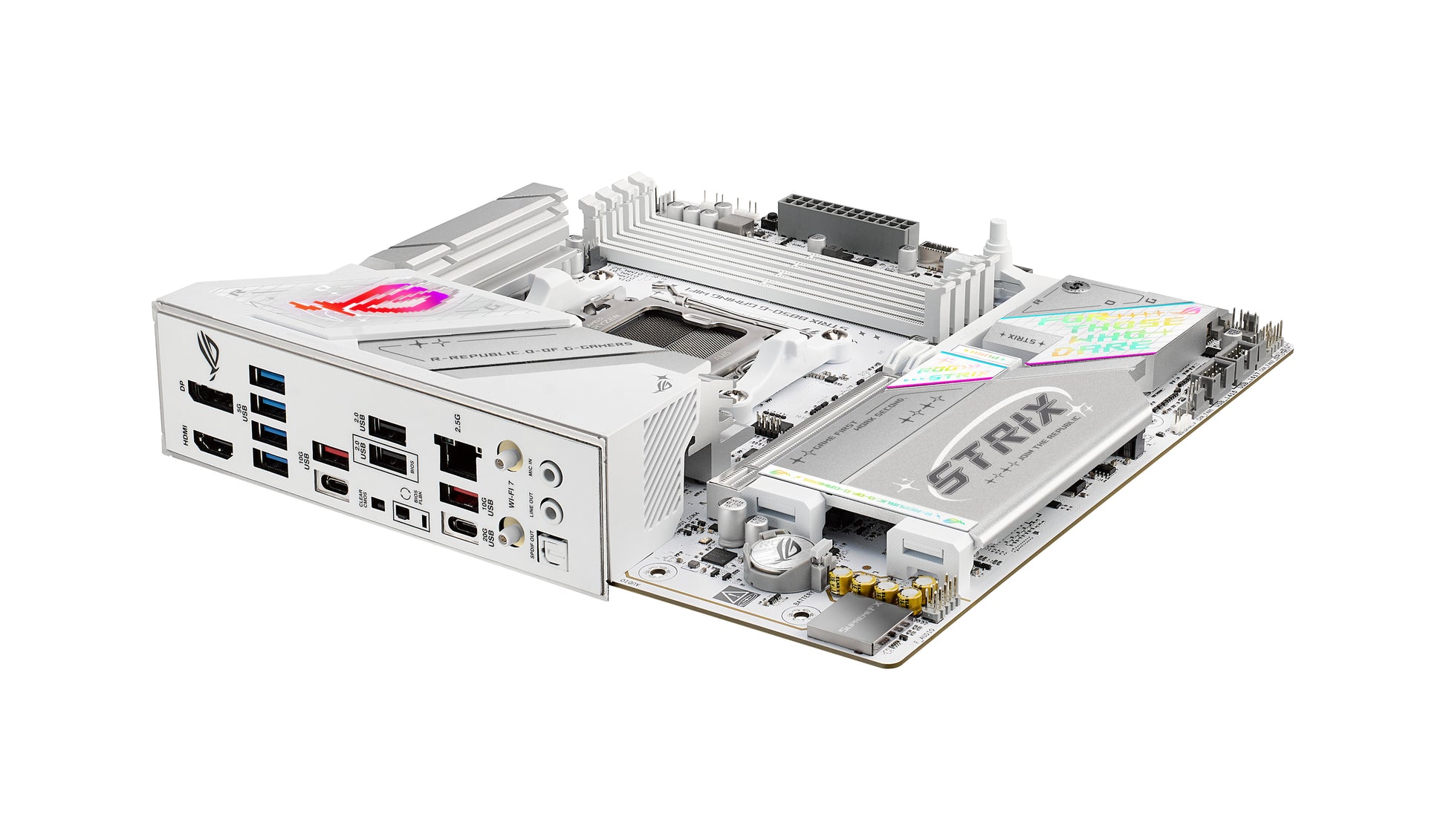

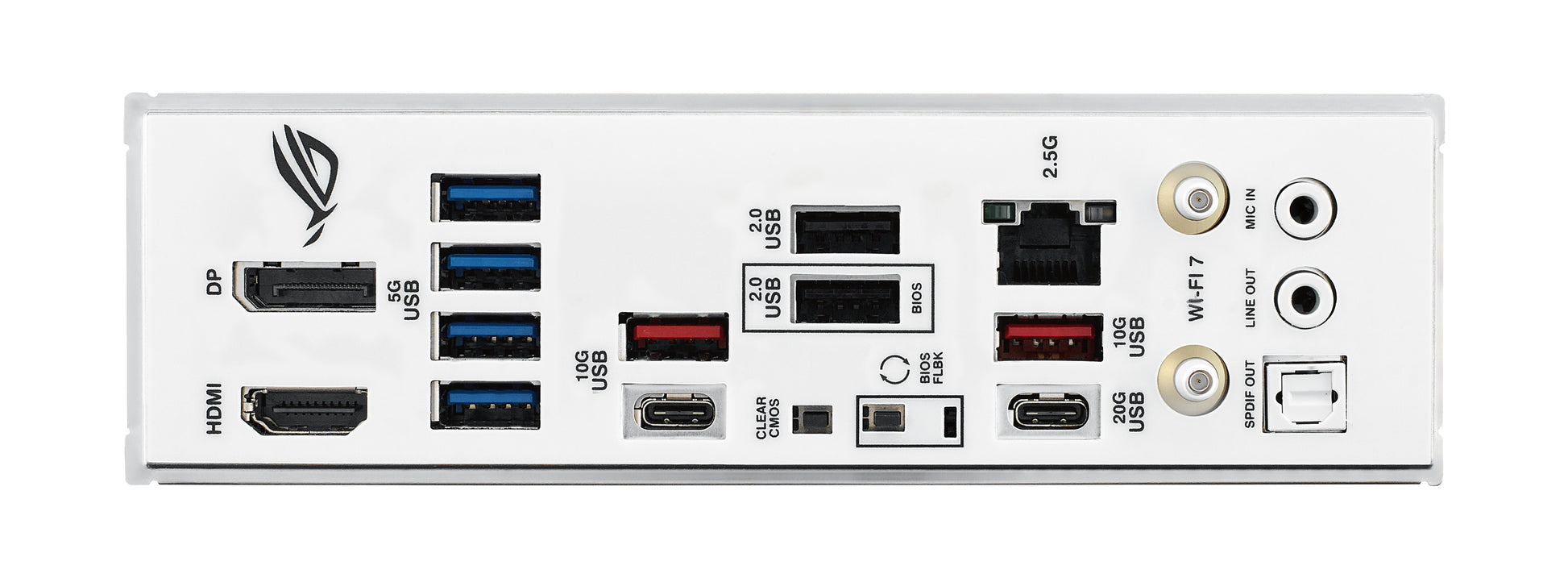

Rear I/O Summary: 2× USB 2.0 Type-A, 4× USB 3.2 Gen 1 Type-A, 2× USB 3.2 Gen 2 Type-A (10 Gbps), 1× USB 3.2 Gen 2 Type-C (10 Gbps), 1× USB 3.2 Gen 2×2 Type-C (20 Gbps), 1× HDMI 2.1 (4K@60Hz), 1× DisplayPort 1.4 (8K@30Hz), 1× RJ-45 (2.5GbE), Mic-in, S/PDIF optical out, 2× Wi-Fi antenna jacks.
Audio
Realtek ALC1220P SupremeFX
7.1-channel HD audio with SupremeFX Shielding Technology, Savitech SV3H712 AMP, 120 dB SNR stereo playback, 113 dB SNR recording, up to 32-bit/192 kHz playback. Premium audio capacitors, audio cover, impedance sense for front and rear headphone outputs. Rear optical S/PDIF out port. Front panel audio connector included.
Design & Aesthetics
White colourway. Aura Sync RGB lighting. micro ATX form factor (244 × 244 mm). Clear CMOS button on rear I/O. Chassis intrusion connector. Supports Windows 11.

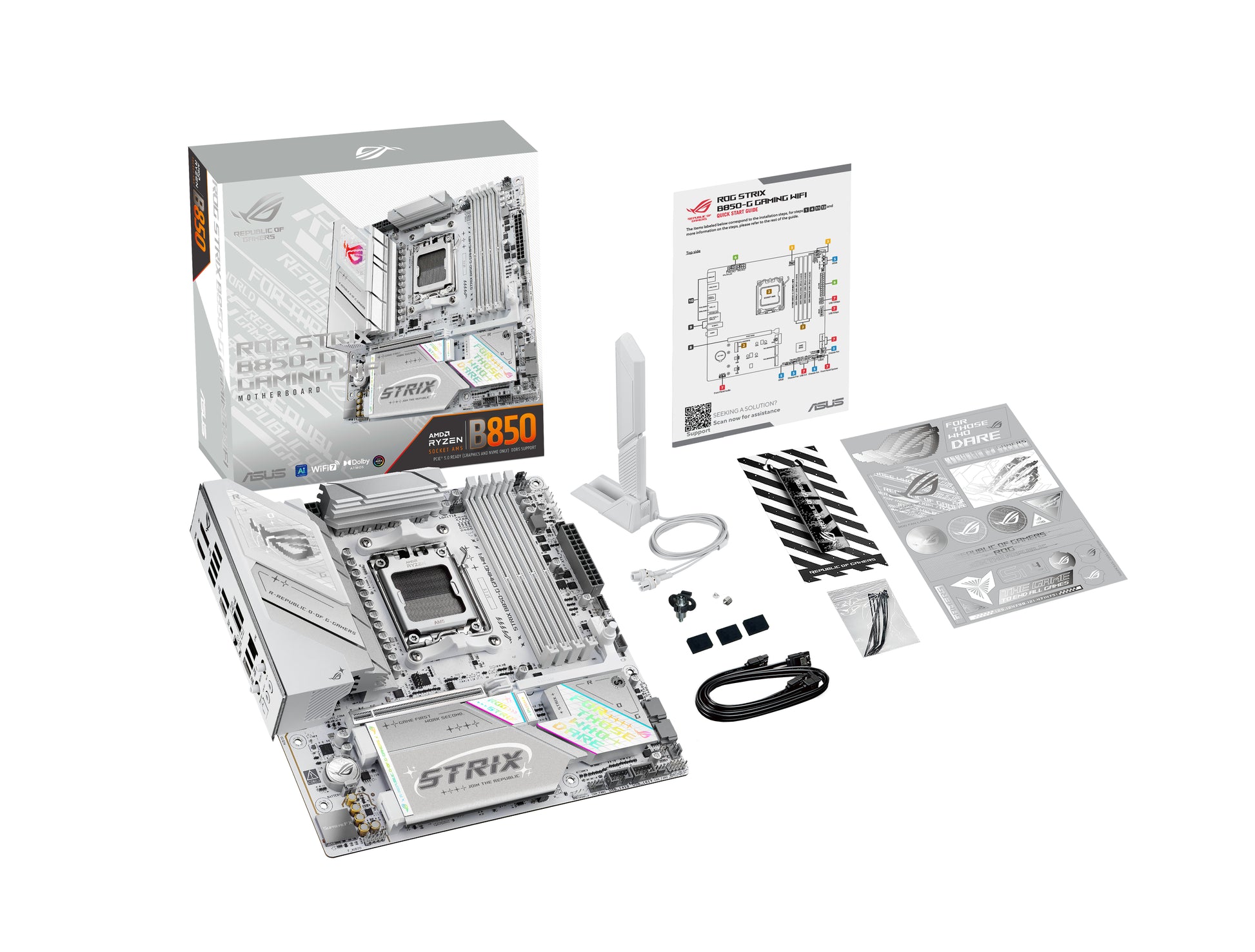

What's Included
ASUS ROG STRIX B850-G GAMING WIFI motherboard, SATA cables, Wi-Fi antenna, documentation.
Technical Specifications
Processor
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM5 |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
Chipset & Form Factor
| Motherboard Chipset | AMD B850 |
| Chipset Family | AMD |
| Form Factor | micro ATX |
| Colour | White |
| OS Support | Windows 11 |
Memory
| Supported Memory Types | DDR5-SDRAM |
| Memory Slots | 4× DIMM |
| Memory Channels | Dual-channel |
| Maximum Memory | 256 GB |
| Max Memory Speed (OC) | 8000 MHz |
| ECC Compatibility | ECC & Non-ECC |
| Unbuffered Memory | Yes |
| EXPO™ Support | Yes |
| AEMP Support | Yes |
Storage Controllers
| Supported Drive Types | HDD & SSD |
| Storage Interfaces | M.2, SATA III |
| Total Storage Drives Supported | 6 |
| HDDs Supported | 2 |
| RAID Support | Yes — 0, 1, 5, 10 |
Expansion Slots
| PCIe 5.0 x16 Slots | 1 |
| M.2 (M) Slots | 4 (M.2_1: PCIe 4.0 x4; M.2_2: PCIe 5.0 x4 [Ryzen 9000/7000] or PCIe 4.0 x4 [Ryzen 8000]; M.2_3 & M.2_4: PCIe 4.0 x4 via chipset) |
| SATA III Connectors | 2 |
Network
| Ethernet LAN | Yes |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes — version 5.4 |
Rear Panel I/O Ports
| USB 2.0 Type-A | 2 |
| USB 3.2 Gen 1 Type-A | 4 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB 3.2 Gen 2×2 Type-C (20 Gbps) | 1 |
| HDMI 2.1 | 1 (4K@60Hz) |
| DisplayPort 1.4 | 1 (8K@30Hz) |
| Ethernet (RJ-45) | 1 |
| Microphone In | Yes |
| S/PDIF Optical Out | Yes |
| Wi-Fi Antenna Jacks | 2 |
Internal I/O Headers
| USB 2.0 Connectors | 2 |
| USB 3.2 Gen 1 Connectors | 1 |
| USB 3.2 Gen 2 Connectors | 1 |
| CPU Fan Connector | 1 |
| Chassis Fan Connectors | 3 |
| ATX Power Connector (24-pin) | Yes |
| EPS Power Connector (8-pin) | Yes |
| 12V Power Connector | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Chassis Intrusion Connector | Yes |
Audio
| Audio Output Channels | 7.1 Channels |
| Audio Codec | Realtek ALC1220P (SupremeFX) |
| SNR Playback | 120 dB |
| SNR Recording (Line-in) | 113 dB |
| Max Playback Resolution | 32-bit / 192 kHz |
BIOS
| BIOS Type | UEFI AMI |
| BIOS Memory Size | 256 Mbit |
| Clear CMOS Button | Yes |
Physical
| Width | 244 mm |
| Depth | 244 mm |
Packaging
| Package Width | 285 mm |
| Package Depth | 277 mm |
| Package Height | 72.5 mm |
| Antenna Included | Yes |
