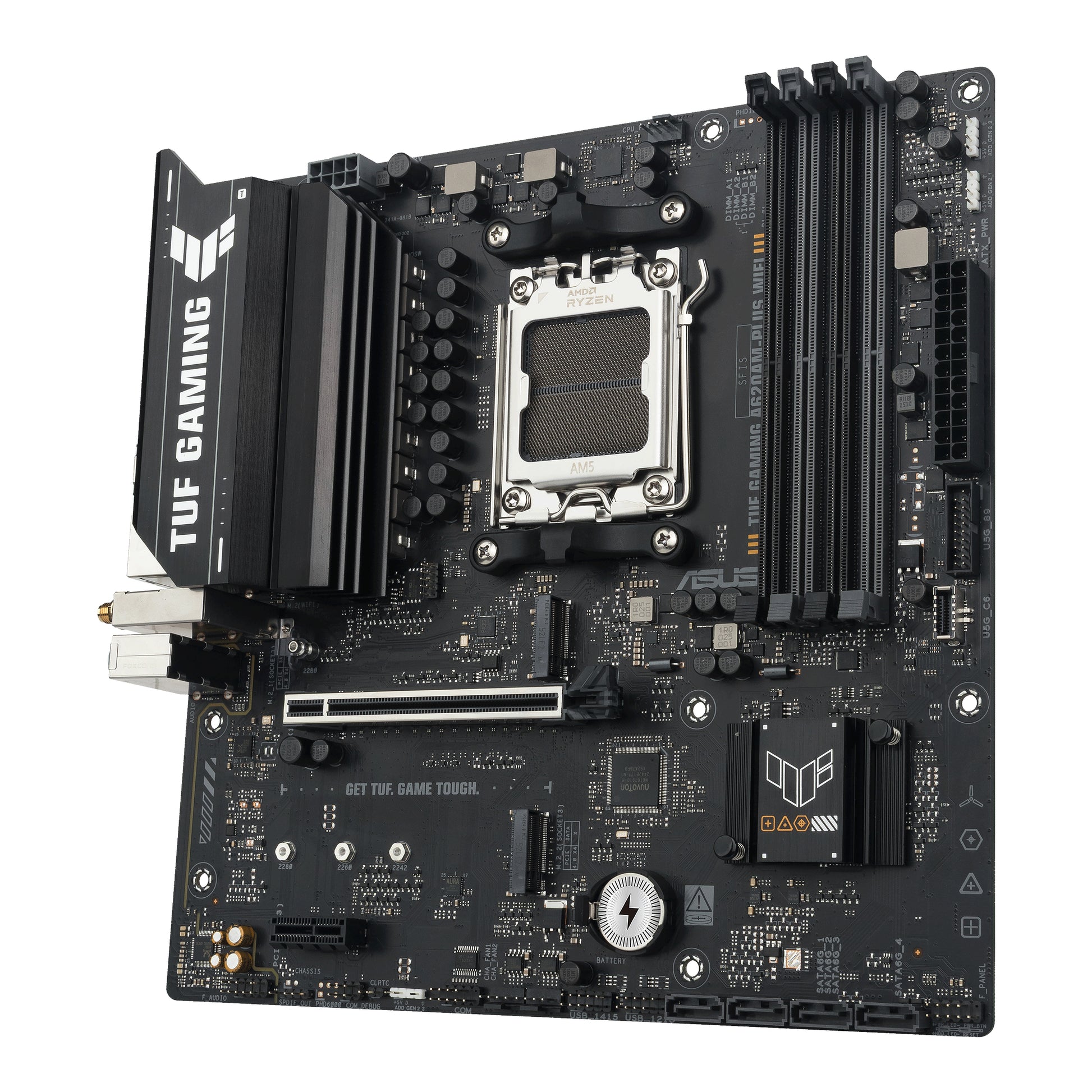

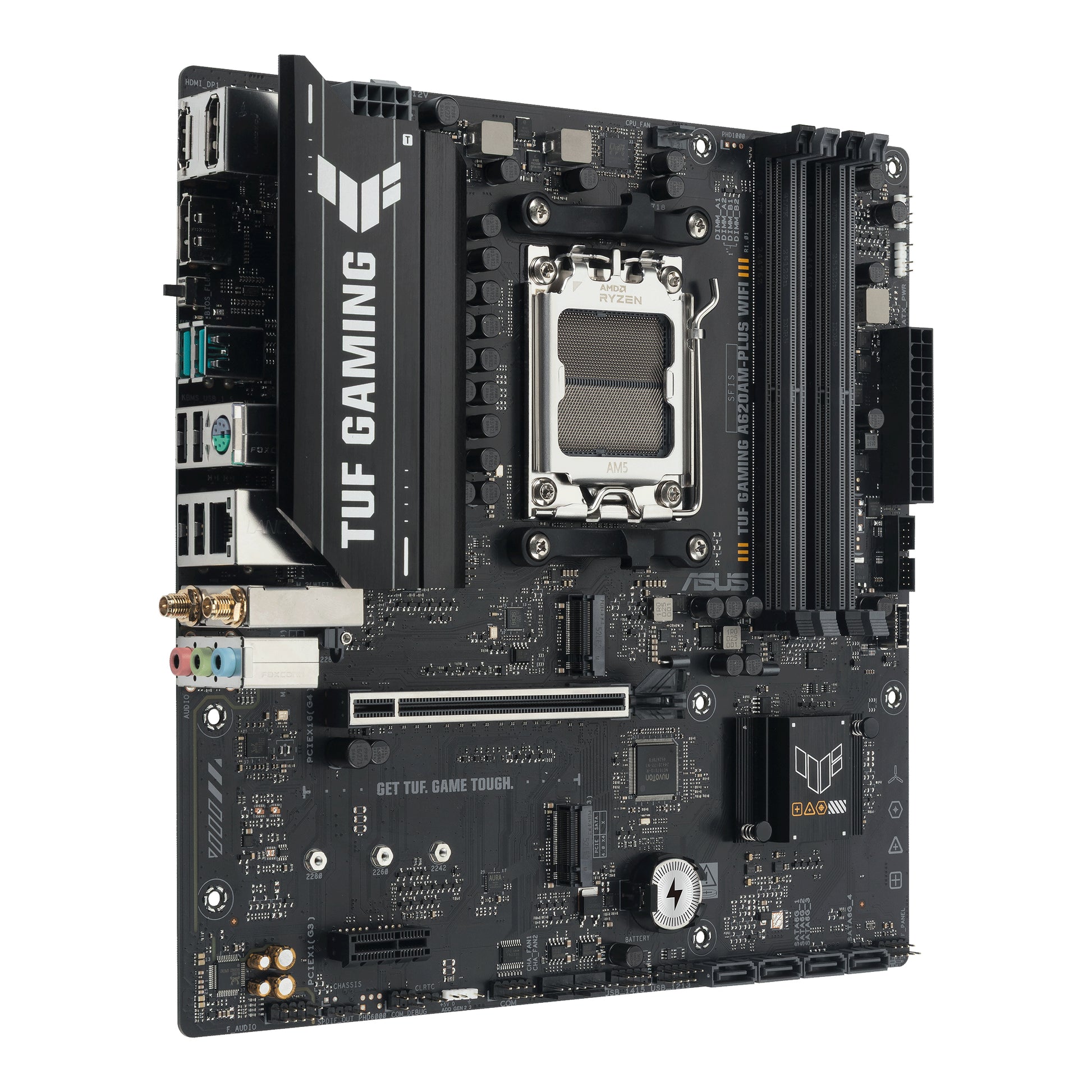

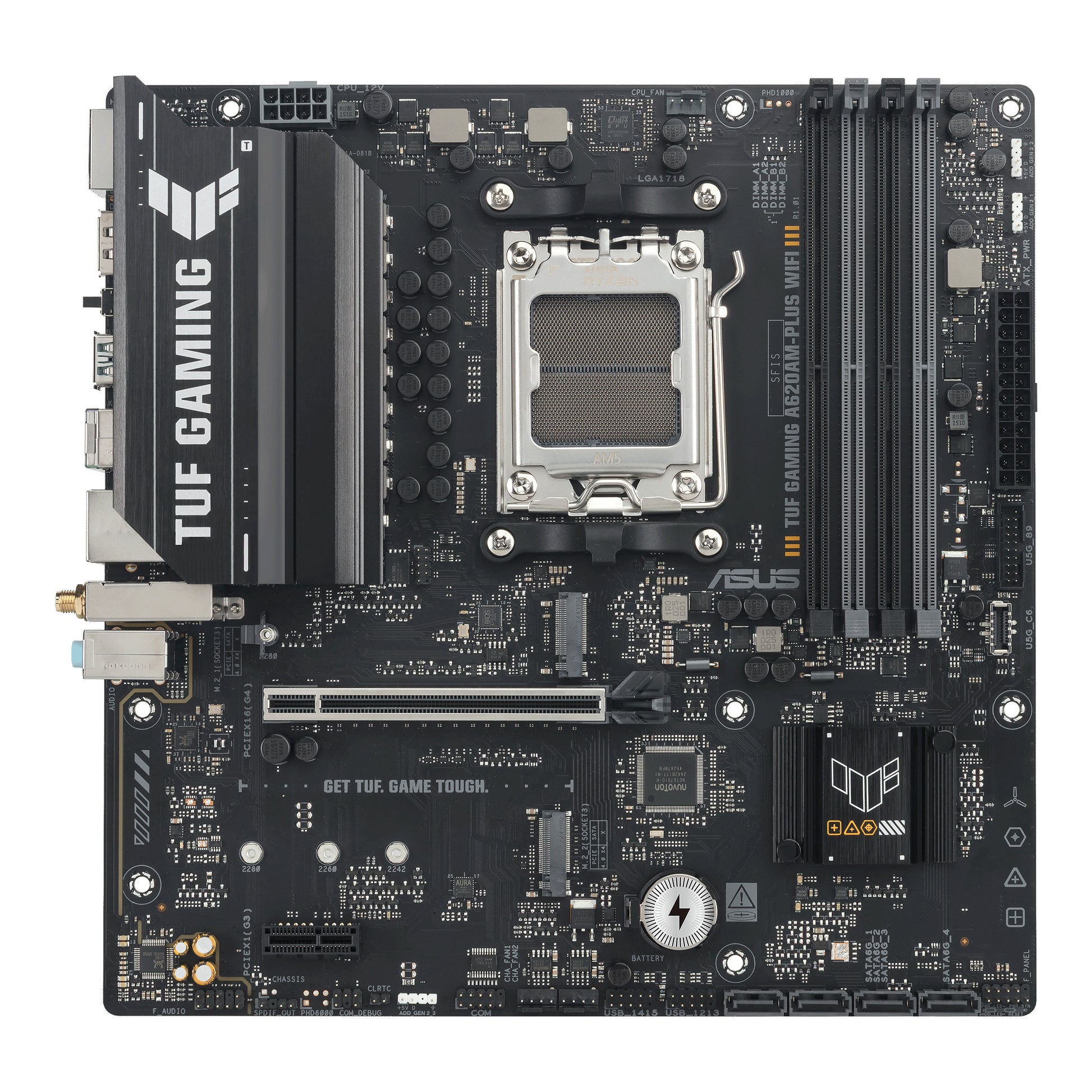

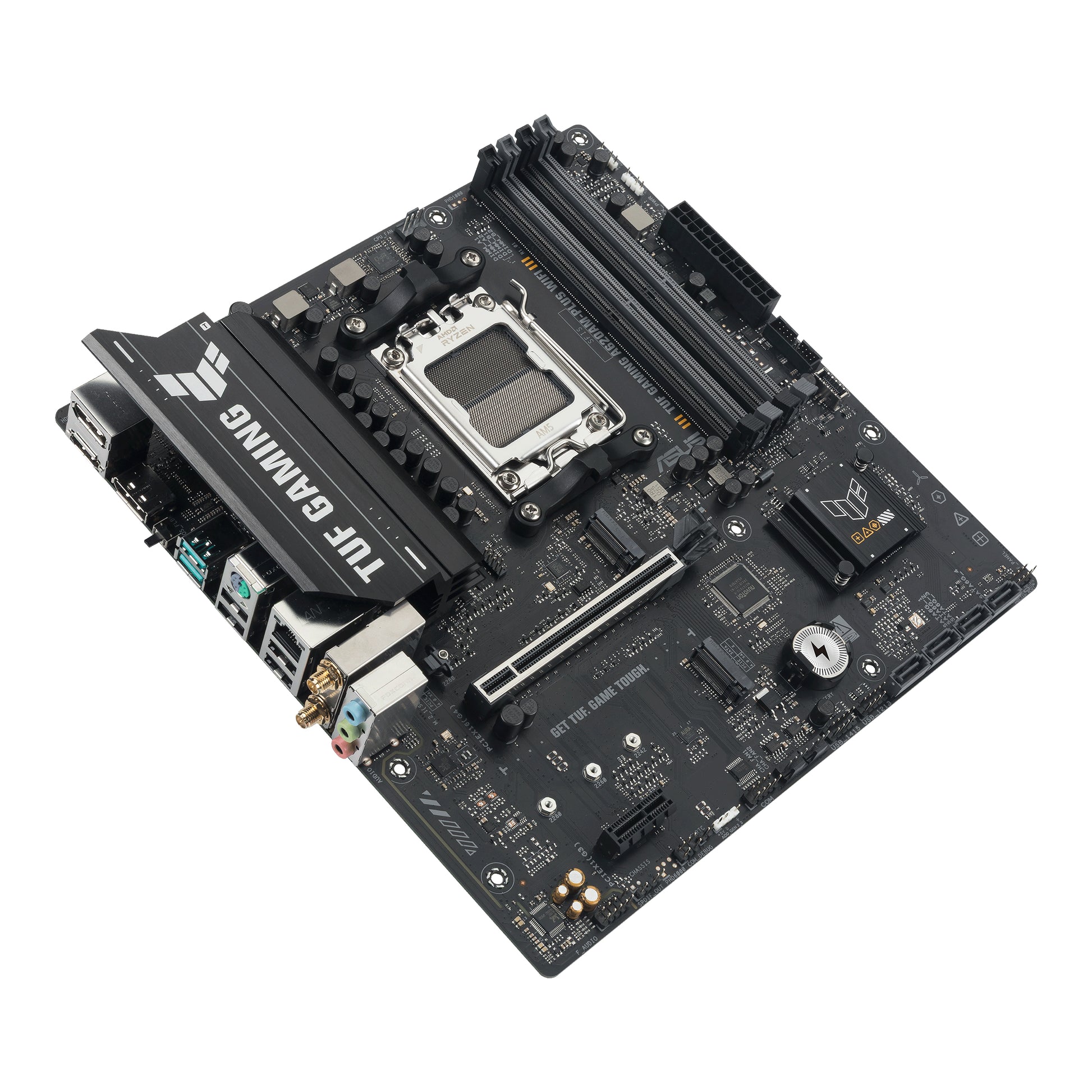

ASUS TUF GAMING A620AM-PLUS WIFI, AMD A620A, Socket AM5, micro ATX
Overview
ASUS TUF GAMING A620AM-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Memory & Storage
DDR5 — Up to 256 GB
Four DIMM slots support DDR5-SDRAM in dual-channel configuration, with ECC & Non-ECC unbuffered memory support and a maximum capacity of 256 GB.
Dual M.2 Slots
Two M.2 (M-key) slots, both supporting up to 2280mm via PCIe 4.0. Four SATA III connectors support up to 6 storage drives in total, with RAID 0, 1, 5, and 10.
Connectivity
2.5 Gigabit Ethernet
Realtek 2.5GbE wired networking for fast, reliable connectivity.
Wi-Fi 6 (802.11ax) + Bluetooth 5.3

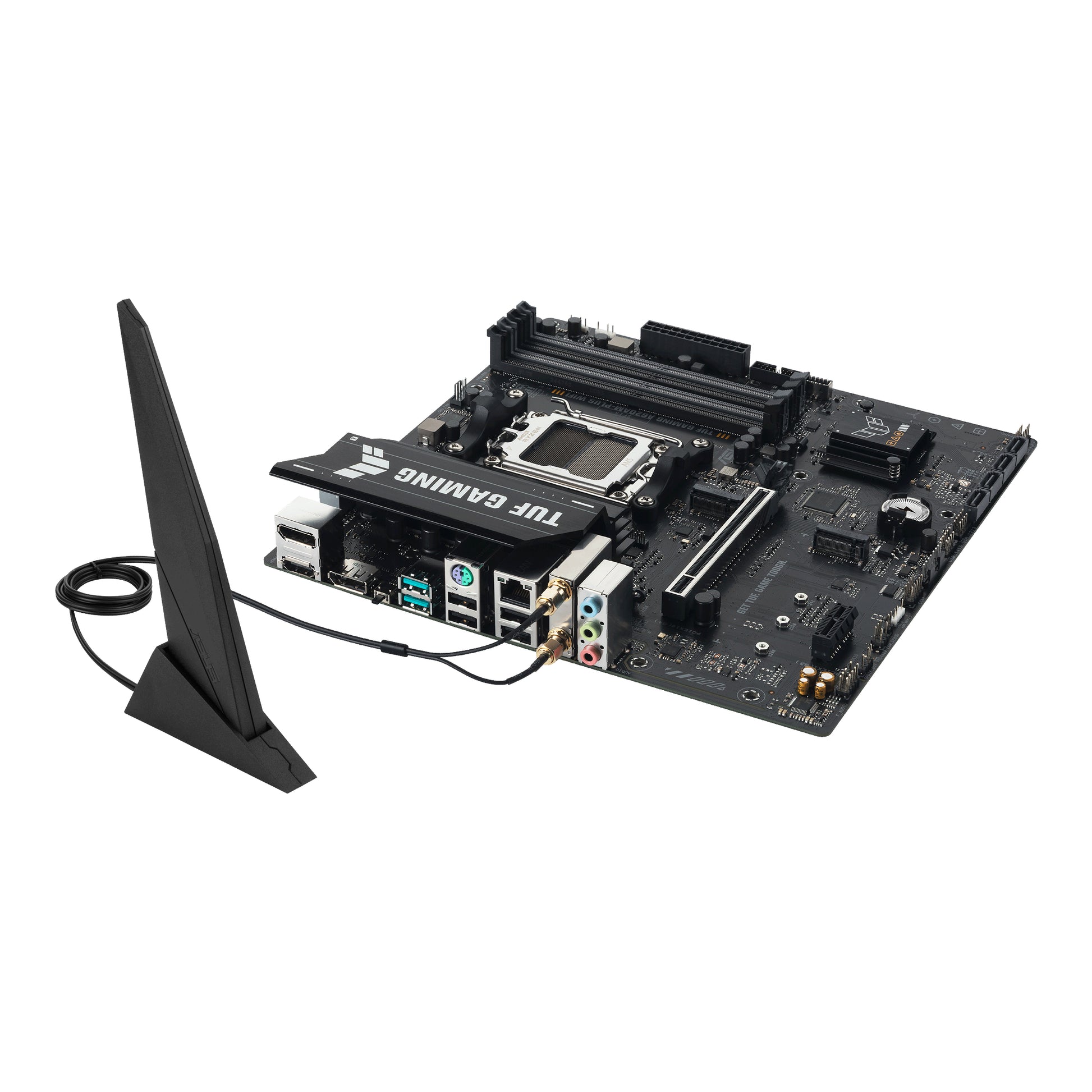

Onboard Wi-Fi 6 for wireless connectivity, paired with Bluetooth 5.3. Wi-Fi antenna included.

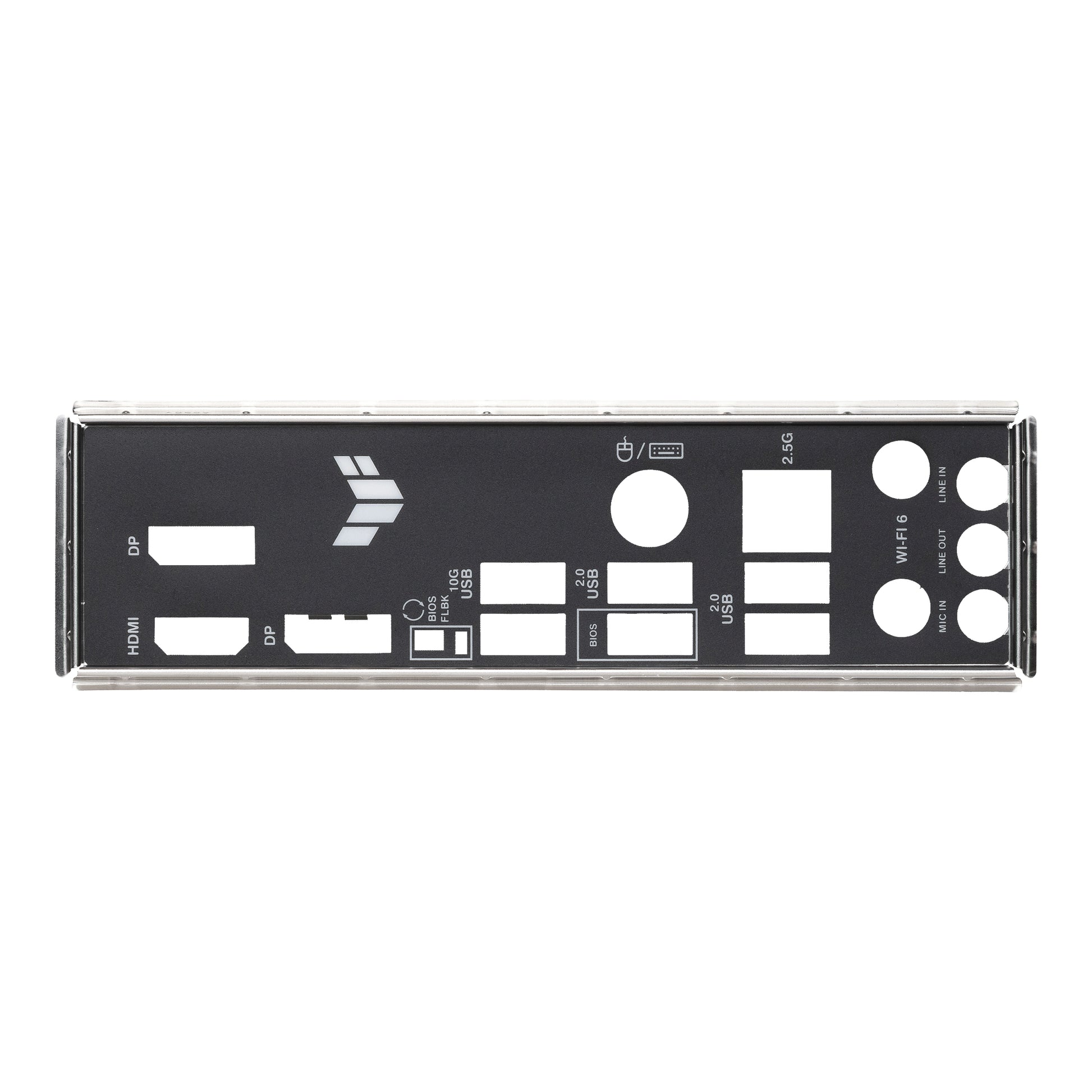

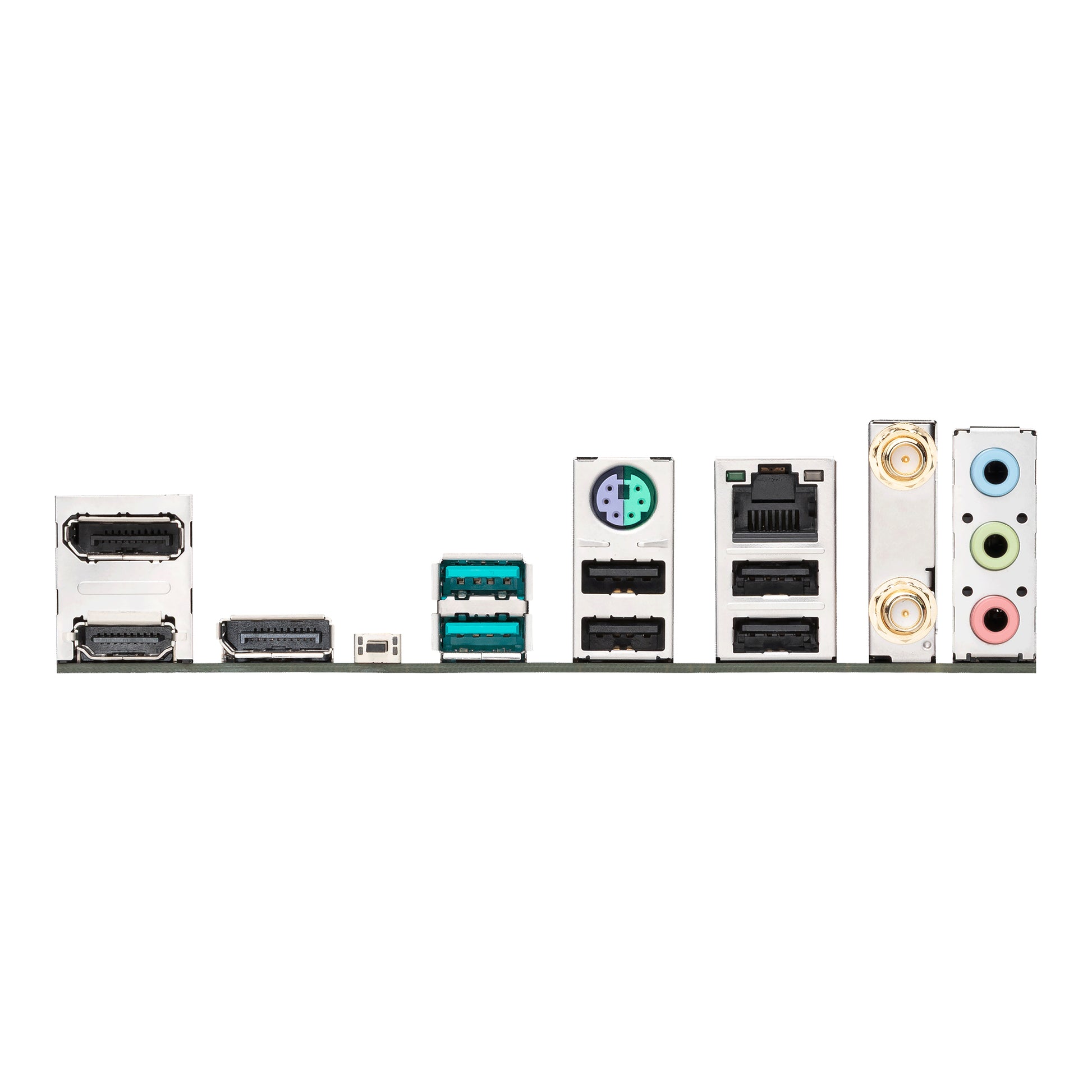

Rear I/O Summary: 4× USB 2.0 Type-A, 2× USB 3.2 Gen 2 Type-A (10 Gbps), 2× DisplayPort, 1× HDMI, 1× RJ-45 (2.5GbE), 1× PS/2, Wi-Fi antenna jack.
Expansion Slots
1× PCIe 4.0 x16 (primary GPU slot), 1× PCIe 3.0 x1, and 2× M.2 (M-key) slots for NVMe storage.
Audio
7.1-channel onboard audio with front panel audio header and S/PDIF out connector.
Design & Aesthetics
micro ATX form factor (244 × 244 mm). Three RGB LED pin headers (ARGB) for Aura Sync lighting synchronisation. Supports Windows 10 x64 and Windows 11.

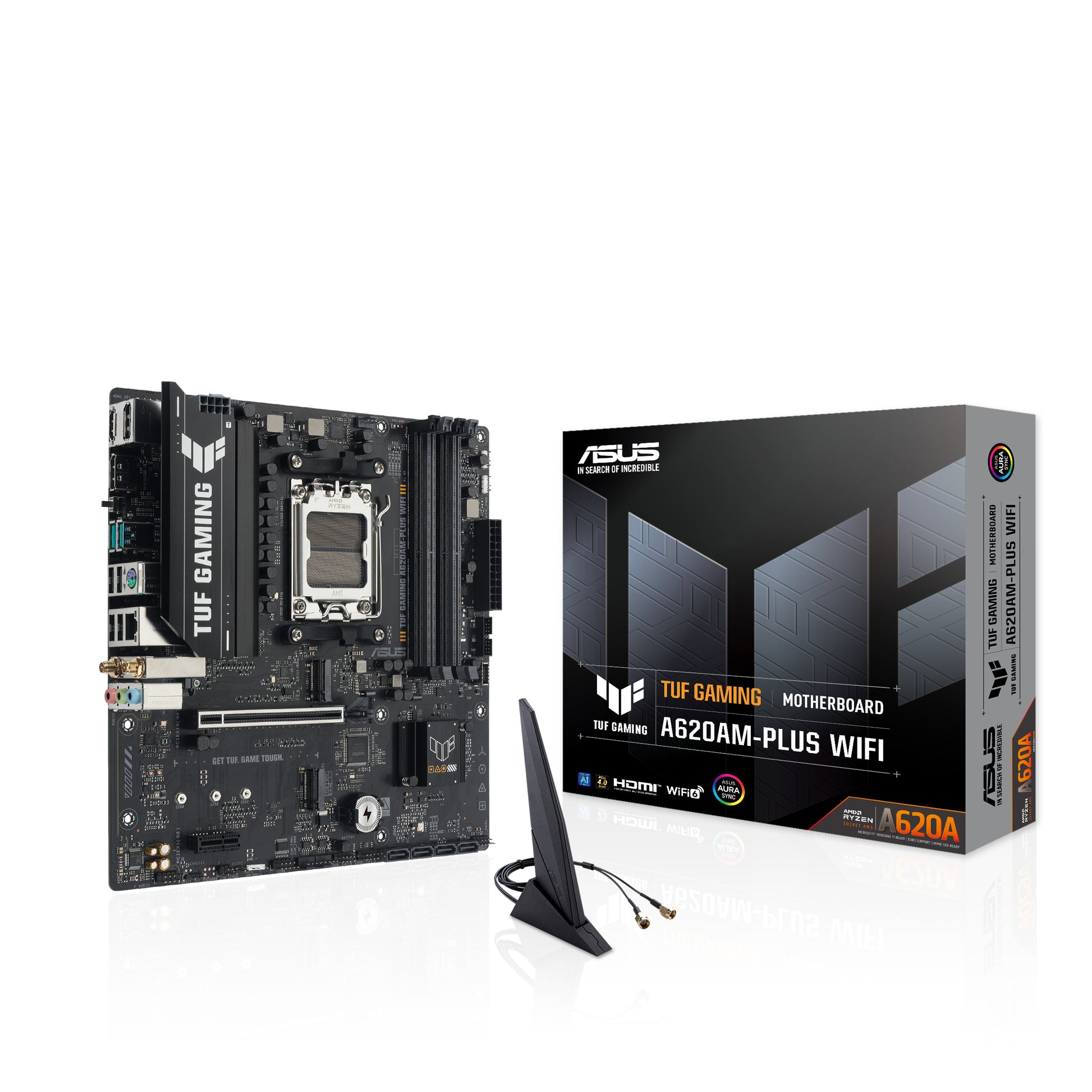

What's Included
ASUS TUF GAMING A620AM-PLUS WIFI motherboard, SATA cables, Wi-Fi antenna, screws, documentation.
Technical Specifications
Processor
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM5 |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported Processor Sockets | Socket AM5 |
Chipset & Form Factor
| Motherboard Chipset | AMD A620A |
| Chipset Family | AMD |
| Form Factor | micro ATX |
| OS Support | Windows 10 x64, Windows 11 |
Memory
| Supported Memory Types | DDR5-SDRAM |
| Memory Slots | 4× DIMM |
| Memory Channels | Dual-channel |
| Maximum Memory | 256 GB |
| ECC Compatibility | ECC & Non-ECC |
| Unbuffered Memory | Yes |
Storage Controllers
| Supported Drive Types | HDD & SSD |
| Storage Interfaces | M.2, SATA III |
| Total Storage Drives Supported | 6 |
| HDDs Supported | 4 |
| RAID Support | Yes — 0, 1, 5, 10 |
Expansion Slots
| PCIe 4.0 x16 Slots | 1 |
| PCIe 3.0 x1 Slots | 1 |
| M.2 (M) Slots | 2 (both PCIe 4.0, up to 2280 mm) |
Network
| Ethernet LAN | Yes |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes — version 5.3 |
Rear Panel I/O Ports
| USB 2.0 Type-A | 4 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
| HDMI | 1 |
| DisplayPort | 2 |
| Ethernet (RJ-45) | 1 |
| PS/2 | 1 |
| Wi-Fi Antenna Jack | 1 |
Internal I/O Headers
| USB 2.0 Connectors | 2 |
| USB 3.2 Gen 1 Connectors | 2 |
| SATA III Connectors | 4 |
| CPU Fan Connector | 1 |
| Chassis Fan Connectors | 2 |
| ATX Power Connector (24-pin) | Yes |
| EPS Power Connector (8-pin) | Yes |
| 12V Power Connector | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| S/PDIF Out Connector | Yes |
| RGB LED Headers (ARGB) | 3 |
| COM Connector | 1 |
Audio
| Audio Output Channels | 7.1 Channels |
BIOS
| BIOS Type | UEFI AMI |
| BIOS Memory Size | 256 Mbit |
Physical
| Width | 244 mm |
| Depth | 244 mm |
Packaging
| Package Width | 275 mm |
| Package Depth | 275 mm |
| Package Height | 67.5 mm |
| Package Weight | 920 g |
| Cables Included | SATA |
| Antenna Included | Yes |
| Screws Included | Yes |
