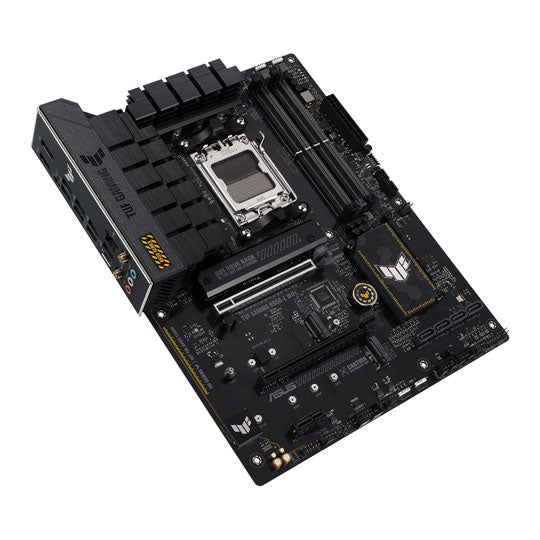

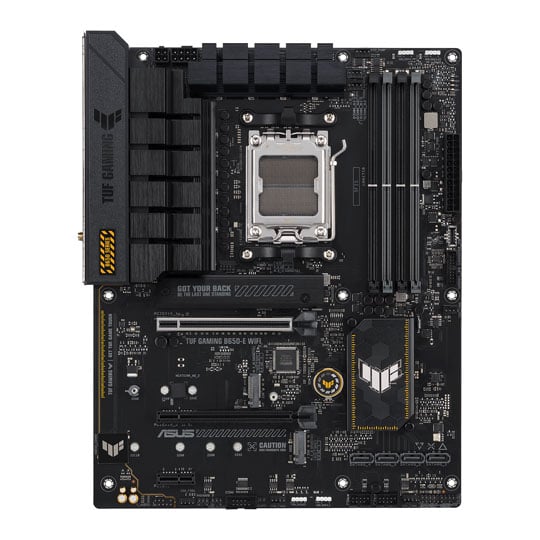

ASUS TUF Gaming B650-E WiFi AMD AM5 ATX Motherboard
Overview
The ASUS TUF Gaming B650-E WiFi is a military-grade AMD AM5 ATX motherboard built for Ryzen 7000 and 9000 series processors. With a robust 10+2 power stage design (60A per stage), DDR5 support up to 8000MHz OC, Wi-Fi 6E, 2.5 Gigabit Ethernet, and three M.2 slots, it delivers rock-solid performance for demanding gaming and productivity builds. Military-grade components with rigorous endurance testing ensure long-term reliability.
Key Technology Features
10+2 Power Stages – 60A Each
Robust VRM design with 10+2 power stages at 60A each ensures clean, efficient CPU power delivery for sustained performance under load, including AMD Precision Boost Overdrive (PBO) support.
DDR5 Memory – Up to 8000MHz OC
Dual-channel DDR5 with 4x DIMM slots, up to 192GB capacity, supporting speeds from standard to 8000MHz OC. ECC and Non-ECC memory compatible.
Wi-Fi 6E (802.11ax) + Bluetooth 5.3
Triband Wi-Fi 6E across 2.4GHz, 5GHz, and 6GHz bands for ultra-fast, low-latency wireless connectivity. Bluetooth 5.3 included.
2.5 Gigabit Ethernet
Onboard 2.5GbE LAN for low-latency wired gaming and high-speed network transfers.
3x M.2 Slots + 4x SATA III with RAID
3x M.2 (M-key) slots for NVMe SSDs plus 4x SATA III ports. RAID 0, 1, and 10 supported.
PCIe 4.0 Expansion – 3x x16 Slots
Three PCIe x16 slots with PCIe 4.0 support for graphics cards and high-speed expansion cards.

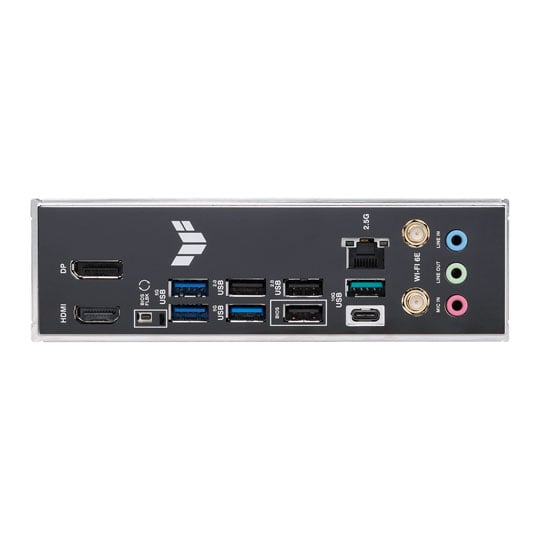

Rear I/O
3x USB 2.0 Type-A, 3x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-A, HDMI, DisplayPort, 7.1ch HD Audio, 2.5GbE, Wi-Fi antenna connectors.
BIOS & OS
256Mbit UEFI AMI BIOS. Supports Windows 10 x64 and Windows 11.

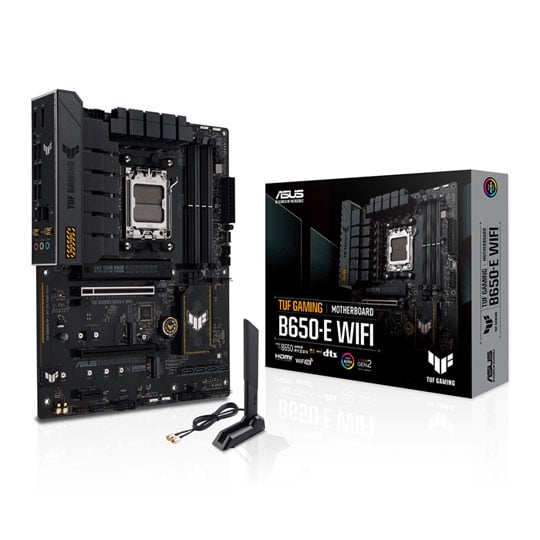

What's Included
ASUS TUF Gaming B650-E WiFi motherboard, Wi-Fi antenna, SATA cables, M.2 screws and standoffs, quick start guide, support DVD.
Technical Specifications
Processor & Chipset
| Socket | AMD AM5 |
| Chipset | AMD B650 |
| Compatible CPUs | AMD Ryzen 7000 & 9000 Series |
Form Factor
| Form Factor | ATX |
| Dimensions | 305 × 244 mm |
Memory
| Memory Type | DDR5 (Dual Channel) |
| DIMM Slots | 4 |
| Max Capacity | 192GB |
| Max Speed | 8000MHz (OC) |
| ECC Support | ECC & Non-ECC |
Storage
| M.2 Slots | 3× M.2 (M-key) |
| SATA III Ports | 4 |
| RAID Support | 0, 1, 10 |
Connectivity
| LAN | 2.5 Gigabit Ethernet |
| Wi-Fi | Wi-Fi 6E (802.11ax) – 2.4 / 5 / 6 GHz |
| Bluetooth | 5.3 |
Expansion Slots
| PCIe x16 Slots | 3 (PCIe 4.0) |
Rear I/O
| USB 2.0 Type-A | 3 |
| USB 3.2 Gen 1 Type-A | 3 |
| USB 3.2 Gen 2 Type-A | 1 |
| Video Output | HDMI, DisplayPort |
| Audio | 7.1ch HD Audio |
BIOS & Software
| BIOS | 256Mbit UEFI AMI |
| OS Support | Windows 10 x64, Windows 11 |
Packaging
| MPN / SKU | 90MB1GT0-M0EAY0 |
| EAN / Barcode | 4711387423073 |
