Description
ASUS NUC 14 Pro Barebone Kit, Intel Core Ultra 7 165H CPU, Intel Arc Graphics, Wi-Fi 6E, Bluetooth 5.3
Manageability: Tall chassis and barebone kit design allow easy upgrades, giving flexibility, stability, and long-term usability. AI Enabled: Harnesses Intel Core Ultra processors AI capabilities for enhanced graphics, intelligent performance, and efficient processing. Wireless Connectivity: Equipped with Wi-Fi?6E, 2.5?Gb Ethernet, and Bluetooth 5.3 for seamless, high-speed connectivity. Customisable: Toolless chassis access enables faster, safer installation of RAM, storage, and peripheral upgrades.
Specs
Processor
| Performance | Delivers powerful computing with Intel Core Ultra 7 165H, supporting up to 96?GB DDR5 memory and multiple NVMe SSDs. |
| Part Number | 90AR0072-M00290 |
| Colour | Black |
| Rating | 4.1 out of 5 stars (45 reviews) |
| Form Factor | Mini PC Barebone Kit (Tall Chassis) |
| Operating System | Supports Windows 11 (Not Included) |
| Cores / Threads | 16 Cores (6P + 8E + 2 LP-E) / 22 Threads |
| Max Turbo Frequency | Up to 5.0 GHz |
| Cache | 24MB Intel� Smart Cache |
| AI Support | Intel� AI Boost (Integrated NPU) |
Memory
| Memory Slots | 2 x SO-DIMM |
| Memory Type | DDR5 |
| Supported Speed | Up to DDR5-5600 |
| Maximum Capacity | Up to 96GB (48GB x 2) |
| Memory Included | None (Barebone) |
Storage Controllers
| M.2 Slots | 1 x M.2 2280 PCIe 4.0 x4 NVMe1 x M.2 2242 PCIe 4.0 x4 NVMe |
| 2.5" Drive Bay | 1 x SATA 2.5" (7mm) SSD/HDD Supported |
| Storage Included | None |
Network
| Ethernet | 2.5G LAN (Intel� I226-V) |
| Wireless | Intel� Wi-Fi 6E |
| Bluetooth | Bluetooth� 5.3 |
Rear Panel I/O Ports
| Rear I/O | 2 x Thunderbolt 42 x HDMI 2.11 x USB 3.2 Gen2 Type-A1 x USB 2.0 Type-A1 x RJ-451 x DC-in |
Other

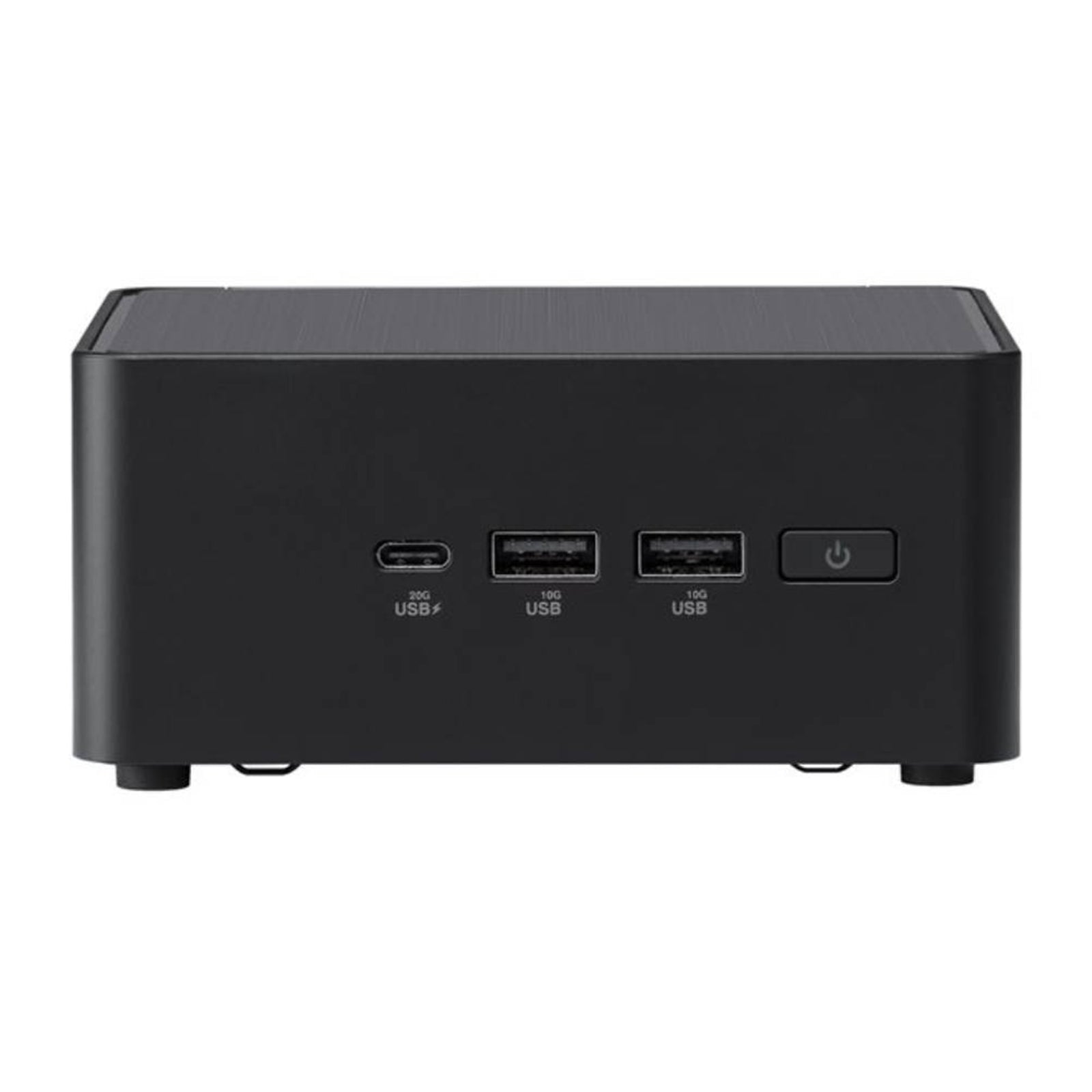

| Front I/O | 1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 Type-A |
| Power Adapter | 120W External Adapter |
| Manufacturer Warranty | ASUS 36 Month Collect & Return Warranty 90AR00Q2-M00060,PerformanceDelivers exceptional performance with the latest Intel Core Ultra CPU |
