ASUS Dual GeForce RTX 5060 OC, 8GB GDDR7, Axial-tech, SFF-Ready, Black/Grey

ASUS Dual GeForce RTX 5060 OC Edition — 8GB GDDR7

Description Specs

Overview

The ASUS Dual GeForce RTX 5060 OC Edition brings NVIDIA’s Blackwell architecture to a compact, SFF-Ready 2.5-slot form factor. With 3840 CUDA cores, 8GB of GDDR7 memory on a 128-bit bus, and a factory-overclocked boost of 2565 MHz in OC mode, it delivers strong 1080p and 1440p gaming performance. The dual Axial-tech fan cooling system, dual ball bearing fans, 0dB technology, and vented backplate ensure efficient thermal management even in tighter cases. At 614 TOPs of AI performance, it fully supports DLSS 4 multi-frame generation for dramatically boosted frame rates.

NVIDIA Blackwell Architecture & AI Performance

GeForce RTX 5060: Built on NVIDIA’s latest Blackwell GPU architecture, delivering significant generational improvements in rasterisation, ray tracing, and AI compute throughput.

614 TOPs AI Performance: The integrated NPU delivers up to 614 Tera Operations Per Second, enabling DLSS 4 with multi-frame generation — producing multiple AI-generated frames per rendered frame for dramatically higher frame rates with minimal quality loss.

3840 CUDA Cores: Ample parallel processing power for modern gaming, creative workloads, and AI-accelerated tasks.

OC Edition: Factory-overclocked to 2565 MHz in OC mode (2535 MHz boost in standard mode) — no manual tuning required.

VR Ready: Fully certified for virtual reality headsets and applications.

NVIDIA G-SYNC Compatible: Eliminates screen tearing and stuttering on compatible monitors.

HDCP 2.3: Supports protected content playback at up to 8K resolution.

Memory & Bandwidth

8GB GDDR7 on a 128-bit memory bus with a data transfer rate of 28 Gbit/s — providing fast, responsive memory bandwidth for gaming and content creation at 1080p and 1440p. Supports up to 4 simultaneous displays at resolutions up to 7680×4320 (8K).

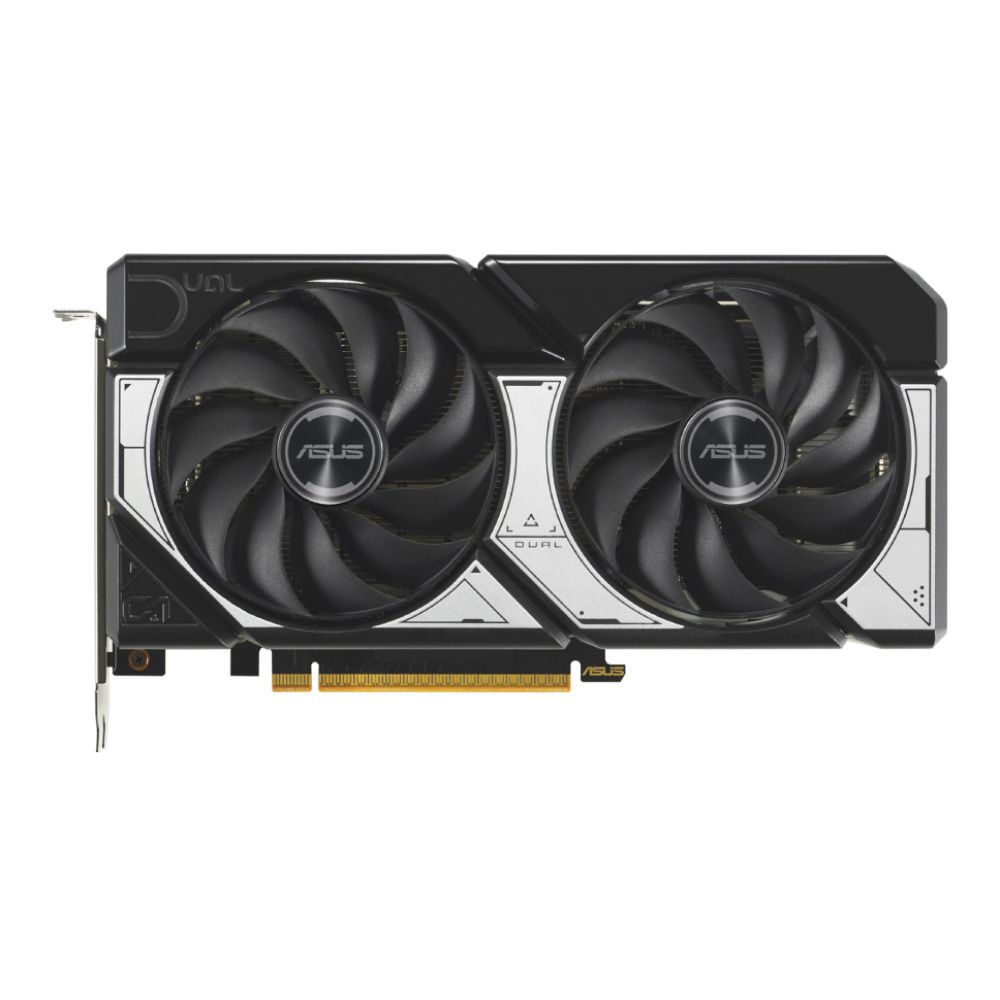

ASUS Axial-tech Dual Fan Cooling

Two Axial-tech Fans: A smaller hub facilitates longer blades and a barrier ring increases downward air pressure, improving airflow to the heatsink compared to conventional fan designs.

Dual Ball Bearing Fans: Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs, maintaining performance over the card’s lifetime.

0dB Technology: Fans automatically stop when GPU temperature drops below 50°C and power consumption is low, eliminating unnecessary noise during light workloads and desktop use.

2.5-Slot Design: A carefully designed shroud, heatsink, and heatpipe layout enables the two fans to leverage chassis side-panel ventilation, delivering thermal performance beyond what the compact size suggests.

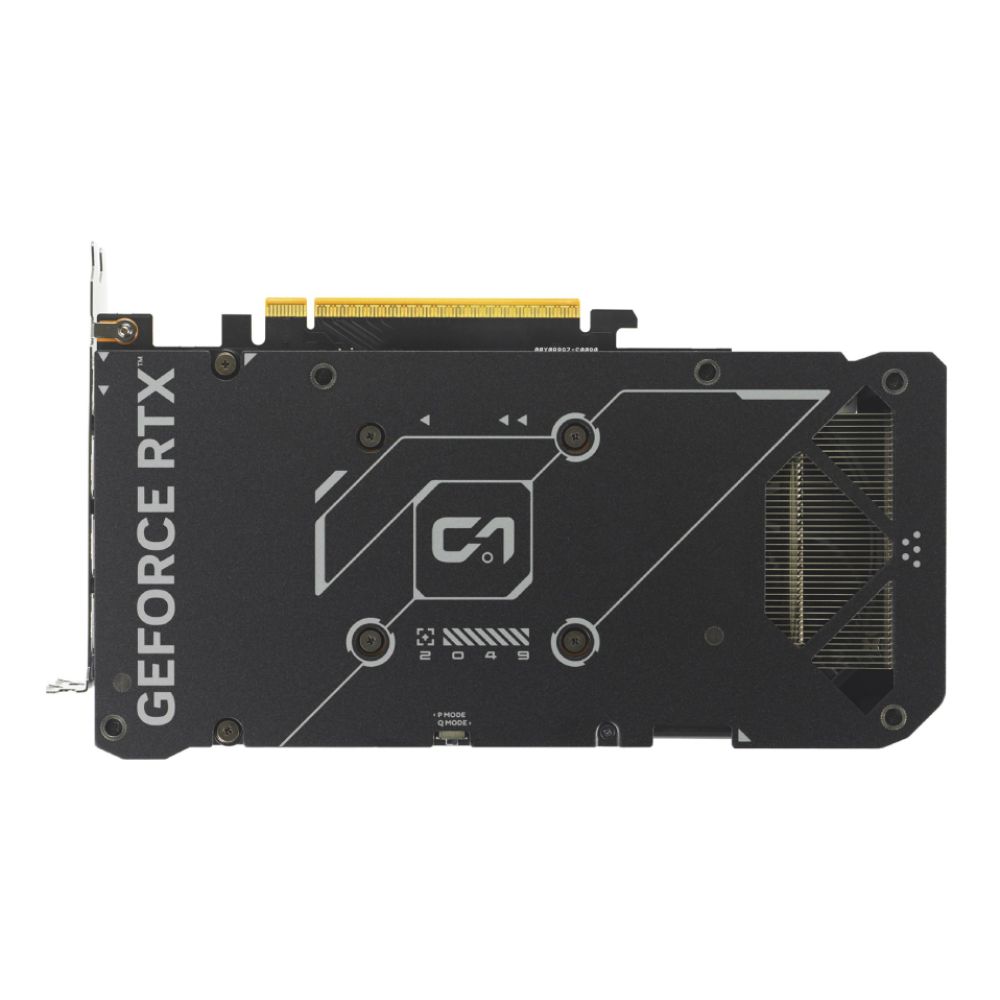

Vented Backplate: Significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks and defending against thermal throttling.

SFF-Ready — Build Small, Play Big

The ASUS Dual RTX 5060 OC is certified SFF-Ready Enthusiast, meaning it is compatible with small form factor cases that carry the SFF-Ready Enthusiast designation. At 228mm (L) × 123mm (H) × 50mm (D) and just 647g, it packs high-end Blackwell performance into a compact footprint suitable for ITX and mATX builds.

Connectivity

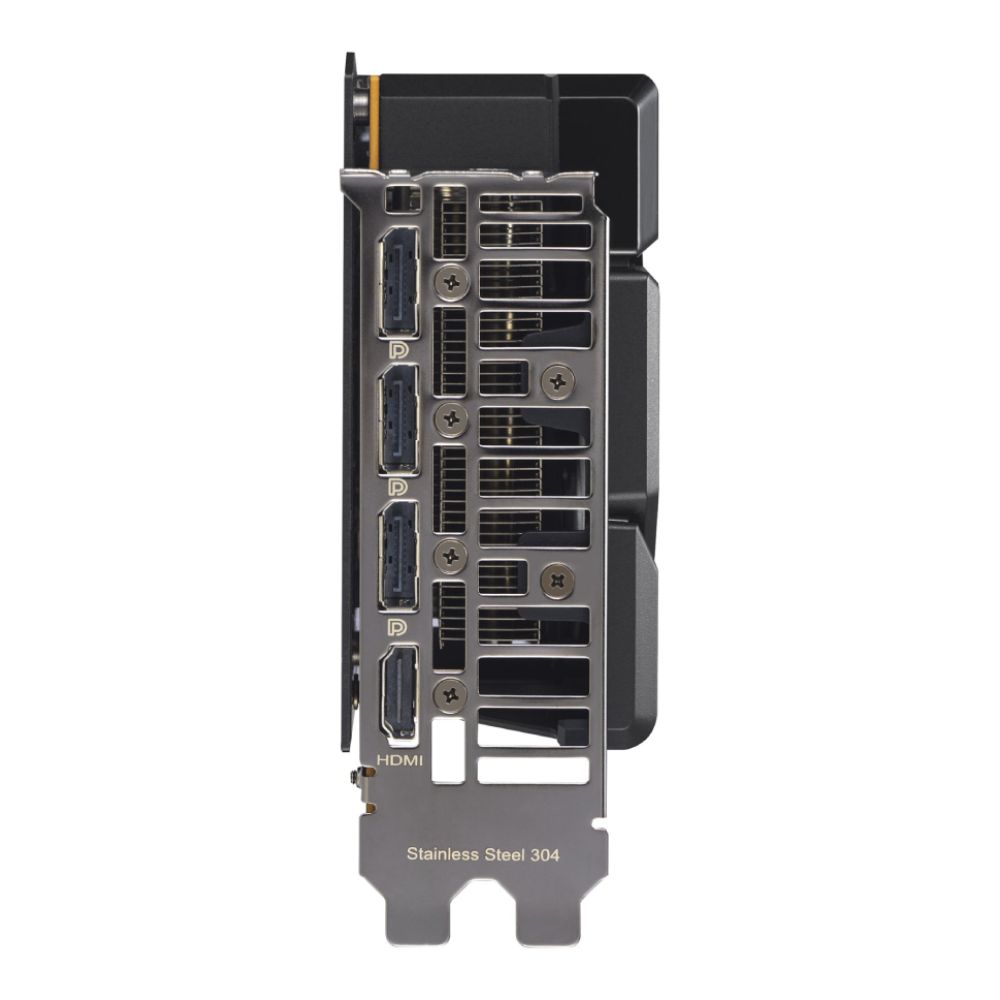

Equipped with 3× DisplayPort 2.1b and 1× HDMI 2.1b, supporting up to 4 simultaneous displays at up to 8K resolution. Connects via PCI Express 5.0 for maximum bandwidth. Requires a 1× 8-pin supplementary power connector and a minimum 550W PSU.

What’s Included

• ASUS Dual GeForce RTX 5060 OC Edition 8GB graphics card
• Quick installation manual
