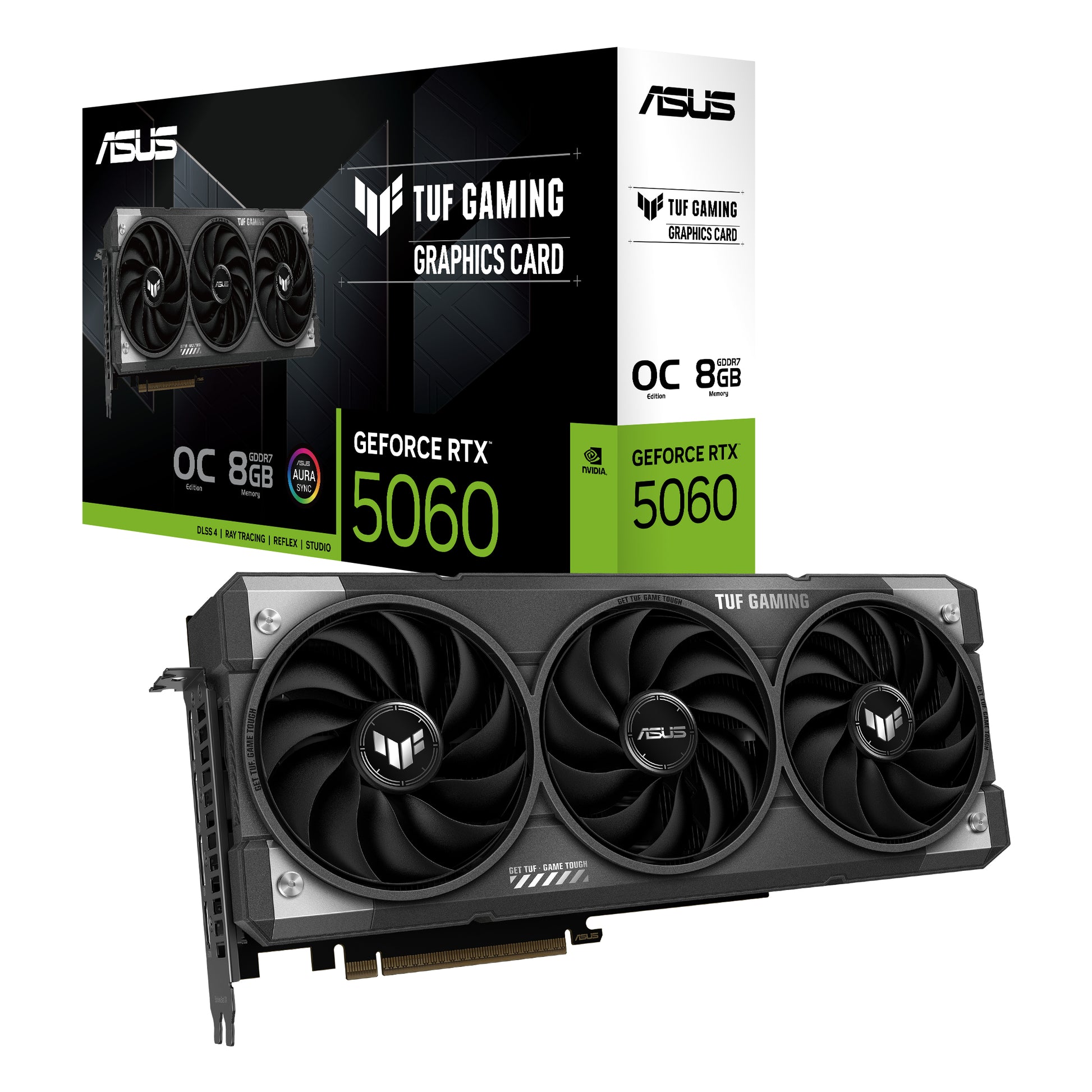

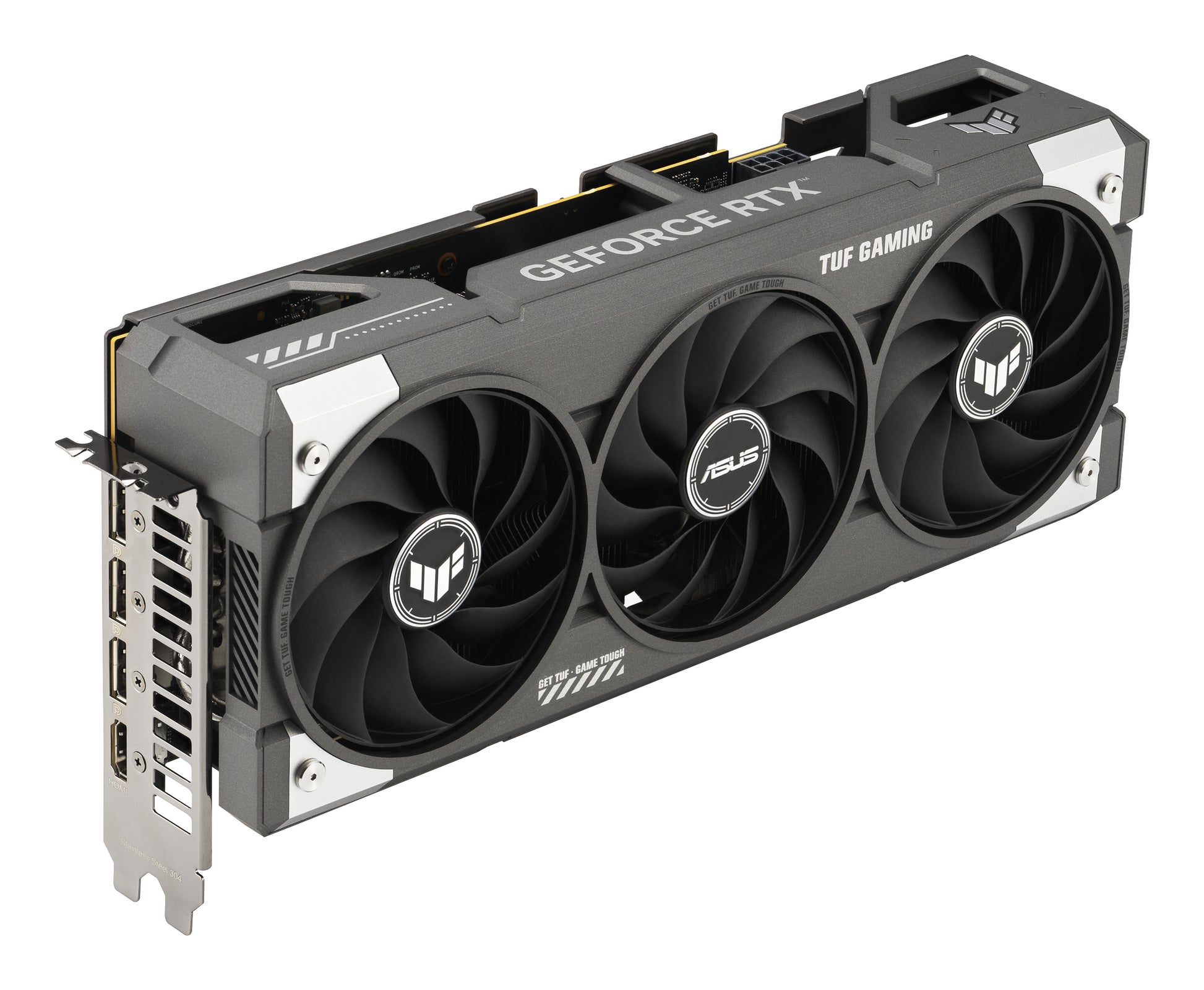

ASUS TUF Gaming GeForce RTX 5060 OC Edition, 8GB GDDR7
Overview
The ASUS TUF Gaming GeForce RTX 5060 OC Edition is built on NVIDIA's latest Blackwell architecture, delivering powerful 1080p and 1440p gaming performance with advanced AI and ray tracing capabilities. Featuring military-grade components, ASUS Axial-tech triple-fan cooling, and a robust vented metal exoskeleton, it is engineered for durability and sustained performance.
NVIDIA Blackwell Architecture
Fifth-Gen Tensor Cores deliver maximum AI performance with FP4 and DLSS 4 Multi Frame Generation. Fourth-Gen Ray Tracing Cores are built for Mega Geometry, and new Streaming Multiprocessors are optimised for neural shaders. AI performance reaches up to 614 TOPs.
Military-Grade Durability
TUF-certified chokes and MOSFETs deliver rock-solid power to the GPU. TUF 5K black metallic capacitors provide 52% wider temperature tolerance and 2.5× longer lifespan than standard capacitors. A protective conformal PCB coating guards against moisture, dust, and debris. Dual-ball fan bearings offer up to 80,000 hours of lifespan.

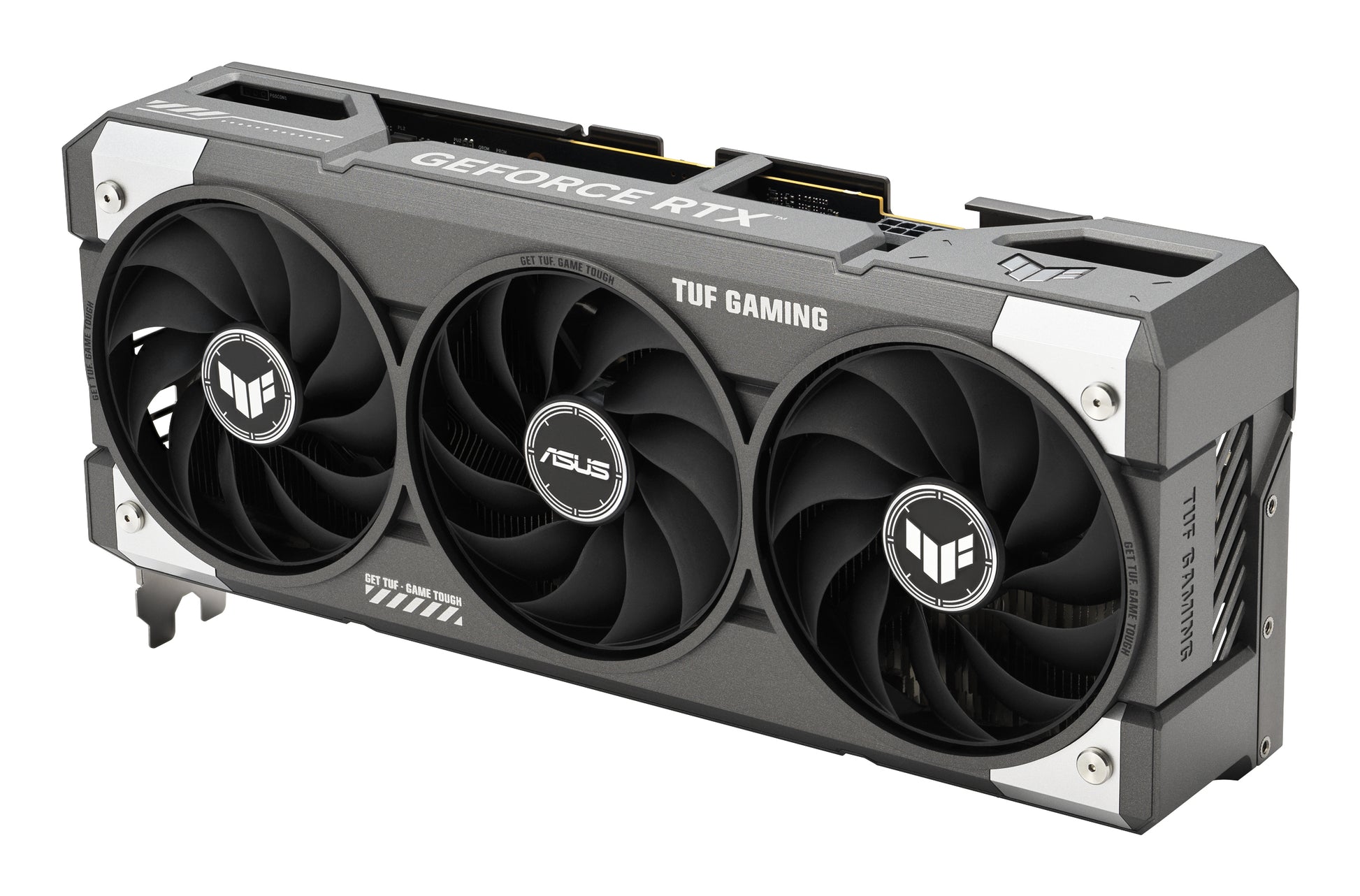

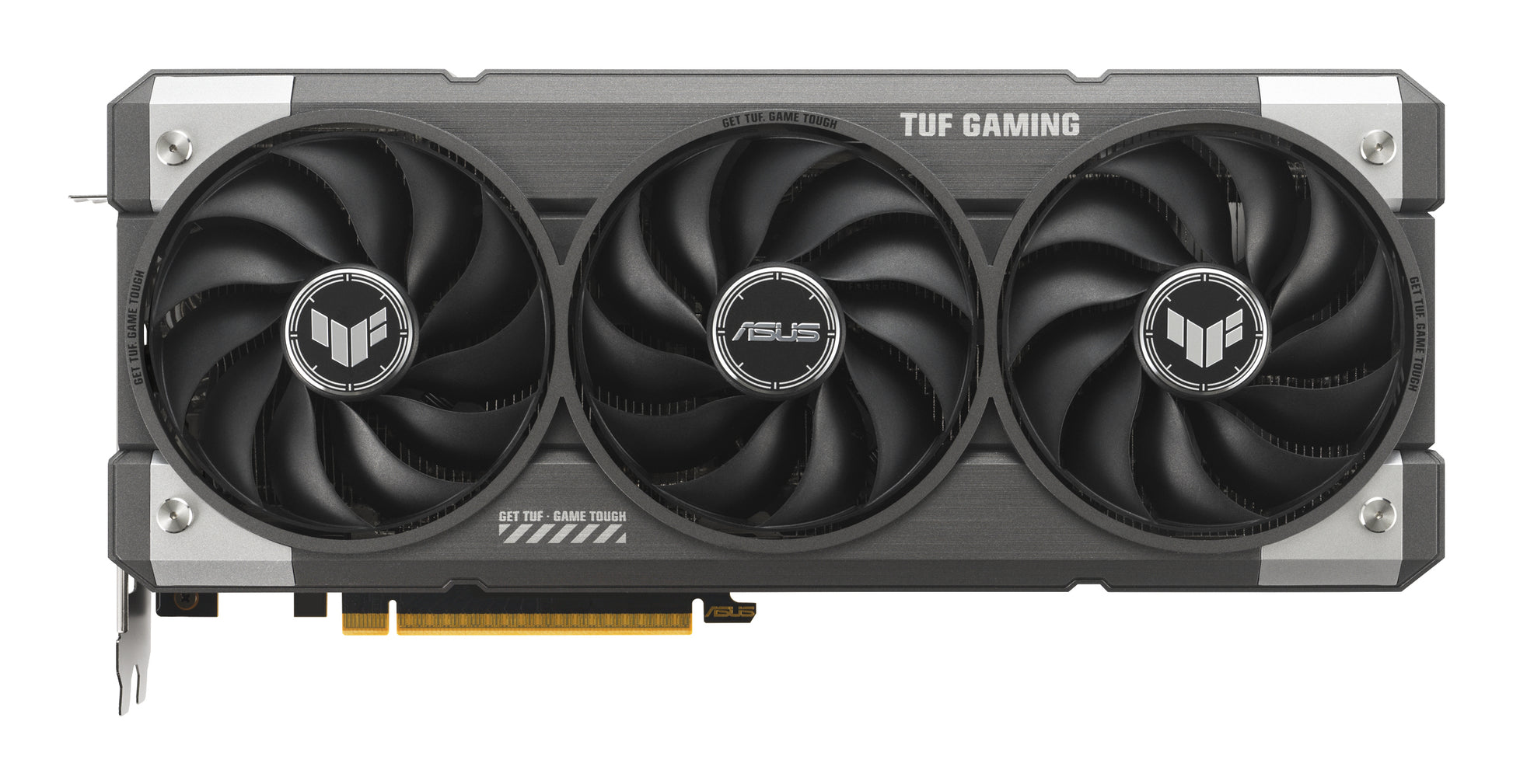

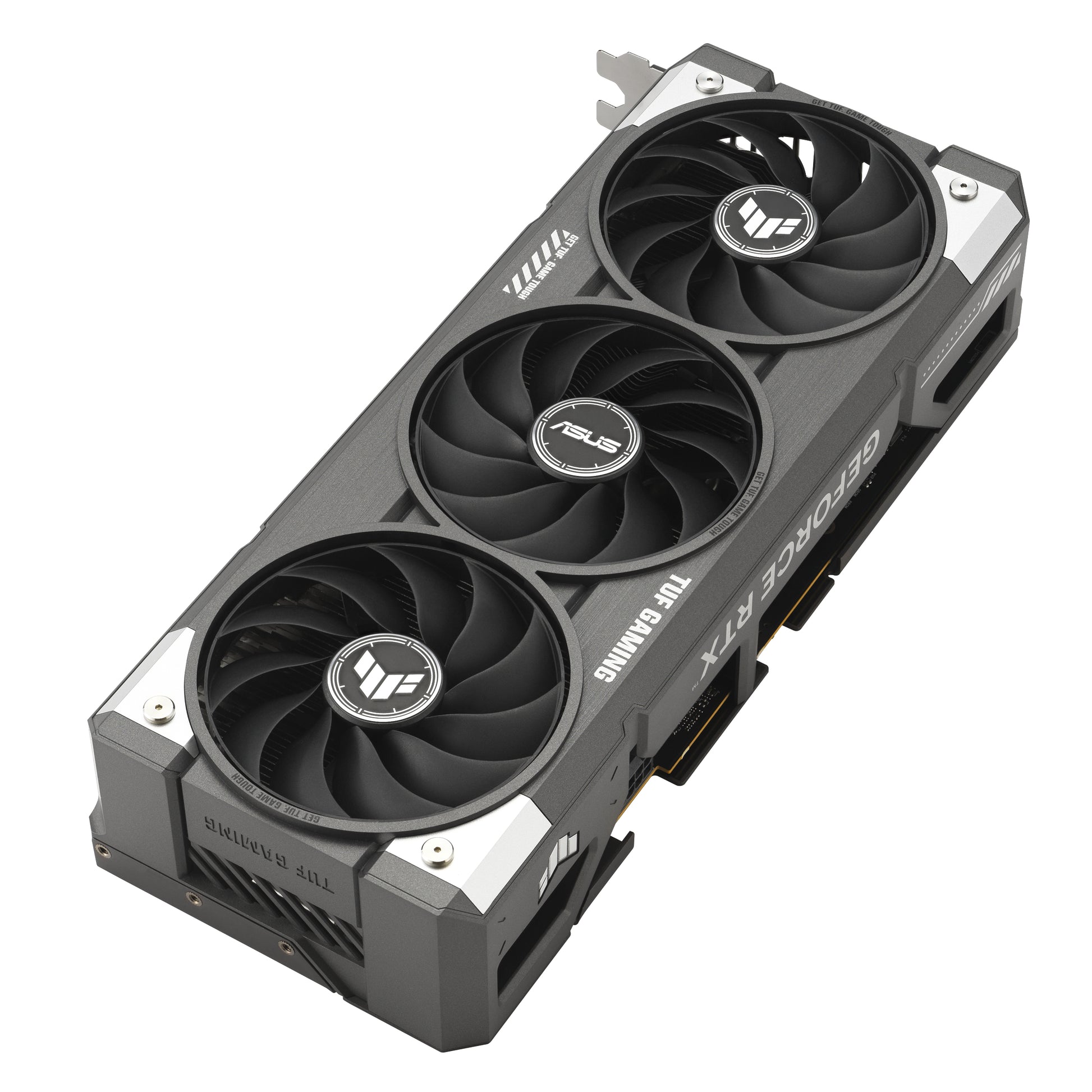

Axial-tech Triple-Fan Cooling
Three Axial-tech fans spin on dual-ball bearings for superior airflow. The two outer fans spin counterclockwise to reduce turbulence. All fans stop below 50°C for silent operation during light tasks and restart above 55°C. MaxContact technology expands the heat spreader surface area by 5%, improving temperatures by up to 2°C.

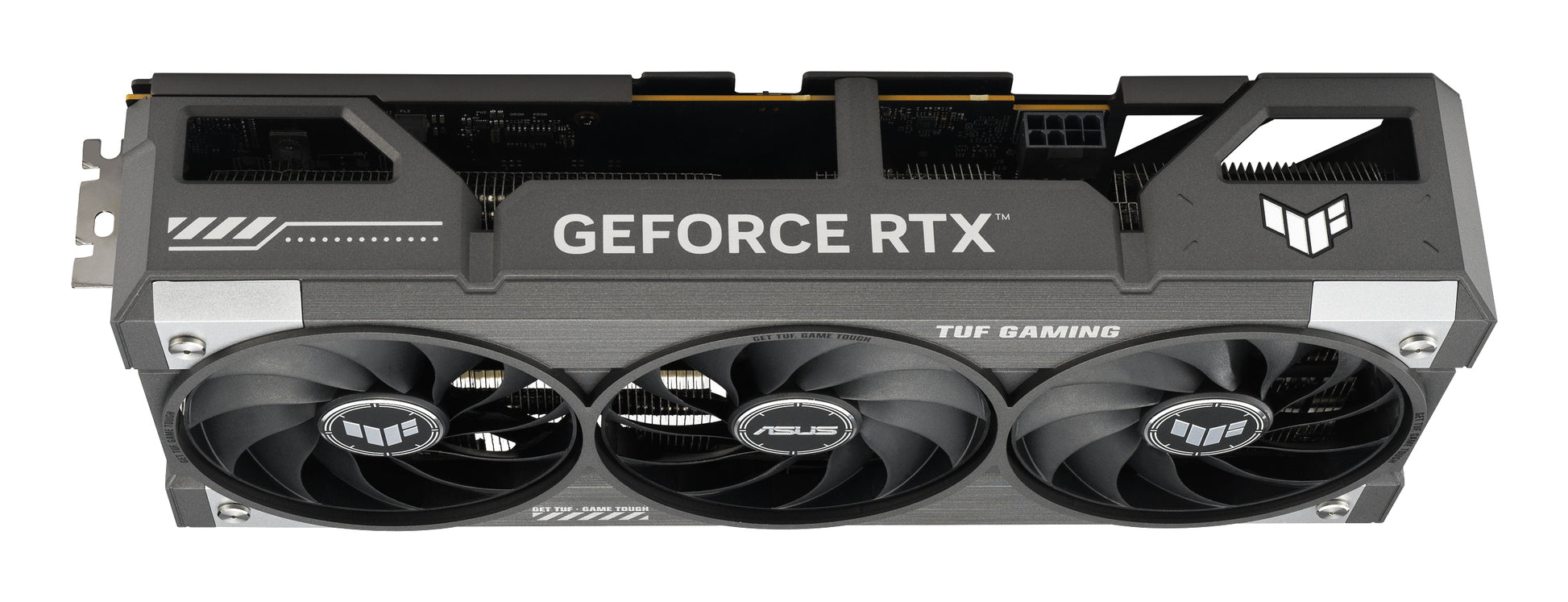

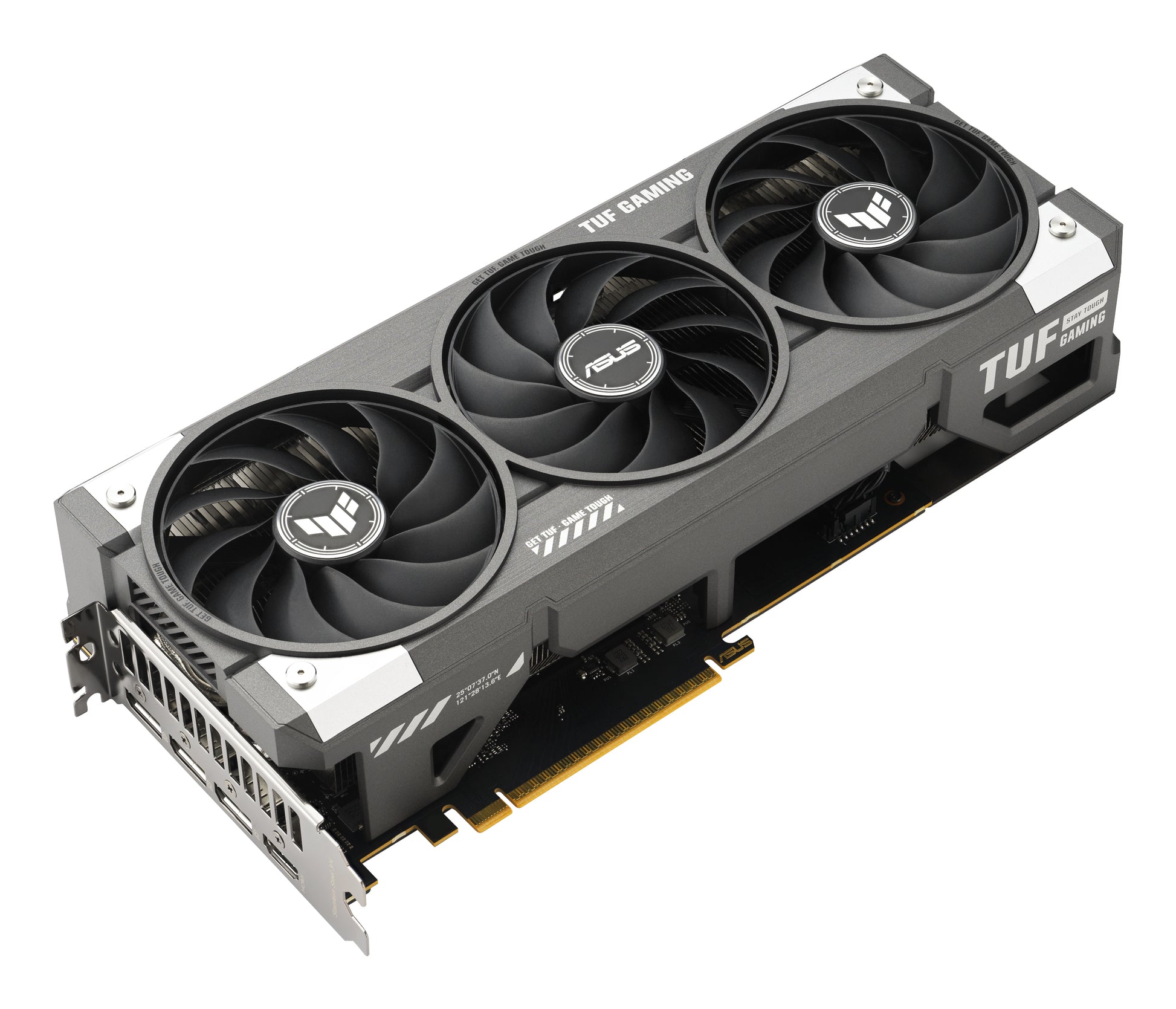

Design & Build Quality

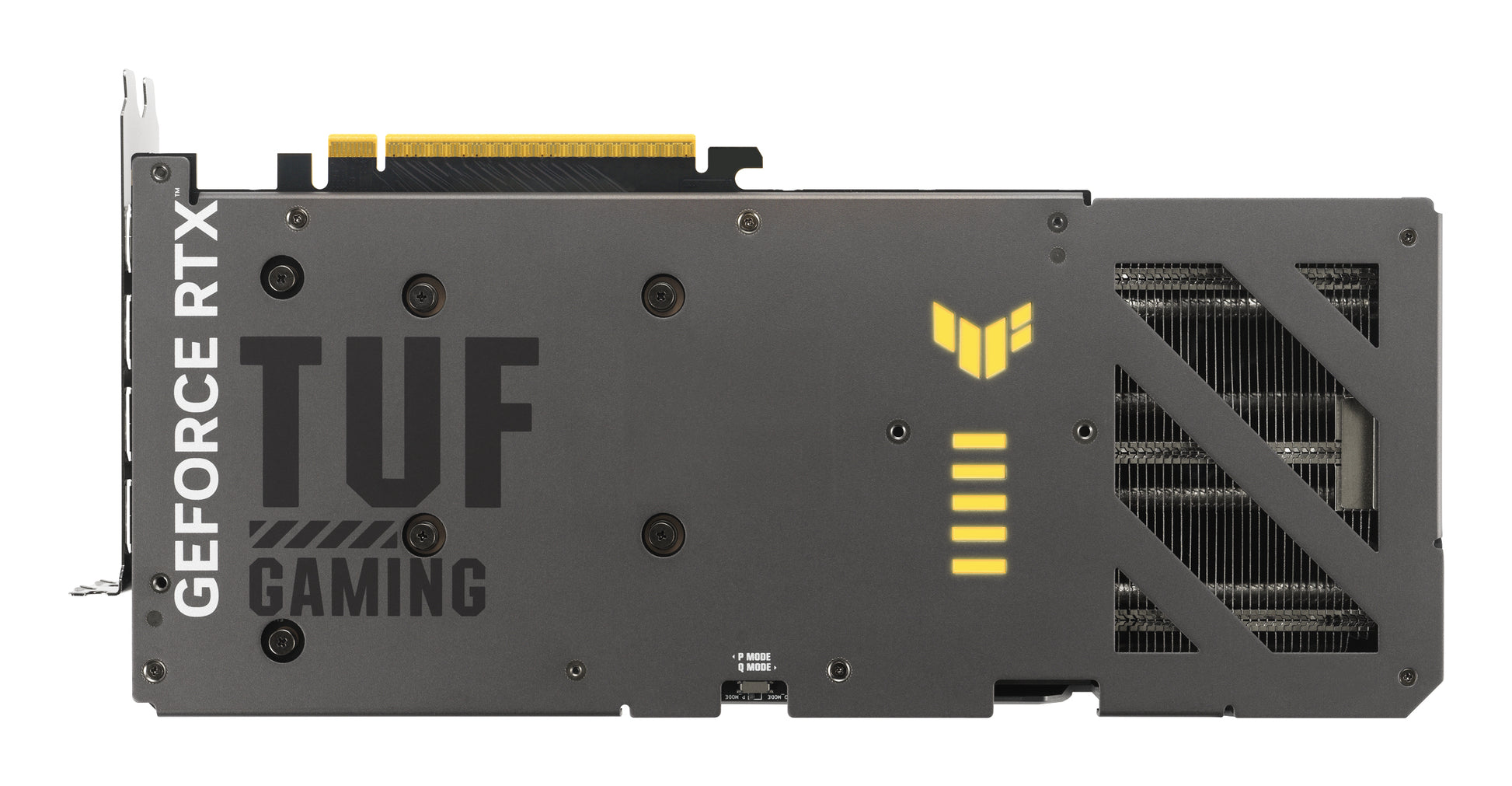

A high-quality diecast shroud and aluminium backplate prevent PCB flex, with large vents for increased heat dissipation. ASUS GPU Guard adhesive secures all four corners to reduce crack risk. Auto-Extreme Technology completes all soldering in a single pass for reduced thermal strain and improved reliability.
Connectivity

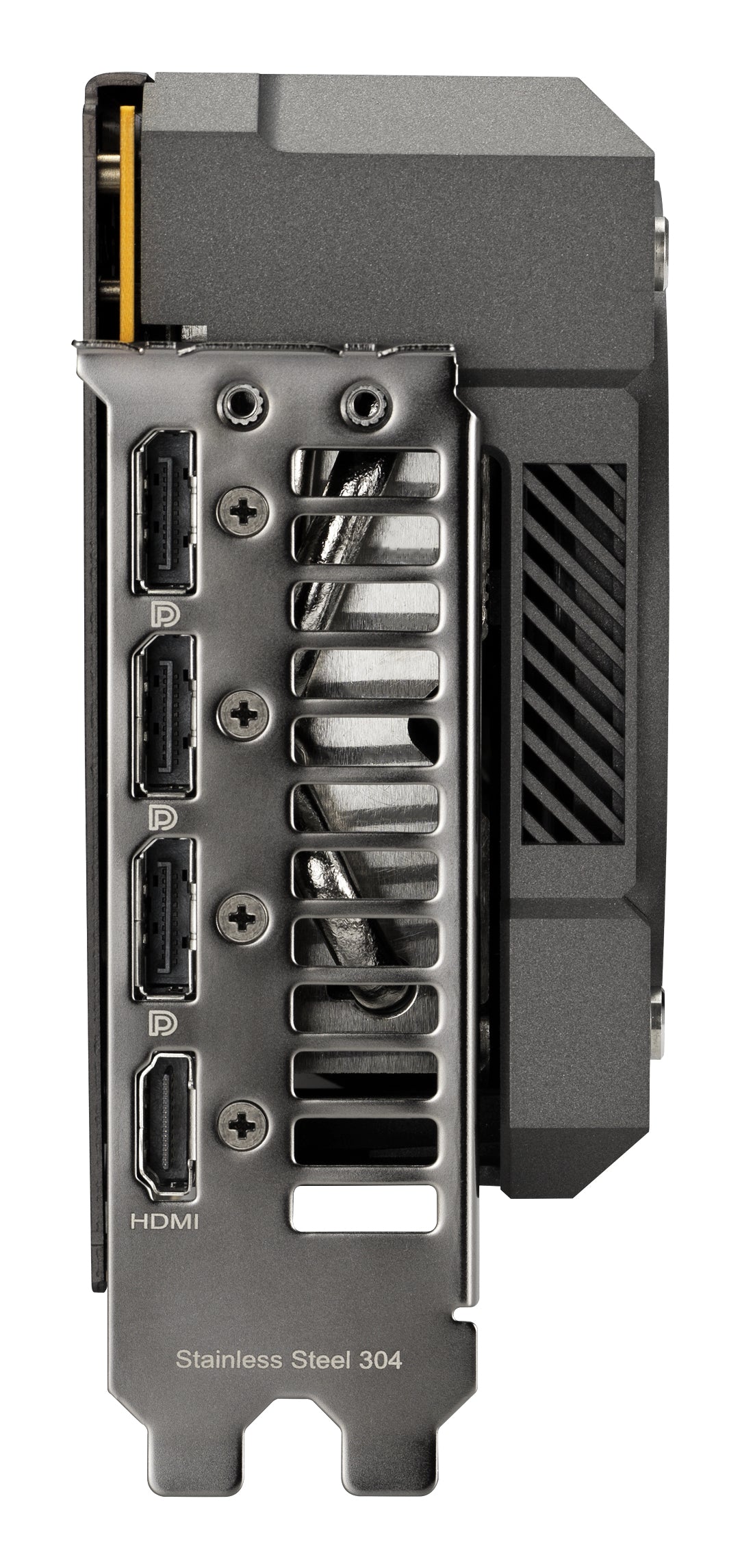

Outputs: 3× DisplayPort 2.1b and 1× HDMI 2.1b, supporting up to 4 displays and resolutions up to 8K (7680×4320). Interface: PCIe 5.0. Power: 1× 8-pin connector. Recommended PSU: 550W.
What's Included
- ASUS TUF Gaming RTX 5060 OC graphics card
- Documentation and accessories
Technical Specifications
Processor
| GPU Family | NVIDIA |
| GPU | GeForce RTX 5060 |
| CUDA Cores | 3840 |
| Boost Clock (OC) | 2677 MHz |
| Boost Clock (Base) | 2640 MHz |
| Max Resolution | 7680 × 4320 (8K) |
| Max Displays | 4 |
| AI Performance | 614 TOPs |
Memory
| Memory | 8 GB |
| Type | GDDR7 |
| Bus Width | 128-bit |
| Bandwidth | 28 GB/s |
APIs & Features
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| G-SYNC | Yes |
| HDCP | Yes (v2.3) |
| VR Ready | Yes |
| OC Edition | Yes |
Connectivity
| Interface | PCIe 5.0 |
| HDMI | 1 × HDMI 2.1b |
| DisplayPort | 3 × DP 2.1b |
Design & Cooling
| Cooling | Active (Axial-tech) |
| Fans | 3 |
| Form Factor | Full-Height / Full-Length (FH/FL) |
| Slots | 3.1 |
| Illumination | Yes (Multi-colour) |
| Colour | Black |
Power
| Min PSU | 550 W |
| Power Connector | 1 × 8-pin |
Physical Dimensions
| Length | 302 mm |
| Depth | 62 mm |
| Height | 133.5 mm |
| Weight | 1.13 kg |
| EAN | 4711636058179 |
