Description

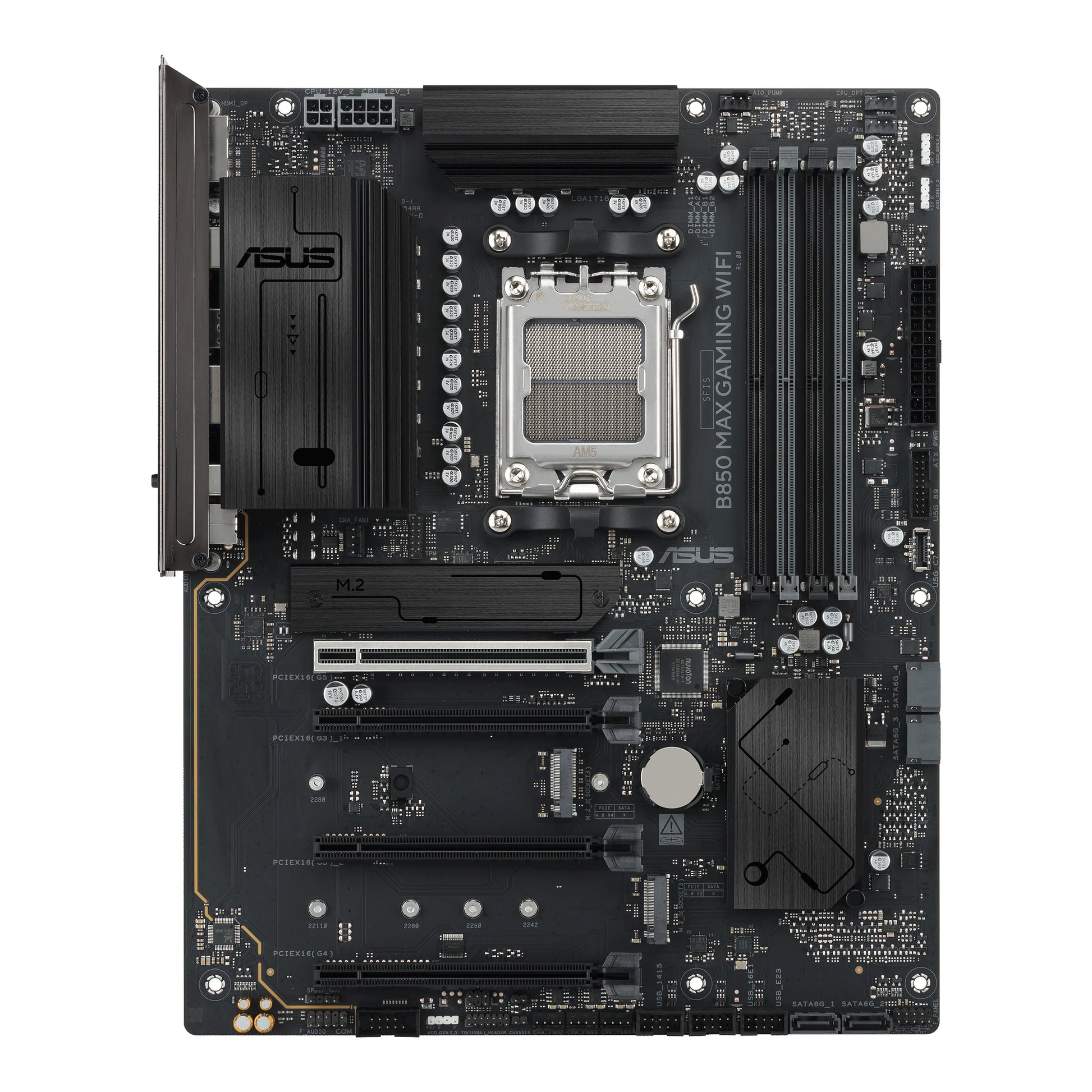

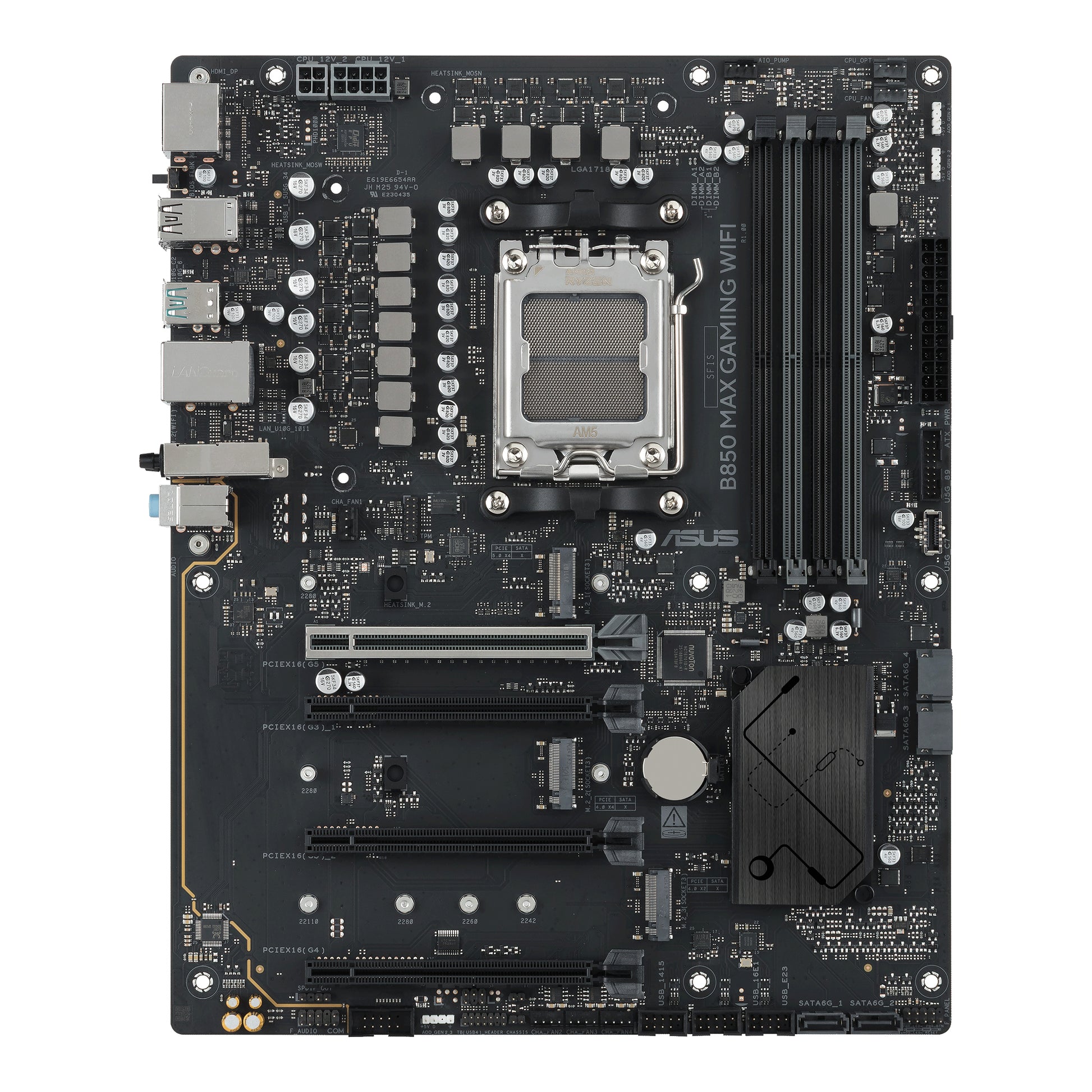

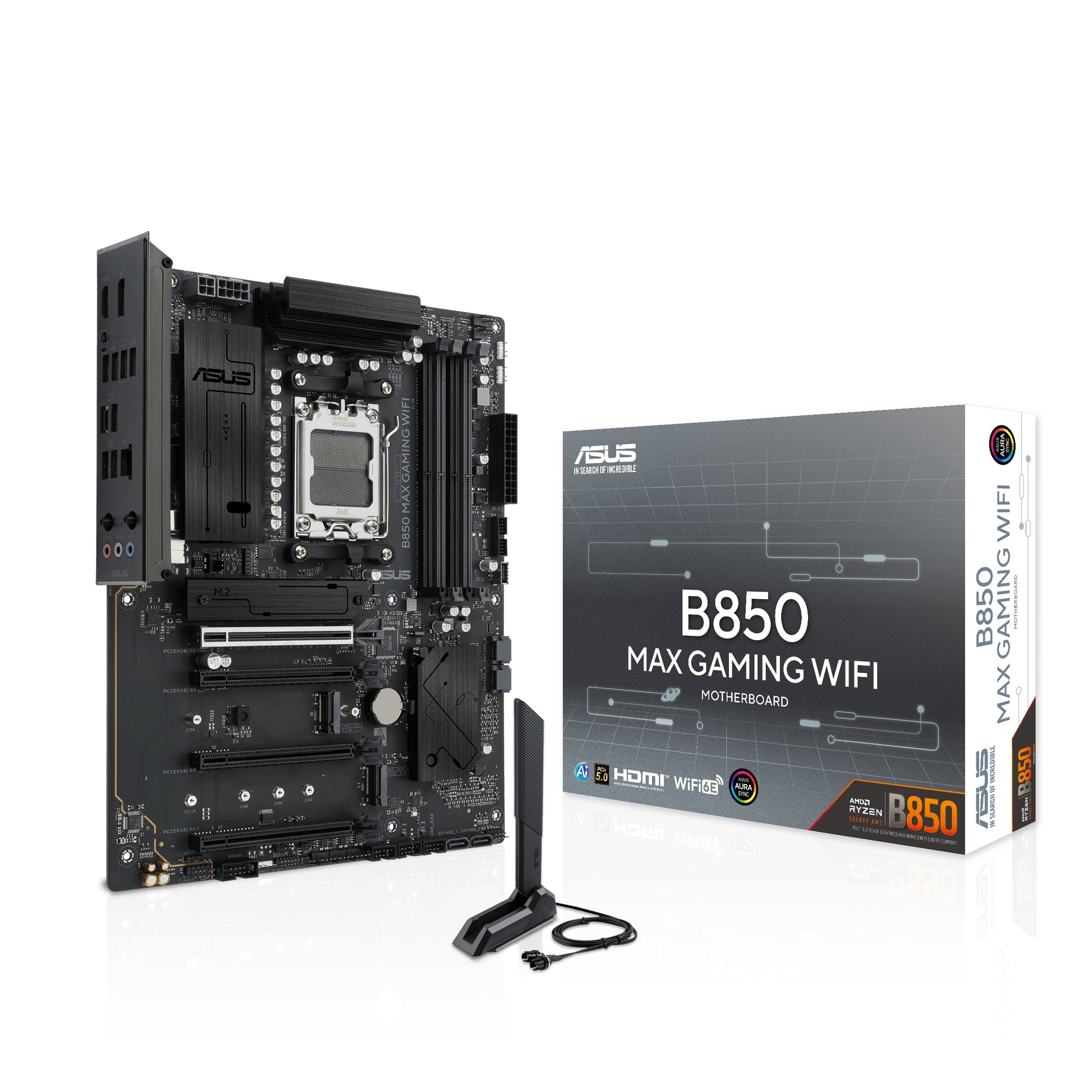

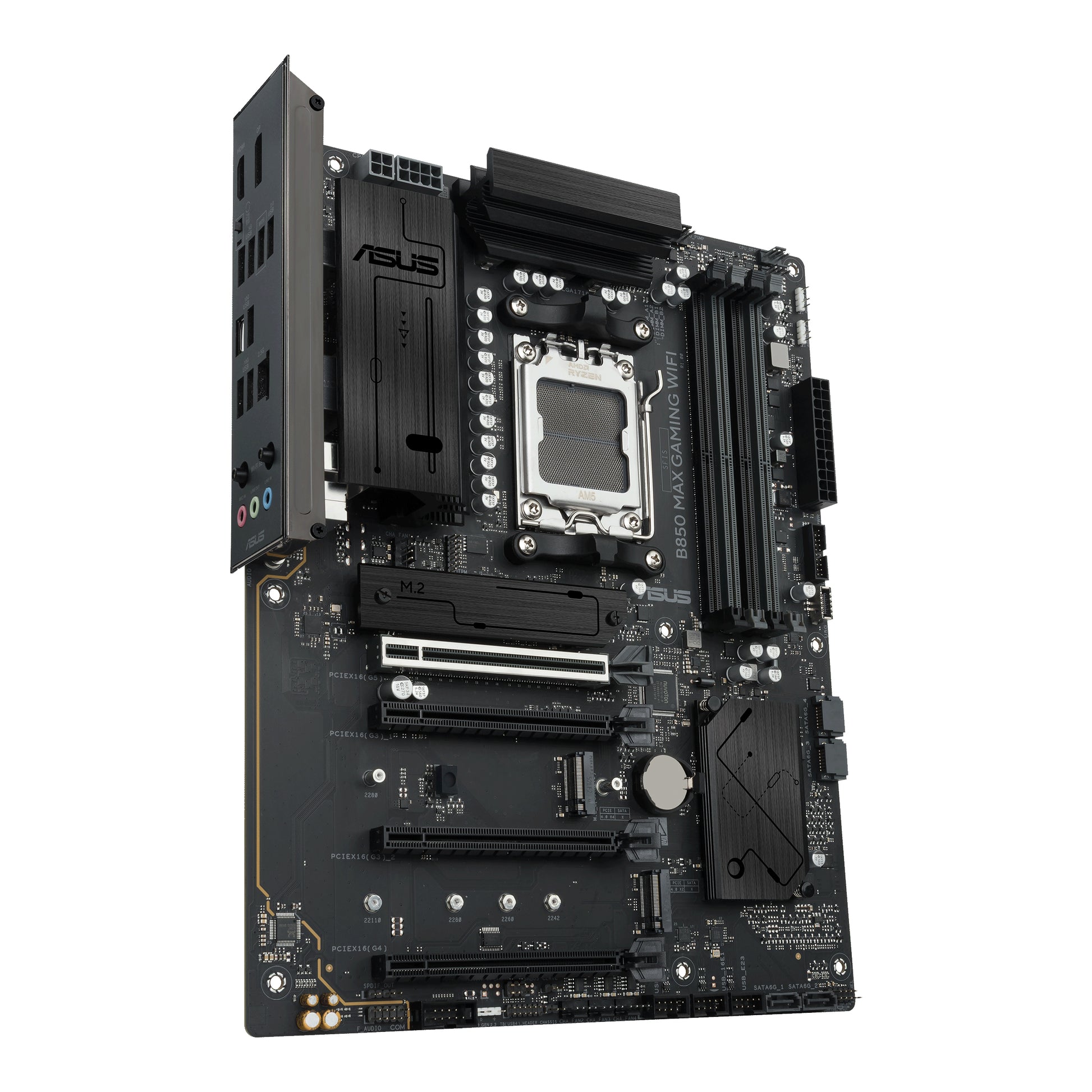

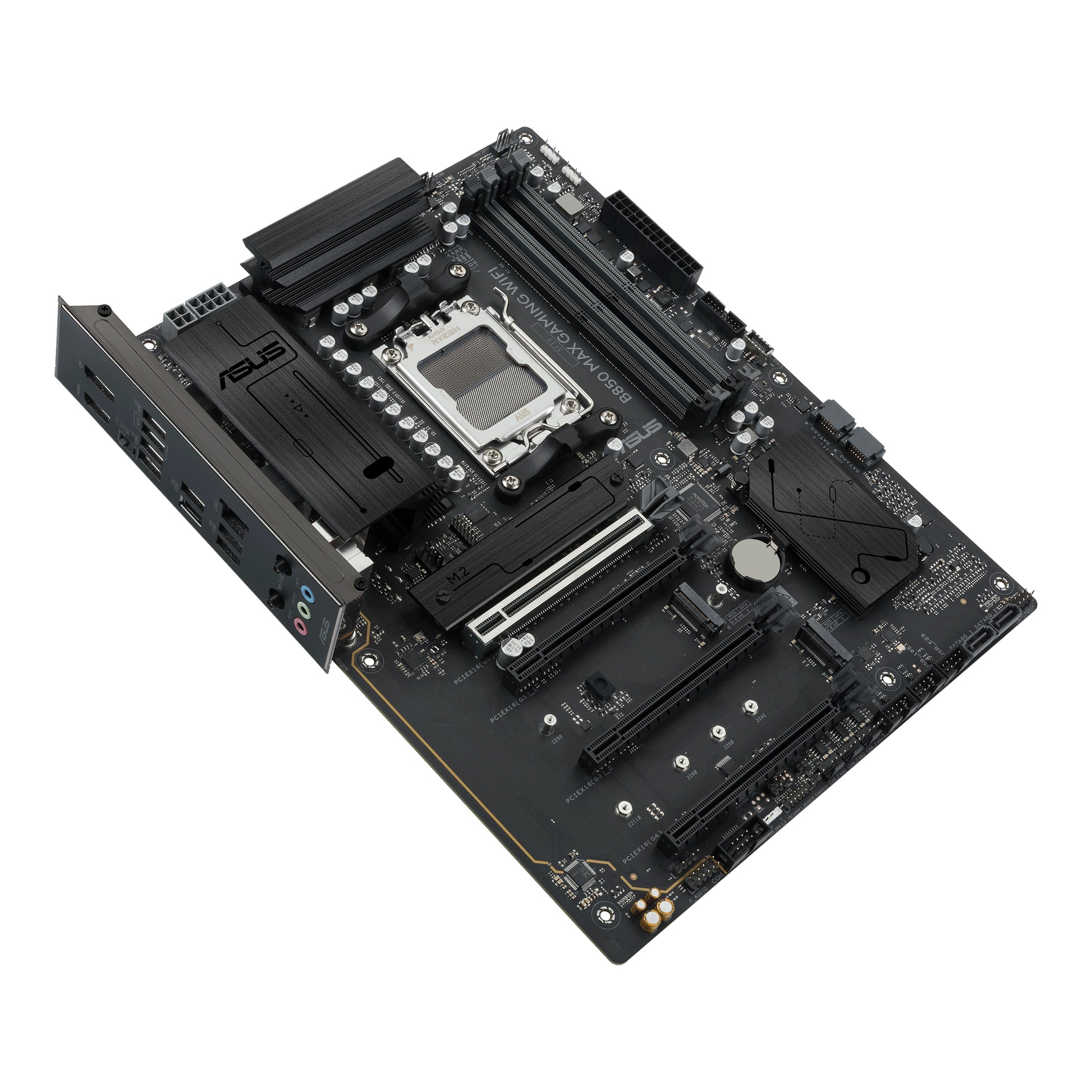

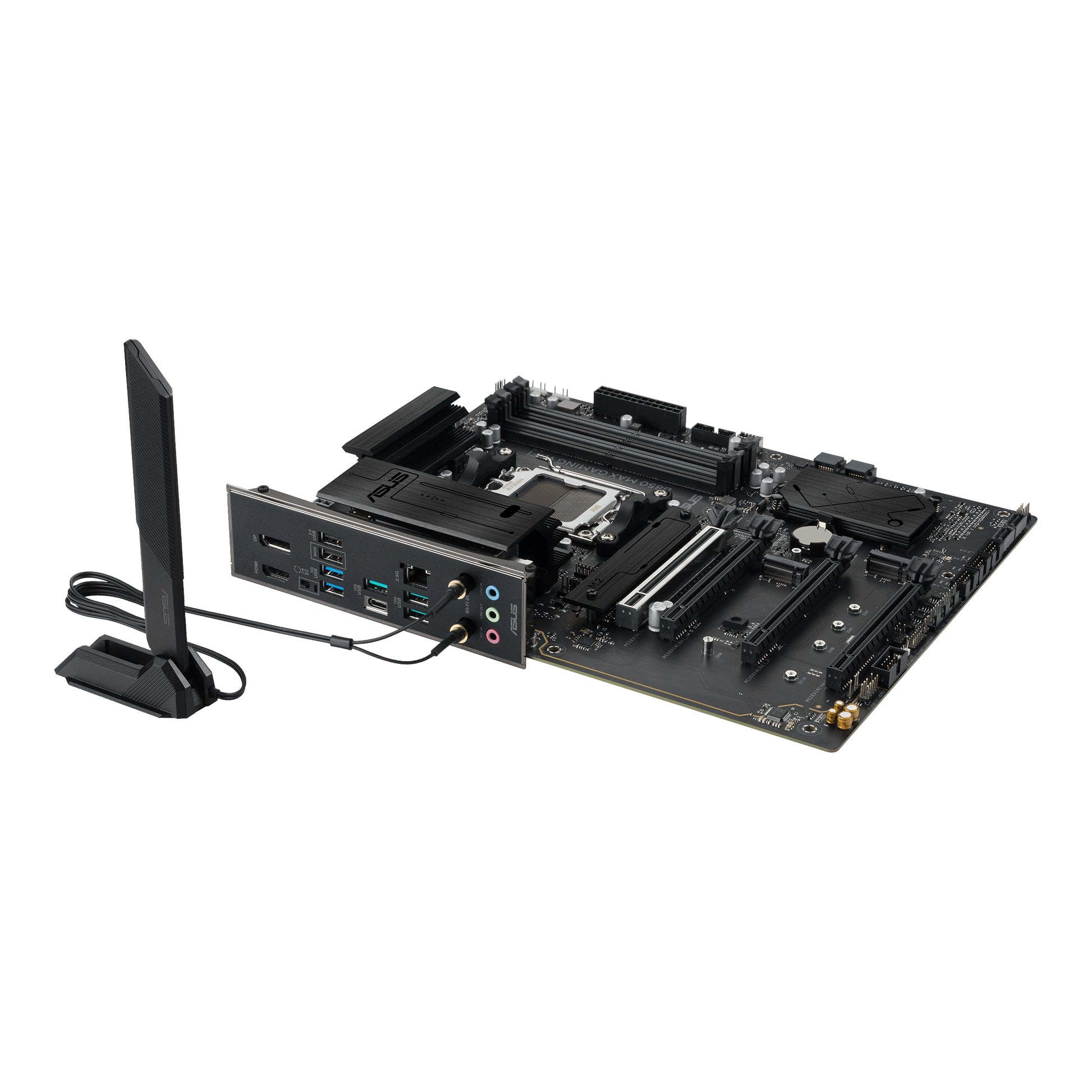

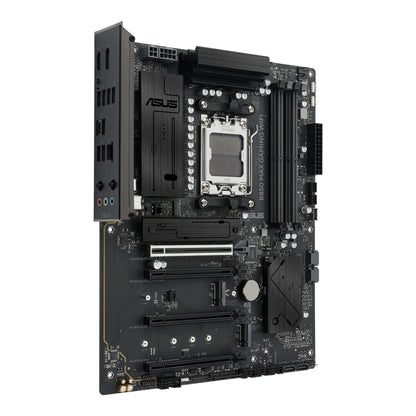

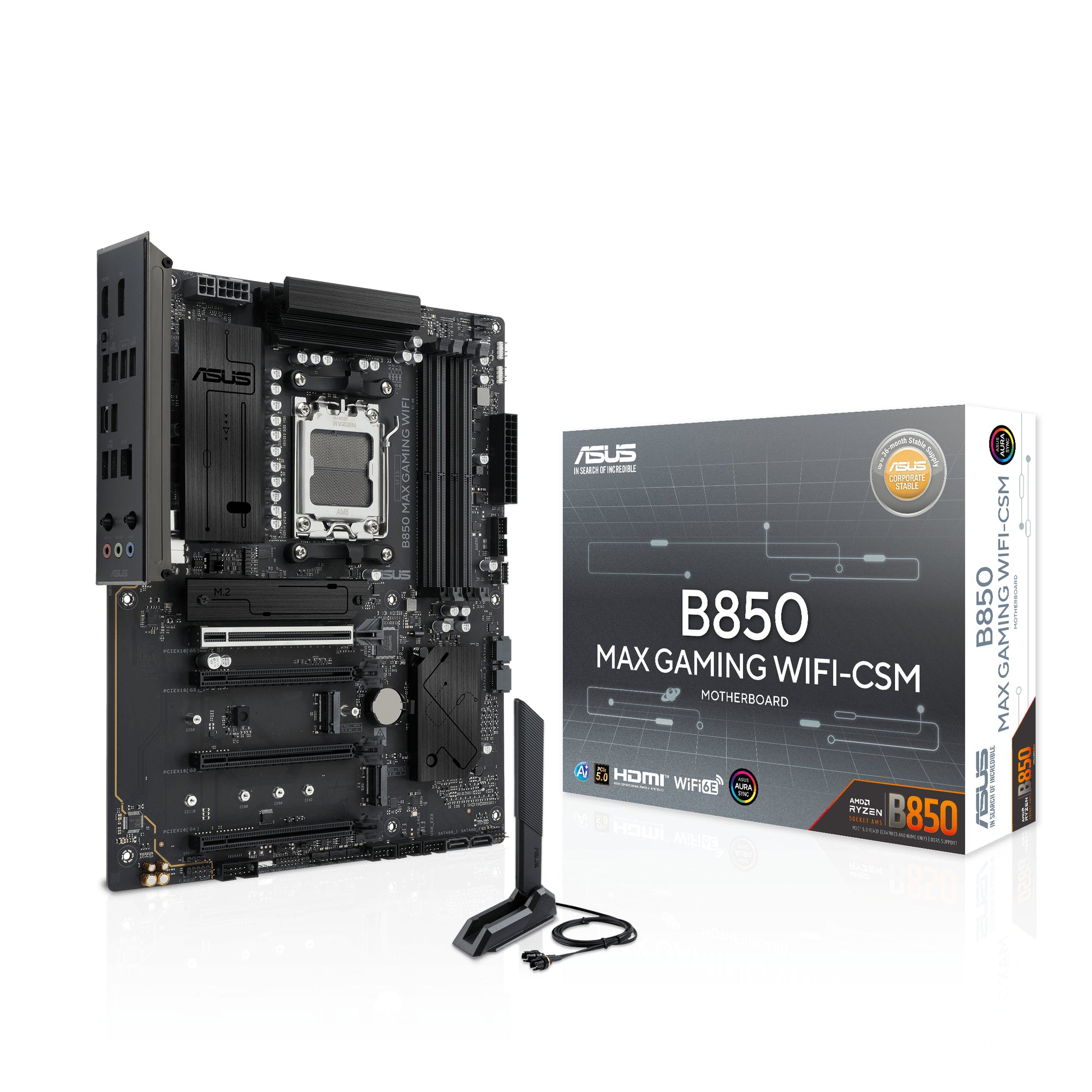

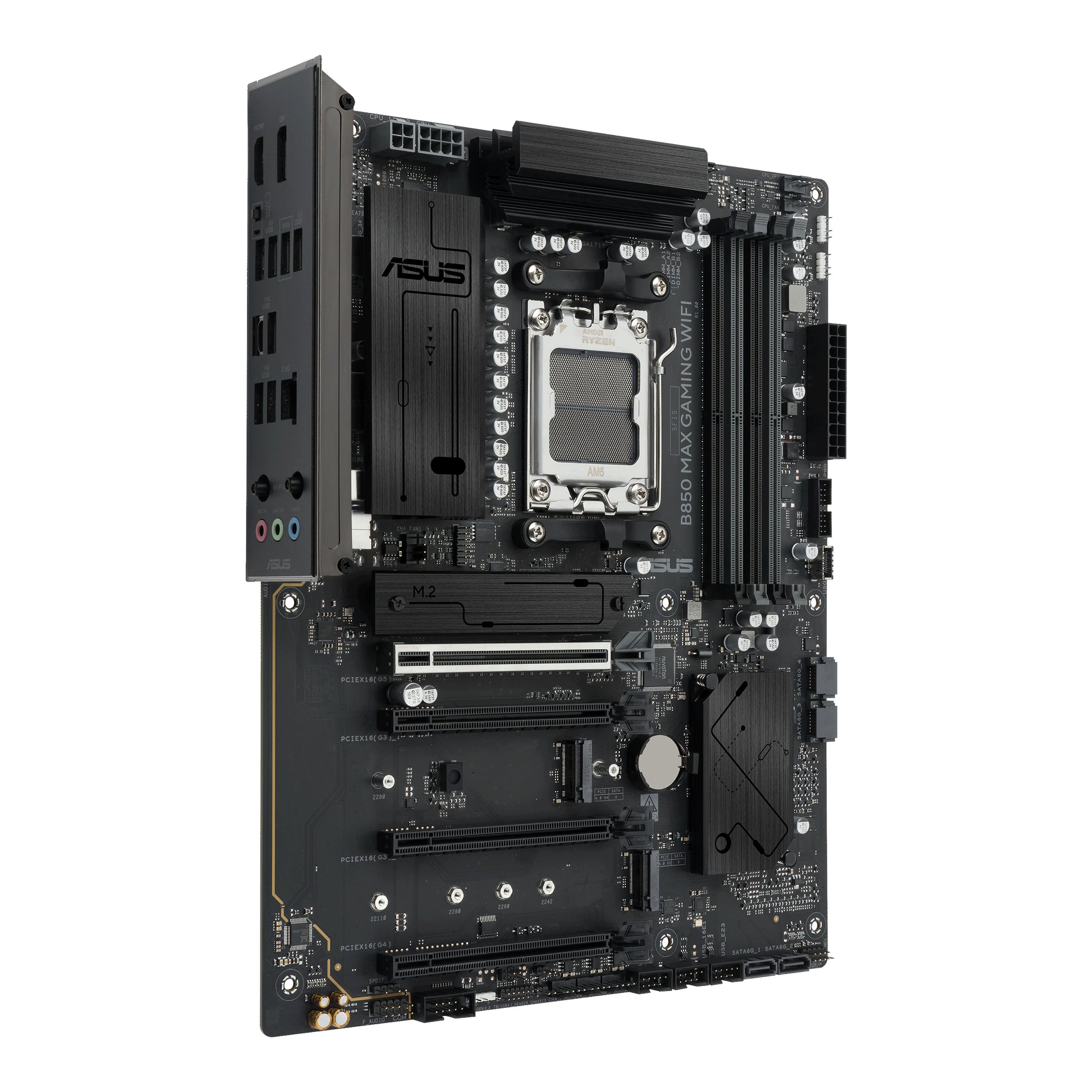

ASUS B850 MAX GAMING WIFI Motherboard, AMD B850, Socket AM5, ATX
ASUS B850 MAX GAMING WIFI
B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specs
Processor
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 / 8000 / 9000 Series |
Chipset & Form Factor
| Motherboard chipset | AMD B850 |
| Chipset family | AMD |
| Form factor | ATX |
| Component for | PC |
| Product colour | Black |
| Cooling type | Passive |
| OS support | Windows 10 x64, Windows 11 |
| Max resolution | 7680 × 4320 (8K) |
Memory
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Max memory speed | 9000 MHz |
| Max memory per slot | 64 GB |
| Maximum internal memory | 256 GB |
| ECC compatibility | ECC & Non-ECC |
| Unbuffered memory | Yes |
Storage Controllers
| Supported storage interfaces | M.2, SATA III |
| Supported drive types | HDD & SSD |
| Total drives supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
BIOS
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| BIOS FlashBack button | Yes |

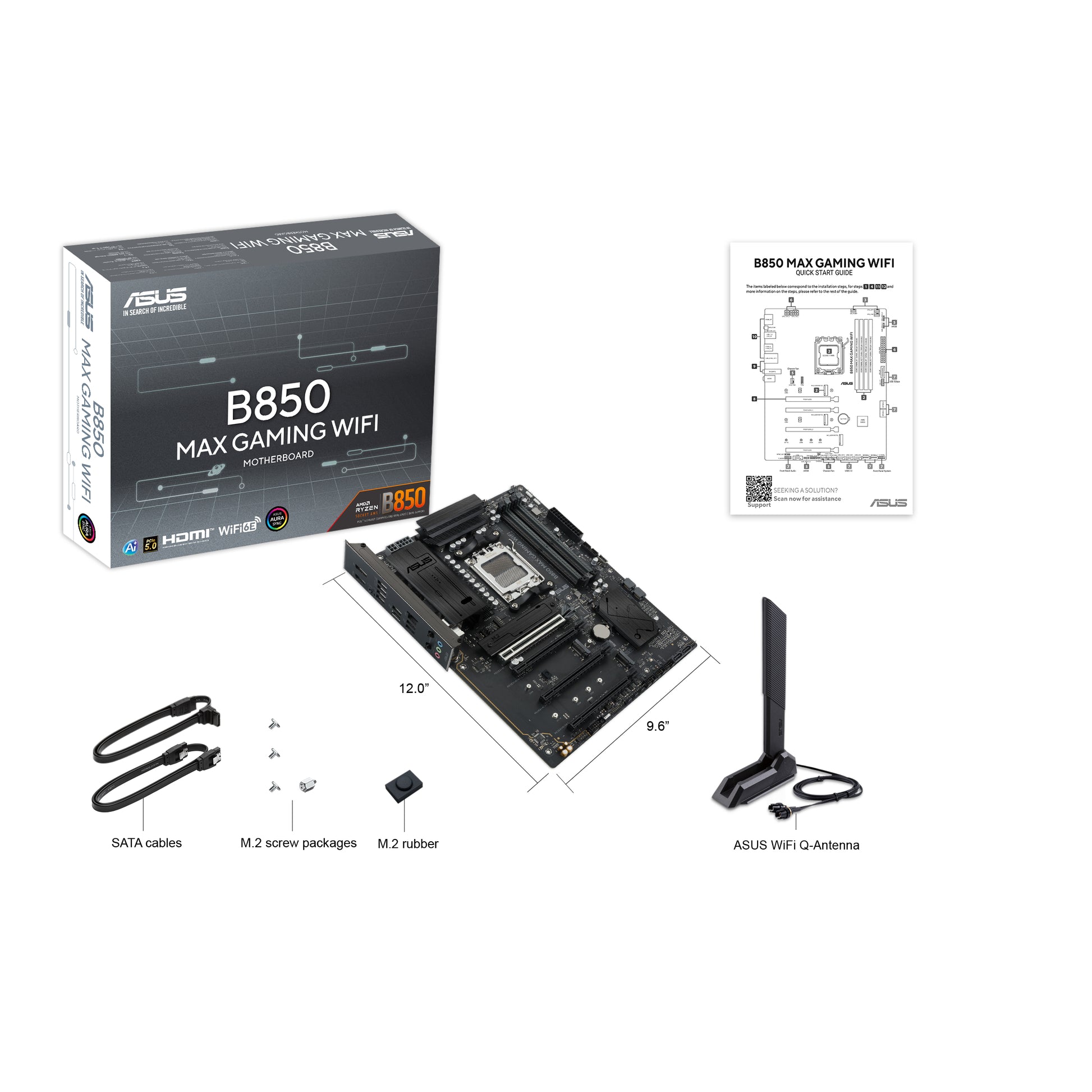

What's Included
| SATA cables | Yes |
| Wi-Fi antenna | Yes |
| Screws | Yes |
Expansion Slots
| PCIe x16 (Gen 5.x) slots | 1 |
| PCIe x16 (Gen 4.x) slots | 1 |
| PCIe x16 (Gen 3.x) slots | 2 |
| M.2 slot 1 (PCIe 5.0, up to 2280) | 1 |
| M.2 slot 2 (PCIe 4.0, up to 2280) | 1 |
| M.2 slot 3 (PCIe 4.0, up to 22110) | 1 |
| On-board graphics | No (discrete GPU required) |
Network
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet ports | 1 |
| Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi antenna jacks | 2 |
| Bluetooth version | 5.4 |

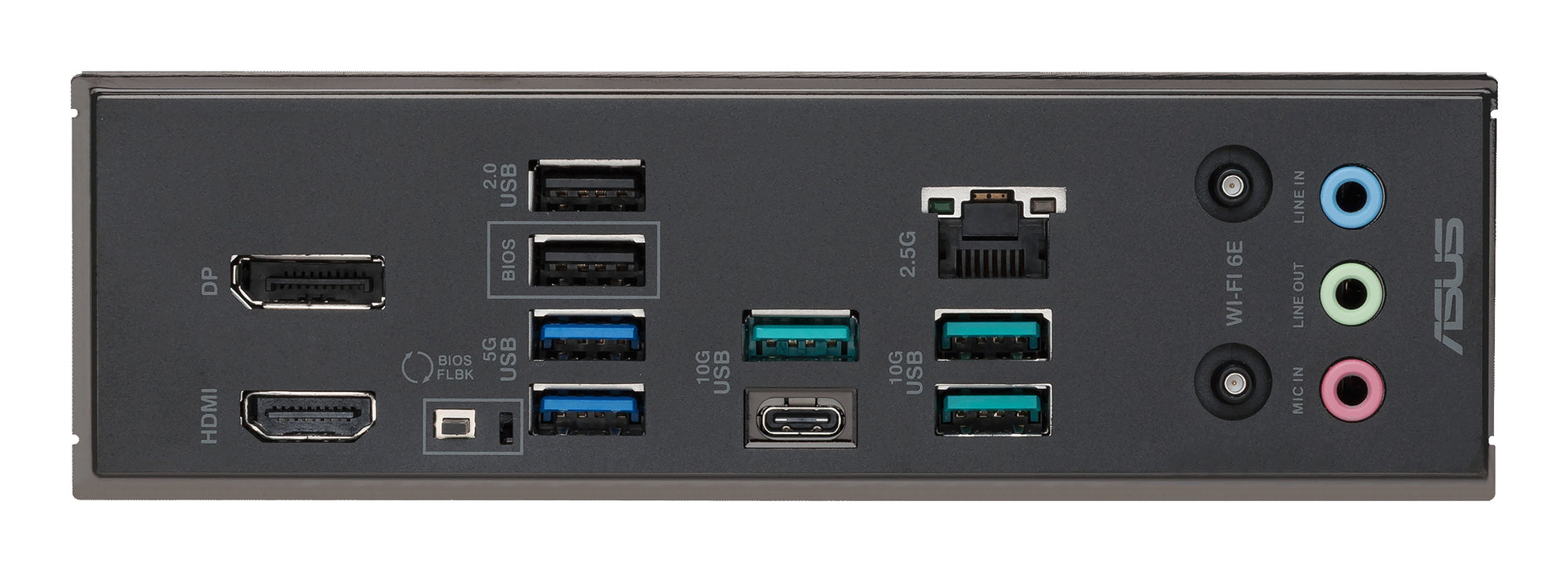

Rear Panel I/O Ports
| USB 2.0 Type-A | 2 |
| USB 3.2 Gen 1 Type-A (5Gbps) | 2 |
| USB 3.2 Gen 2 Type-A (10Gbps) | 3 |
| USB 3.2 Gen 2 Type-C (10Gbps) | 1 |
| HDMI (v2.1) | 1 |
| DisplayPort (v1.4) | 1 |
| Ethernet (RJ-45) | 1 |
| Headphone output | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| VGA / DVI-D | None |
Internal I/O Headers
| USB 2.0 headers | 3 |
| USB 3.2 Gen 1 headers | 2 |
| SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX power (24-pin) | Yes |
| EPS CPU power (8-pin) | 1 |
| 12V power connector | Yes |
| CPU fan connector | 1 |
| Chassis fan connectors | 4 |
| Water pump connector | 1 |
| Thunderbolt header | 1 |
| RGB LED headers (Aura Sync) | 3 |
| Molex power connector (4-pin) | 1 |
| TPM connector | Yes |
| Chassis intrusion connector | Yes |
| COM connector | 1 |
Audio
| Audio output channels | 7.1 channels |
Physical
| Dimensions (W × D) | 305 × 244 mm |
| Height | 48 mm |
| Weight | 1.05 kg |
| Package dimensions | 353 × 273 × 68 mm |
| Package weight | 1.26 kg |
Other
| EAN / GTIN-13 | 4711636465519 |
| MPN | 90MB1PR0-M0EAY0 |
