Description
be quiet! Power Zone 2, 1200W, Semi-passive zero-RPM cooling, 2 x 90' angled 12V-2x6 connectors and PCIe 5.1/ATX 3.1 compatibility, 10-year manufacturer's warranty.

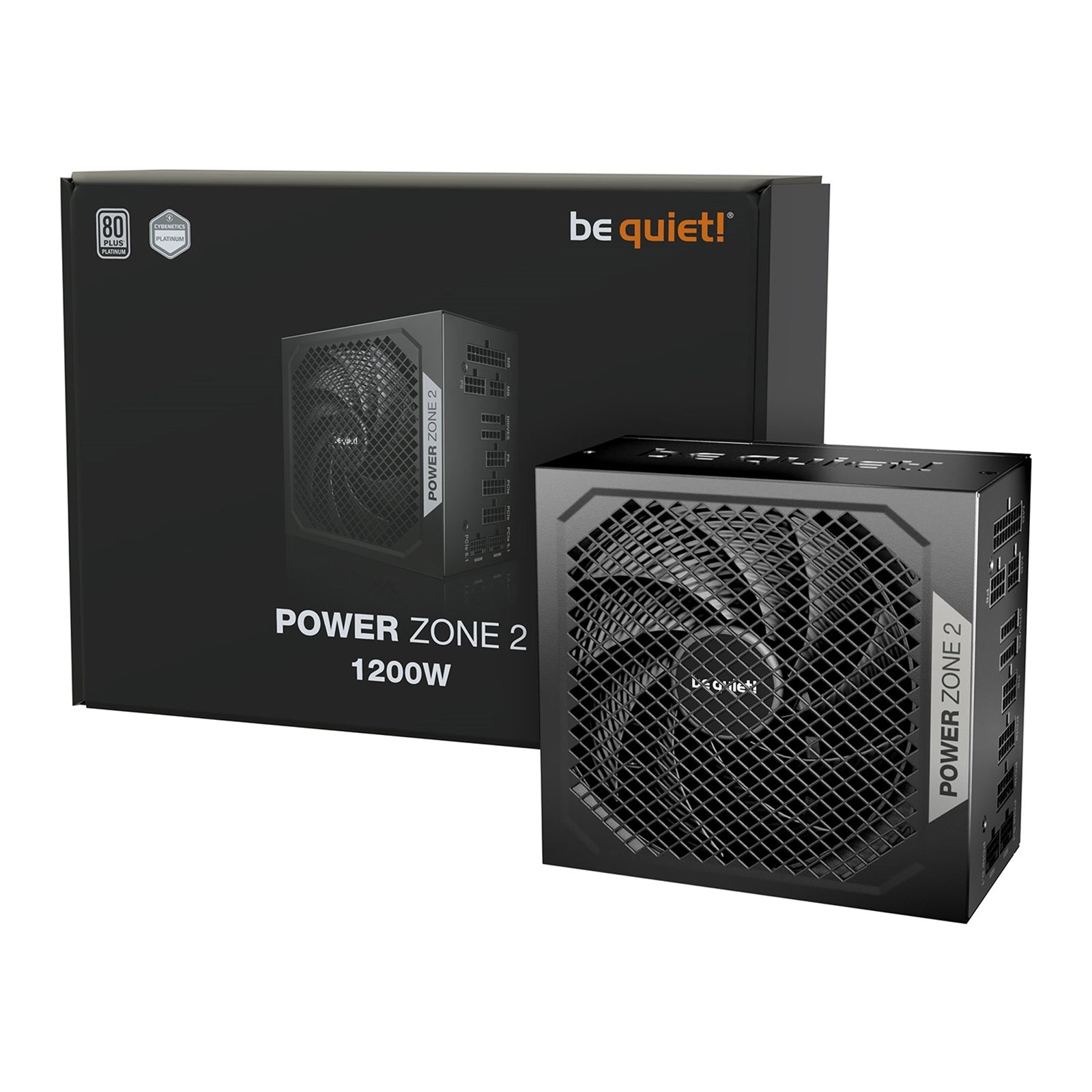

The be quiet! Power Zone 2 1200W (MPN: BP030EU) is a high-performance, fully modular power supply engineered for enthusiast gaming PCs and professional workstations. Designed to meet the latest ATX 3.1 standard, it delivers PCIe 5.1 compatibility with native 12V-2x6 connectors for next-generation GPUs. With 80 PLUS Platinum efficiency and semi-passive cooling, it provides exceptional power stability, efficiency, and near-silent operation, backed by a 10-year manufacturers warranty. Noise Levels:: Extremely quiet at low to medium loads; increases gradually under sustained full load
Specs
What's Included
| Cable Length: | Up to ~100cm maximum cable length |
Network
| Model / MPN: | Power Zone 2 1200W (BP030EU) |
| Form Factor: | ATX 3.1 (EPS 12V v2.92) |
| Power Output: | 1200W continuous / ~1270W peak |
| Efficiency Rating: | 80 PLUS Platinum |
| Input Voltage: | 100240VAC |
| Input Frequency: | 5060Hz |
| Input Current: | ~15A @ 230VAC, ~7.5A @ 115VAC |
| Power Factor: | 0.97 at full load (active PFC) |
| Modern Standby: | Supported; low standby power consumption |
| Operating Temperature: | Up to 40�C |
Physical
| Dimensions: | ~160 x 150 x 86mm (W x D x H) |
Other
| Rail Operation: | Single 12V rail rated at approximately 100A+ |
| Additional Rails: | +3.3V and +5V auxiliary rails; -12V and +5VSB supported |
| Hold-up Time: | Compliant with ATX 3.1 specifications |
| Protections: | OCP, OVP, UVP, OPP, OTP, SCP, surge and inrush protection |
| Fan: | 140mm Pure Wings 3 fan with semi-passive zero-RPM operation |
| Modularity: | Fully modular cable system using flat and sleeved cables |
| Connectors: | 1 x 20+4-pin ATX1 x 8-pin CPU (P8 / EPS)1 x 4+4-pin CPU (P4+4 / EPS)2 x 12V-2x6 PCIe 5.13 x 6+2-pin PCIe7 x SATA power1 x PATA (legacy) |
| Warranty: | 10-year limited manufacturers warranty |
