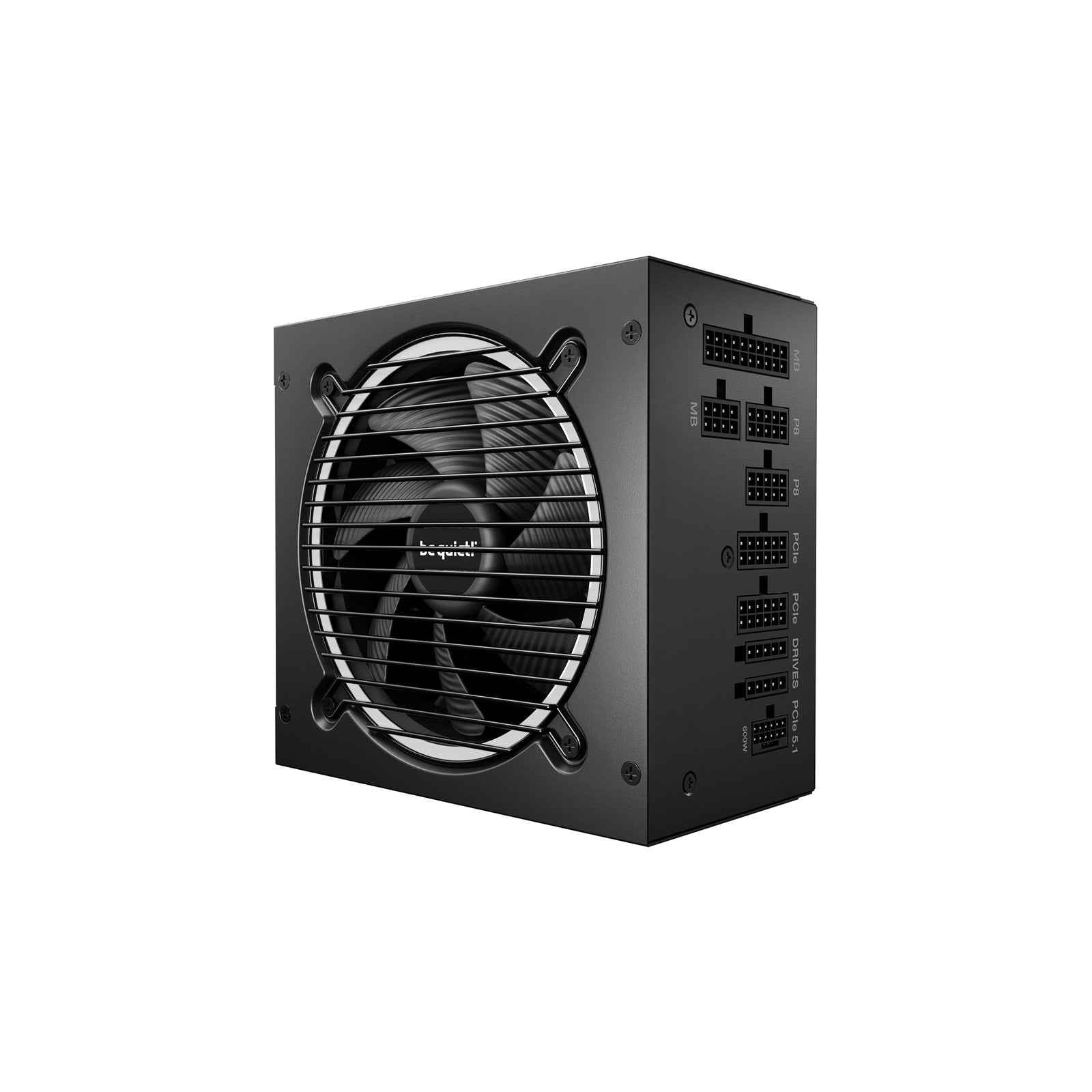

be quiet! Pure Power 13 M 1200W PSU, 80 PLUS Gold, Exceptionally Quiet 120mm Fan, ATX 3.1, 10 Year Warranty
80 PLUS Gold efficiency (up to 93.5%)ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectorsHandles massive power excursionsExceptionally silent semi-passive 120mm be quiet! fanSemi-passive construction for quiet and energy-saving operationLLC technology for advanced stability and voltage regulationOne massive high-performance 12V-railOne PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUsFull suite of safety featuresMeets latest requirements for modern standby10-year manufacturers warranty 80 PLUS certificationGoldCybenetics ETAGoldEfficiency (%) at 230V, 2% load75.9Efficiency (%) at 230V, 10% load91.2Efficiency (%) at 230V, 20% load93.4Efficiency (%) at 230V, 50% load93.6Efficiency (%) at 230V, 100% load90.8 Protection: OTP (over temperature protection)YesOCP (over current protection)YesOPP (over power protection)YesSCP (short circuit protection)YesOVP (over voltage protection)YesUVP (under voltage protection) YesSIP (Surge & Inrush protection)Yes Safety certification: BSMIYesCBYesCCCYesCEYescRUus-cTUVusYesCUYesFCCYesRCMYesT�VYesUKCAYesIRAMYes Scope of delivery: Thumb screws-ScrewsYesCable tiesYesVelcro cable ties-User manual languagesCN, DE, EN, ES, FR, JP, PL, RU, TWOCK slot bracket with switch / OCK jumper-SFX-to-ATX adapter bracket- Service: Warranty (Years)10Express replacement service in first year-International hotline / free of chargeYes/ DE, FR
Specs
What's Included
| Cables and connectors | Modular cablesYesSleeved cablesYesFlat cablesYesMaximum cable length (cm)95Cable length to motherboard (cm)55No. of cables8ATX-Motherboard (20+4-pin)1P4+4 (CPU)1P8 (CPU)1P4 (CPU)-12V-2x6 cables1PCI-E 6+2-pin (GPU)4PCI-E 6-pin (GPU)-SATA6PATA2FDD (Floppy)- |
Other
| Exceptional quiet, superior features | Pure Power 13 M 1200W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 1200W offers the best combination of features with outstanding compatibility. |
| General data | ModelPURE POWER 13 M | 1200WContinuous power (W)1200Peak power (W)1250Form factorATX 3.1Form factor EPS 12VVersion 2.92TopologyLLC + SR + DC/DCDigitally controlled-Voltage (Vac)100 - 240Frequency (Hz)50 - 60Input current (A)15 / 7.5Power factor at 100% load>0.97Modern standbyYesPower consumption in standby (W)<0.1Average life time (h / 25�C)>100,000Operating temperature up to (�C)40 |
| Fan and cooling technology | Cybenetics LAMBDAAFanSilence-optimized be quiet! fanFan size (mm)120Bearing technologyRifleMotor technology4-pole fan motorMax. fan speed (rpm)2700dB(A) at 10% load9.8dB(A) at 20% load9.8dB(A) at 50% load11.6dB(A) at 100% load32.3 |
| Output | Multi-rail operation (12V rails)-12V single rail operationYesOverclocking key-+3.3V (A)22+5V (A)22+12V1 (A)100+12V2 (A)N/A+12V3 (A)N/A+12V4 (A)N/A+12V5 (A)N/A+12V6 (A)N/A-12V (A)0.3+5Vsb (A)3Max. combined power 12V (W)1200Max. combined power 12V-2x6 (W)600Max. combined power 3.3V + 5V (W)120Hold-up time at 100% load (ms)19.11Hold-up time at 80% load (ms)25.54Power good signal (ms)100 - 150 |
| Environmental directives | ENERGY STAR9.0ErPYesWEEEYesRoHSYesTriman- |
| Casing | Dimensions without cable (L x W x H), (mm)160 x 150 x 86Weight (kg)2.69ColorBlack |
