Description

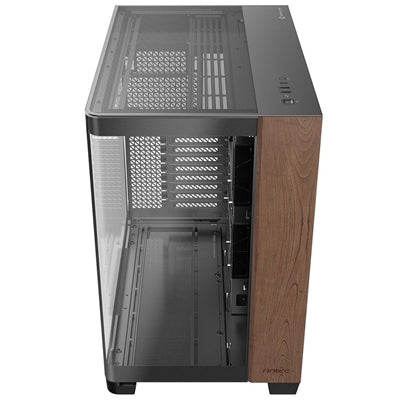

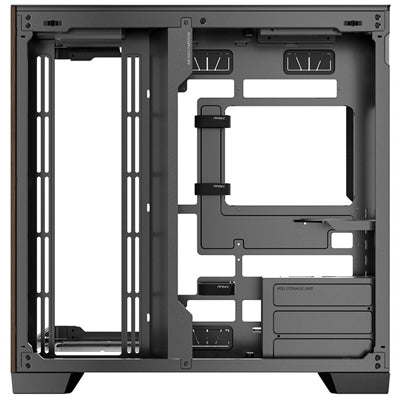

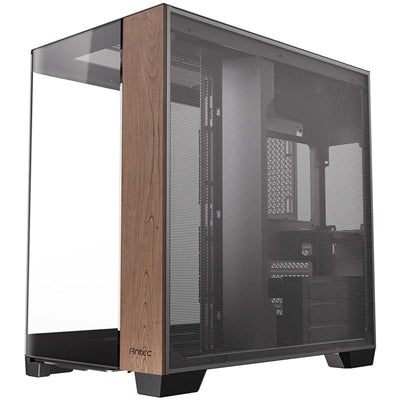

Antec Constellation C8 Curve Wood Full Tower Case, E-ATX/ATX/mATX/ITX, Curved Glass, Walnut Wood, Dual Chamber

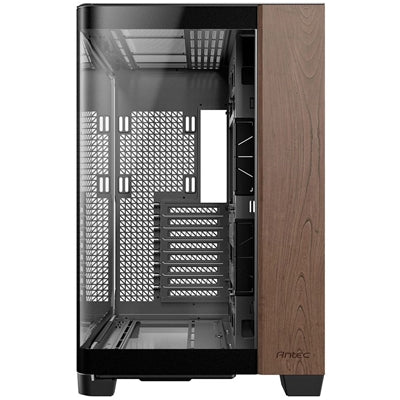

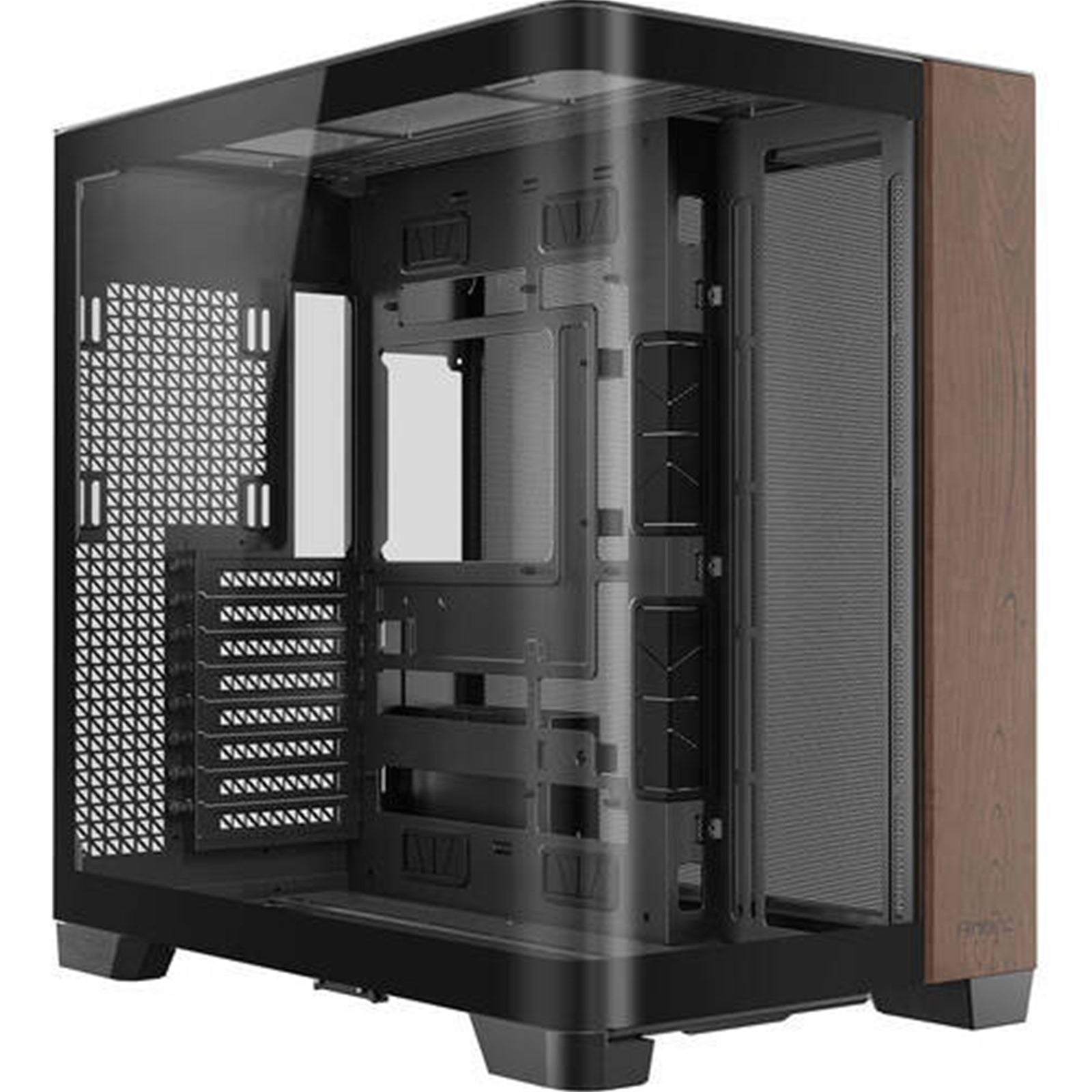

Super wide angle single curved glass with exotic wood: C8 Curve Wood employs single piece of curved tempered glass panel which provides an uninterrupted panoramic view. Right side of front is made of wood (walnut) that could be seamlessly integrated into your interior design style. Support Back-Connect Motherboards: Plug in cables from behind to give front a cleaner look and a smoother airflow channel. Bottom fan configuration: Comes with interchangeable fan brackets to cater to fans of different sizes. Dual Chamber: Independent cooling for CPU/GPU on the left side & PSU/Drives on the right side. Air intake and dust filter: Top - Full mesh panelRight Side - Full mesh panelBottom - Full-sized pull-out dust filter Motherboard support E-ATX(= 280 mm), ATX, Micro-ATX, ITXCPU cooler max height = 175mmGPU max length = 440mmPower Supply max length = 210mm
Specs
Processor
| Max CPU Cooler Height | = 175mm |
Storage Controllers
| Modular Drive Trays | Supports up to 3 drives: 1 *3.5" HDD & 2* 2.5" SSD |
| Expansion Slots | 8 |
| 3.5" | 1 |
| 2.5" | 2 |
Network
| Dust Filter | Bottom |
| Net Weight | 10.78 Kg |
| Gross Weight | 14.18 Kg |
| Warranty | 2 Years |
Rear Panel I/O Ports
| Rear | 120 / 140mm |
| Rear | 120mm |
Physical
| Form Factor | Full Tower |
| Materials | Steel + Plastic + Glass + Wood |
| Mainboard Support | E-ATX(280mm), ATX, M-ATX, ITX |
| Front Access & Controls | Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1,Headphone/Mic Combo Jack |
| Side Panel | 4mm Tempered Glass |
| Max GPU Length | = 440mm |
| Max PSU Length | (Not include cable)= 210mm |
Other
| Vertical Cooling | Can accommodate three 120mm/140mm or two 160mm fans each on top and bottom for efficient GPU cooling. |
| Best Cooling Design | Support 3 x 360mm radiators on top, bottom, and side simultaneously for liquid cooling. |
| Cavernous space for extreme liquid cooling | Top, bottom and right side all support THICK 360mm radiators, providing ultra cooling capability and efficiency. |
| Best Cooling Design | Up to 10 fans simultaneously.Supports 2 x 160mm fans on top / 2 x 160mm fans on bottom / 1 x 140mm fan at rear |

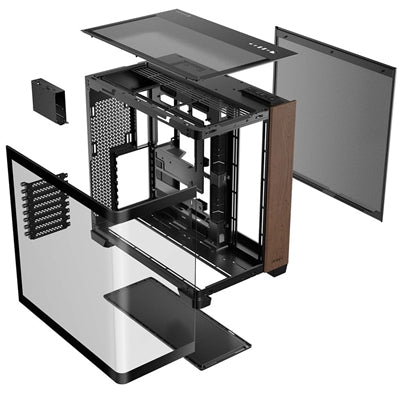

| 0.8mm + 1.0mm thick steel & Tool-Free design | The ultra robust 0.8mm & 1mm steel brings unwavering protection, and the tool-free quick-release panels on the front, top and sides make the assembly and cleaning of components simplified than ever. |

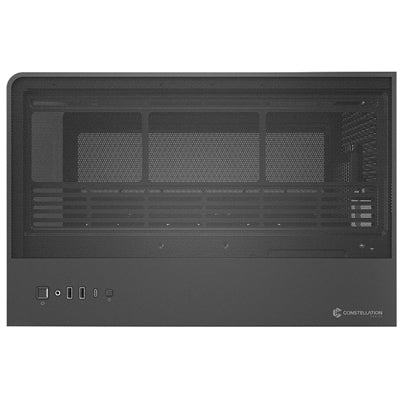

| I/O Panel | Mainstream Type-C (10Gbps) port for high-speed transmissionDust plugs for dust preventionMic/Audio 2-in-1 port |
| Top | 3 x 120 / 3 x 140 / 2 x 160mm |
| Side | 3 x 120 / 2 x 140mm |
| Bottom | 3 x 120 / 3 x 140 / 2 x 160mm |
| Top | 120 / 140 / 240 / 280 / 360mm |
| Side | 120 / 140 / 240 / 280 / 360mm |
| Bottom | 120 / 140 / 240 / 280 / 360mm |
