Description

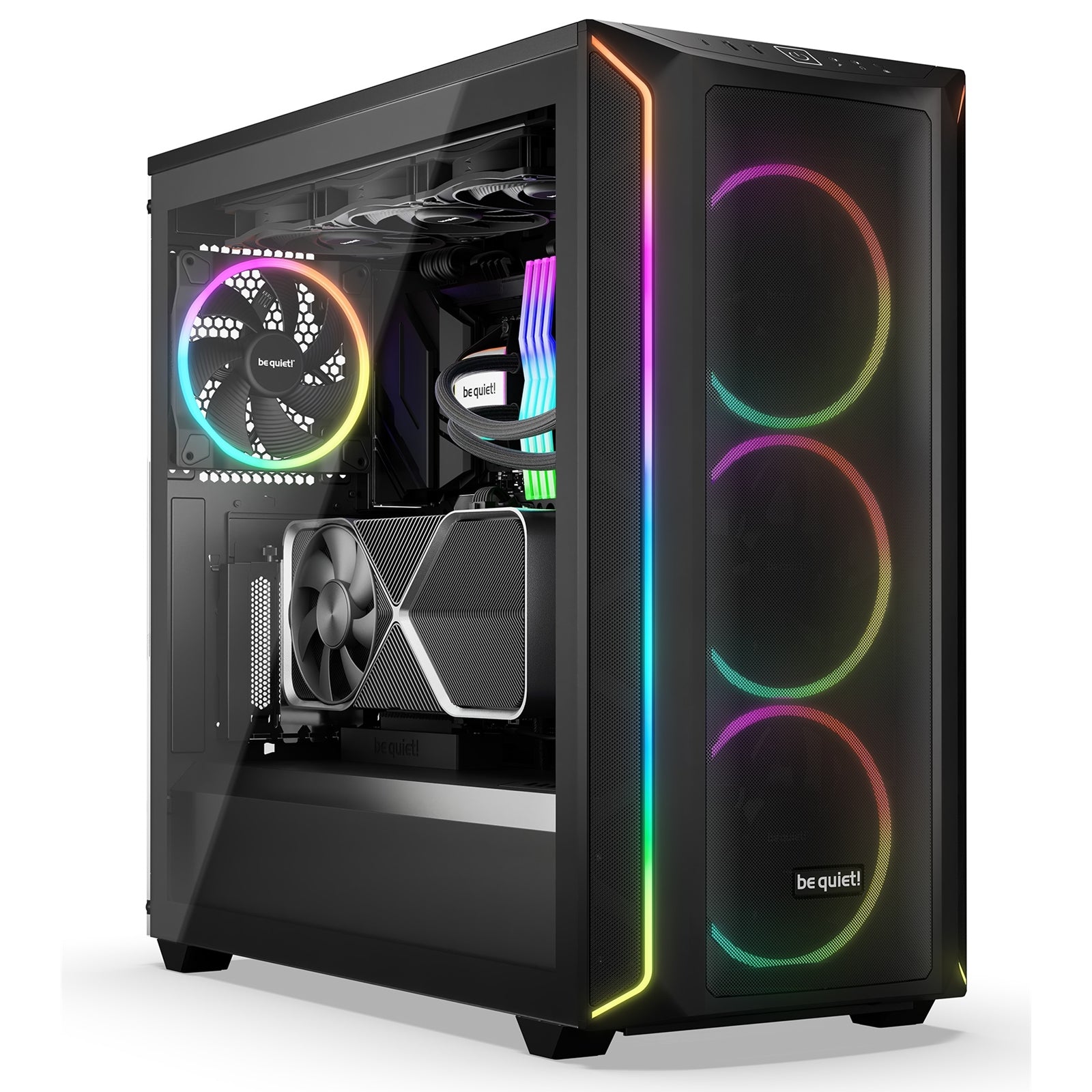

be quiet! Shadow Base 800 FX ARGB Black Mid Tower Chassis, Addressable RGB LEDs, 4x 140mm Fans, mITX/mATX/ATX/EATX
Impressive lighting, exceptional airflow Shadow Base 800 FX Black is an airflow-optimized midi-tower that offers impressive ARGB illumination and provides enough space for extensive components such as huge graphics cards and E-ATX motherboards. ARGB lighting with ARGB controller for maximum illumination optionsMultiple colors and modes for an individual look4 Light Wings 140mm PWM fans for high airflow and quiet operationExceptionally high airflow thanks to an open mesh designSpacious design offers room for largest componentsPWM and ARGB hub includedSimple and tool-less HDD and SSD installationTinted and tempered glass side window allows a superb view Optional radiator installation: Top (mm): 120 / 140 / 240 / 280 / 360 / 420Front (mm); 120 / 140 / 240 / 280 / 360 / 420Side (mm) NoRear (mm): 120Bottom (mm): No Drive bay capacity: 5.25 bays (pcs.): No3.5 slots (scope of delivery): 13.5 slots (max.): 32.5 slots (scope of delivery): 32.5 slots (max.): 7 Material: Top cover: ABSFront panel: ABSSide panel: SteelSide panel window: Tempered glassStands: ABS
Specs
Other
| General data | Model: Shadow Base 800 FX BlackColor option: BlackMotherboard compatibility: E-ATX / ATX / M-ATX / Mini-ITXCase size excl. stands (L x W x H), (mm)550 x 247 x 503Case size incl. stands (L x W x H), (mm)550 x 247 x 522Volume (l): 62.74PSU form factor: ATX PS/2Weight (kg): 12.3Expansion slots: 7 |
| Pre-installed fans | Fan at top: NoFan at front: 3 x Light Wings 140mm PWMFan at side: NoFan at rear: 1 x Light Wings 140mm PWMFan at bottom: NoDimensions (L x W x H), (mm)Front: 140 x 140 x 25 / Rear: 140 x 140 x 25Fan speed at 100% PWM / 12V (rpm): 1500Airflow at 100% PWM / 12V (CFM / m3/h); 56 / 95.14Air Pressure at 100% PWM / 12V (mm H2O): 1.49Noise level at 100% PWM / 12V (dB(A)):23.3Voltage range (V DC):5 - 13.2Input power (W): 4.56Input current (A): 0.38Connector: 4-pin PWMLifespan (h / 25�C): 60,000Fan controller: No |
| Maximum fan installation | Maximum fans: 8Top (mm): 3 x 140 / 3 x 120Front (mm): 3 x 140 / 3 x 120Side (mm); NoRear (mm): 1 x 140 / 1 x 120Bottom (mm): 1 x 140 / 1 x 120PSU shroud: No |
| PSU compatibility | Maximum dimensions excl. bottom fan (mm): 305Maximum dimensions incl. bottom fan (mm): 260 |
| Graphics card | HDD cage (in height of graphics card) installed (mm): 430HDD cage (in height of graphics card) removed (mm): 430Maximum PCIe slots with vertical graphics card (pcs.): 7 |
| Lighting | LED illumination: YesLEDs (pcs.): 40LED type: ARGB - 5VLEDs synchronizable with controller/motherboard: Yes |
| I/O Panel | USB 3.2 Gen. 2 Type C: 1USB 3.2 Type A: 2USB 2.0: NoHD Audio I/O: Mic + AudioQi charger / Quick Charging Option: No |
| Removeable dust filters | Top: NoFront: 1Side: NoBottom: 1 |
| Safety certification | Approvals: CE, UKCA |
