Description

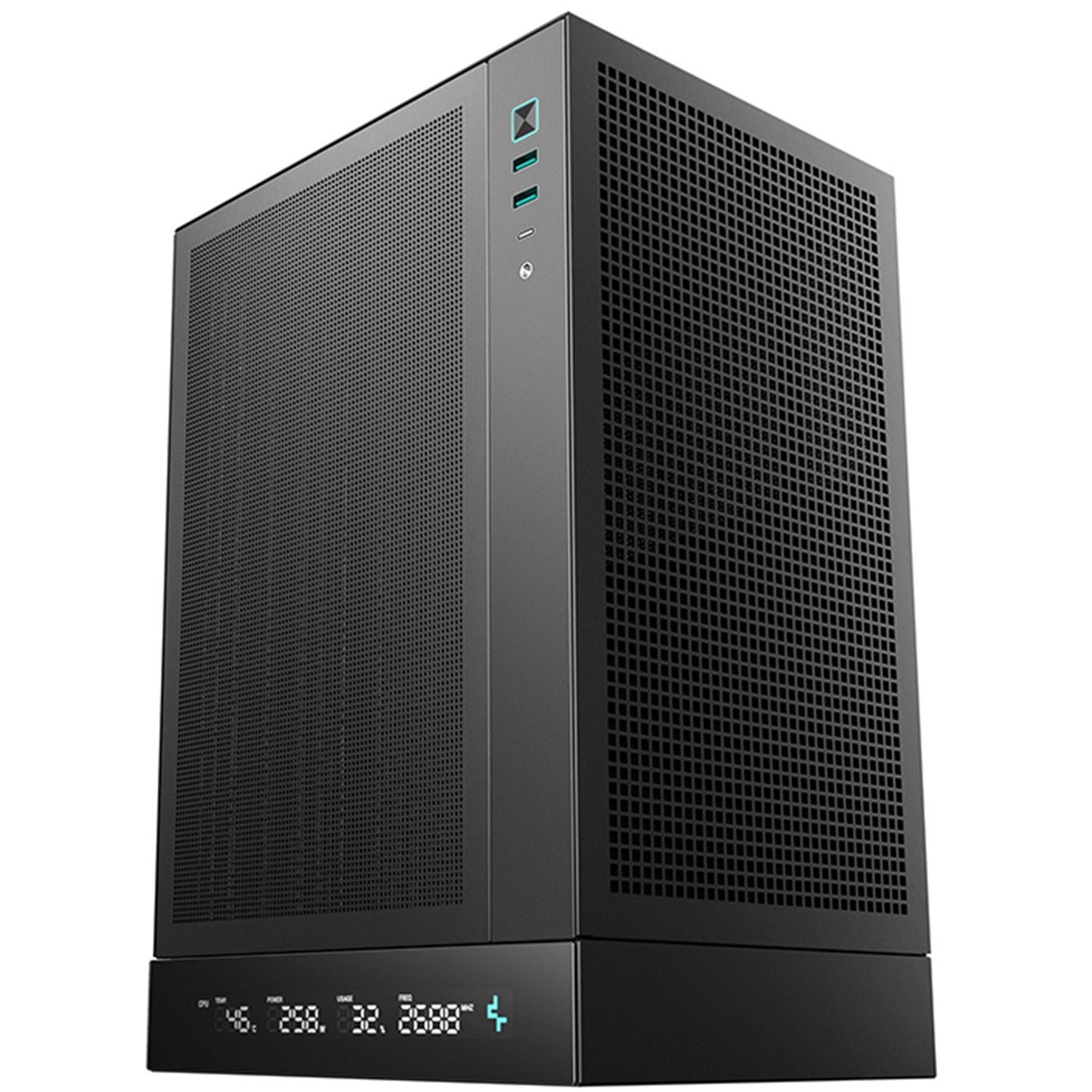

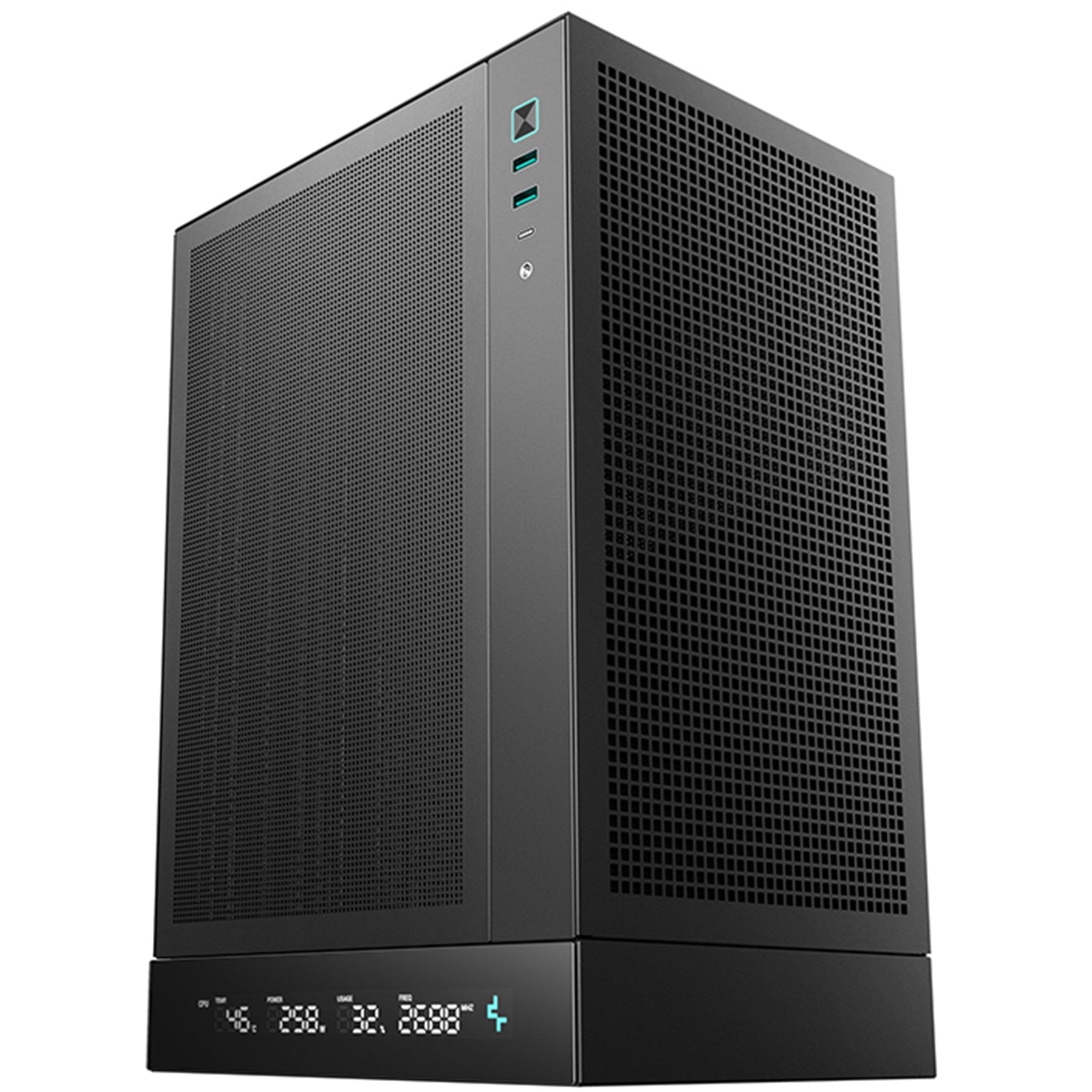

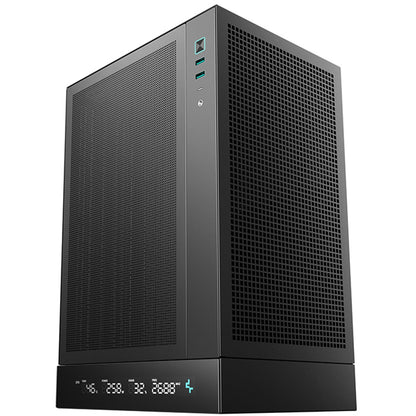

Deepcool CH170 Digital Mini-ITX Case - High Airflow, Supports Water Cooling, Ultra-Quiet Operation, Compact Design for Efficient Space Management

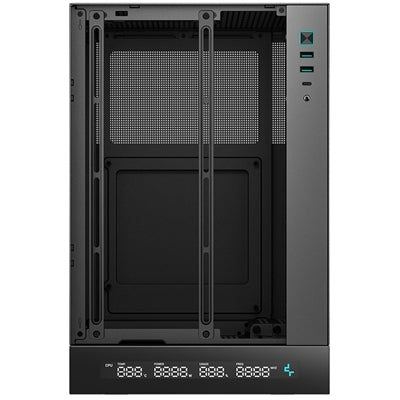

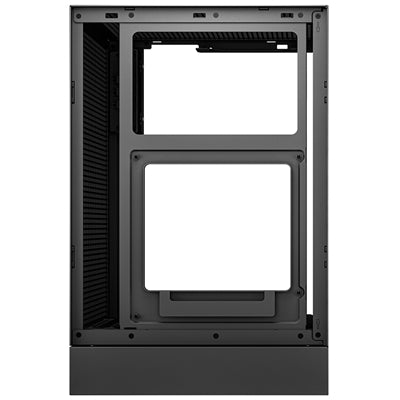

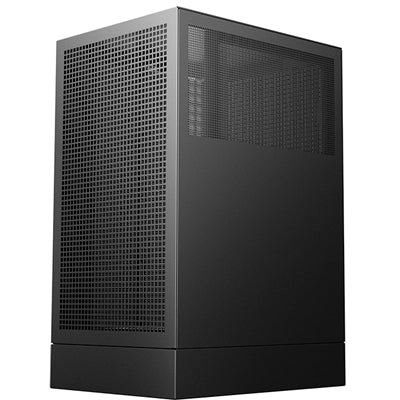

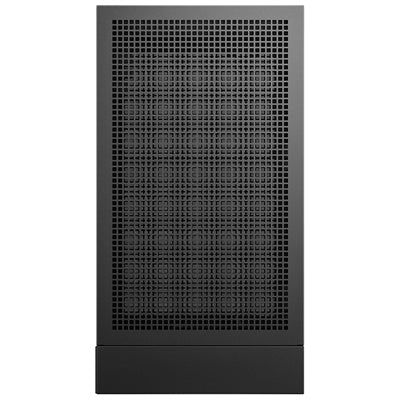

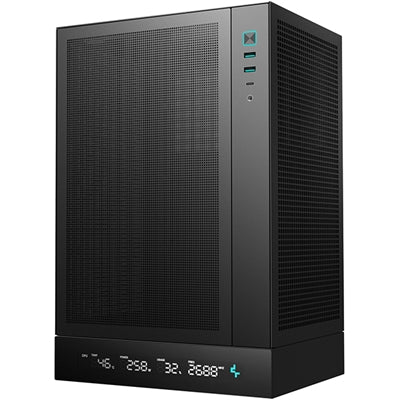

The CH170 DIGITAL is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for a number of different cooling and PSU options.
Specs
Processor
| CPU Cooler Height Limit | 172 mm |
Storage Controllers
| 3.5" Drive Bays | 1 x (2.5 SSD / 3.5 HDD / Front 120 FAN Choose one of the three) |
| 2.5" Drive Bays | 1 x (2.5 SSD / 3.5 HDD / Front 120 FAN Choose one of the three) |
Expansion Slots
| Expansion Slots | 3 |
Rear Panel I/O Ports
| Front I/O Ports | USB3.0 x 2Audio x 1Gen2 TypeC x 1 |
| Rear | 2 x 120 mm |
Physical
| Materials | ABS+SPCC |
| GPU Size Limit | LengthSFX/SFX-L: 305mm / ATX: 230mmHeight138 mmWidth65mm (3 Slots) |
| Product Dimensions | 380 x 200 x 250 mm (LxWxH) |
| Net Weight | 3.4KG |
Other
| Motherboard Support | Mini-ITX |
| Pre-Installed Fans | None |
| Bottom | 1 x 120 mm |
| Side | 2 x 120 mm |
| Power Supply Type | ATX PS2(maximum length: 140mm)/ SFX / SFX-L |
