Description

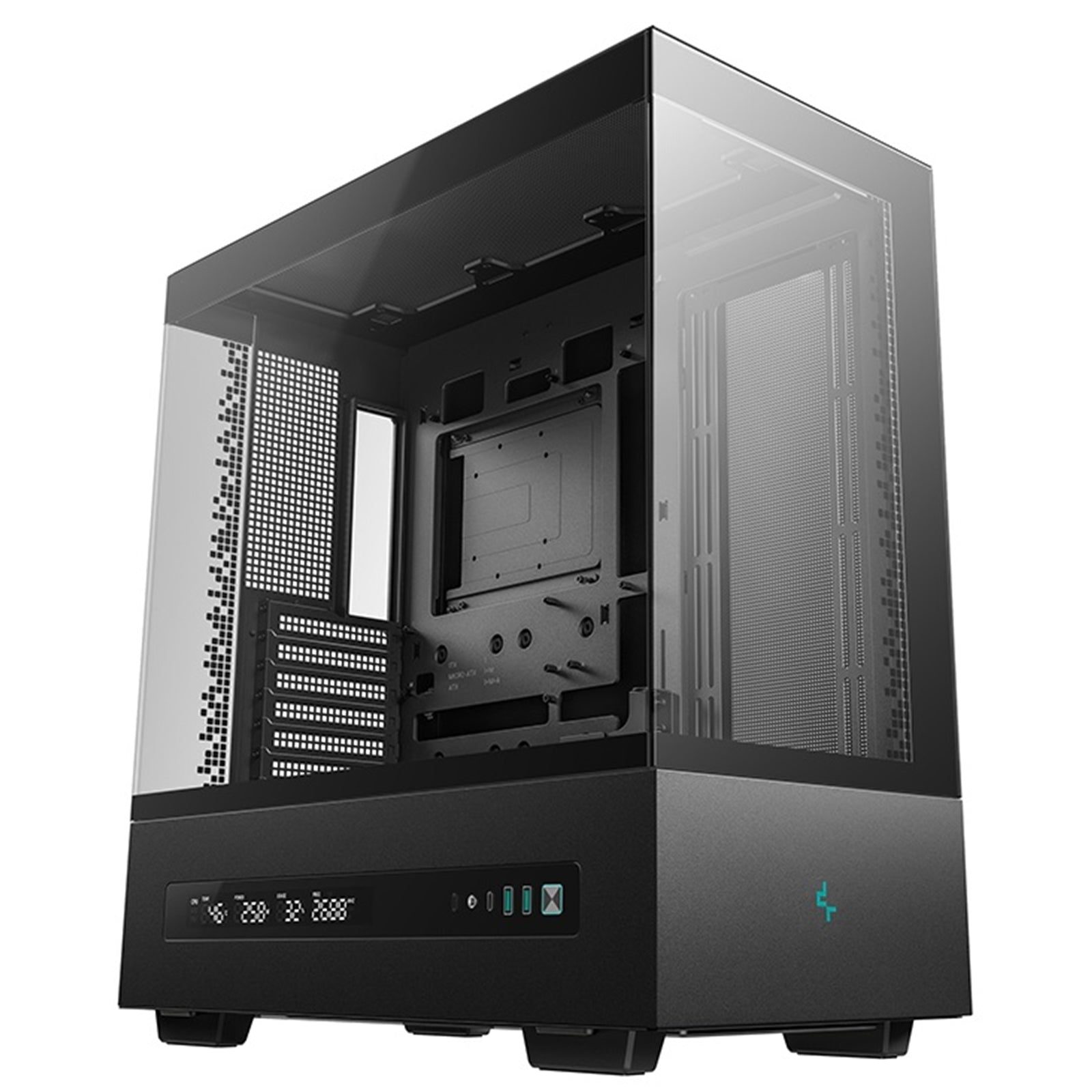

DeepCool CH690 Digital ATX Mid-Tower Case, High-Airflow PC Case with Semi-Glass Panel, USB-C Port, Support for 420mm Radiator, 450mm GPU, ATX PSU, Black
The DeepCool CH690 Digital Black ATX Case: is designed with beauty and adaptability in mind. It features a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.
Specs
Processor
| CPU Cooler Height Limit: | 182mm |
Storage Controllers
| Drive Bays: | 1 x 3.5" Drive Bay 2 x 2.5" Drive Bays |
Expansion Slots
| Expansion Slots: | 8 |
Rear Panel I/O Ports
| Front I/O Ports: | 2 x USB 3.0 1 x USB Type-C (Gen 2) 1 x HD Audio/Mic |
Physical
| Dimensions: | 552mm (L) x 332mm (W) x 589mm (H) |
| Net Weight: | 9.8 kg |
| Materials: | ABS, SPCC, Tempered Glass |
| GPU Length Limit: | 450mm |
Other
| Case Type: | Mid-Tower |
| Motherboard Support: | Mini-ITX, Micro-ATX, ATX |
| Pre-Installed Fans: | None |
| Fan Support: | Top: 3 x 120mm / 3 x 140mm Side: 3 x 120mm / 3 x 140mm PSU Shroud: 3 x 120mm / 3 x 140mm Rear: 1 x 120mm / 1 x 140mm |
| Radiator Support: | Top: 120mm / 140mm / 240mm / 280mm / 360mm / 420mm Side: 120mm / 140mm / 240mm / 280mm PSU Shroud: 120mm / 240mm / 360mm |
| Power Supply Type: | ATX PS2 (maximum length: 180mm) |
| Warranty: | 1 Year |
