Description

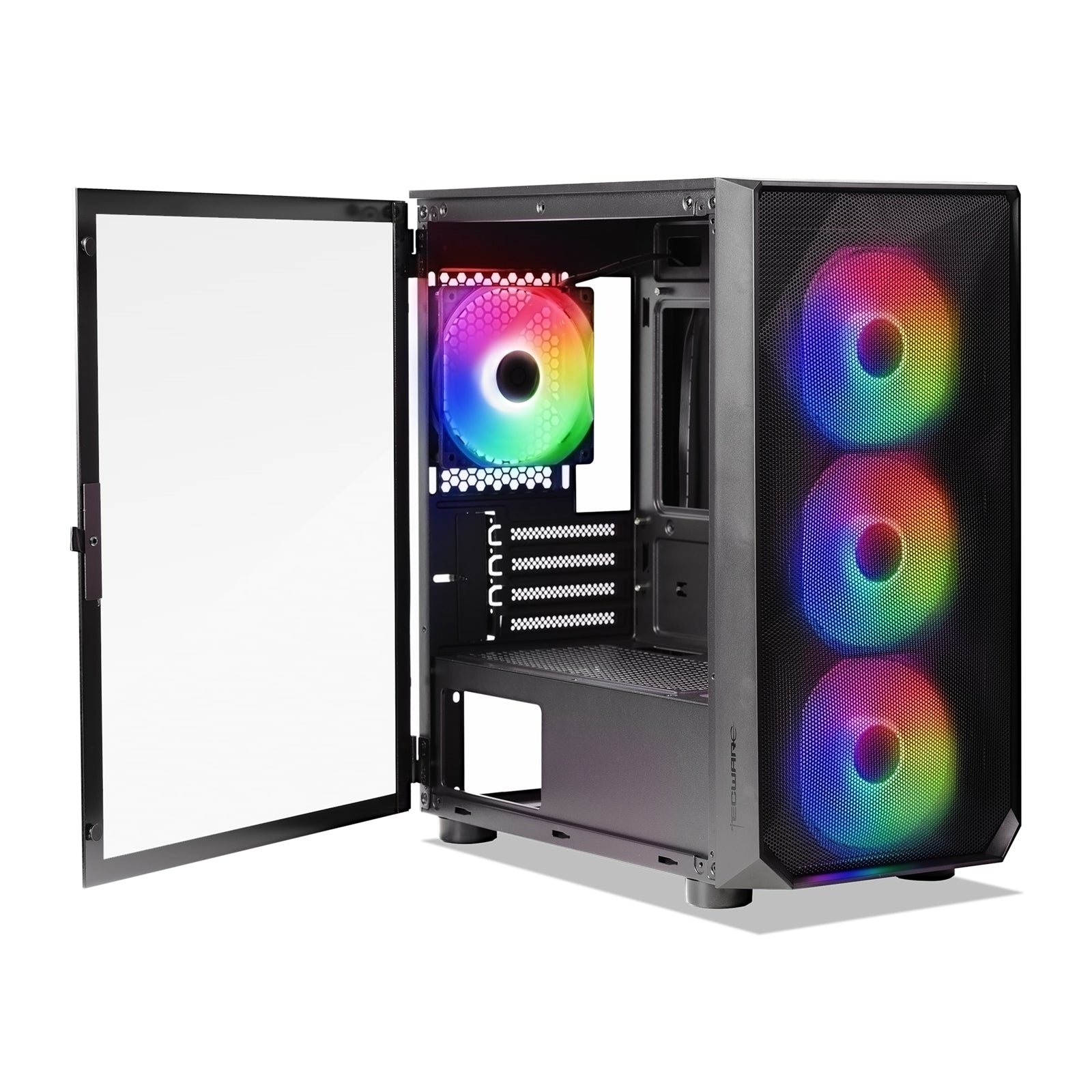

Tecware Forge M Omni Micro-ATX Case - Key-Lockable Tempered Glass, High-Airflow Mesh Front, 4 x 120mm Fans Pre-Installed, mATX/ITX Support, Black
Presenting the Tecware Forge M Omni (TWCA-FORGEM-BKOL) � a sleek and secure micro-ATX chassis ideal for gamers, builders, and professionals alike. It brings together a high-airflow mesh design, tempered glass showcase, and key-lockable side panel for both aesthetics and peace of mind. Pre-installed fans ensure optimal cooling straight out of the box, with additional expansion support for future upgrades. Airflow design:: Full mesh front and multiple vents ensure high air intake and efficient thermal performance Security & Design Features: Key-lockable tempered glass side panel: Enhances physical security while granting easy access via hinge mechanism Maintenance features:: Magnetic top dust filter and bottom PSU filter for easy cleaning
Specs
Processor
| CPU cooler clearance: | Up to approximately 160 mm |
Chipset & Form Factor
| Form Factor: | MicroATX & Mini-ITX compatible |
Storage Controllers
| Drive Bays & Expansion | Drive bay configuration:1 x 3.5 internal1 x 3.5/2.5 removable cage2 x 2.5 (mounted) |
| Included Fans | 4 x 120 mm (3 front, 1 rear) |
| Max Fans Supported | Up to 6 fans |
What's Included
| Cable management: | 22 mm routing space for clean internal layout |
| Cable Management | 22 mm space |
Expansion Slots
| Expansion slots: | 7 x PCIe slots |
Rear Panel I/O Ports
| I/O Ports | 2 x USB 3.0, HD Audio |
Internal I/O Headers
| Motherboard & Internal Clearance | Motherboard support: Micro ATX and Mini ITX |
Physical
| Weight: | Around 4.9 kg |
| Construction Materials: | Polyhedral mesh front for airflow, tempered glass side panel (hinged and key lockable), top magnetic filter, bottom PSU filter, and 22 mm cable management space |
Other
| Physical & Structural | Model: TWCA-FORGEM-BKOL (Forge M Omni, key-lockable) |
| Cooling & Fans | Included fans: 4 x 120 mm black fans (3 at the front intake, 1 at the rear exhaust) |
| Fan capacity: | Supports up to 6 fans total (front, top, rear) |
| GPU clearance: | Up to approximately 315 mm in length |
| PSU compatibility: | Supports PSUs up to ~180 mm length (with HDD cage) |
| Front I/O | Ports:2 x USB 3.0 SuperSpeed portsHD Audio (headphone/microphone combo) |
| Radiator & Cooling Support | Radiator support:Front: 120 mm / 240 mmRear: 120 mmTop: 120 mm / 240 mm (if fans not installed) |
| Security Feature | Hinged tempered glass with key lock |
| Filters | Magnetic top + bottom PSU filters |
