Description

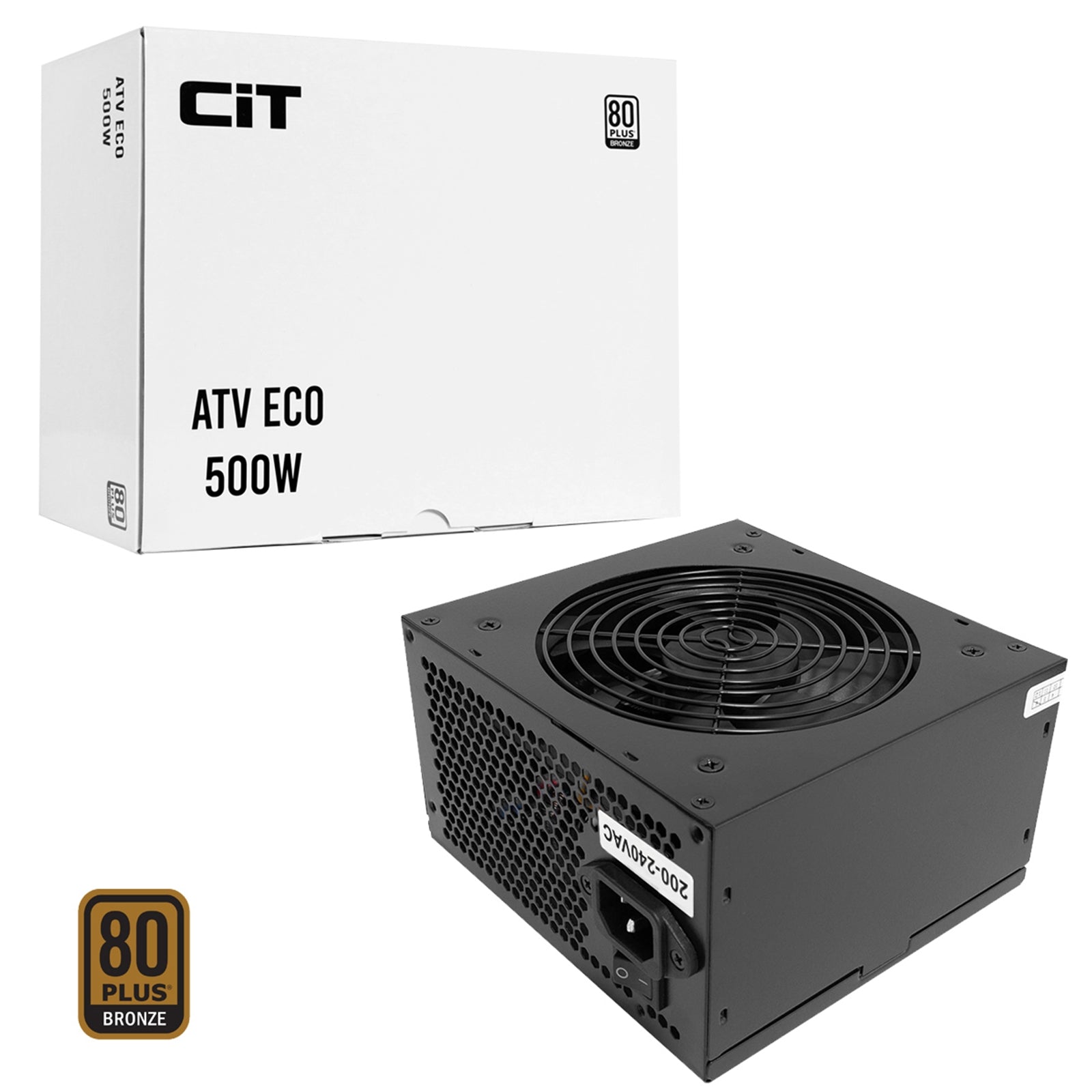

CiT 500w ATV Eco Bronze 500W 230V 12cm Fan APFC
The CiT 500W ATV Eco power supply is perfect for powering a home or office computer and with an 80 PLUS Bronze efficiency rating which guarantees to seamlessly deliver full wattage to your PC system. The ATV Eco power supply housing a 120mm black fan offers both cooling and low noise. Offering a straightforward and reliable way to power your system, we want the ATV Eco to be that simple with a single +12v rail, active PFC and top tier circuit protections, this PSU is built for purpose and can handle all your main computing needs, just plug it in and get to work. The smooth elegant all-black casing and all black cable configuration allows the PSU to fit seamlessly into your PCs theme and supported by a two-year warranty. The CiT ATV Eco is the power supply to deliver reliable and affordable power. 80 Plus Certification: Efficiency rating measures the ratio of output power to input power, the CiT ATV Eco is 80 PLUS Bronze certified delivering up to 85 percent for high efficiency. All Black: The all-black PSU casing and cable configuration the ATV Eco effortlessly fits and blends into the rest of your system to add a sleek and stealth finish. Wired Power Supply: Flat black cables make it easy to connect everything together and easily manage and save the space inside the chassis. Active PFC: CiT have used an active PFC ensures small and light components with great flexibility and control allowing you to operate in universal input range for an excellent performance. Hardware Protection: Top tier circuit protections keeps your build running strong and your hardware safe - OVP (Over Voltage Protection), OPP (Over Power Protection) & SCP (Short Circuit Protection). Dimensions:150mm x 85mm x 140mm (W x H x D)Input Voltage - 230 VACInput Current - 8AInput Frequency Range - 50-60HzPFC - Active PFCPower Good Signal - 100-500msHold Up Time - Greater than or equal to 10msEfficiency - > 82% (85% max)MTBF - 100,000 HoursProtection - OVP / OLP / OPP / SCPPower - 500WOperation Temperature - 0-40�CSafety - CE / CCC / CB / UKCA / ROHSCooling - 120mm Black FanNoise - 38dBA80 Plus Certified - Yes - 80 Plus Bronze Manufacturer Part Number - 500W ATV ECOEAN Number - 5055492414472Has Mains Plug - NoColour - BlackWhat's In The Box - Power SupplyManualCable TiesScrews Unit (Product) Dimensions (mm) - 150mm x 85mm x 140mm (W x H x D)Packaging Dimensions (mm) - 240mm x 200mm x 130mm (W x H x D)Net Weight (KGs) - 1.24 KGsGross Weight (KGs) - 1.47 KGs
Specs
Other
| Single 12V Rail Output | The ATV Eco lines/rails are reliable and consistent to ensure your systems overall performance is high, that is why only one +12V rail is used, this way all the components are using the same power from the same source guarantees consistency between all connections. |
| Low Noise | The ATV Eco is made with a 12cm black fan to achieve the perfect balance of keeping your components cool without having to hear the fan in motion. The ATV Eco runs smooth and safely whilst using the least amount of noise. |
| Warranty | The CiT ATV Eco comes with 2 Years Warranty. |
| AC Input | 230 VAC 8A 50-60Hz |
| DC Output Max | +3.3V+5V +12V1 -12V+5VSB16A 18A 38A 0.3A2.5A500W |
| Connectors | 20+4 Pin Main Connectors: 14+4 Pin 12V Connectors: 1SATA Connectors: 64-Pin Molex Connectors: 26+2 Pin PCI-e Connectors: 2 |
