Description

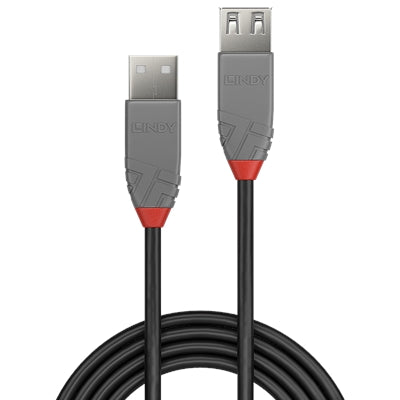

Lindy 36703 2m USB 2.0 Type A Extension Cable
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A Extension cables are the professional choice for high performance connections in commercial AV and IT installations. Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability. Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes. Anthra Line USB 2.0 Type A Extension cables are available in lengths from 0.2m to 5m.
Specs
Storage Controllers
| Storage Temperature | 0�C - 60�C (32�F - 140�F) |
What's Included
| Length | 2 m (6.56 ft) |
| Standard | USB 2.0 |
| Colour | Black |
| Type | Round |
| Jacket Diameter | 4.4 mm (0.17 in) |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| Conductor Gauge | 26/28AWG |
| Shielding | Aluminium Magnesium Braid |
Network
| Packaging Type | Polybag |
| Warranty (Years) | 10 |
| Certificated | RoHS, REACH, UL |
Physical
| Housing Material | PVC |
| USB A Male (approx.) W x D x H | 15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31 in) |
| USB A Female (approx.) W x D x H | 17 x 35 x 9.8 mm (0.67 x 1.38 x 0.39 in) |
| Supported Bandwidth | 480Mbps |
Other
| Connector A | USB 2.0 Type A Male |
| Connector B | USB 2.0 Type A Female |
| Connector Plating | Nickel |
| Pin Construction | Copper |
| Pin Plating | 24K Gold |
| Maximum Resolution | N/A |
| Nominal Attenuation | 5.8db/km |
| Minimum Bend Radius | 16 mm (0.63 in) |
| Operating Temperature | 0�C - 60�C (32�F - 140�F) |
